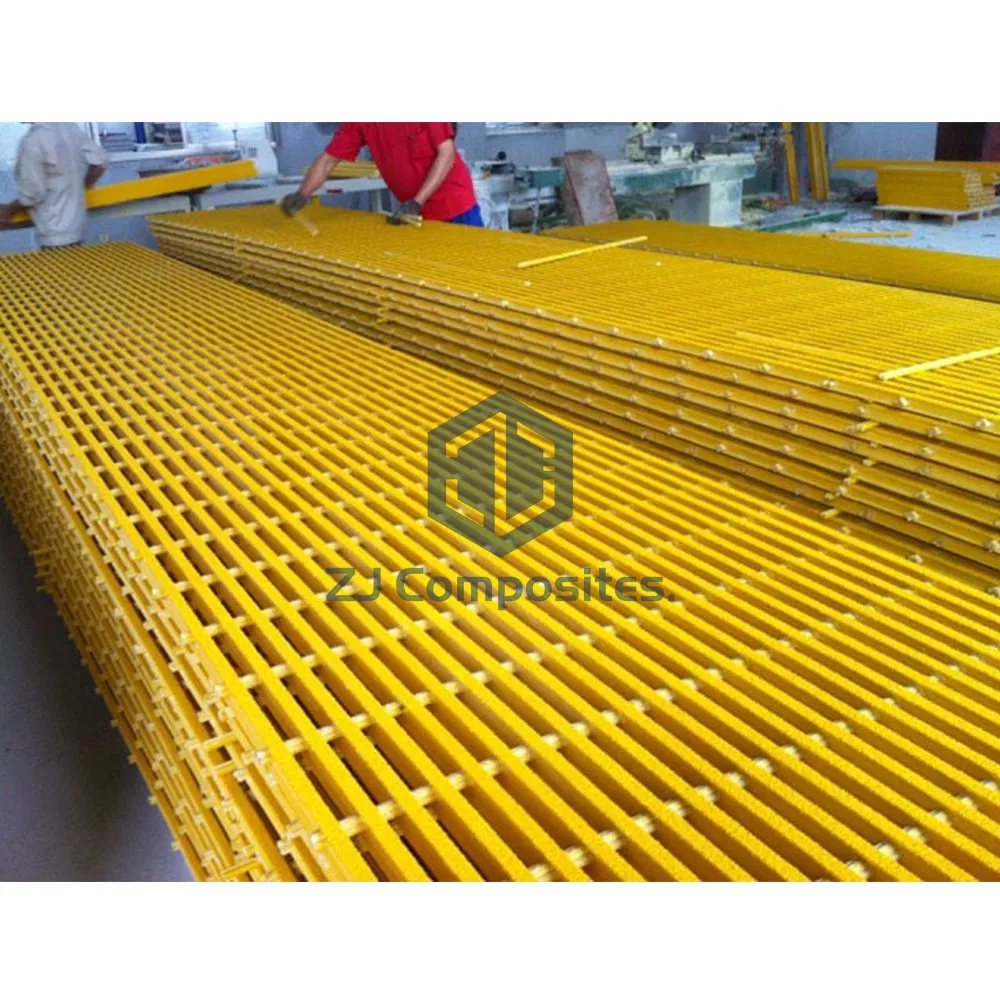

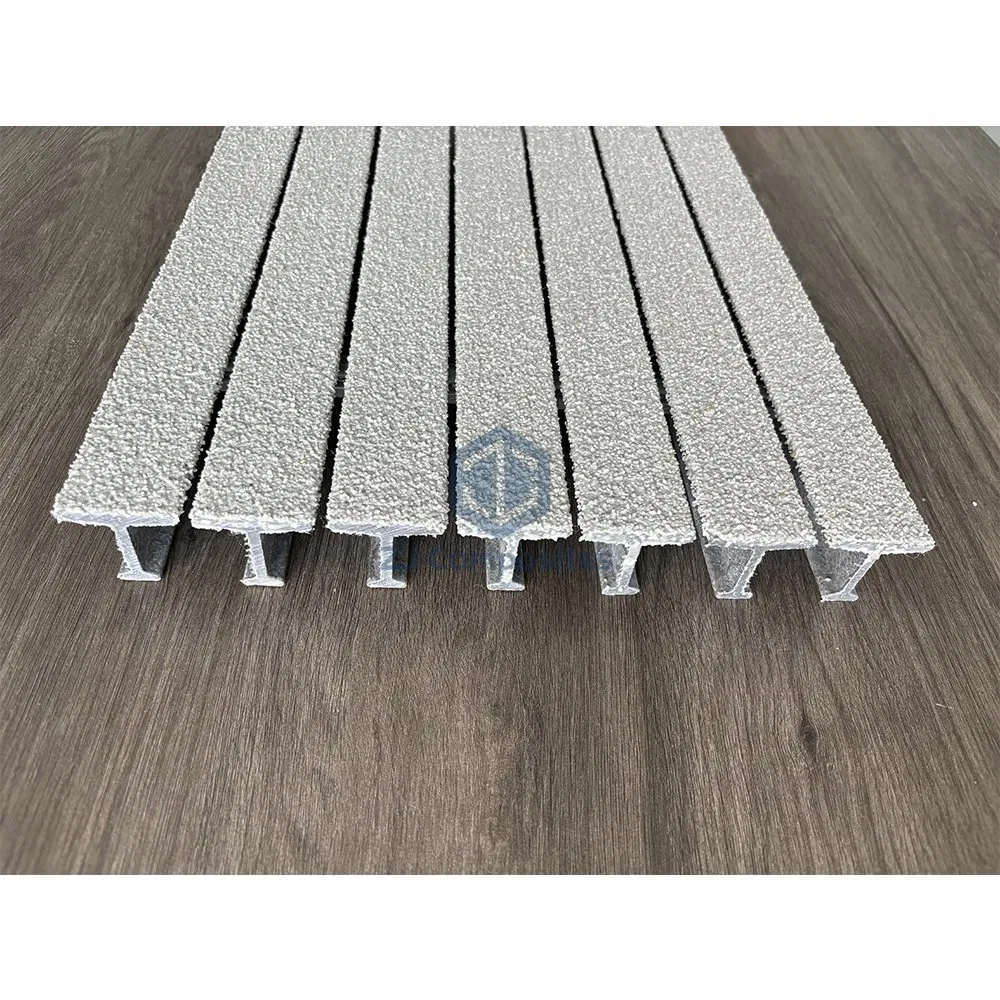

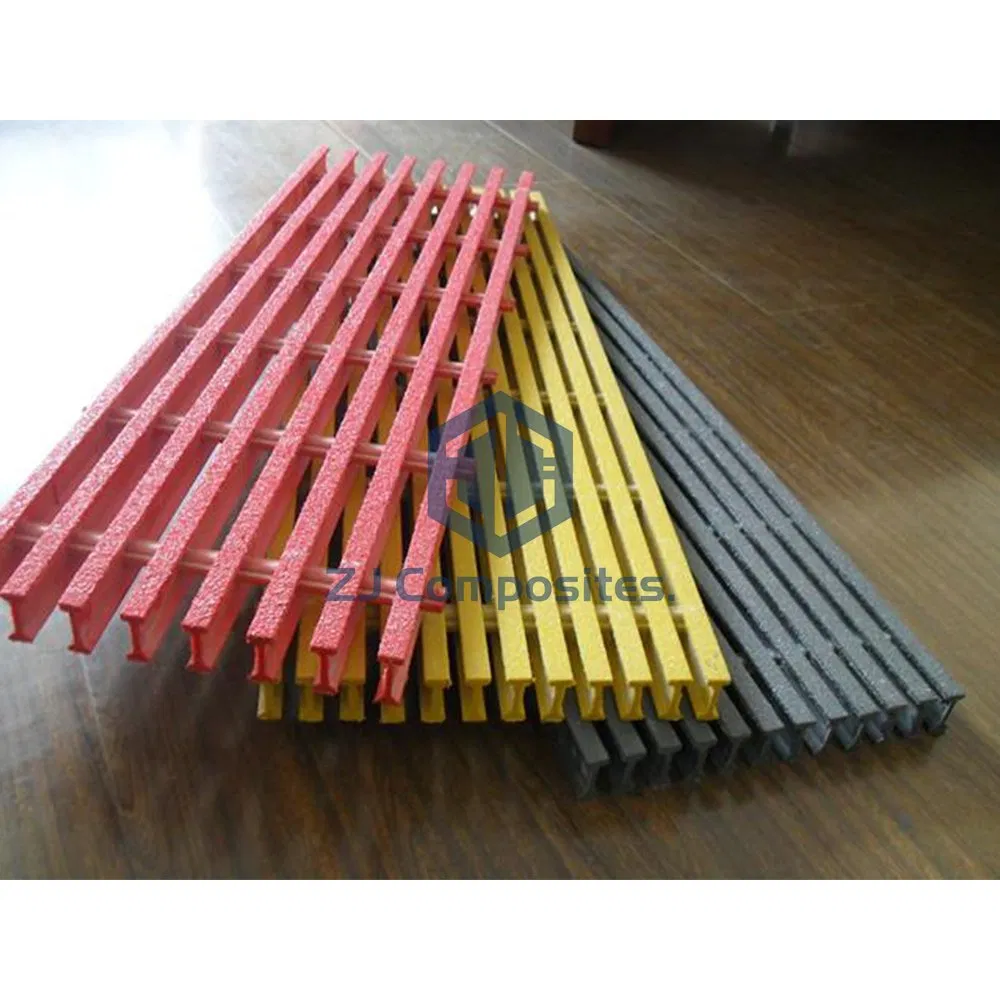

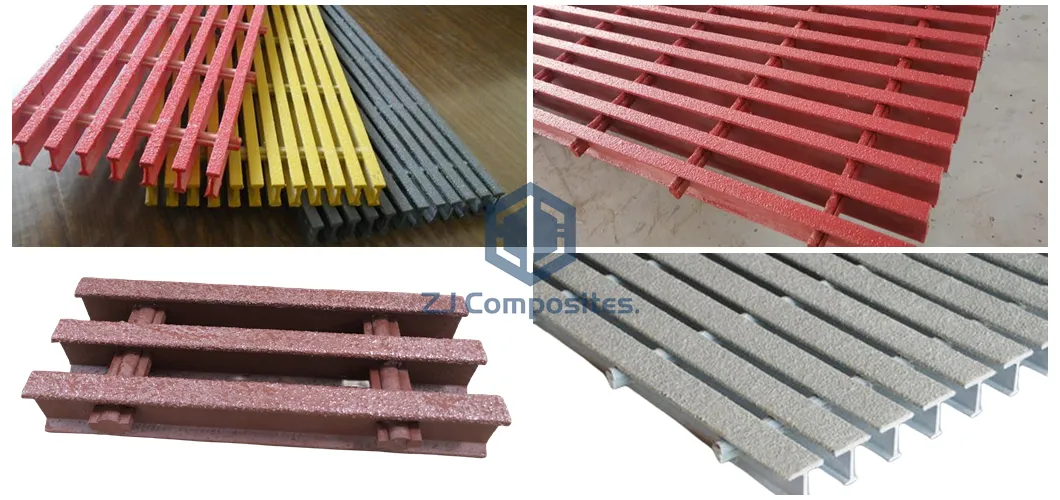

Combining corrosion resistance, long life and a low maintenance design, FRP pultruded grating (Fiberglass pultrusion grating) is superior to conventional metallic gratings. This advanced grating is manufactured with a recessed tie bar configuration and is lightweight and easy to fabricate. Savings on labor and equipment often make the total installed cost of grating comparable to that of steel.
Manufactured with a high percentage of glass within the laminate, pultruded grating provides durability, extremely high unidirectional strength and stiffness. For most applications where it is used to replace steel grating, industrial grating rarely requires additional support.

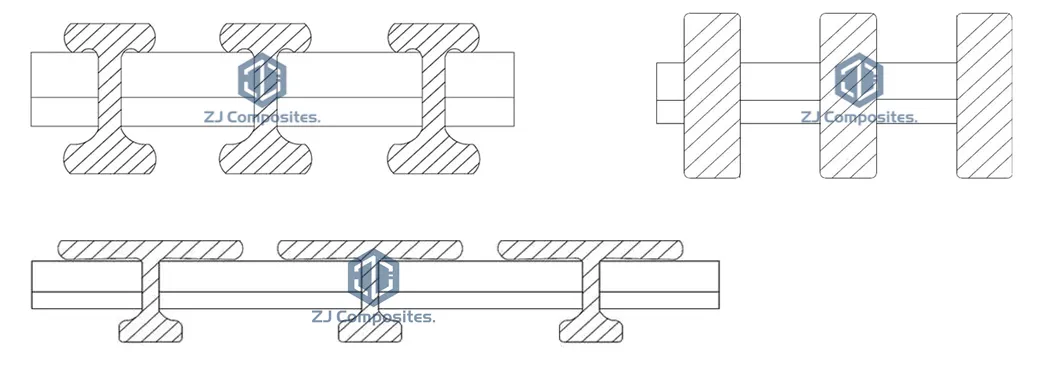

| Type | Height (mm) | Top Width (mm) | Space (mm) | Clearance (mm) | Open Area (%) | Weight (kg/㎡) |
|---|---|---|---|---|---|---|
| I-01 | 25 | 8 | 19.8 | 11.8 | 60 | 12.2 |
| I-02 | 25 | 15 | 25 | 10 | 40 | 17.1 |
| I-05 | 30 | 15 | 25 | 10 | 40 | 18.8 |
| I-11 | 38 | 15 | 25 | 10 | 40 | 22 |
| T-01 | 25 | 38 | 43.4 | 5.4 | 12 | 14.5 |
| T-07 | 38 | 38 | 50.8 | 12.7 | 25 | 16.7 |
| T-13 | 50 | 15 | 23 | 23 | 60 | 43.5 |
