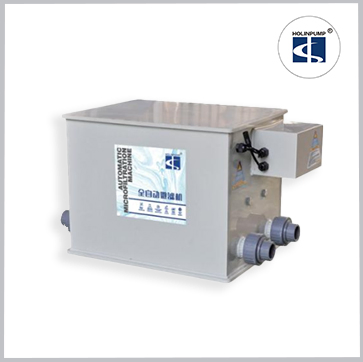

Fish/Shrimp Incubators Filter Aquarium Made of 304/316 Stainless Steel Aquatec Drum Filter with Switch Light

1 / 5

Fish/Shrimp Incubators Filter Aquarium Made of 304/316 Stainless Steel Aquatec Drum Filter with Switch Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋Basic Specifications

Model

Garden Pond Drum Filter

Application

Aquariums / Water Filtration

Certificate

TUV, SAA, CE, GS

Voltage

110-120V/220-240V, 60Hz-50Hz

Color Options

Black, Blue or customized

Dimensions

110X67X99 Cm

HS Code

8413709190

Capacity

100,000PCS Per Month

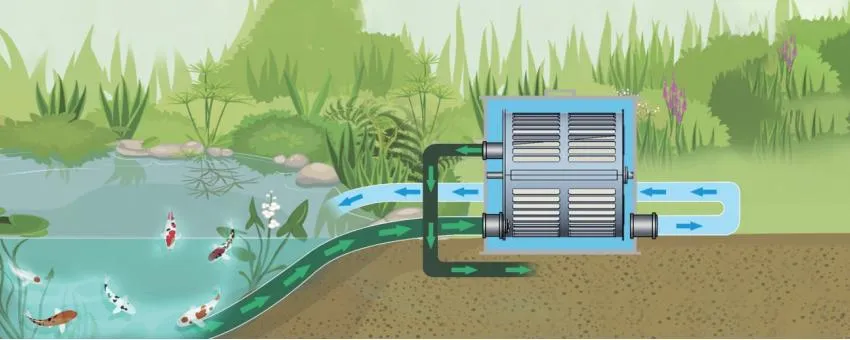

💡KOI POND FILTRATION SYSTEM

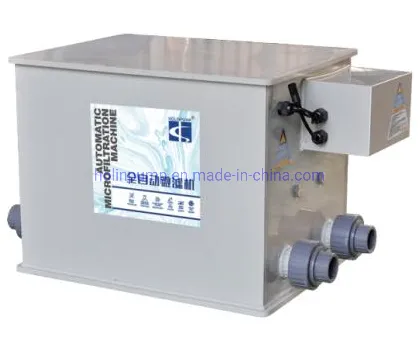

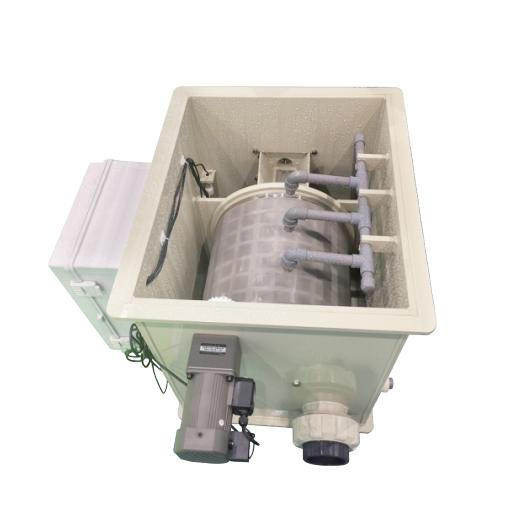

All intelligent box type microfilter is made of non-toxic and corrosion-resistant food grade PP material. It is mainly composed of box assembly, drum assembly, reverse cleaning system, electric control box system and transmission system. The water flow is less than or equal to 10m³/h. The equipment uses food grade environmental protection 316 stainless steel filter as the medium to remove suspended solids (≥50 μm).

The equipment adopts automatic liquid level control. When the suspended matter in the drum accumulates, it causes the decrease of water permeable through the filter, resulting in the rise of the water level outside the drum. The cleaning system then triggers the backwash pump and drive system. Rotating drum filter continuous high pressure cleaning washes sewage to the collecting groove for direct discharge.

🛠️Installation Instructions

1. Place the microfilter in a stable location.

2. Can be installed in-pipeline or supplied by water tower/pump; valves should be installed to adjust water levels.

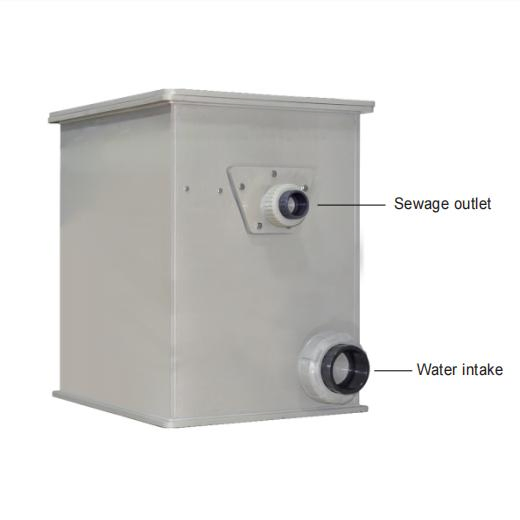

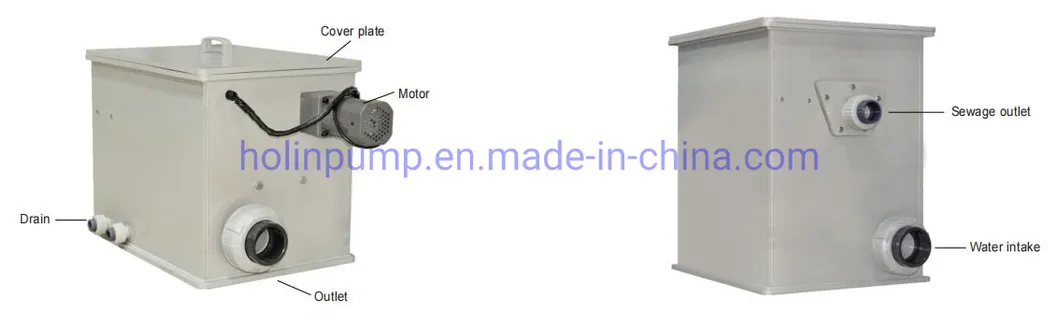

3. Ensure a height difference at the sewage outlet for timely discharge.

4. Maintain level difference at the outlet to ensure velocity.

5. Ensure cleaning pump inlet is soaked to avoid idling.

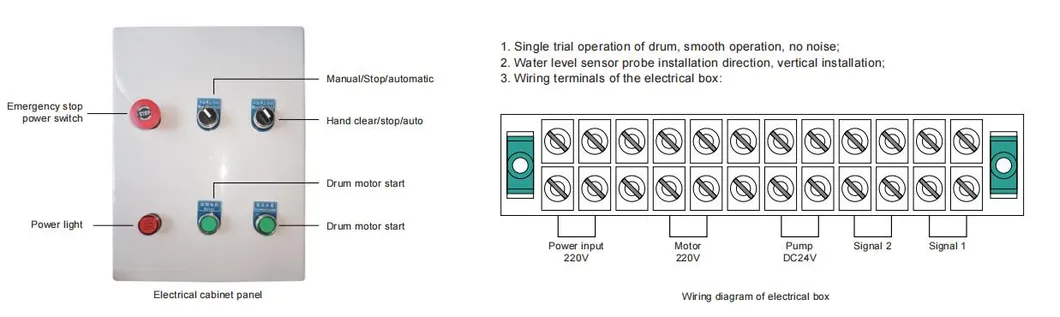

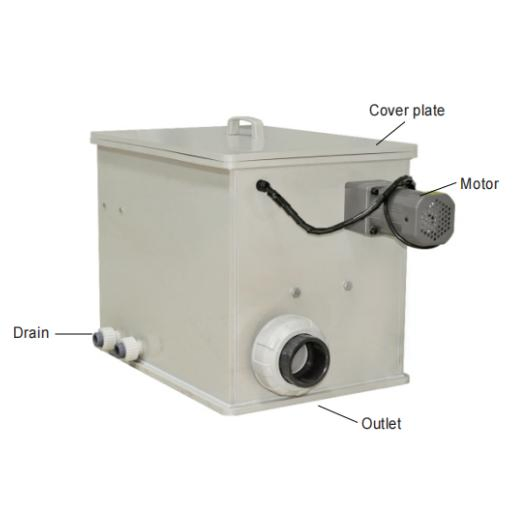

6. Wiring: Connect capacitor lines to motor's red and white lines; connect external zero to motor black, and live to red or white.

7. Drum Direction: Should rotate clockwise when facing the outlet. Switch red/white wires to adjust if necessary.

⚙️Operation & Safety

Operating Modes:

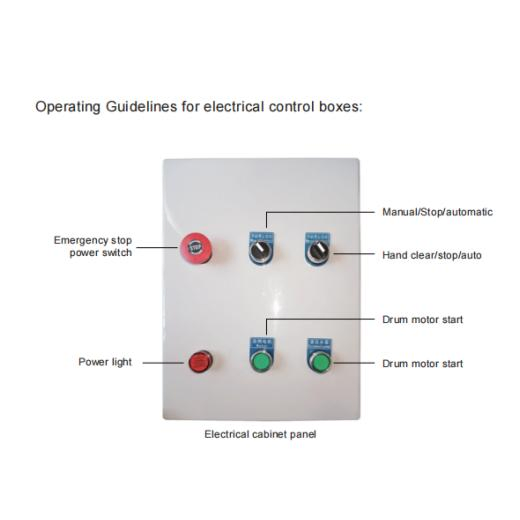

Manual: Control backwash pump and drum rotation via dedicated start/stop buttons.
Automatic: Controlled by water level float ball. Triggers backwash for a set duration when the water level rises.

Important Considerations:

⚠️ Strictly prohibited to idle the pump without water.

⚠️ Stop the pump before replacing valve states.

⚠️ Indoor use recommended (-5°C to 40°C); avoid direct exposure to rain or icing.

⚠️ Regularly check nozzles for blockages to ensure efficient spraying.

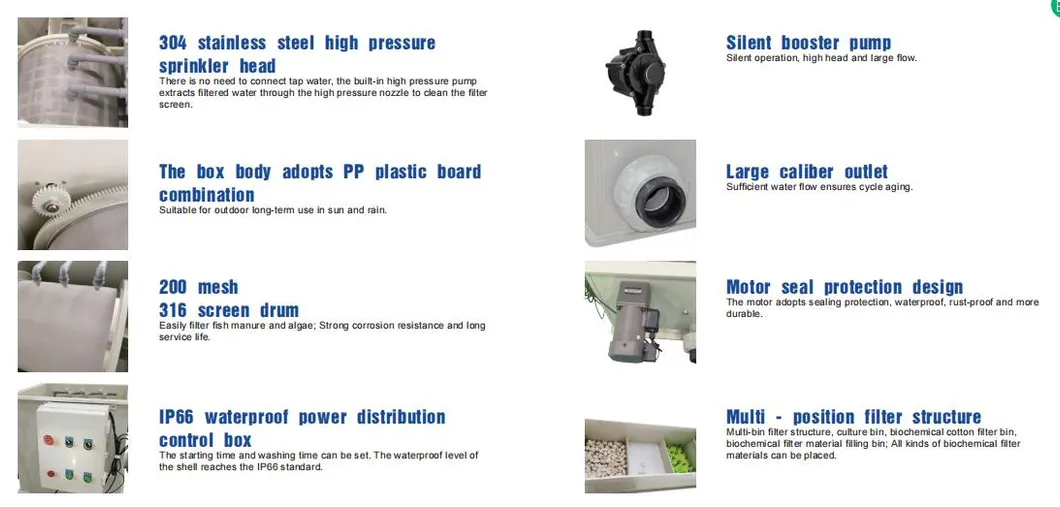

🌟Key Features & Applications

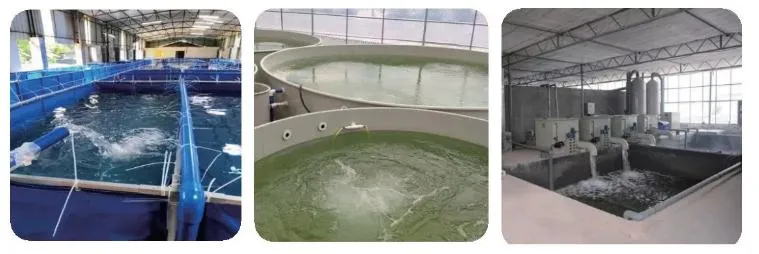

The machine is widely used in aquaculture for raw water filtration (sediment, algae, particles) or closed-cycle purification.

Material: PP box body with 10+ years lifespan; corrosion and high-temperature resistant.
Design: Detachable flushable design; inclined bottom for no-dead-corner cleaning.
Function: Biochemical filtration for rapid bacterial culture and nitrification system establishment.

📊Technical Parameters

Model	Product size	Inlet (mm)	Outlet (mm)	Drum Diameter	Motor Power	Pump Power

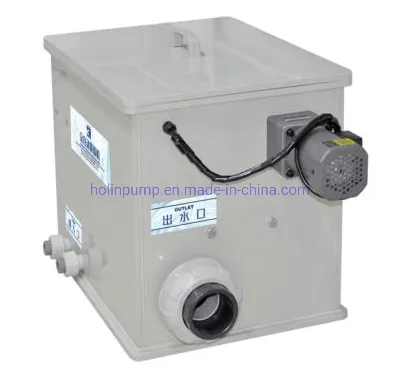

5T	610335340mm	DN25	DN50	Φ250*230mm	40W	40W

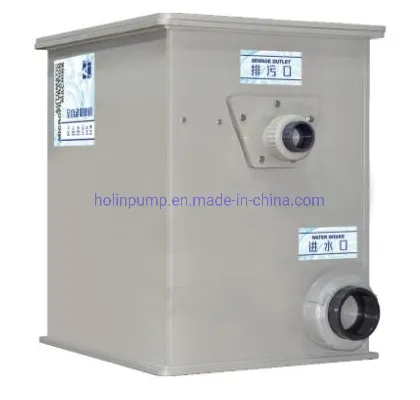

10T	870470515mm	DN75	DN32	Φ300*326mm	60W	60W

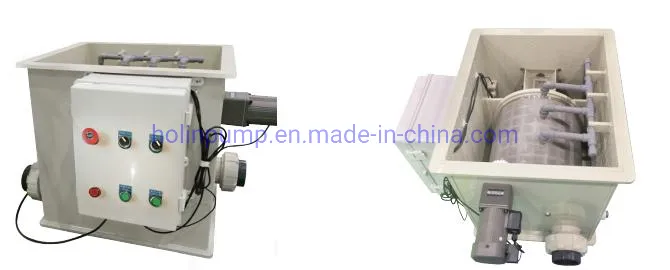

20T/30T	930590770mm	DN90	DN50	Φ370*376mm	90W	90W
50T/60T	1210835820mm	DN110	DN75	Φ500*500mm	90W	90W

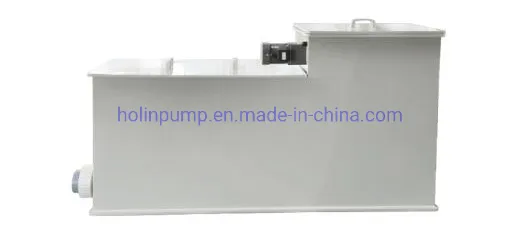

📦Filter Bin Combined Models

Model	Product size	Inlet (mm)	Outlet (mm)	Drum Diameter	Motor Power	Pump Power
5T+Bin	610335340mm	DN25	DN50	Φ250*230mm	40W	40W

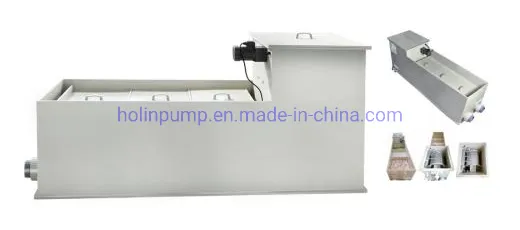

10T+Bin	1760440800mm	DN75	DN32	Φ370*326mm	60W	60W
20T+Bin	2300500570mm	DN90	DN50	Φ370*376mm	60W	40W

❓Frequently Asked Questions

Q1: What materials are used in the drum filter? The system is constructed from non-toxic, food-grade PP material for the box and 316 stainless steel for the filter screen to ensure corrosion resistance.

Q2: How fine is the filtration capability? The 316 stainless steel filter screen is designed to intercept and separate suspended solids as small as 50 μm.

Q3: Does the filter require manual cleaning? No, it features an intelligent automatic liquid level control system that triggers a high-pressure backwash whenever waste accumulates.

Q4: Can it be used for outdoor fish ponds? Yes, the PP material is UV and corrosion-resistant. However, it is recommended to protect electrical parts from direct rain and avoid extreme icing conditions.

Q5: What is the expected lifespan of the equipment? The overall structure is designed for durability with a life expectancy of more than 10 years under proper maintenance.

Q6: Is it energy efficient? The equipment utilizes a fully intelligent frequency conversion pump, which is designed for energy saving and environmental protection.
