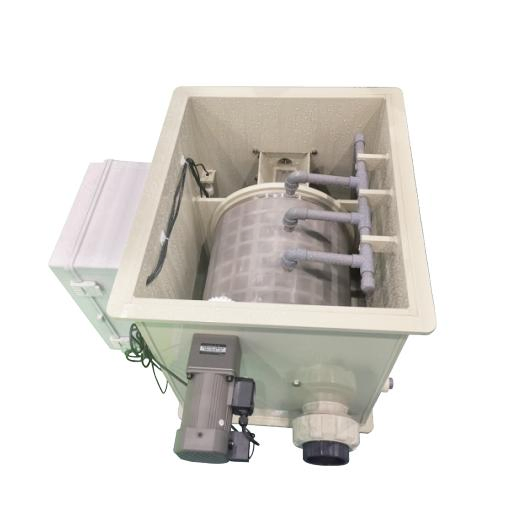

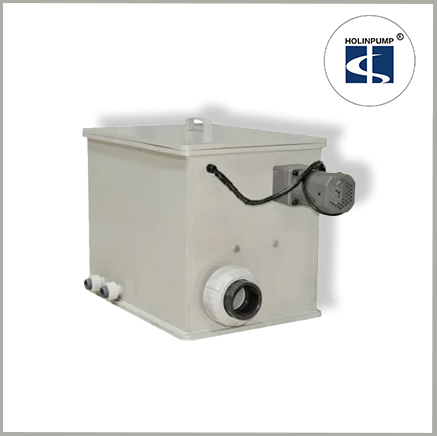

Best Chinese Supplier Integrated Aquarium Stainless Steel Drum Filter Fish

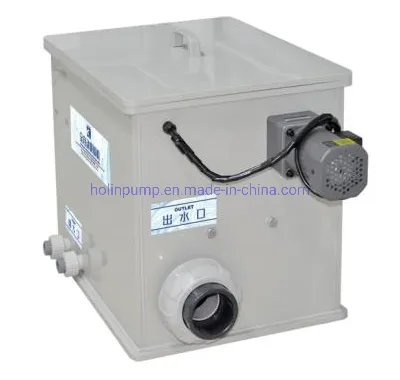

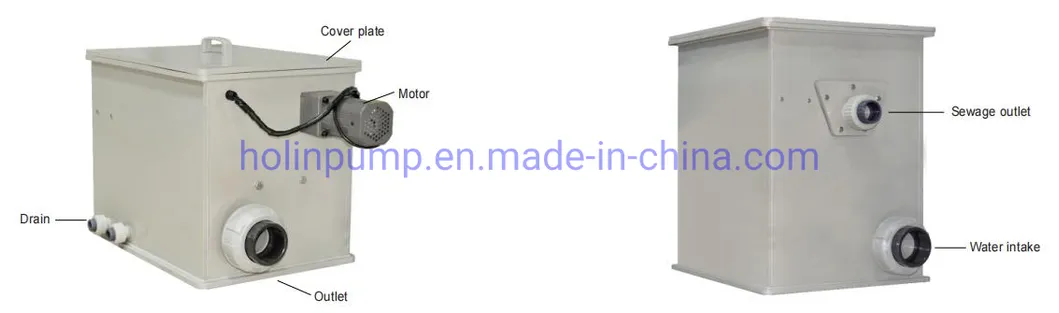

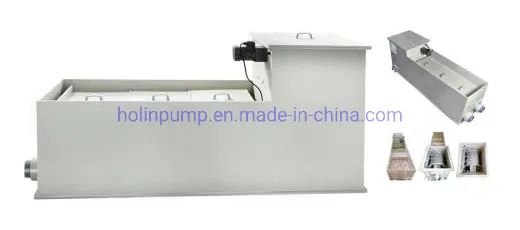

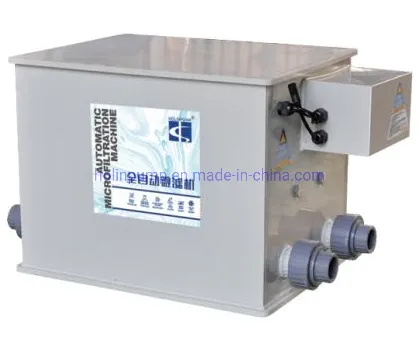

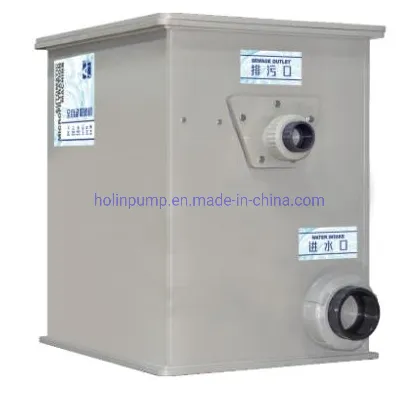

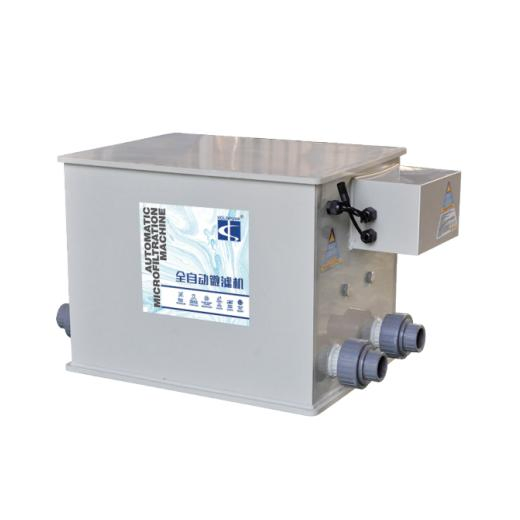

The intelligent box-type microfilter is constructed from non-toxic, corrosion-resistant food-grade PP material. It consists of a box assembly, drum assembly, reverse cleaning system, electric control system, and transmission system. Designed for flow rates up to 10m³/h, it utilizes food-grade 316 stainless steel mesh (≥50 μm) to separate suspended solids.

Automatic Operation: When particles clog the screen, water levels outside the drum rise, triggering the liquid level sensors. The system then automatically activates the high-pressure backwash pump and drive motor. Waste is flushed into the collection groove for direct discharge, stopping once the preset cleaning cycle is complete.

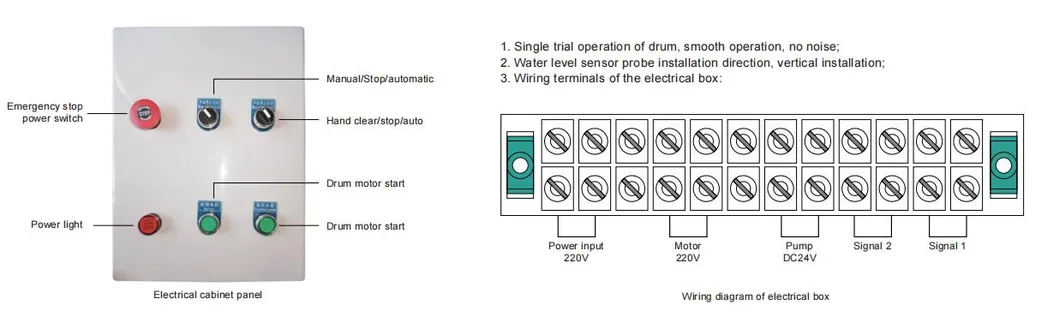

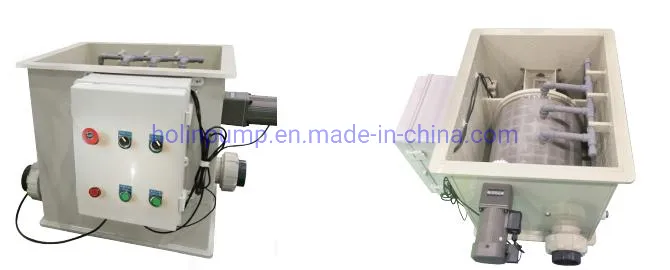

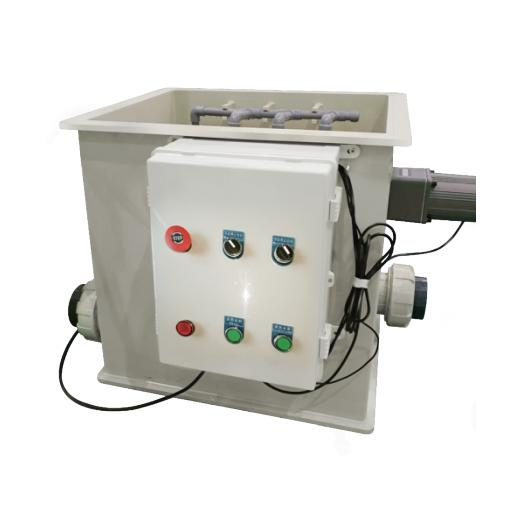

Manual Mode Turn the switch to manual to test the backwash pump and drum rotation independently using their respective start/stop buttons.

Automatic Mode Controlled by the float ball switch. When the probe is triggered by rising water, the system executes a backwash cycle based on the relay timer.

Important: Emergency stop switch is available for immediate shutdown. Ensure the water level is 5-10cm higher than the pump inlet before running the cleaning cycle.

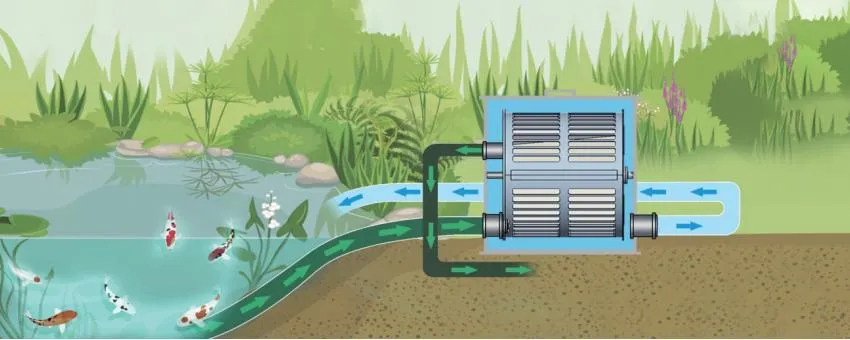

Ideal for solid-liquid separation in early-stage sewage treatment, koi ponds, and aquaculture farms. The system adapts to large flow needs and includes a buffer pool for tight fitting to prevent suspended matter leakage.

Advantages: Detachable flushable design, inclined bottom for no-dead-corner cleaning, biochemical filtration support, and a durable PP body with a service life exceeding 10 years.
