Biological Filtration Rotary Vacuum Drum Filter Manufacturer India for Recirculating Aquatic Systems

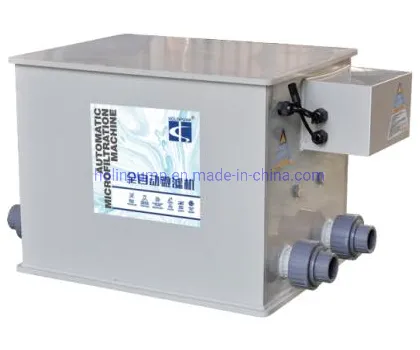

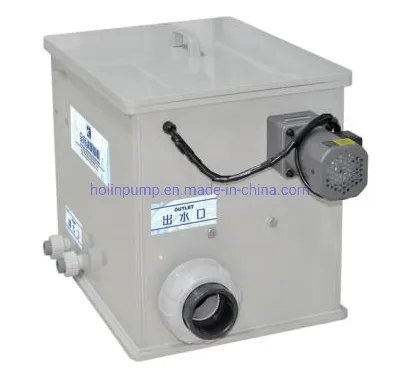

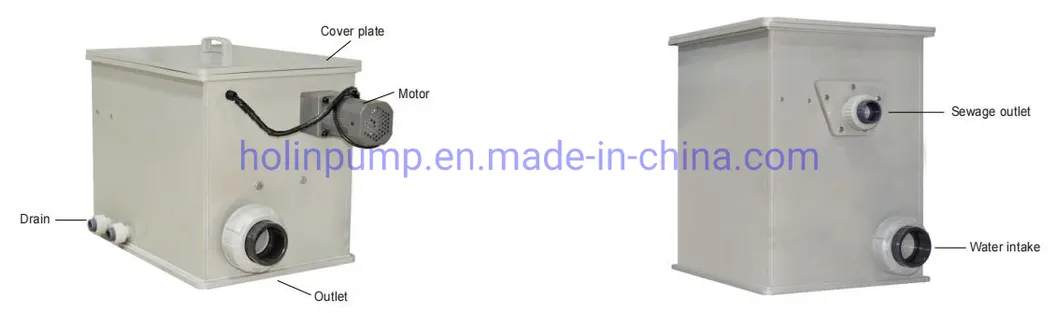

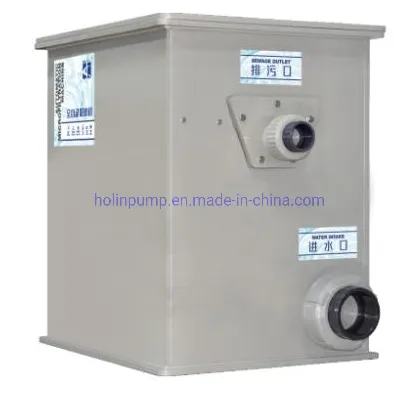

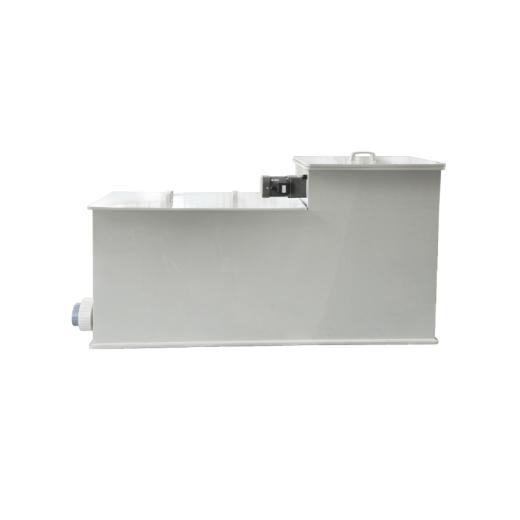

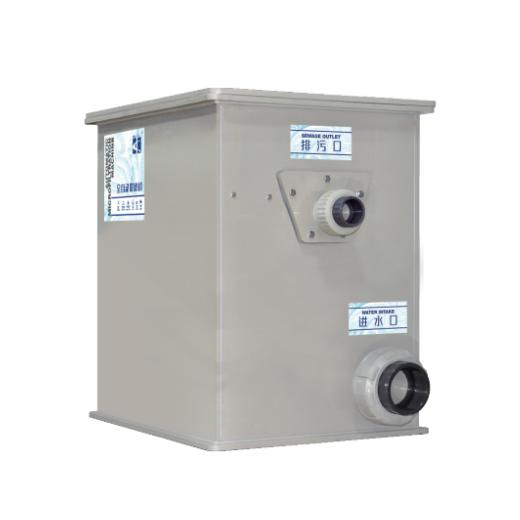

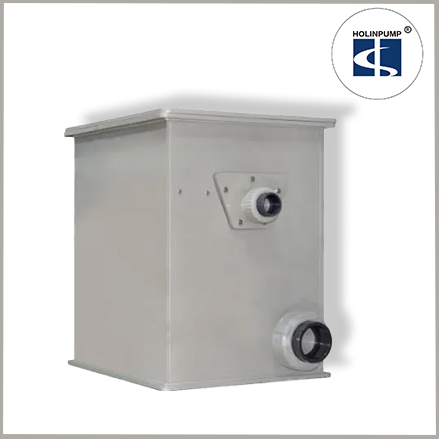

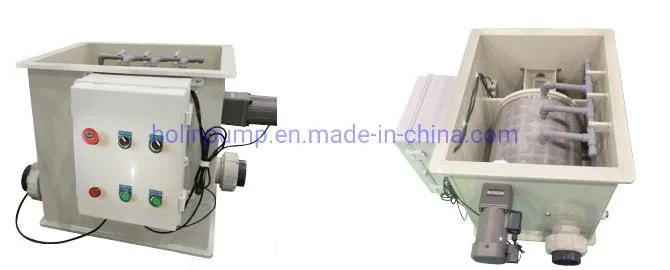

The intelligent box-type microfilter is constructed from non-toxic, corrosion-resistant food-grade PP material. The system integrates a box assembly, drum assembly, reverse cleaning system, electric control box, and transmission system. Designed for water flows ≤ 10m³/h, it utilizes a food-grade 316 stainless steel filter (≥50 μm) to efficiently separate suspended solids from water.

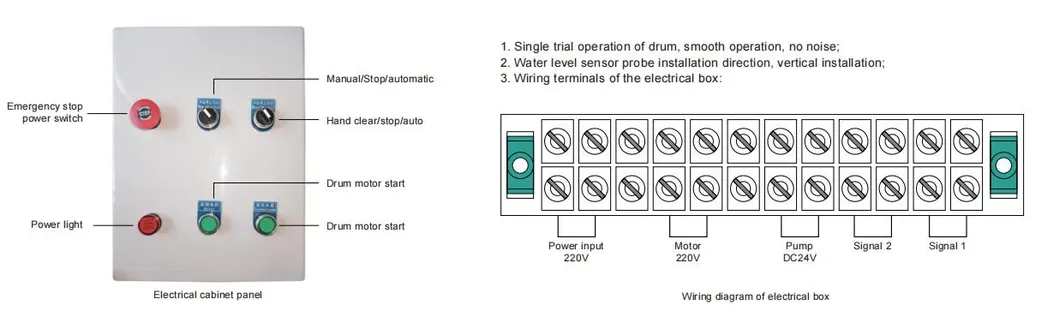

1. Ensure stable placement. 2. Control water levels via adjustment valves. 3. Maintain a height difference for efficient sewage discharge. 4. Capacitor connection: Connect capacitor lines to the motor's red and white lines, with the zero line to black. 5. Verify the drum rotates clockwise when facing the outlet.

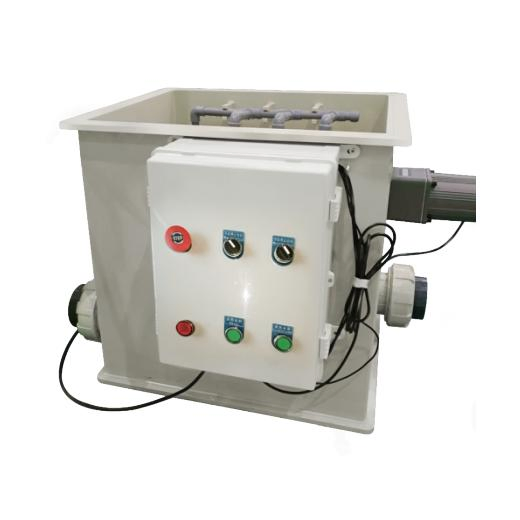

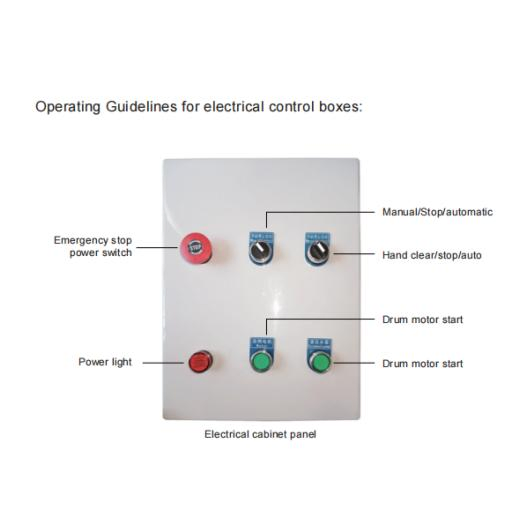

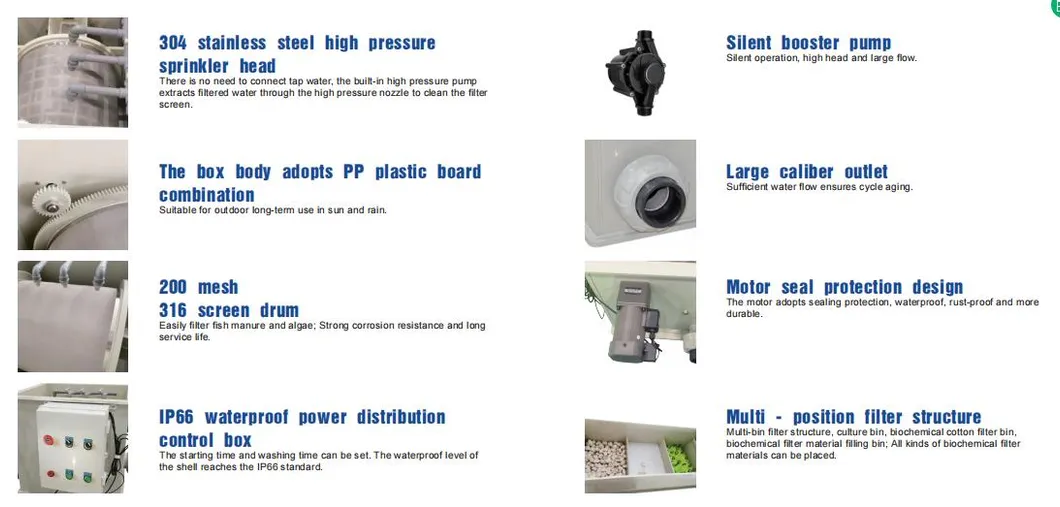

Features both Automatic and Manual modes. In automatic mode, the float ball switch controls the backwash frequency based on water levels. An emergency stop switch is included for safety. The system uses a turbine frequency conversion pump for energy-efficient filtration cycles.

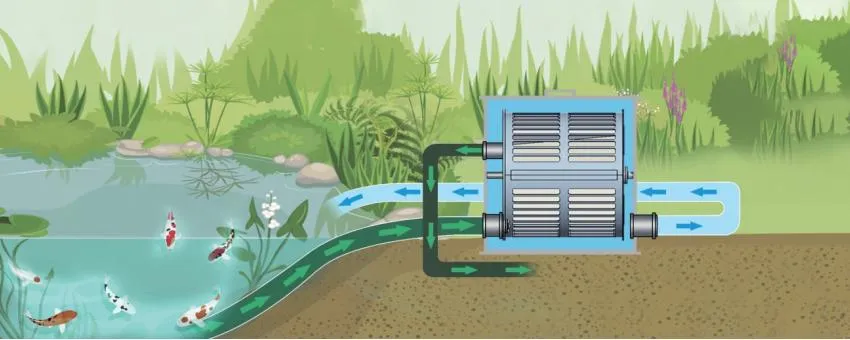

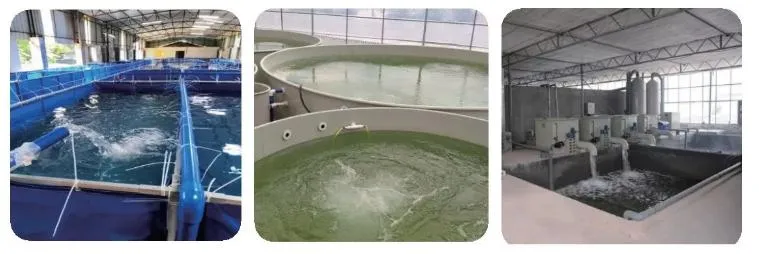

Ideal for solid-liquid separation in early-stage sewage treatment, koi ponds, and various aquaculture farms. It filters sediment, suspended algae, and fine particles, establishing a healthy nitrification system through biochemical filtration.
