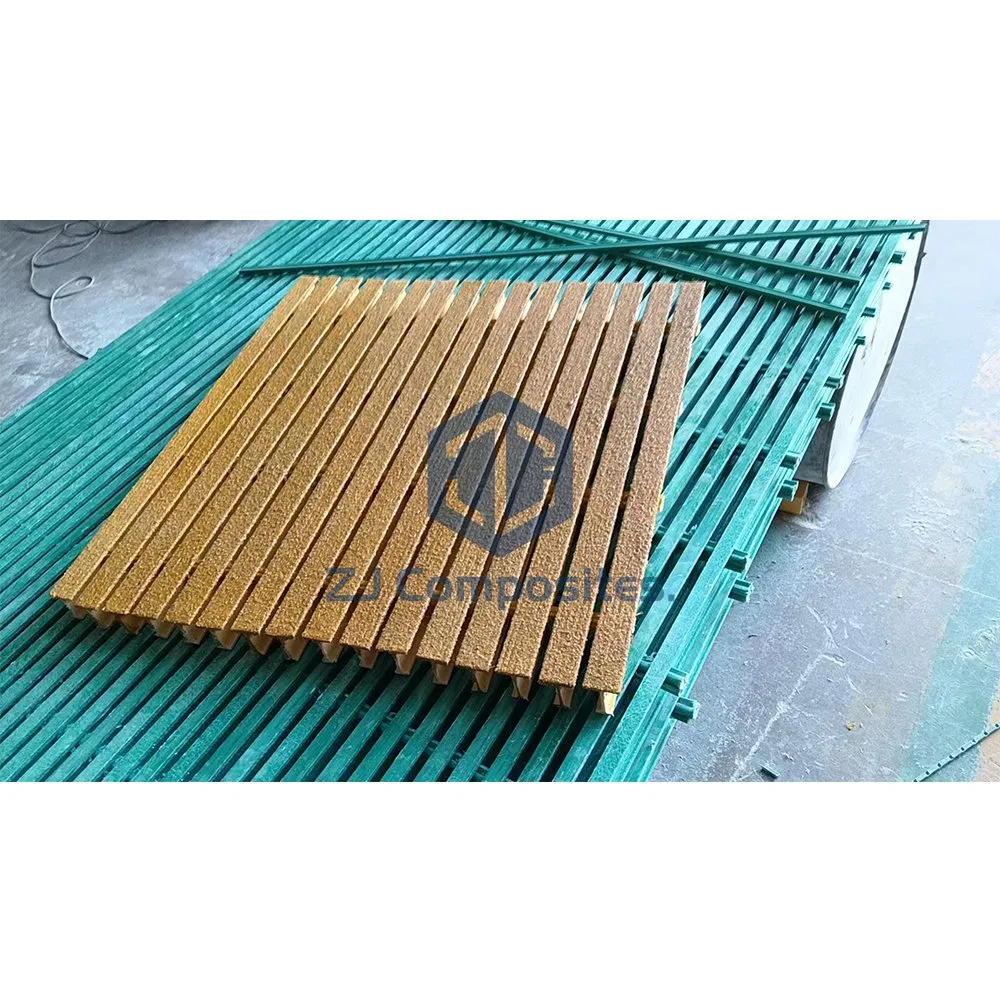

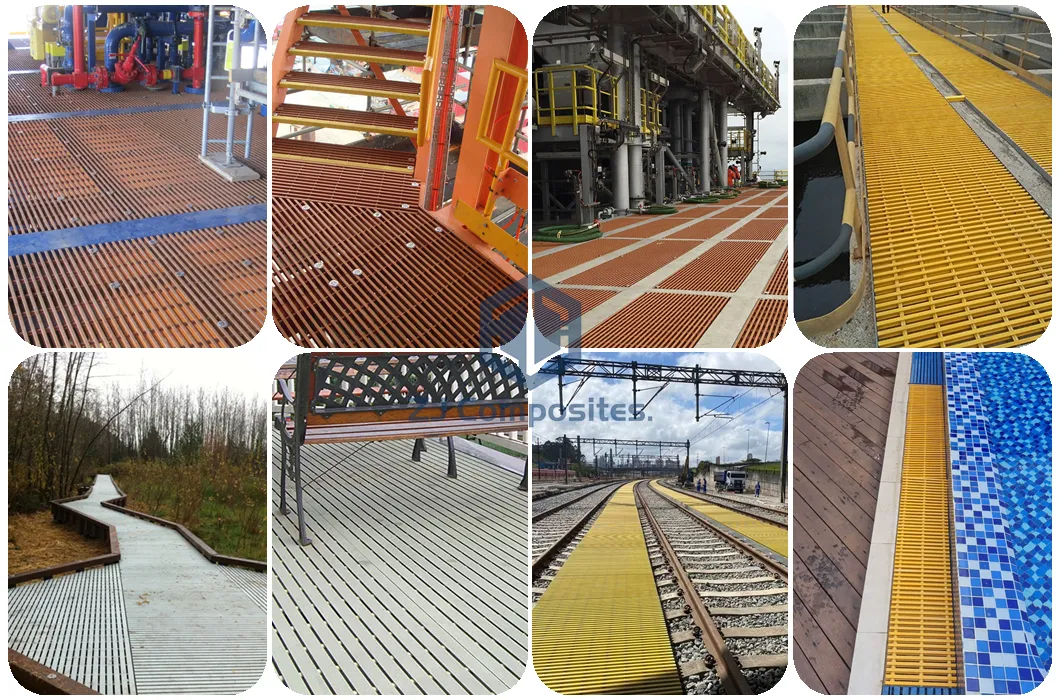

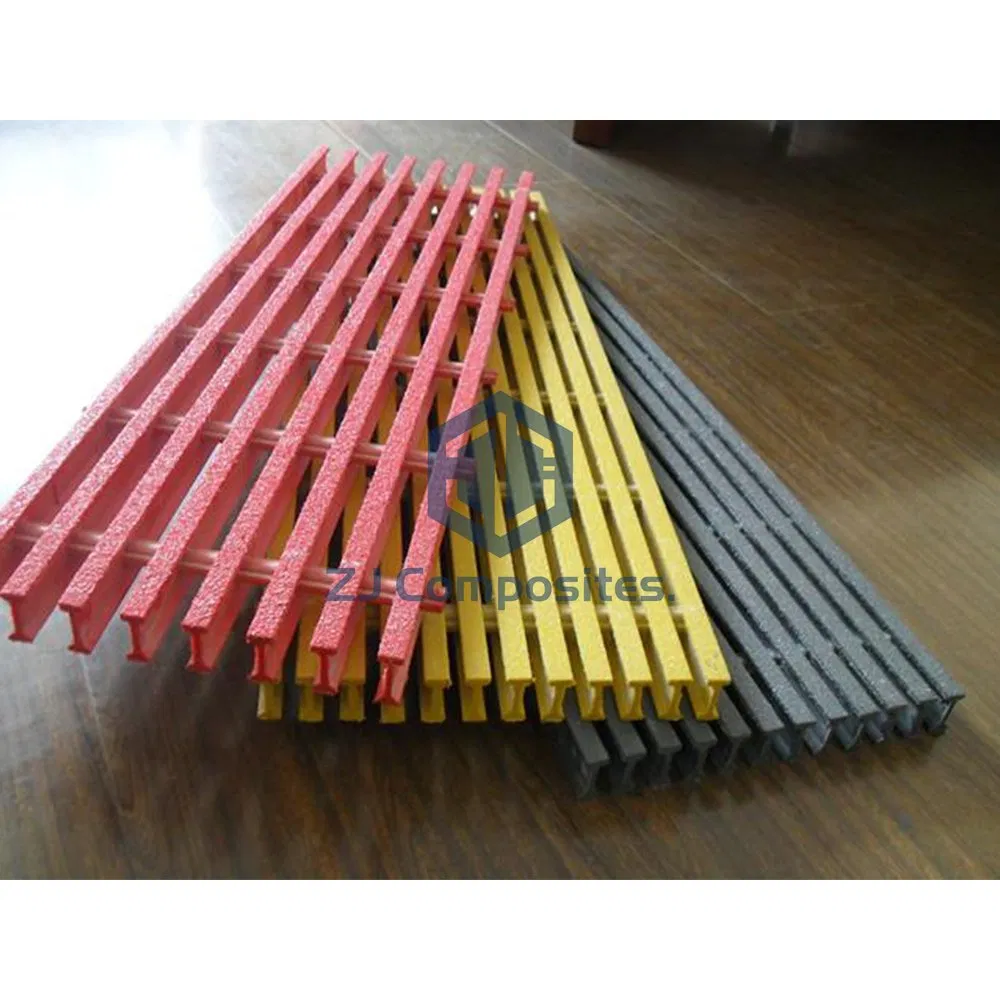

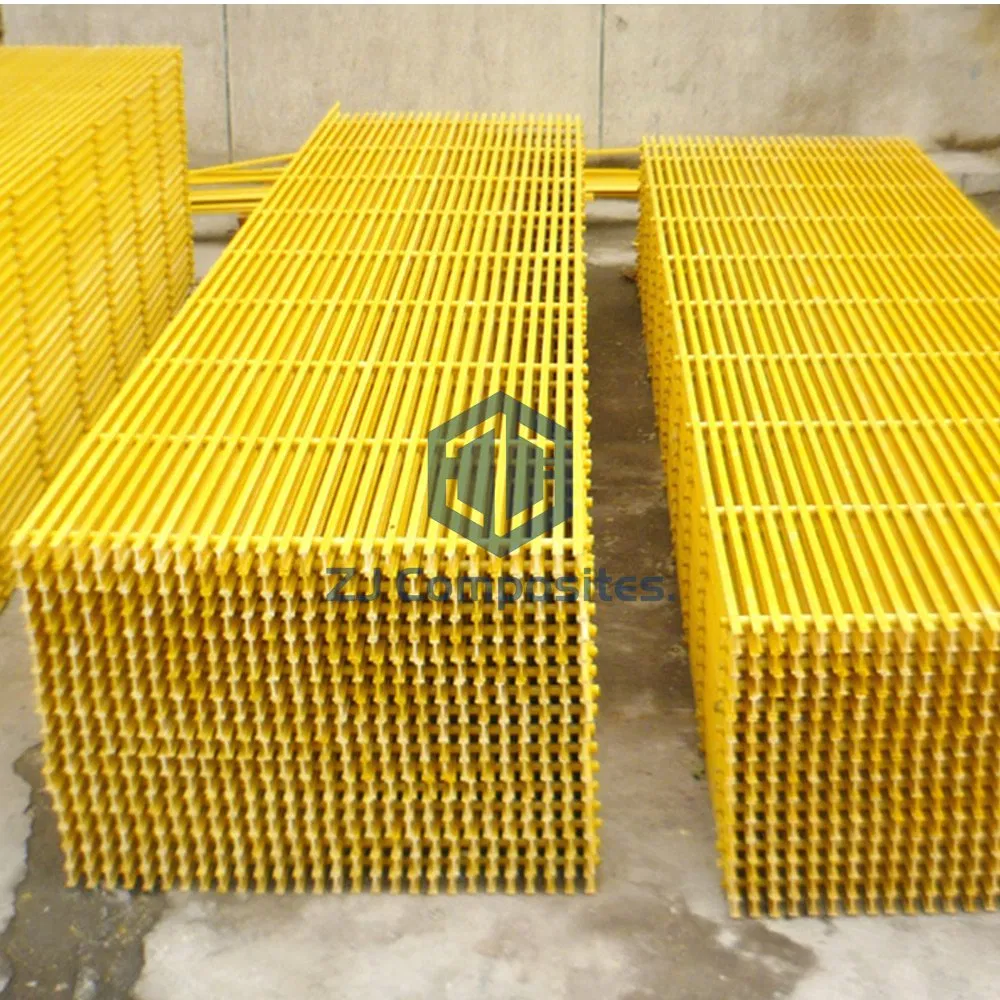

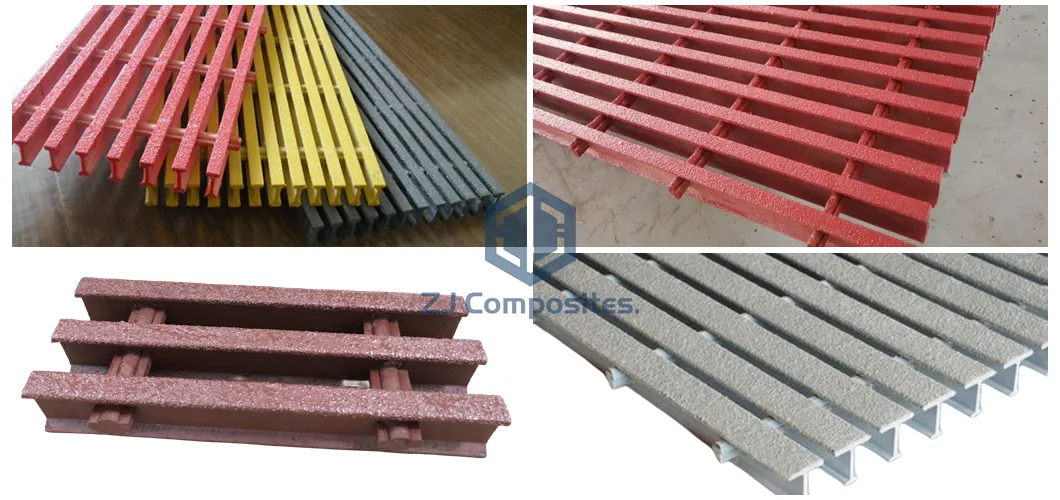

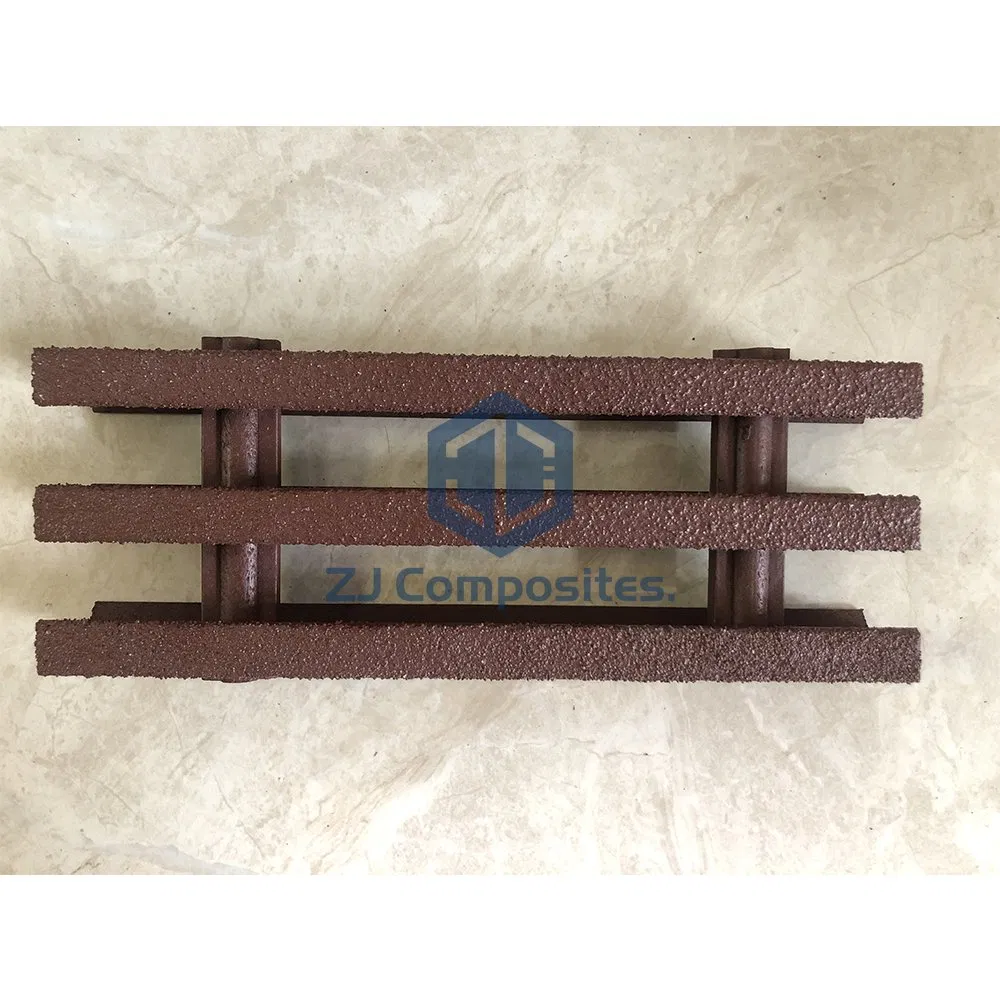

Combining corrosion resistance, long life and a low maintenance design, FRP pultruded grating (Fiberglass pultrusion grating) is superior to conventional metallic gratings. This advanced grating is manufactured with a recessed tie bar configuration and is lightweight and easy to fabricate. Manufactured with a high percentage of glass within the laminate, pultruded grating provides durability, extremely high unidirectional strength and stiffness. It can be used with confidence where wide support spans are required, often requiring less additional support than steel counterparts.
Provides exceptional resistance in the harshest environments and chemical exposures.

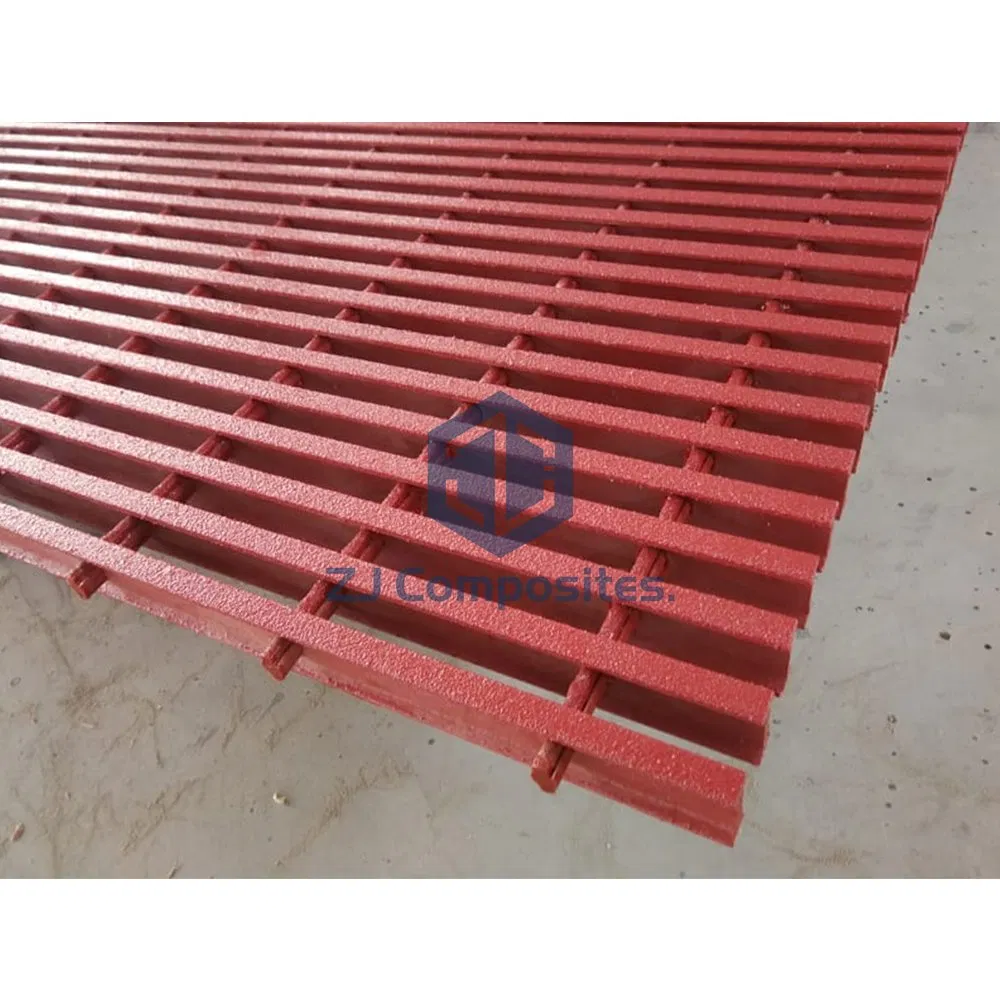

Integrally applied grit surfaces provide unmatched slip resistance for improved safety.
Eliminates the need for sandblasting or painting. Easily cleaned with high-pressure washers.
Engineered to meet ASTM E-84 flame spread ratings and self-extinguishing requirements.
Less than half the weight of steel, allowing for easier installation and removal.

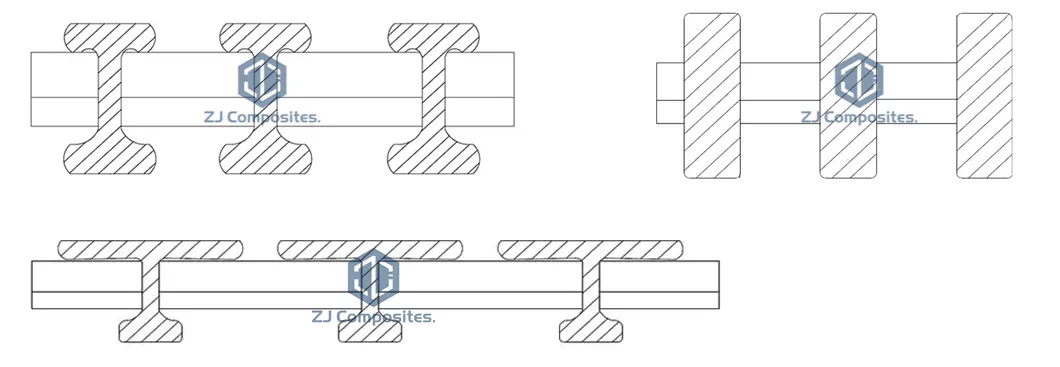

| Type | Height (mm) | Top Width (mm) | Space (mm) | Open Area | Weight (kg/㎡) |
|---|---|---|---|---|---|
| I-01 | 25 | 8 | 19.8 | 60% | 12.2 |
| I-04 | 25 | 15 | 38 | 60% | 11.2 |
| I-08 | 32 | 15 | 25 | 40% | 19.8 |
| I-13 | 38 | 15 | 38 | 60% | 16.2 |
| I-16 | 50 | 15 | 38 | 60% | 20.1 |
| Type | Height (mm) | Top Width (mm) | Space (mm) | Open Area | Weight (kg/㎡) |
|---|---|---|---|---|---|
| T-01 | 25 | 38 | 43.4 | 12% | 14.5 |
| T-03 | 25 | 38 | 50.8 | 25% | 12.3 |
| T-07 | 38 | 38 | 50.8 | 25% | 16.7 |
| T-10 | 50 | 25.4 | 50.8 | 50% | 15.7 |
| T-13 | 50 | 15 | 23 | 60% | 43.5 |
