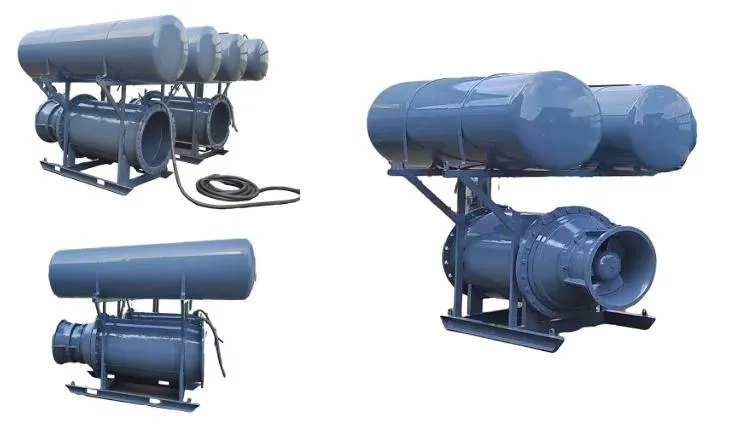

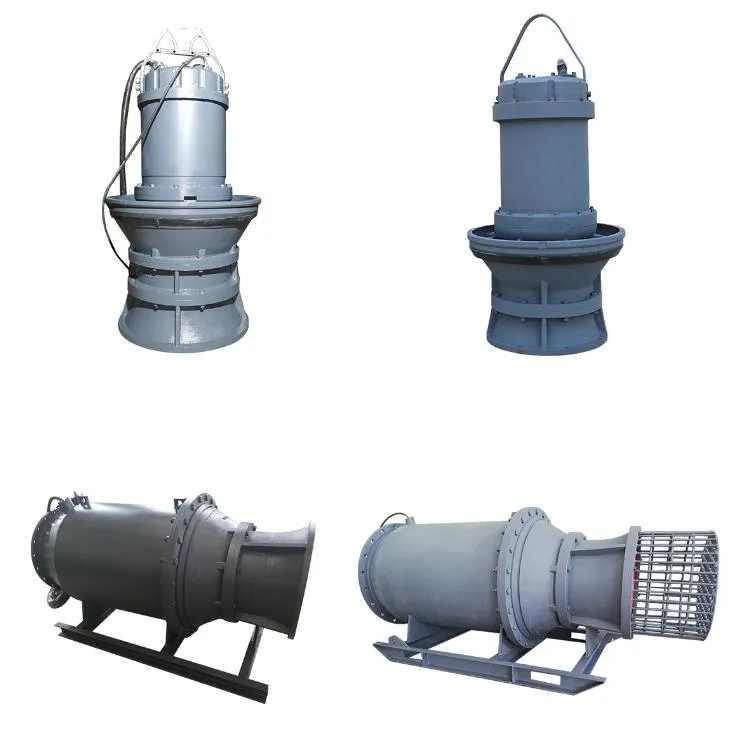

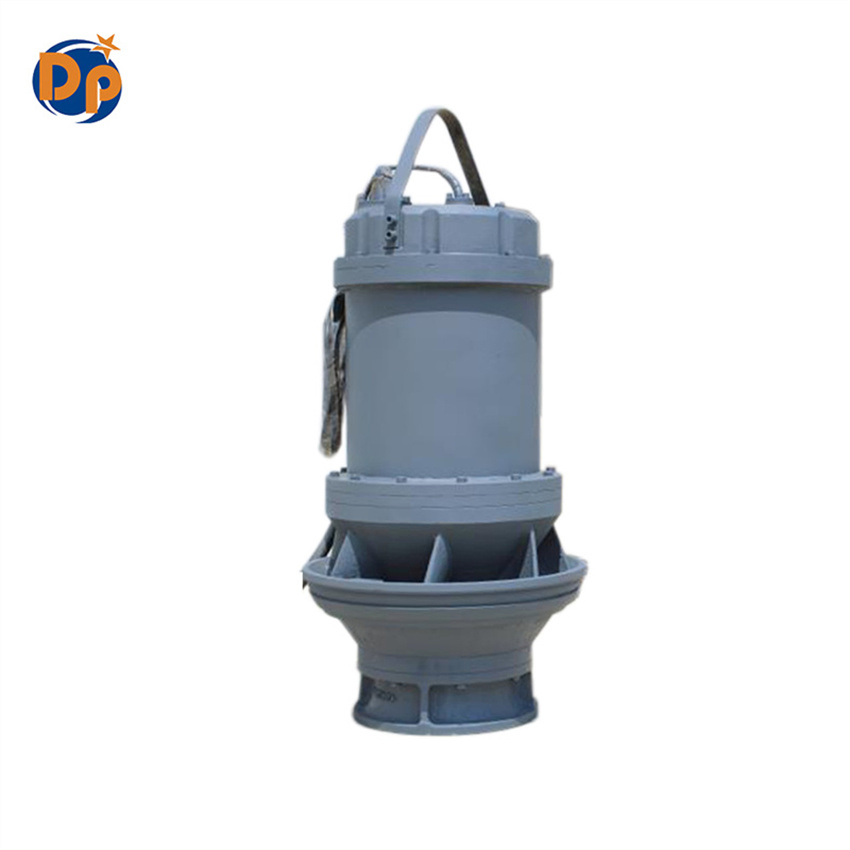

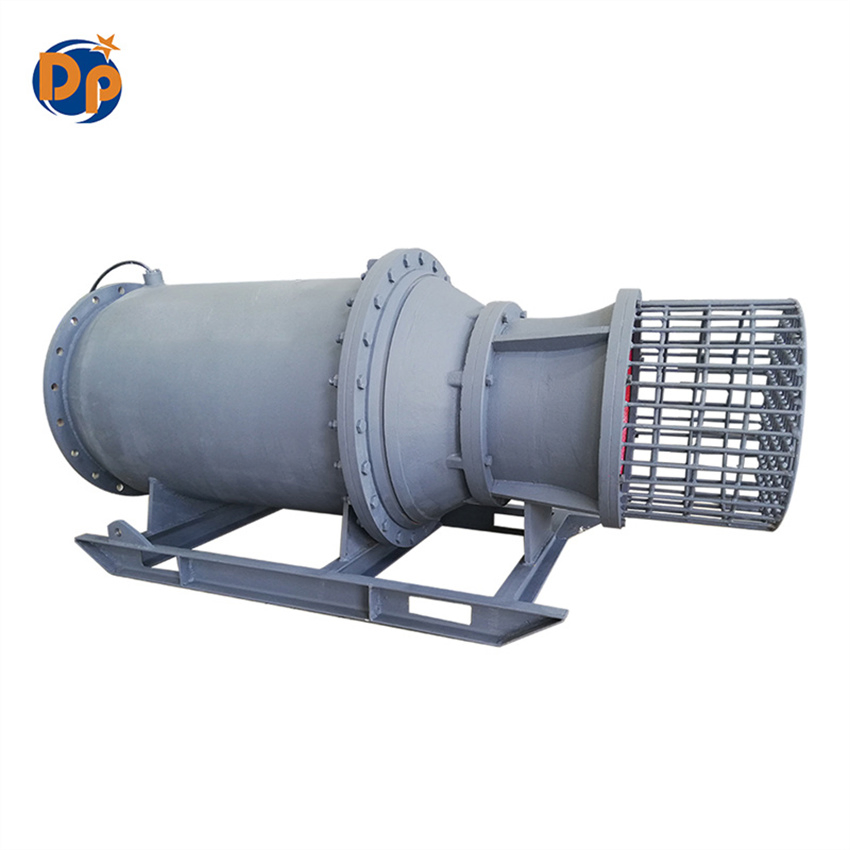

QZ/QH Series Horizontal Electro Submersible Pump
The submersible axial flow pump is a new generation of traditional pump motor unit. This type of pump is a large flow, low head pump. It is widely used in agricultural drainage and irrigation, industrial thermal power station conveying circulating water, urban water supply and drainage, dock water level rise and fall, and light sewage discharge.
| PUMP SPECIFICATIONS | |
|---|---|
| Usage | Water supply & flooding control |
| Type | Horizontal Submersible Axial Flow Pump |
| Capacity | Up to 36000 m3/hr (10000L/S) |
| Head | Up to 10m (33 feet) |
| Speed | 295rpm to 980rpm |
| Shaft Seal | Mechanical seals |
| Protection | Overload / water leakage / power leakage |
| Model | Capacity (m³/h) | Head (m) | Power (Kw) | Speed (r/min) | Efficiency (%) |
|---|---|---|---|---|---|
| 350QZ-72 | 837 | 2.87 | 15 | 980 | 80 |
| 500QZ-40 | 3200 | 16.55 | 200 | 980 | 83 |
| 600QZ-35 | 4415 | 14.29 | 250 | 740 | 84 |
| 800QZ-72 | 6401 | 5.66 | 185 | 590 | 83 |
| 1200QZ-72 | 15607 | 8.45 | 560 | 490 | 86 |
Our team is professional in all kinds of centrifugal pumps, mainly slurry pump, water pump, chemical pump etc. High quantity and high head pumps are all available. The pumps are widely used in Mining, Metallurgy, Pro-environment, Construction, Papermaking, Aluminum, Power Plant, Irrigation and other industries.

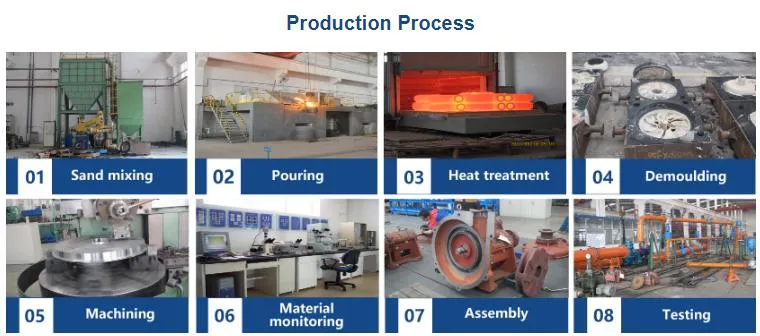

With 15 years of accumulation and development, we have formed a complete system of pump design, selection, application, manufacture, marketing and maintenance. We adhere to technological innovation and top quality service.
