Eco-Friendly PP Fish Tank for Recirculating Aquaculture Systems in Global Industries

ℹ

Basic Specifications

Model:Garden Pond Drum Filter

Application:Aquariums, Water Systems

Certificate:TUV, SAA, CE, GS

Voltage:110-120V/220-240V, 60Hz-50Hz

Color:Black, Blue or customized

Size:110X67X99 Cm

Origin:Guangdong, China

Capacity:100,000PCS Per Month

⚙

Product Description

KOI POND FILTRATION SYSTEM

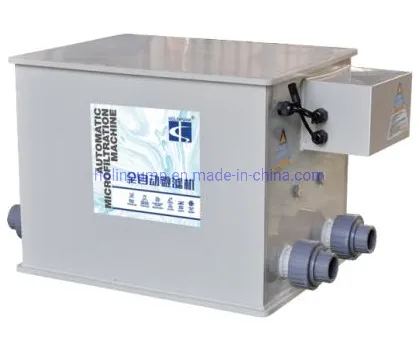

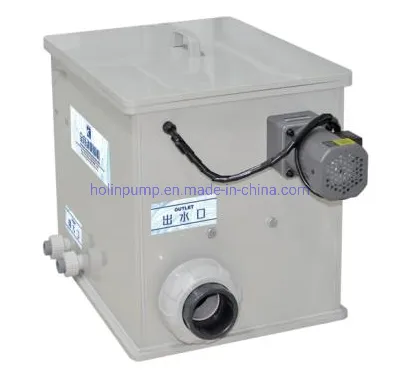

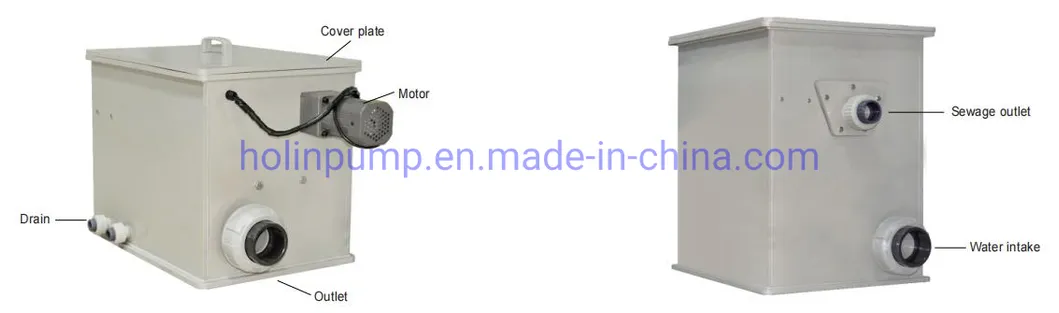

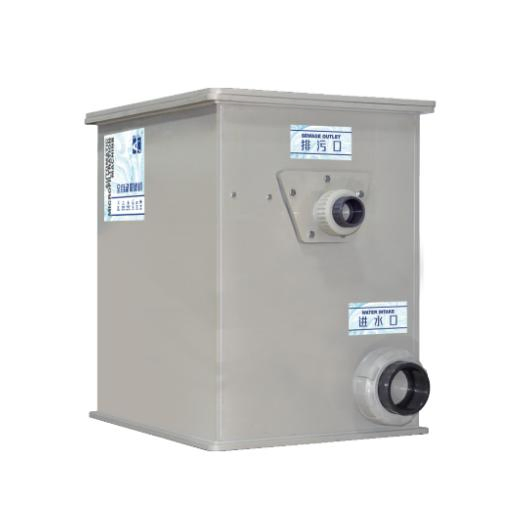

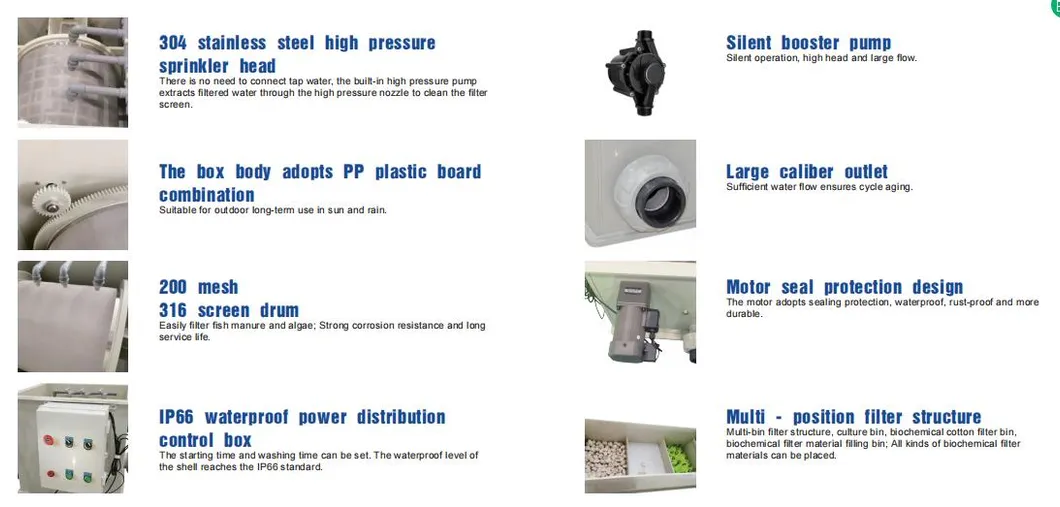

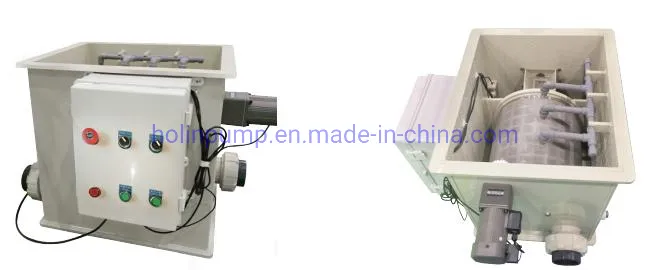

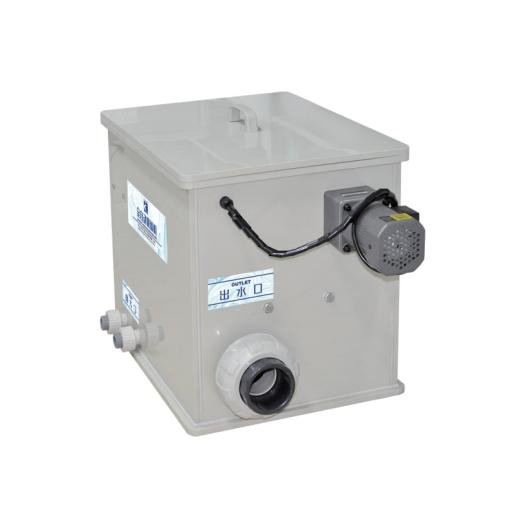

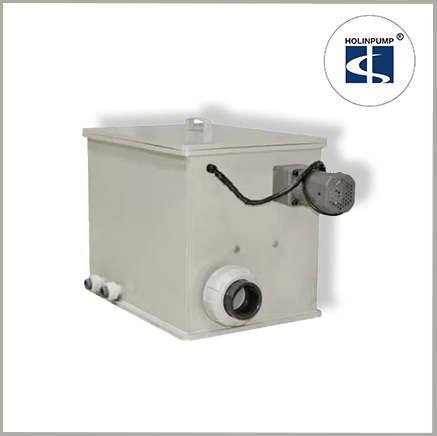

This intelligent box-type microfilter is constructed from non-toxic and corrosion-resistant food-grade PP material. It consists of a box assembly, drum assembly, reverse cleaning system, electric control box, and transmission system. Designed for water flows ≤10m³/h, the equipment utilizes a food-grade 316 stainless steel filter screen to separate suspended solids (≥50 μm).

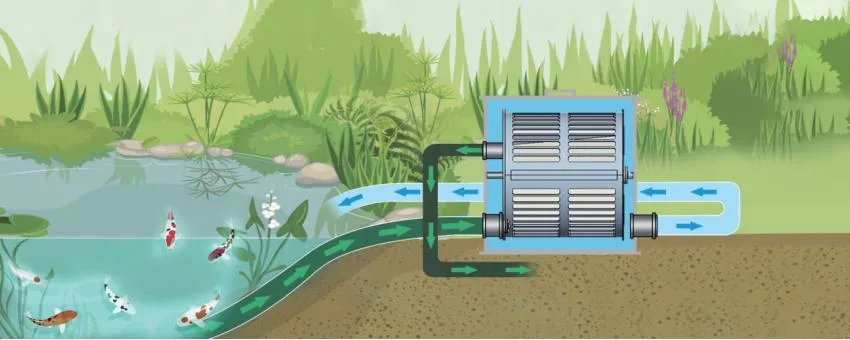

Automation Logic: The system features automatic liquid level control. When suspended particles accumulate on the filter screen, water permeability decreases, causing the external water level to rise. Once it reaches the preset probe point, the backwash pump and drive system activate automatically. High-pressure nozzles clean the rotating drum, discharging sewage into the collection groove. The process stops once the set time relay is reached.

🛠

Installation Instructions

1.Place the microfilter on a stable surface.

2.Install valves before and after the unit to adjust water levels properly.

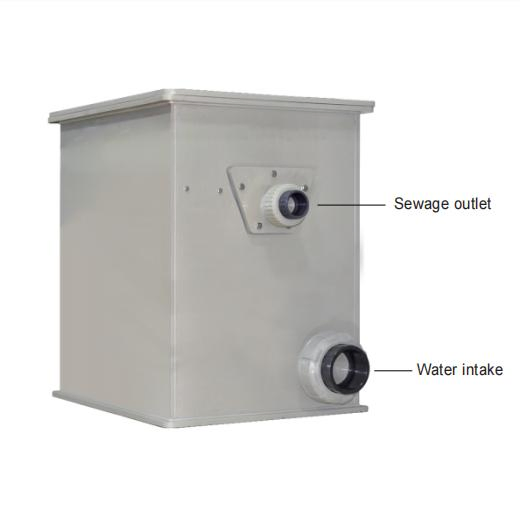

3.Ensure a height difference at the sewage outlet for efficient waste discharge.

4.Check that the cleaning pump inlet is fully submerged to avoid idling damage.

5.Drum Rotation: When facing the outlet, the drum must rotate clockwise. If counter-clockwise, adjust the motor wiring.

▶

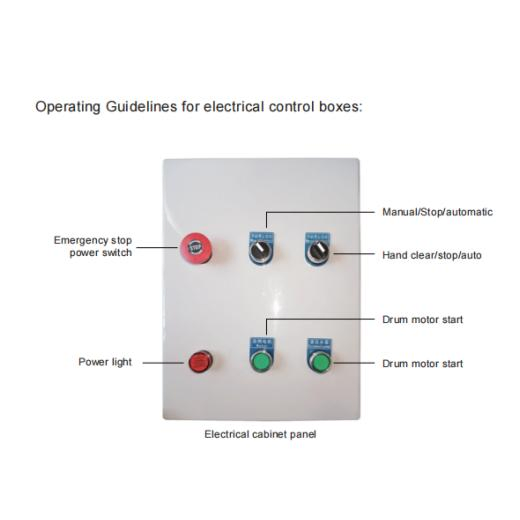

Operation Instructions

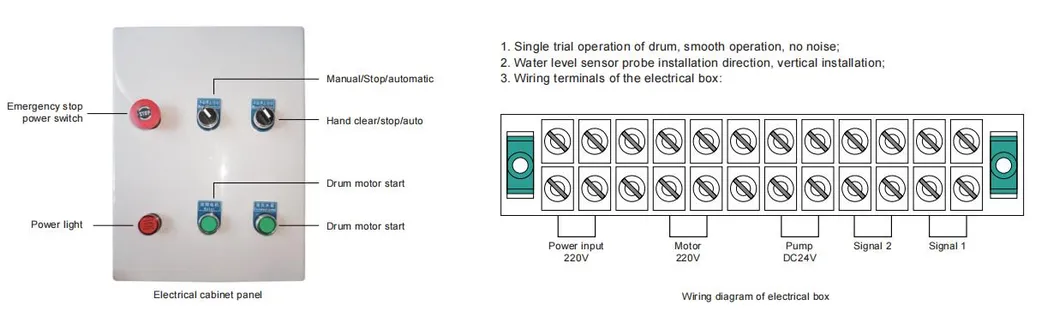

●Manual Mode: Use individual switches for the cleaning pump and drum motor.

●Automatic Mode: Controlled by the water level float ball. Triggers backwash automatically when water rises.

●Emergency: Use the emergency stop switch for immediate power cutoff.

⚠

Matters Needing Attention

The device is designed for indoor use (-5°C to 40°C). Avoid direct exposure to rain, extreme cold, or icing.

!Strictly prohibit pump idling without water.

!Regularly check nozzles for blockages to ensure consistent spray pressure.

!Power off immediately if electrical equipment becomes wet.

📊

Technical Parameters

Model	Product Size	Inlet (mm)	Outlet (mm)	Drum Diameter	Motor Power	Pump Power
5T	610335340mm	DN25	DN50	Φ250*230mm	40W	40W
10T	870470515mm	DN75	DN32	Φ300*326mm	60W	60W
20T	930590770mm	DN90	DN50	Φ370*376mm	90W	90W
30T	930590770mm	DN90	DN50	Φ370*376mm	90W	90W
50T	1210835820mm	DN110	DN75	Φ500*500mm	90W	90W
60T	1210835820mm	DN110	DN75	Φ500*500mm	90W	90W

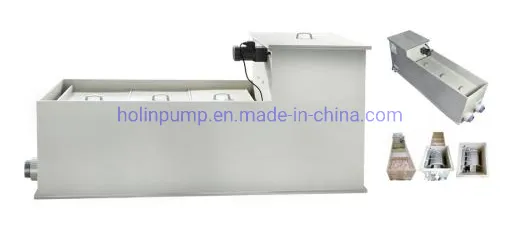

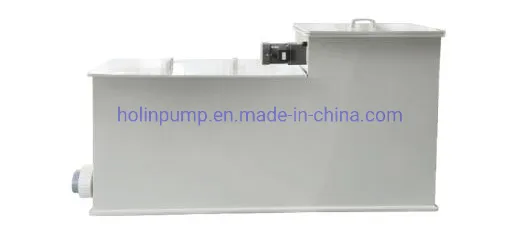

Drum Filter + Filter Bin Combinations

Model	Product Size	Inlet (mm)	Outlet (mm)	Drum Diameter	Motor Power	Pump Power
5T + Filter bin	610335340mm	DN25	DN50	Φ250*230mm	40W	40W
10T + Filter bin	1760440800mm	DN75	DN32	Φ370*326mm	60W	60W
20T + Filter bin	2300500570mm	DN90	DN50	Φ370*376mm	60W	40W

❓

Frequently Asked Questions

Q1: What materials are used in the construction of this drum filter? The system is made from food-grade, non-toxic, and corrosion-resistant PP material, featuring a 316 stainless steel filter screen for maximum durability.

Q2: How fine are the particles that this machine can filter? The microfilter is designed to separate and remove suspended solids in water that are ≥50 μm in size.

Q3: Does the filter require manual cleaning? No, the system features an intelligent automatic backwash system triggered by water level sensors, though manual operation mode is also available.

Q4: Is it suitable for outdoor koi ponds? While the PP material is UV resistant and durable, it is recommended to be used under a cover or indoors to protect electrical components from extreme rain and icing.

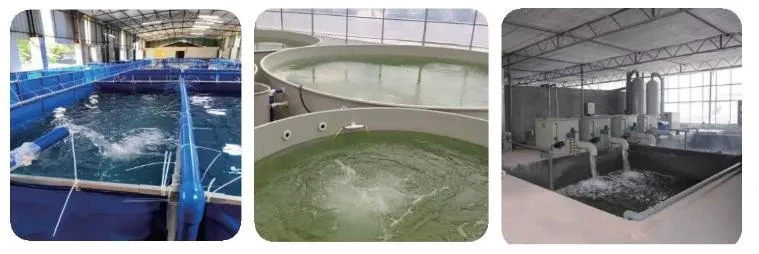

Q5: What are the main applications for this equipment? It is ideal for solid-liquid separation in koi ponds, aquaculture farms, raw water filtration, and various wastewater treatment systems.

Q6: How long is the expected lifespan of the structure? Due to the high-quality PP construction, the overall box structure is designed to last more than 10 years under normal operating conditions.
