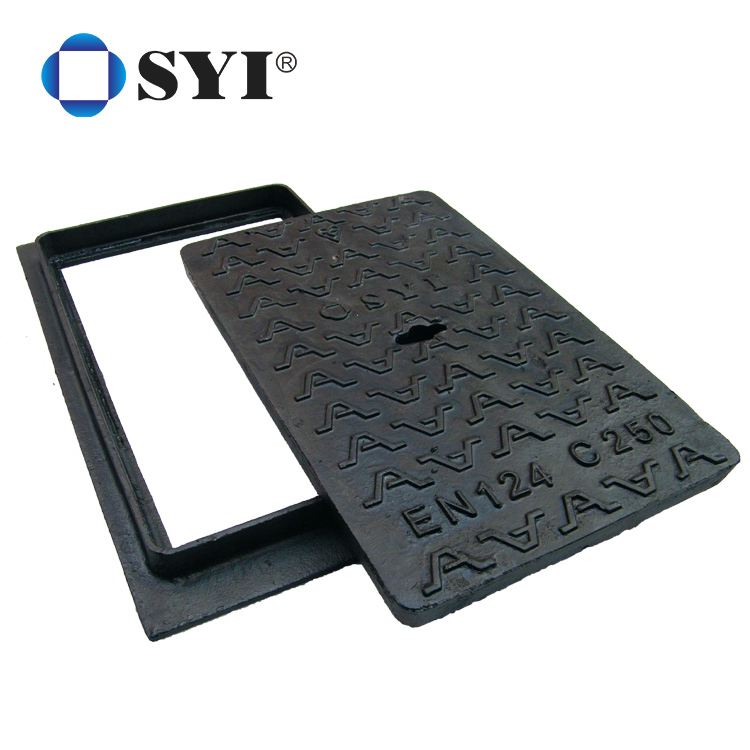

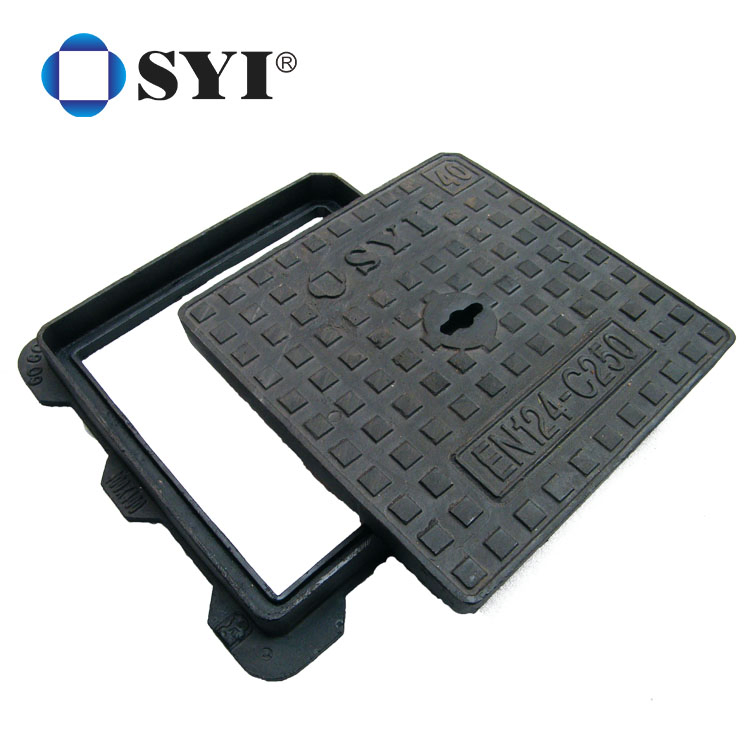

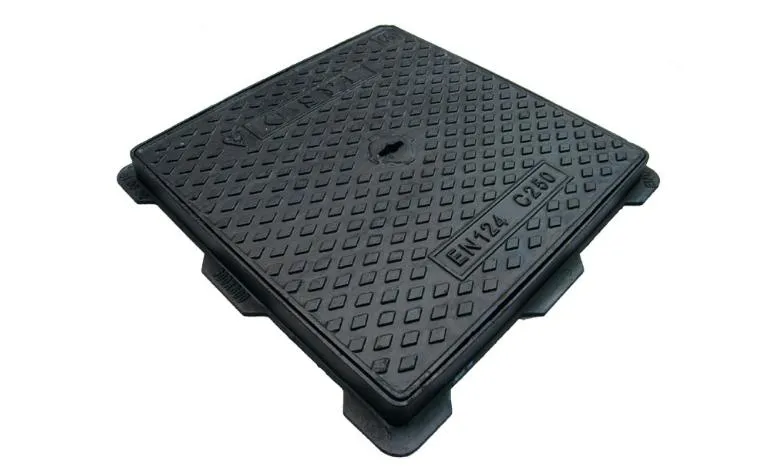

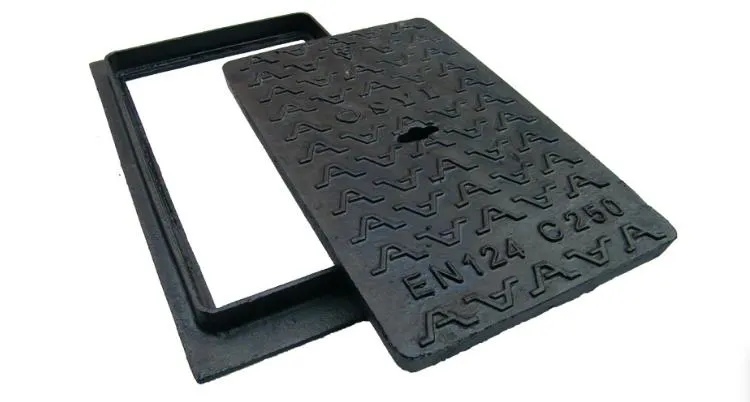

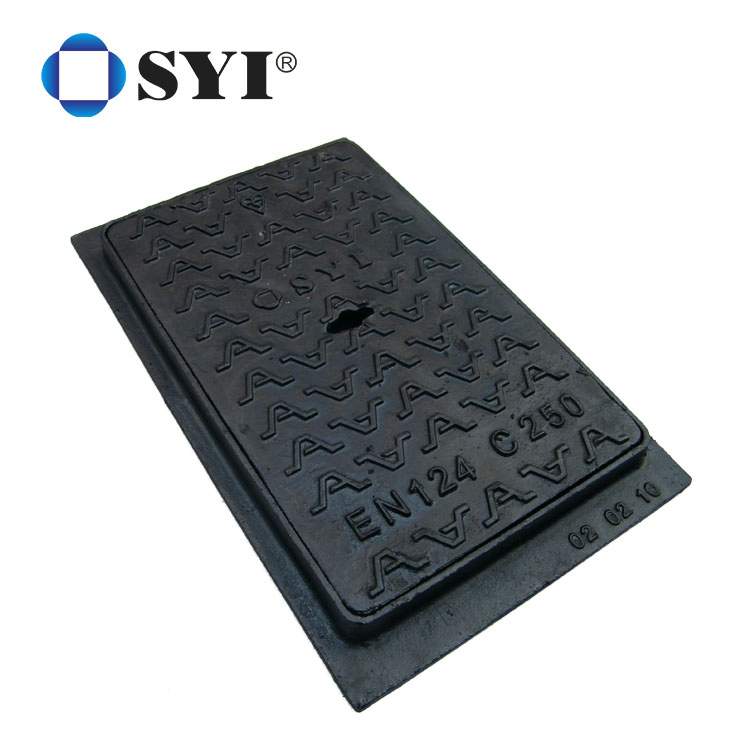

Our manufacturer provides high-quality ductile iron Medium duty C250 type Manhole Covers according to EN124 standards. These are available in various sizes, with options for hinges, single or double seals, and shapes including square, rectangular, or round. Finished with black bitumen or epoxy coating for maximum durability.
Ductile iron manhole covers are produced from spheroidal graphite cast iron using professional molding techniques. The surface is smooth and free from sand holes, distortion, or defects. With a loading capacity of 25 tons, these covers are ideal for curbside channels of roads and parking areas.
| Type | Dimensions A X A (mm) | Clear Opening O X O (mm) | Base Size C X C (mm) | Height (H) | Depth (e) |
|---|---|---|---|---|---|
| Single Sealed, Square | 500X500 | 404X404 | 435X435 | 46 | 39 |
| Single Sealed, Square | 600X600 | 504X504 | 535X535 | 51 | 44 |
| Single Sealed, Square | 700X700 | 604X604 | 635X635 | 56 | 49 |
| Single Sealed, Square | 800X800 | 704X704 | 734X734 | 65 | 58 |
| Single Sealed, Rectangular | 700X500 | 400X600 | 436X636 | 57 | 30 |
| Single Sealed, Square, Recessed | 600X600 | 500X500 | 576X576 | 90 | 84 |

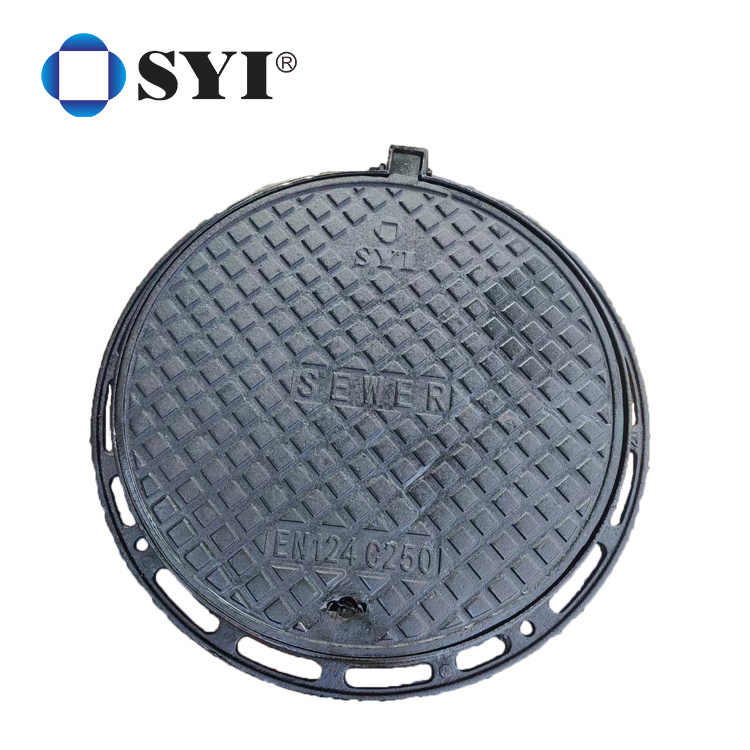

| Single Sealed, Round | Ø750 | Ø600 | Ø660 | 100 | 18 |

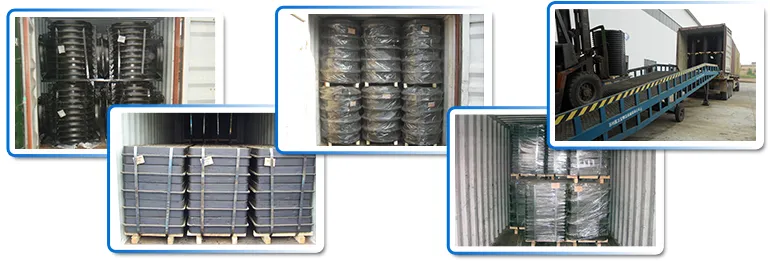

Packages are prepared using iron, plywood, or fumigated wooden pallets. Each is wrapped in film to maintain cleanliness. Pallets are engineered to be strong enough for long-distance sea transportation and transit bumps.
