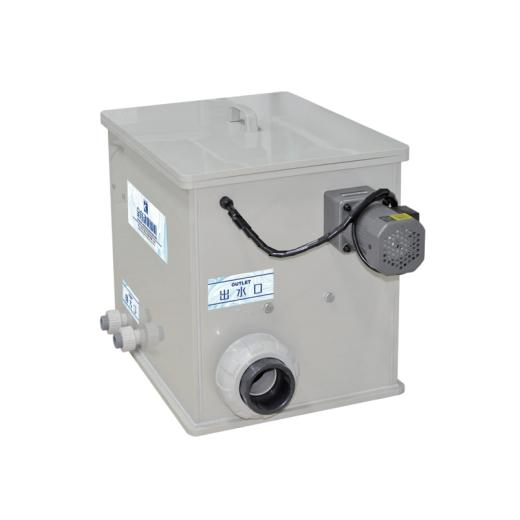

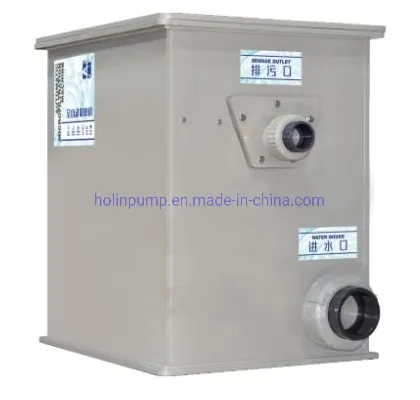

Factory Price Auto Industrial Screen Koi Pond Fish Farming Rotary Drum Filter Aquarium

1 / 5

Factory Price Auto Industrial Screen Koi Pond Fish Farming Rotary Drum Filter Aquarium

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model

Garden Pond Drum Filter

Application

Water / Aquariums

Certificate

TUV, SAA, CE, GS

Voltage

110-120V/220-240V, 60Hz-50Hz

Color

Black, Blue

Size

110X67X99 Cm

Origin

Guangdong, China

HS Code

8413709190

Capacity

100,000 PCS Per Month

⚙️

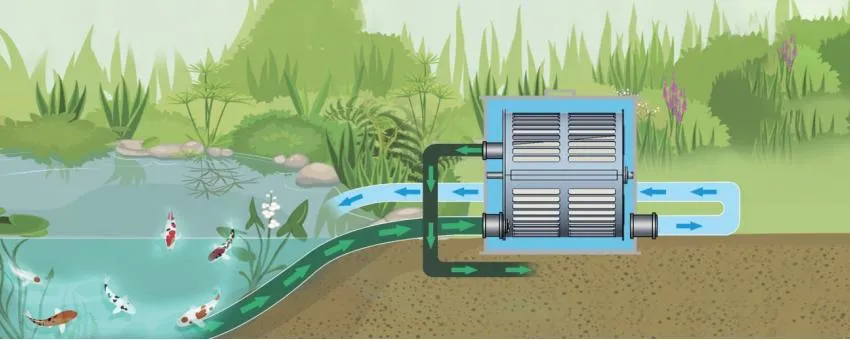

Koi Pond Filtration System

The intelligent box type microfilter is constructed from non-toxic, corrosion-resistant food-grade PP material. Designed for efficiency, it integrates a box assembly, drum assembly, reverse cleaning system, and an advanced electric control system. With a water flow capacity of up to 10m³/h, it utilizes 316 stainless steel filter media to separate suspended solids ≥50 μm.

The system features automatic liquid level control. As suspended particles accumulate on the filter screen, water permeability decreases, causing the water level outside the drum to rise. Upon reaching the sensor point, the high-pressure backwash pump and drive system activate automatically, flushing debris into the sewage collecting groove for discharge.

🛠️

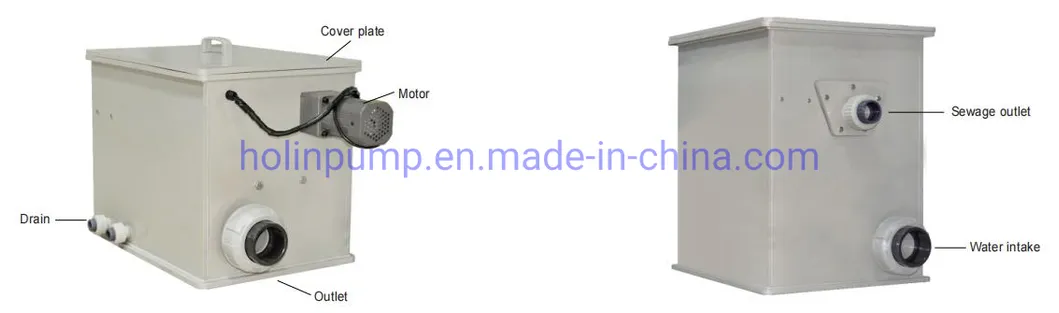

Installation Instructions

Place the microfilter on a stable, level surface.

Can be connected via pipeline, water tower, or pump supply; adjust water levels using valves.

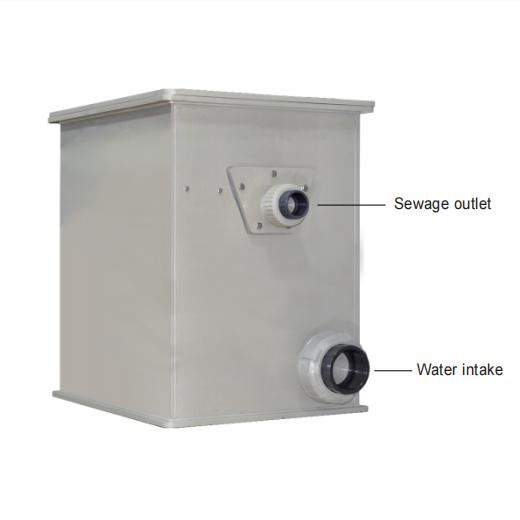

Ensure a height difference between the sewage outlet and discharge pipe for efficient waste removal.

Maintain proper outlet velocity by ensuring a gradient in the filtered water discharge pipe.

Always ensure the cleaning pump inlet is submerged to avoid dry idling.

Drum rotation must be clockwise when viewed from the water outlet (motor/gear side).

🚀

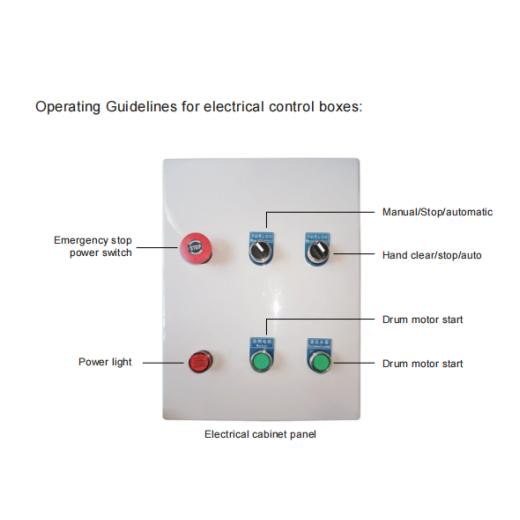

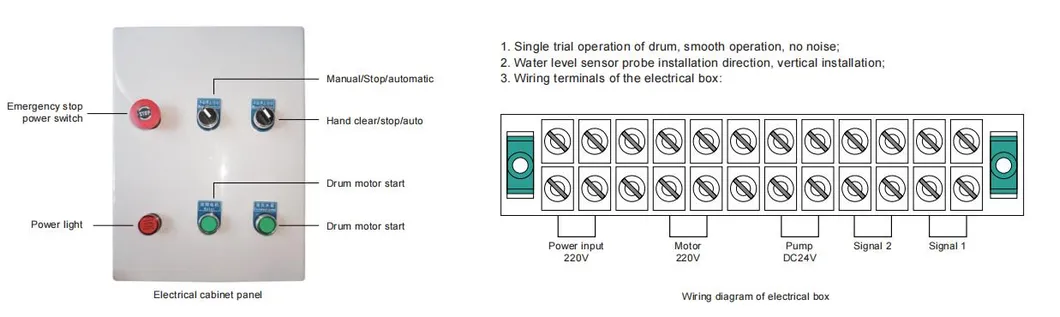

Operation Guidelines

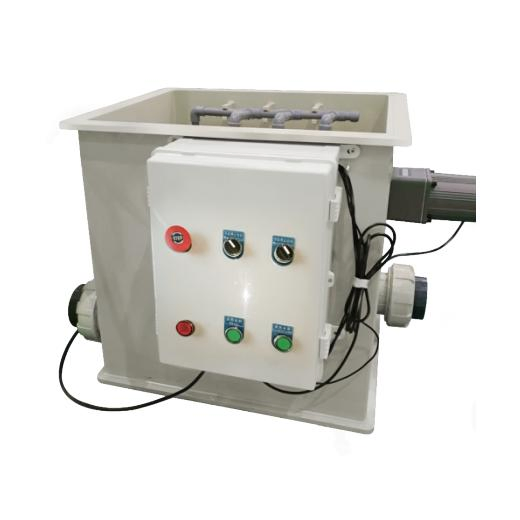

Emergency Stop: Use the designated emergency switch for immediate shutdown.

Manual/Auto Modes: In manual mode, the backwash pump and drum are operated via start/stop switches. In Automatic mode, the system is governed by the water level float switch, triggering the cleaning cycle only when needed, significantly saving energy.

💡

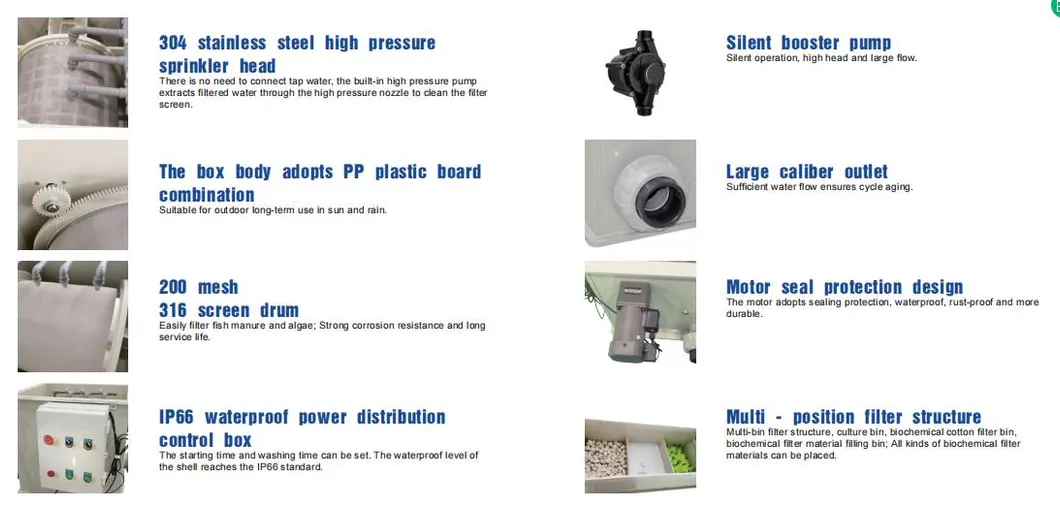

Key Features & Maintenance

Durability: PP material box body with a lifespan of over 10 years, resistant to UV and corrosion.
Efficiency: Turbine frequency conversion pump for strong filtration cycles and energy conservation.
Design: Inclined bottom prevents sludge dead corners and blockage.
Biological Support: Rapid bacterial culture and nitrification system establishment.

📊

Technical Specifications

Model	Product Size	Inlet (mm)	Outlet (mm)	Drum Diameter	Motor	Pump
5T	610335340mm	DN25	DN50	Φ250*230mm	40W	40W
10T	870470515mm	DN75	DN32	Φ300*326mm	60W	60W
20T/30T	930590770mm	DN90	DN50	Φ370*376mm	90W	90W
50T/60T	1210835820mm	DN110	DN75	Φ500*500mm	90W	90W

Model + Bin	Product Size	Inlet (mm)	Outlet (mm)	Drum Diameter	Motor	Pump
5T + Filter Bin	610335340mm	DN25	DN50	Φ250*230mm	40W	40W
10T + Filter Bin	1760440800mm	DN75	DN32	Φ370*326mm	60W	60W
20T + Filter Bin	2300500570mm	DN90	DN50	Φ370*376mm	60W	40W

❓

Frequently Asked Questions

Q1: What materials are used in the drum filter's construction? A: The microfilter is made of food-grade, non-toxic PP material for the box and high-quality 316 stainless steel for the filter screen, ensuring corrosion resistance and long-term durability.

Q2: How small are the particles that this system can filter? A: The system uses a specialized screen designed to capture and separate suspended solids as small as 50 μm (micrometers).

Q3: Does the filter require manual cleaning? A: No, the system features an automatic backwash function triggered by water level sensors. When the screen becomes clogged, the high-pressure cleaning pump activates automatically to flush debris.

Q4: Can the drum filter be used for saltwater aquaculture? A: While primarily developed for freshwater koi ponds and aquaculture, the use of 316 stainless steel and PP provides high resistance to various water conditions; however, specific maintenance for salt environments is recommended.

Q5: What are the environmental operating conditions? A: The device should be used indoors or under cover within a temperature range of -5°C to 40°C. It is important to avoid direct exposure to extreme rain, icing, or excessive sun exposure to maximize lifespan.

Q6: What should I do if the nozzles stop spraying water? A: You should regularly check the nozzles for blockages. If they stop spraying, simply remove them to clear out any debris or replace them with new nozzles to maintain backwash efficiency.
