Product Description

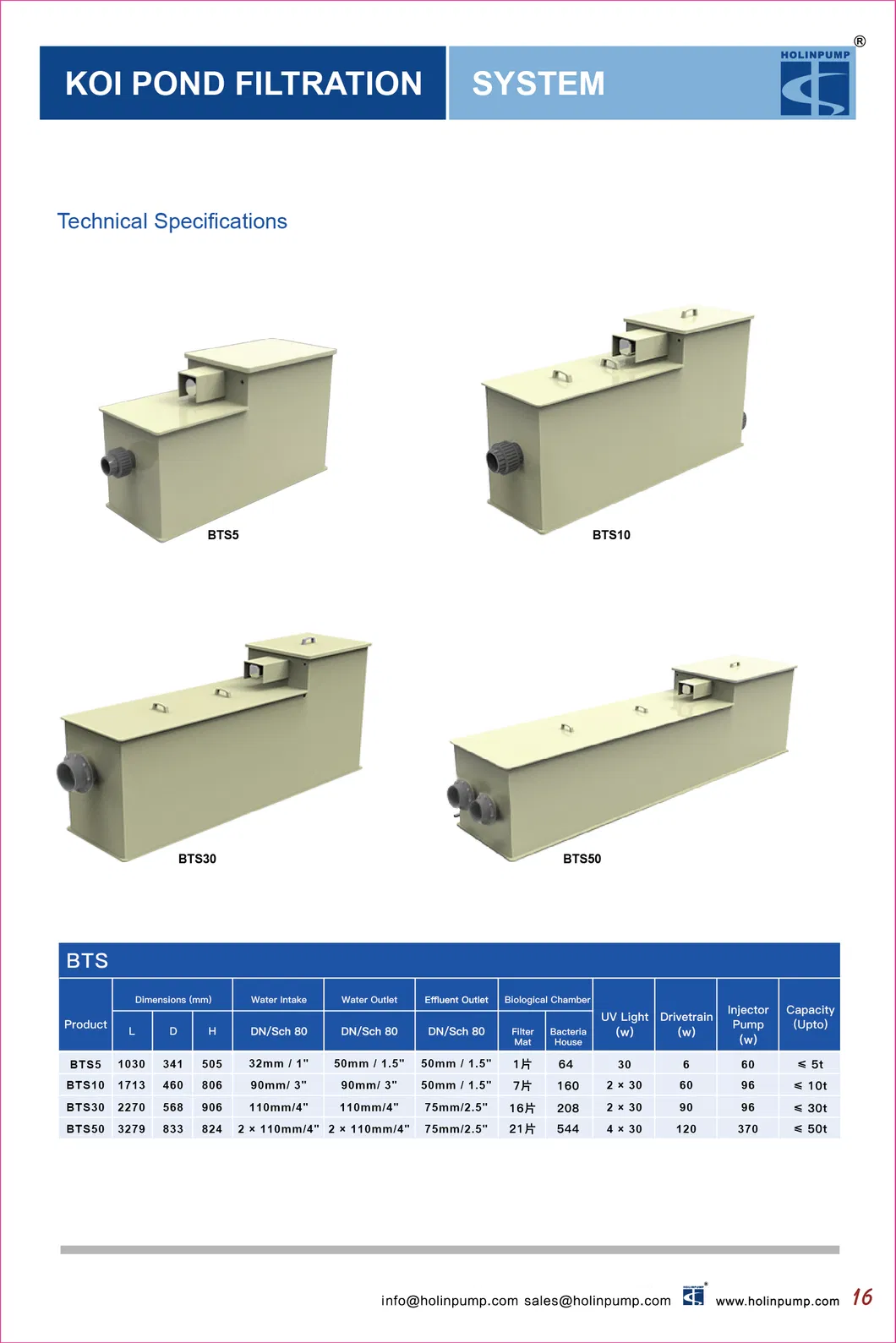

Technical Specifications

Usage

Water

Name

Submersible Water Pump, Pump Price

Model

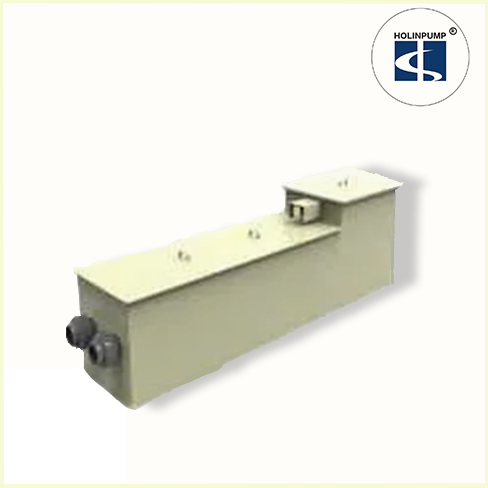

Garden Pond Drum Filter

Certificate

TUV, SAA, CE, GS

Voltage

110-120V/220-240V, 60Hz-50Hz

Color

Black, Blue or per requirements

Size

110.5X38.5X60.5cm

HS Code

8413709190

Capacity

100,000PCS Per Month

★

Product Overview

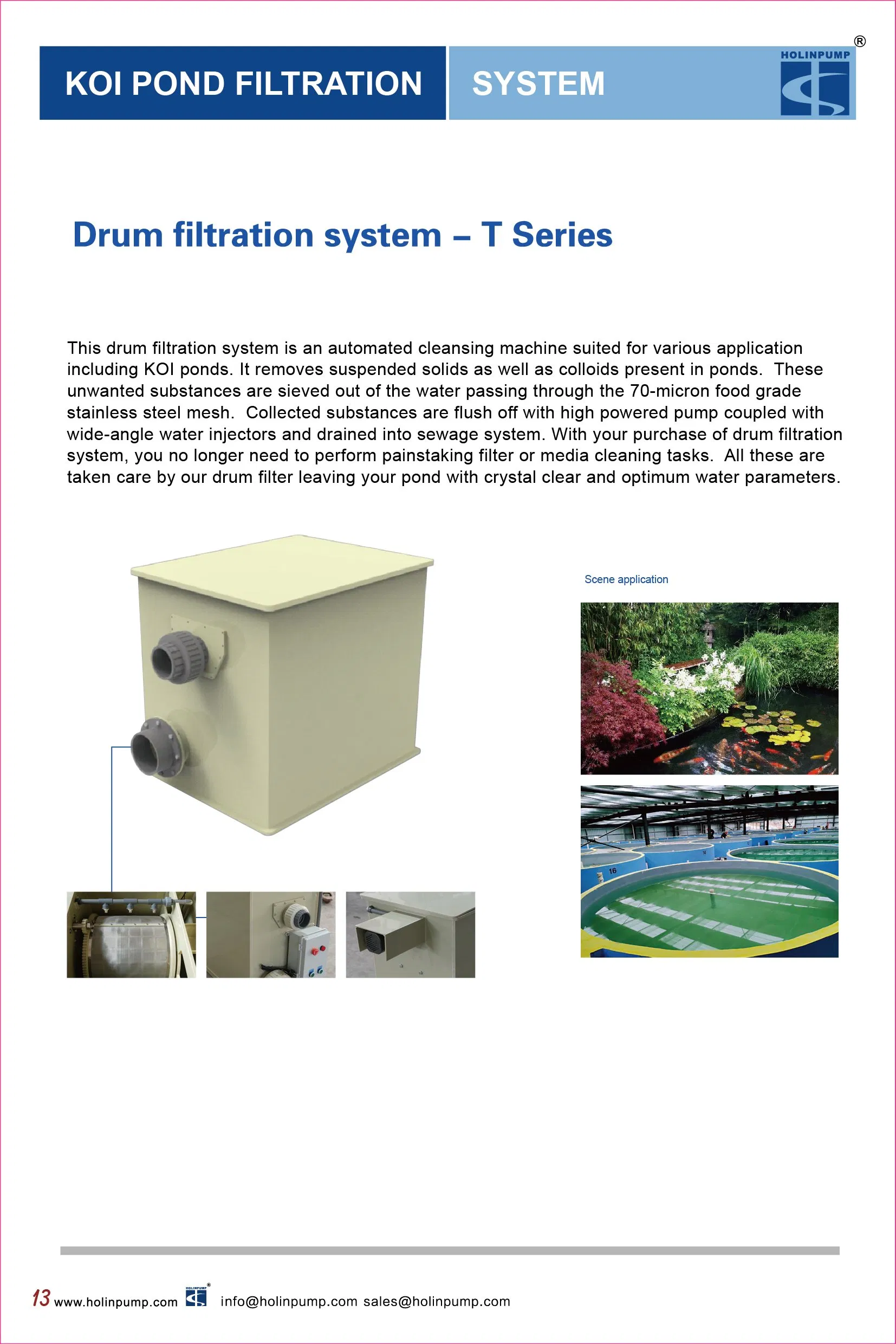

Automatic backwash rotary drum filter koi pond fish manure separation filter

The intelligent box-type microfilter is constructed from non-toxic and corrosion-resistant food-grade PP material. The system integrates a box assembly, drum assembly, reverse cleaning system, electric control box, and transmission system. Designed for water flow rates ≤ 10m³/h, it utilizes a food-grade 316 stainless steel filter medium to efficiently separate suspended solids (≥50 μm).

Operation is driven by an automatic liquid level control system. As particles accumulate on the filter screen, water permeability decreases, causing the external water level to rise. Upon reaching the set threshold, the backwash pump and drive system activate simultaneously. High-pressure cleaning nozzles clear the rotating drum, discharging waste into the collecting groove for direct disposal.

⚙

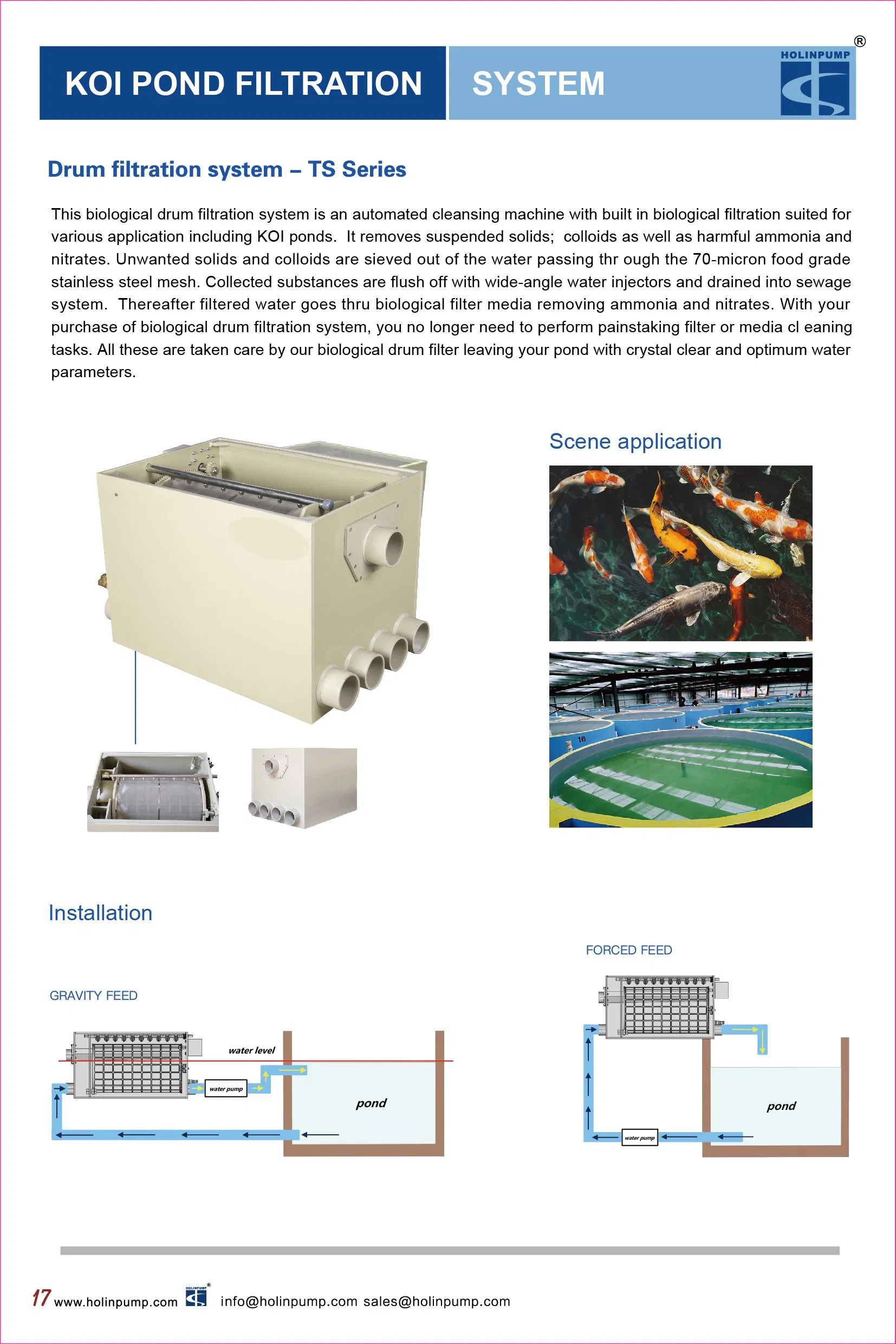

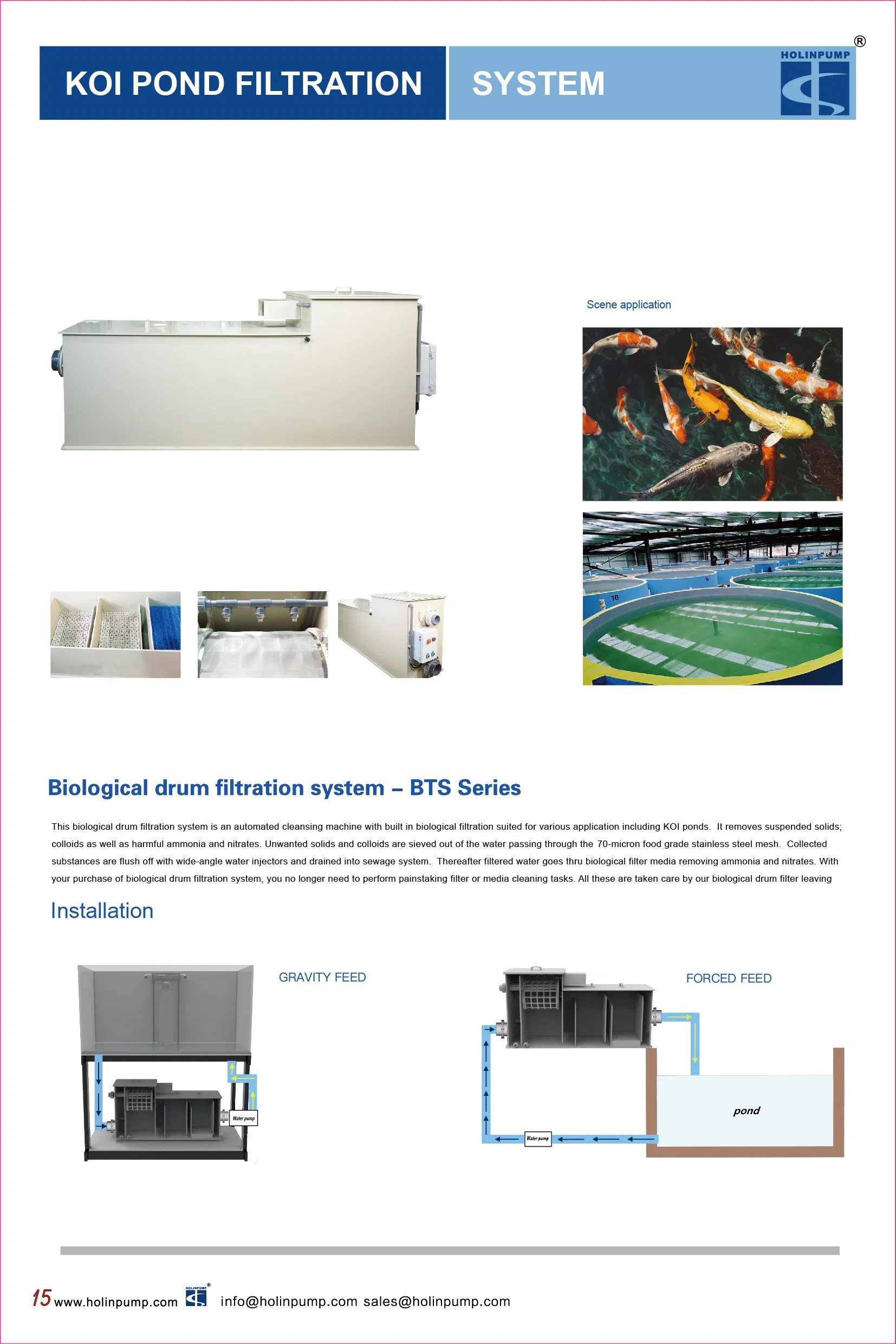

Installation Instructions

Place the microfilter in a stable, level location.

Compatible with pipeline, water tower, or pump water supply; valves should be installed to adjust water levels.

Maintain a high-level difference for the sewage outlet to ensure efficient waste discharge.

Ensure the box outlet has a sufficient height difference to maintain proper water velocity in the pipes.

Verify the cleaning pump inlet is fully submerged to prevent dry idling and potential damage.

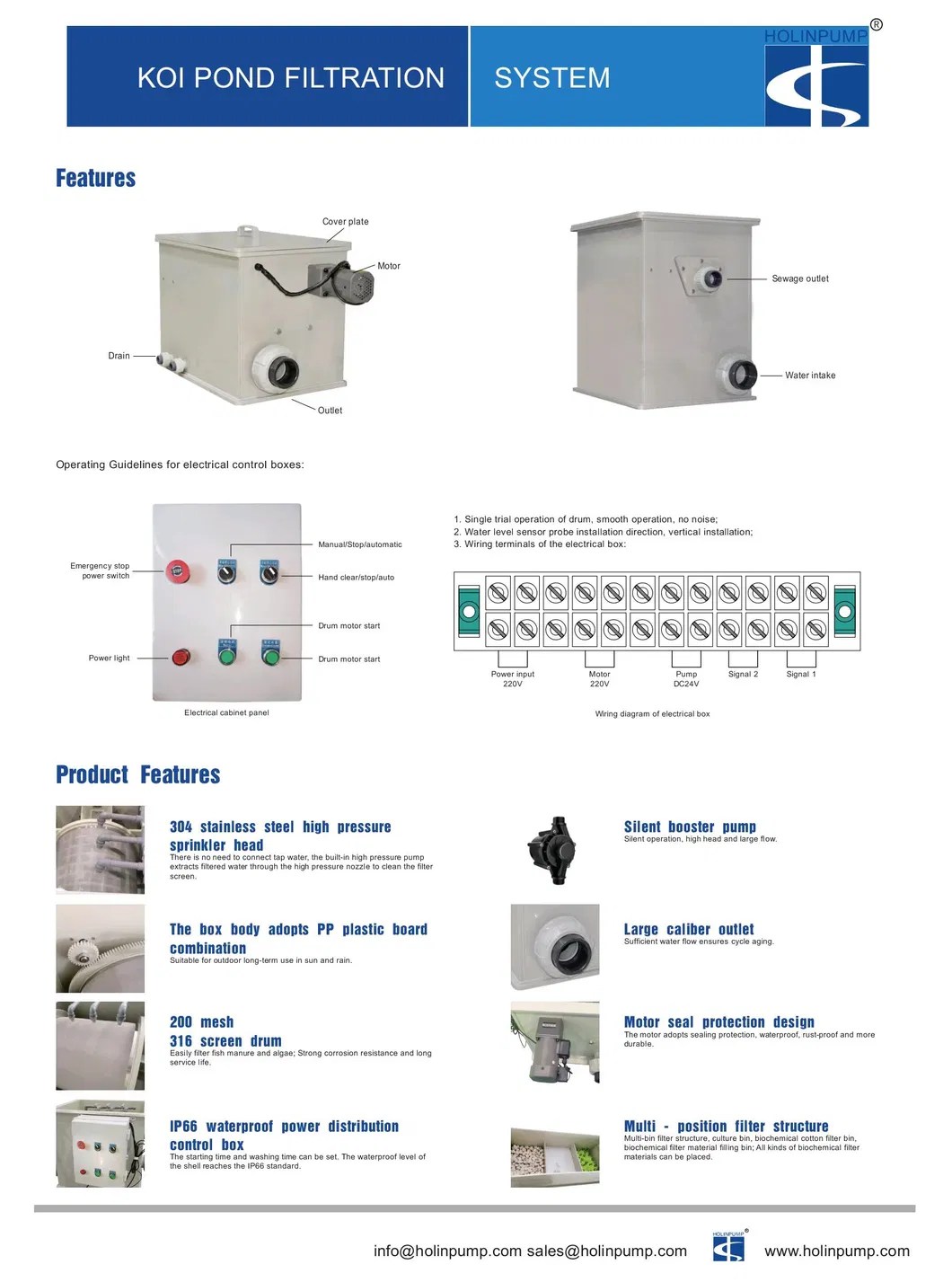

Wiring: Motor has three lines (Black: Zero, White/Red: Power). Connect the capacitor's two black lines to the motor's red and white lines. Connect the external zero to the motor's black line.

Rotation: The drum must rotate clockwise when facing the water outlet. Adjust by switching the red or white motor wire connections if necessary.

Frequently Asked Questions

Q1: What materials are used in the construction of this filter? A: The box is made of non-toxic food-grade PP material, and the filter screen is made of 316 stainless steel for superior corrosion resistance.

Q2: What size particles can the drum filter remove? A: The system is designed to effectively separate suspended solids that are 50 μm or larger.

Q3: How does the automatic cleaning system trigger? A: It uses an intelligent liquid level sensor. When the filter mesh is clogged and the water level rises to a specific point, the backwash cycle starts automatically.

Q4: What is the maximum processing capacity of this unit? A: This specific model is designed for a water flow rate of less than or equal to 10m³/h.

Q5: Can the drum filter be used for different voltages? A: Yes, it supports dual voltage configurations of 110-120V or 220-240V at 50Hz/60Hz depending on your requirements.

Q6: What should I do if the drum is rotating counter-clockwise? A: You should switch the red or white wire connections on the motor to reverse the steering to the correct clockwise direction.
