| Model NO. | ZJFG-15 |
|---|---|
| Thickness | 25mm, 30mm, 32mm, 38mm, 50mm, etc. |

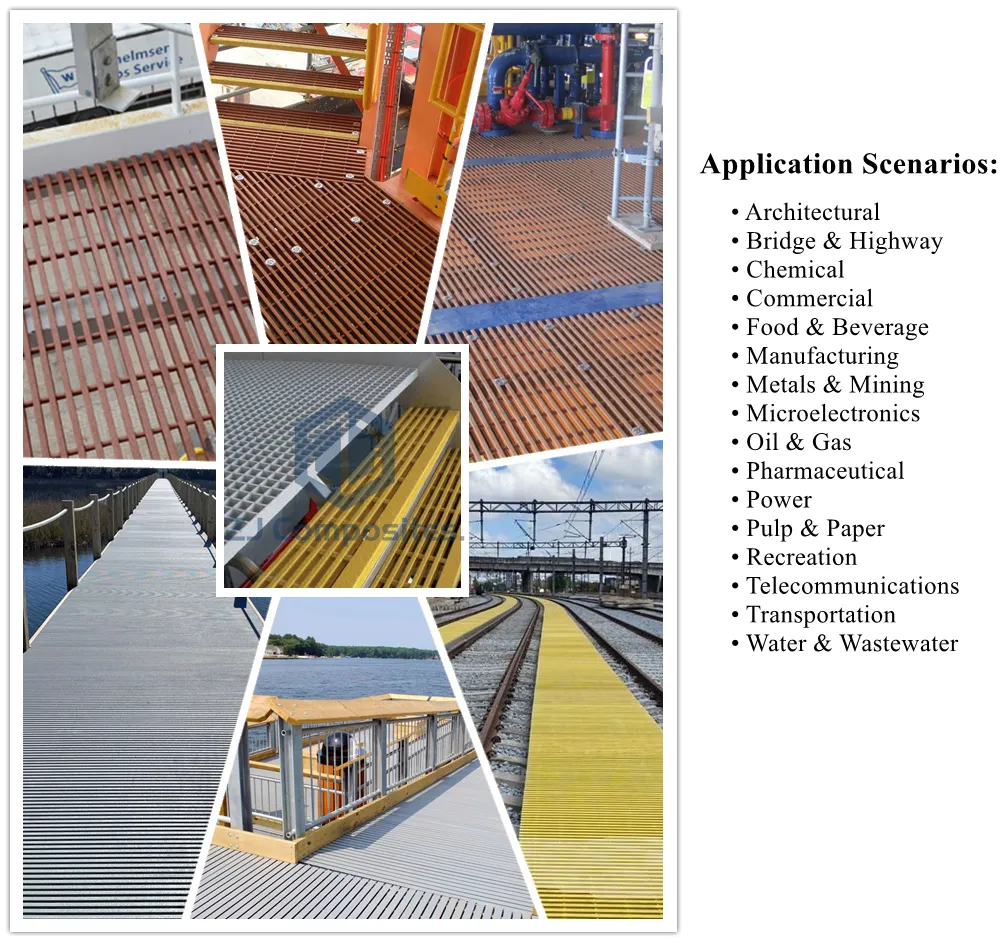

| Usage | Environmental Protection, Industrial, Household, Walkways, Platform, Constructions, Sea Deck |
| Product Categories | FRP Pultrusion Grating |
| Molding Method | Pultrusion |
| Material | FRP |
| Fiber Type | GFRP |
| Type | Ortho |
| Surface | Corrugated, Smooth, Gritted, Covered |
| Origin | China |
| HS Code | 392590 |
| Production Capacity | 1000000 Sqm Per Month |
| Package Size | 20.00cm * 15.00cm * 7.00cm |
|---|---|
| Package Gross Weight | 2.000kg |
| Transport Package | Steel / Wood Pallet, or in Buyer's Advice |

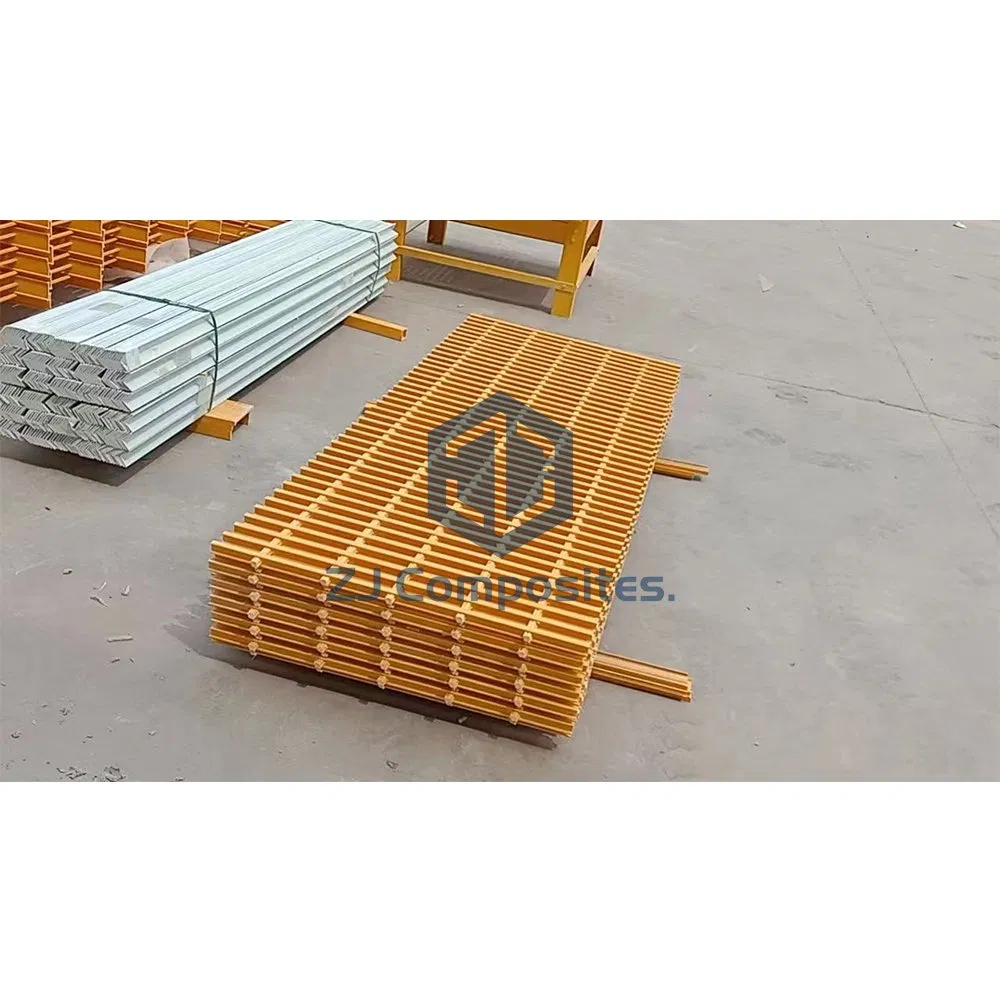

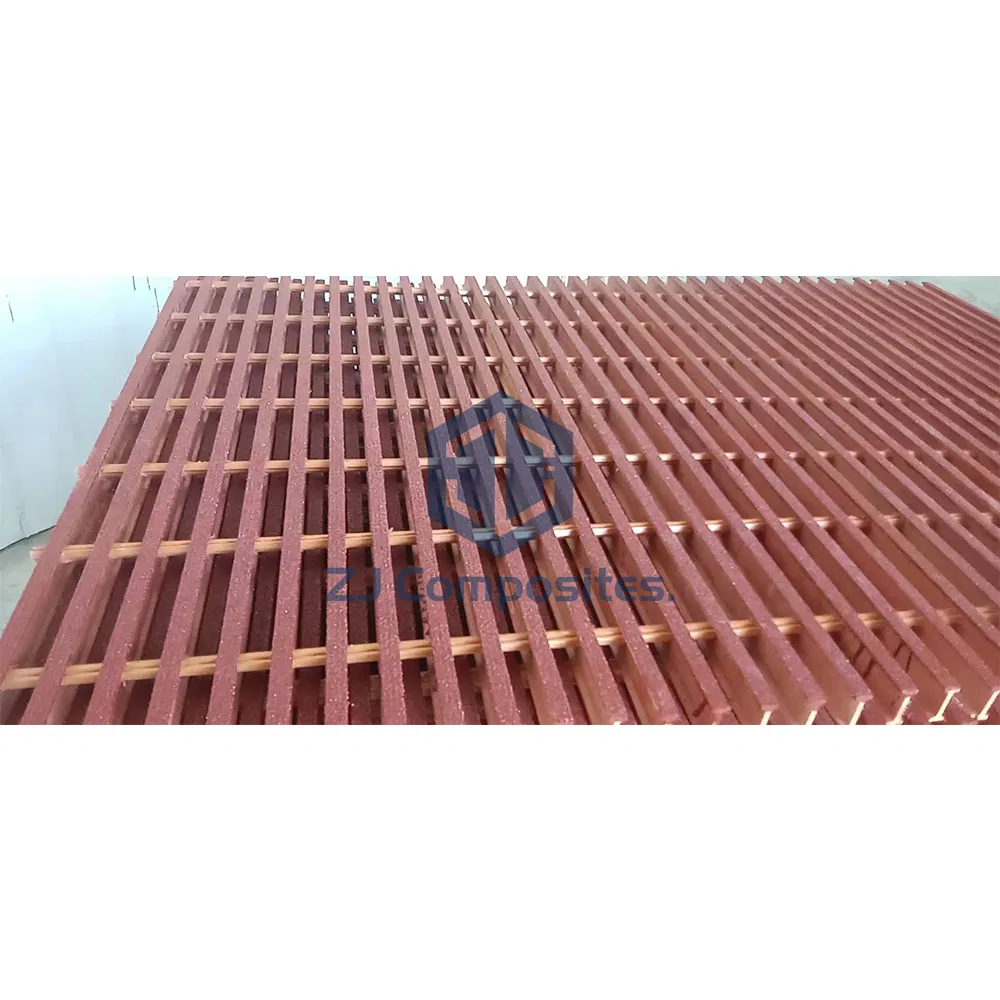

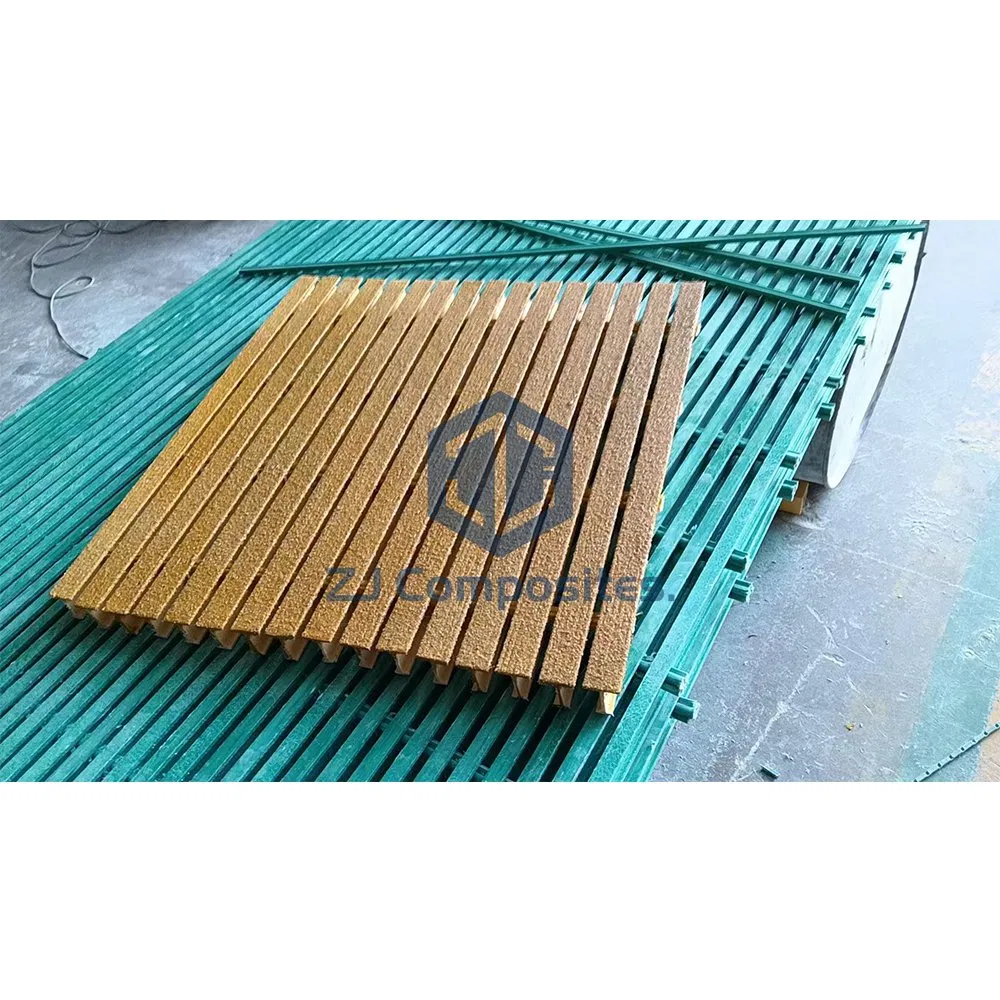

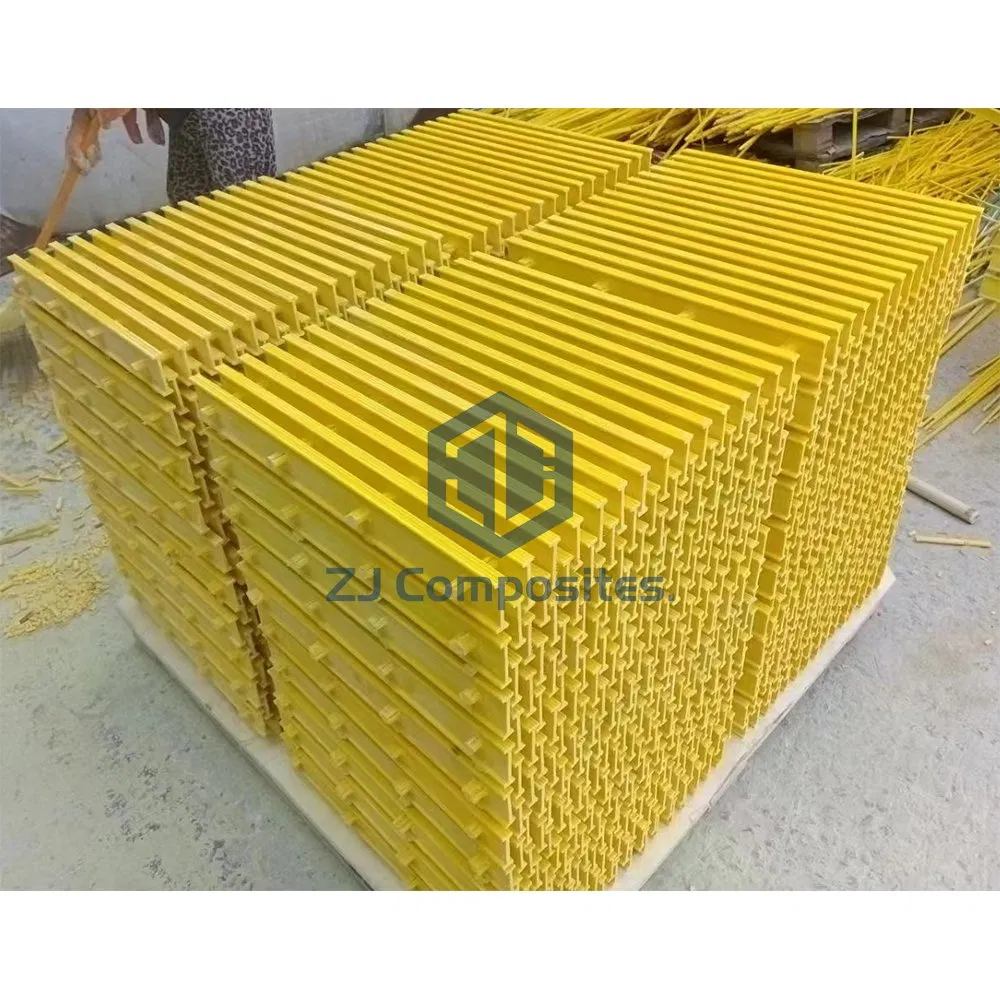

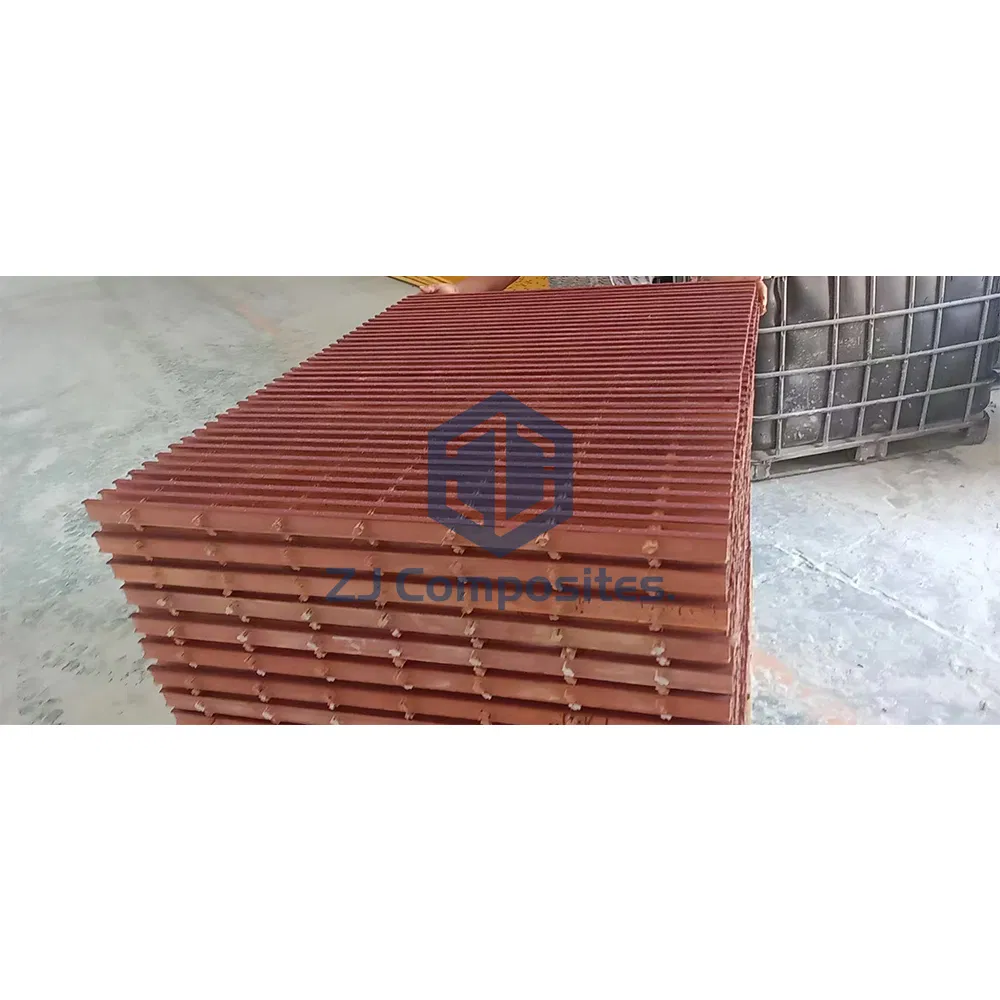

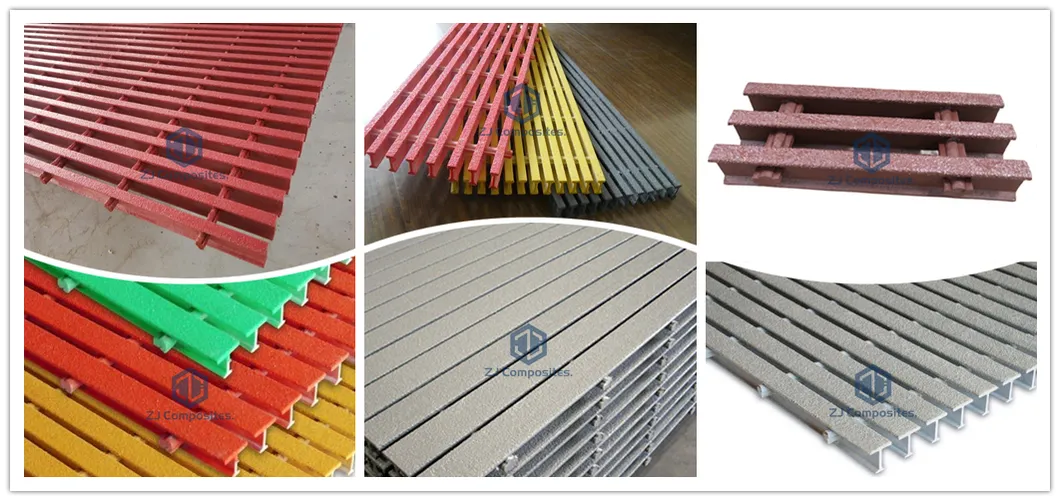

Combining corrosion resistance, long life and a low maintenance design, FRP pultruded grating (Fiberglass pultrusion grating) is superior to conventional metallic gratings. This advanced grating is manufactured with a recessed tie bar configuration and is lightweight and easy to fabricate. Savings on labor and equipment often make the total installed cost of grating comparable to that of steel.
Manufactured with a high percentage of glass within the laminate, pultruded grating provides durability, extremely high unidirectional strength and stiffness. Due to its exceptional stiffness, it can be used with confidence where wide support spans are required. Our industrial grating rarely requires additional support. The product line includes High Load Capacity (HI) grating for up to H20 vehicular loads, industrial grating for standard industrial loads and pedestrian grating for foot traffic.

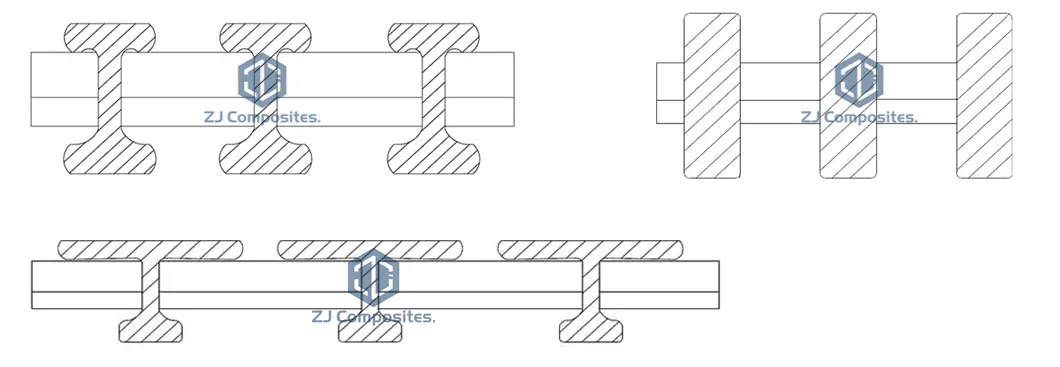

| Type | Height (mm) | Top Width (mm) | Space (mm) | Clearance (mm) | Open Area (%) | Est. Weight (kg/㎡) |
|---|---|---|---|---|---|---|
| I-01 | 25 | 8 | 19.8 | 11.8 | 60 | 12.2 |
| I-02 | 25 | 15 | 25 | 10 | 40 | 17.1 |
| I-03 | 25 | 15 | 30 | 15 | 50 | 14.2 |
| I-11 | 38 | 15 | 25 | 10 | 40 | 22 |
| I-13 | 38 | 15 | 38 | 23 | 60 | 16.2 |
| I-16 | 50 | 15 | 38 | 23 | 60 | 20.1 |
| Type | Height (mm) | Top Width (mm) | Space (mm) | Clearance (mm) | Open Area (%) | Est. Weight (kg/㎡) |
|---|---|---|---|---|---|---|
| T-01 | 25 | 38 | 43.4 | 5.4 | 12 | 14.5 |
| T-03 | 25 | 38 | 50.8 | 12.7 | 25 | 12.3 |
| T-05 | 25 | 38 | 61 | 23 | 38 | 10.2 |
| T-07 | 38 | 38 | 50.8 | 12.7 | 25 | 16.7 |
| T-10 | 50 | 25.4 | 50.8 | 25.4 | 50 | 15.7 |
| T-13 | 50 | 15 | 23 | 23 | 60 | 43.5 |
