| Model NO. | LCD-FA-300-LNXX-OS |
| Power | ≥100W |
| Projection Distance | >35m |

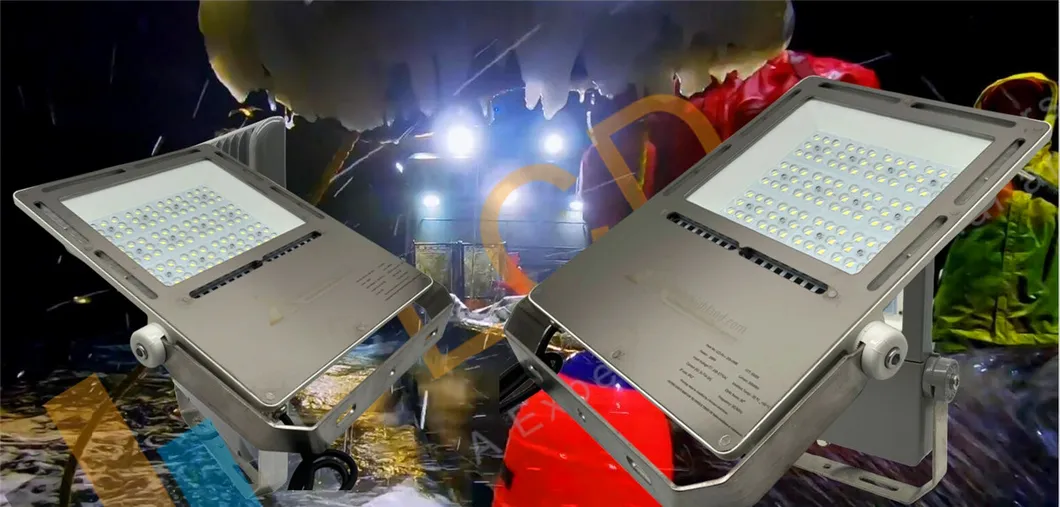

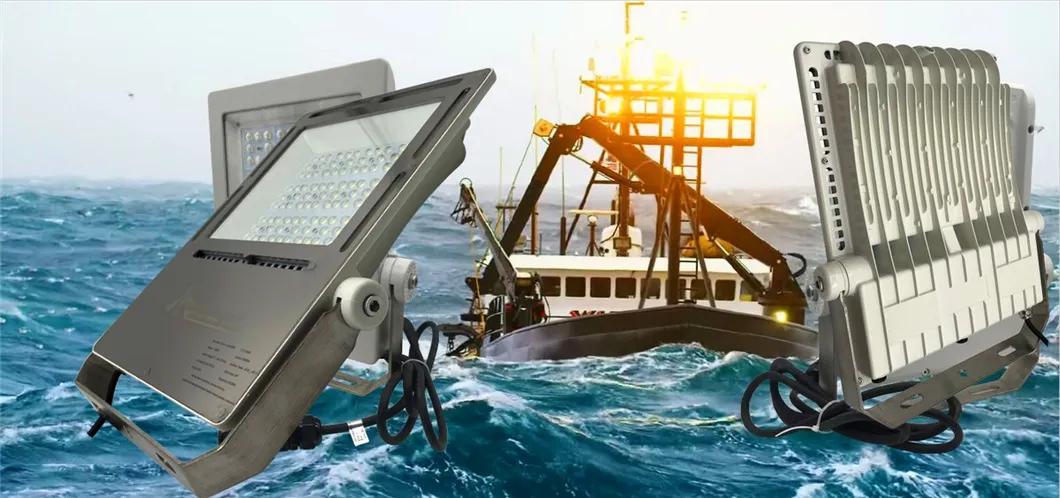

| Application | Park, Square, Factory, Garden, Fishing Boat, Crane, Marine, Offshore Rig etc |
| IP Rating | IP68 |
| Certification | CE, CQC, EMC, Energy Star, ETL, FCC, RoHS, SAA, TUV etc. |
| Operating Voltage | 220-240V |
| Input Voltage | 220V |
| LED Chips Brand | CREE |
| Beam Angle | 8deg 15deg 20deg 30deg 45deg 60deg 90deg T1 T2 T3 |
| Ik Rate | Ik09 |
| CCT | 2700K-6500K |
| Lumen Output | 90-160lm/W |
| Transport Package | Carton Box |
| Specification | 350x265x69mm |

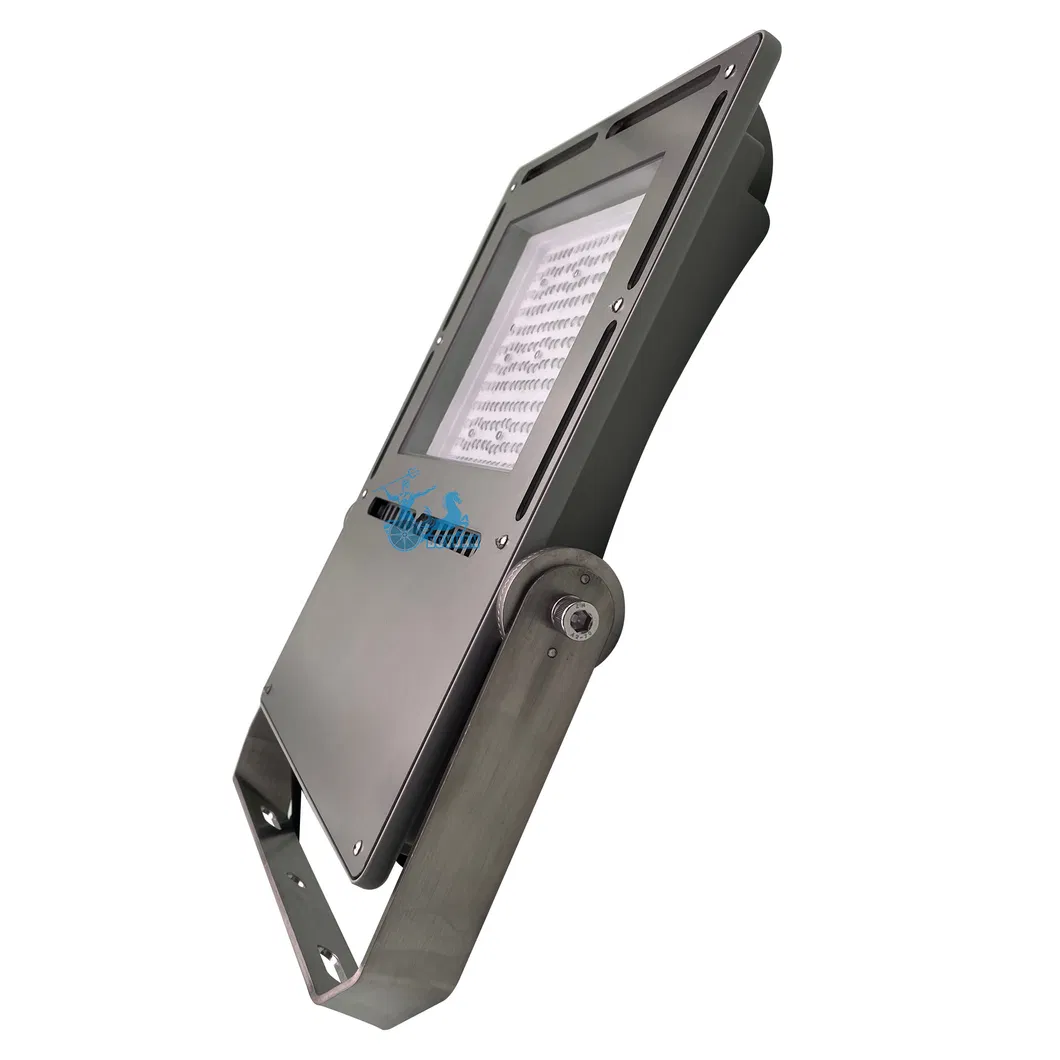

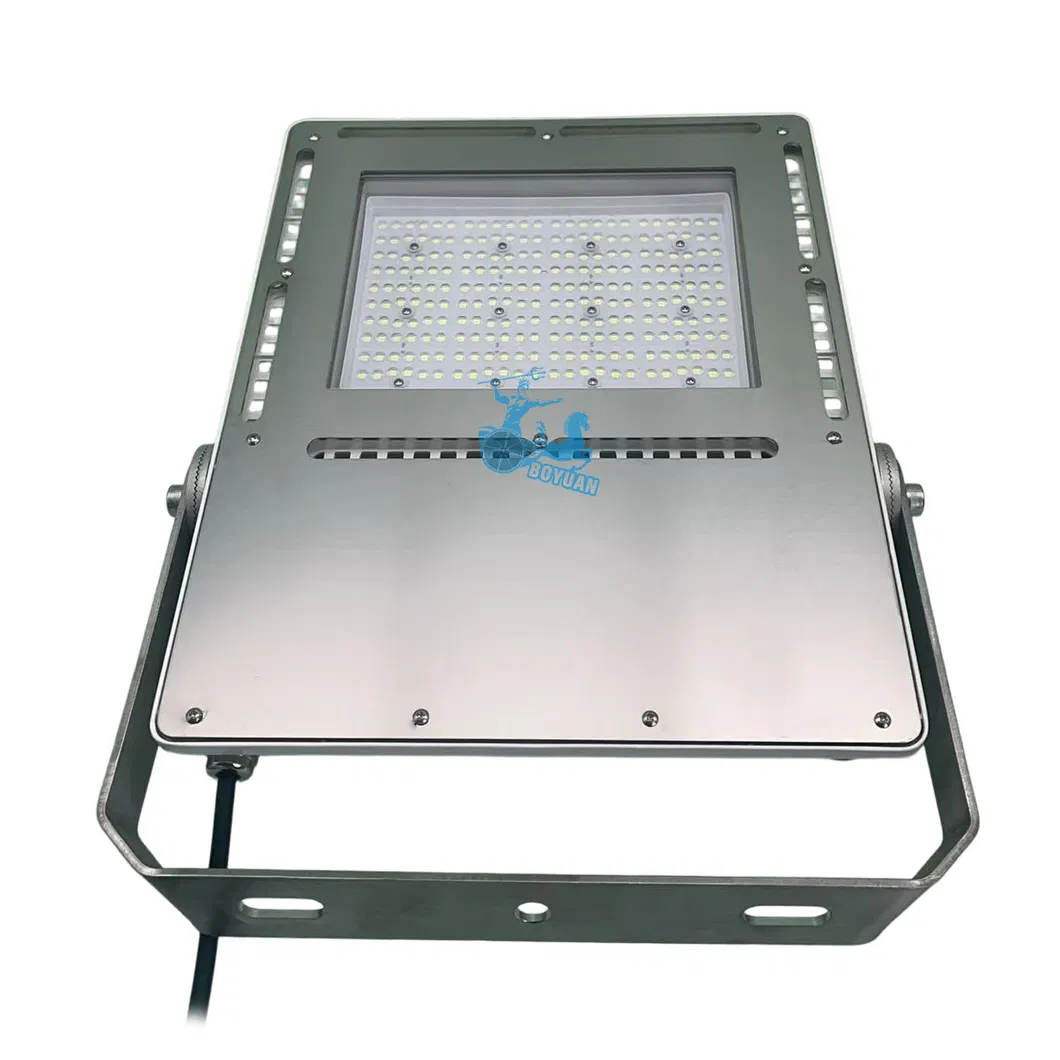

The FA Series LED Floodlight is an ideal replacement for traditional metal halide and halogen fixtures. Designed for industrial, marine, parking lot, warehouse, street, billboard, building façade, and security lighting, it combines powerful performance, versatile optics, and superior durability to meet the most demanding lighting applications.

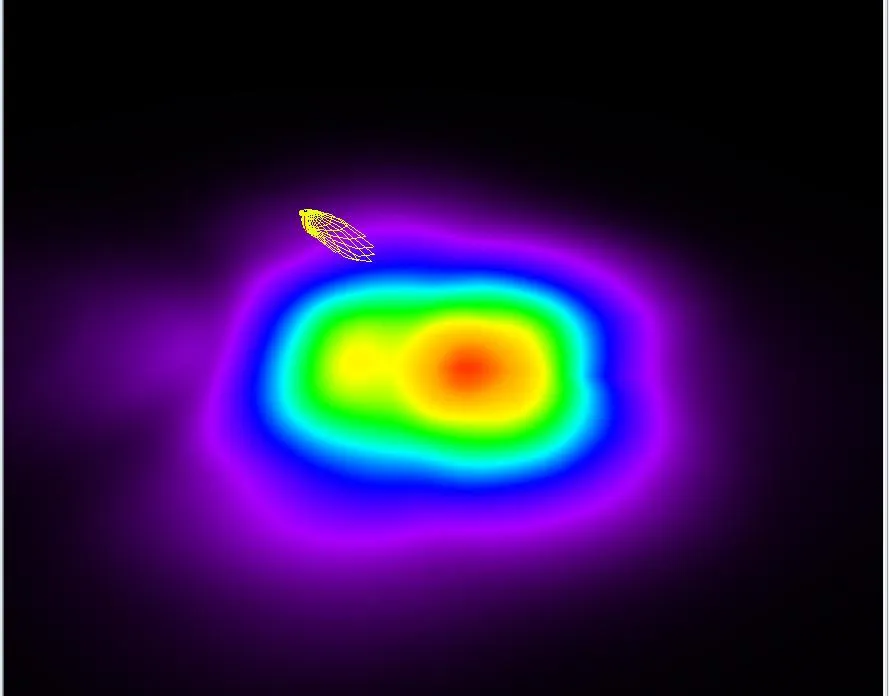

Narrow beam angle 7-8 degree searchlight: Symmetric beam 7-8 degree + oval beam angle Area searchlight Flat IP67 LED Flood Light 80W 100W 150W up to 140-150lm/W.

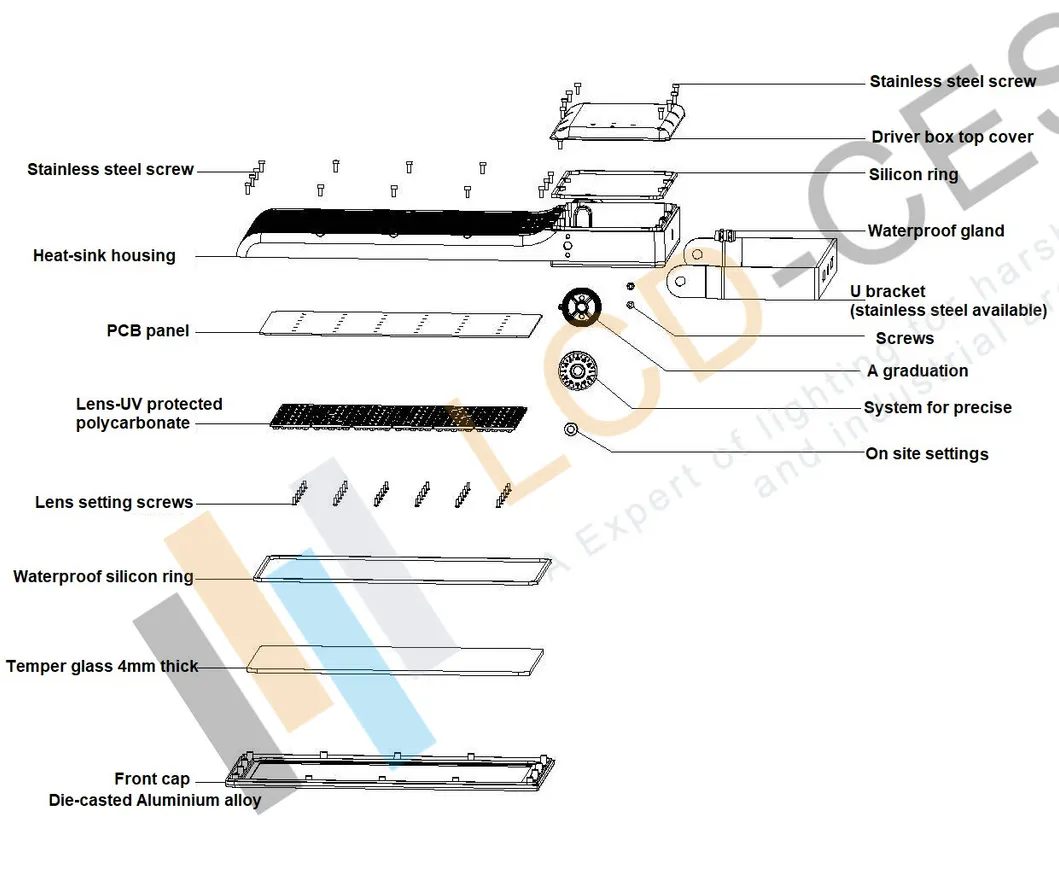

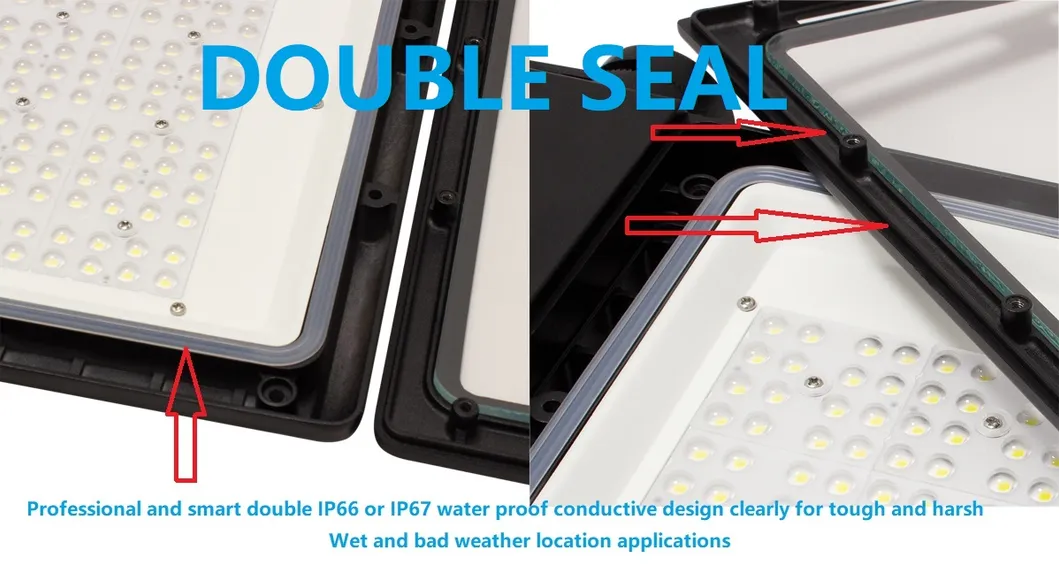

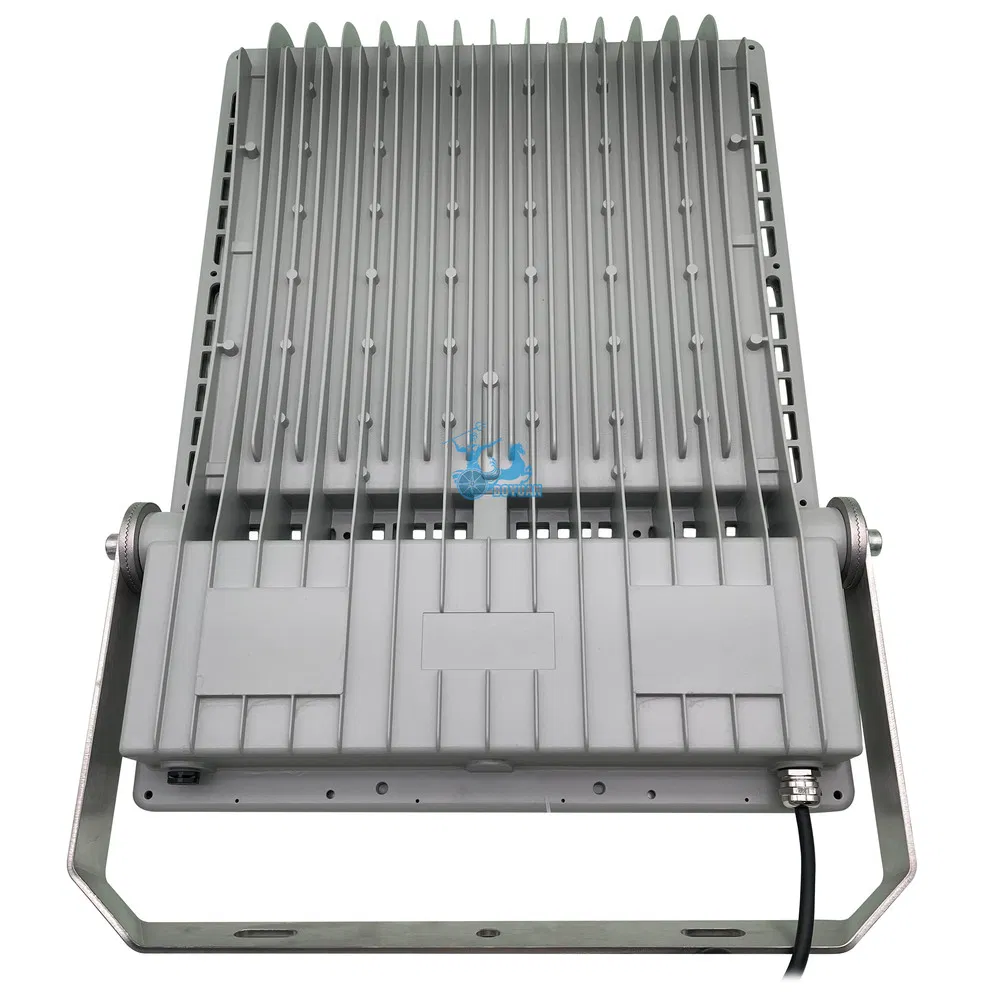

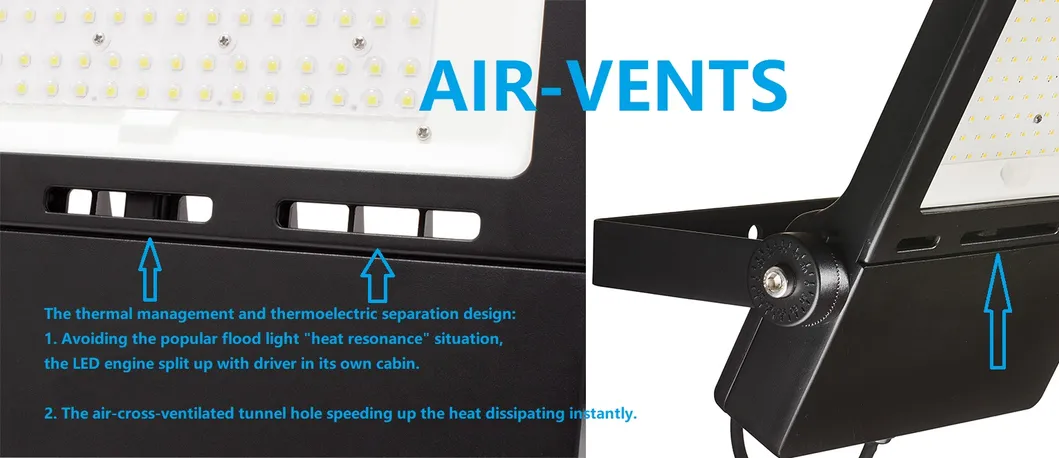

Strong housing made of die-cast aluminum, featuring high heat dissipation and superior aesthetics. Impact resistant IK08/IK09 grade and protection rating IP66-IP68. Advanced heat sink design ensures LED does not exceed temperature ratings across all specified ambient conditions. Universal voltage capacity 100-277V 50/60Hz or 12-32VDC.
| Brightness (lm) | 15000lm | Halogen Equivalent | 600-800W |
| LED Quantity | 48 | Light Color | Daylight White |
| Color Temp (K) | 2700K-6500K | Dimmable | Optional |
| CRI | > 70 / 80 / 90 | Beam Angle | 15°, 30°, 60°, 90°, 120° |
| Input Voltage | 100-305V AC | Frequency | 50/60Hz |
| Material | Tempered Glass, Aluminum Alloy | Warranty | 5-7 Years |
| Model | SCH-Module50-50 to 200 |
| Stable Flux | 7,000lm to 70,000lm |
| Replace HID | 200W-3000W |
| Working Life | ≥50,000 Hrs |
| AC Input | 80~360VAC / 400~600VAC |
| Ex Mark | Exdemb IICT4/T6 |
