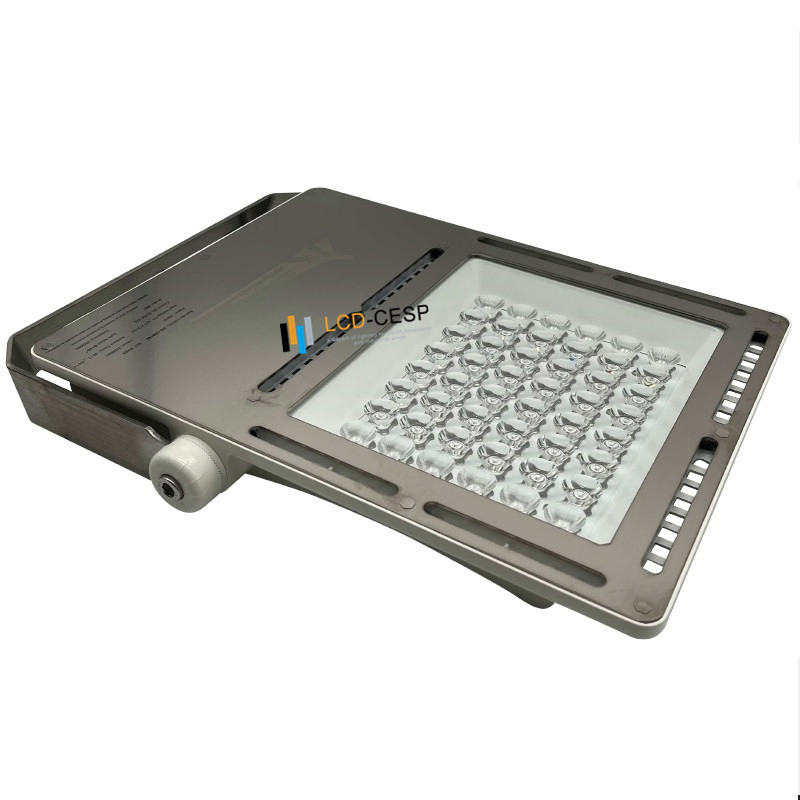

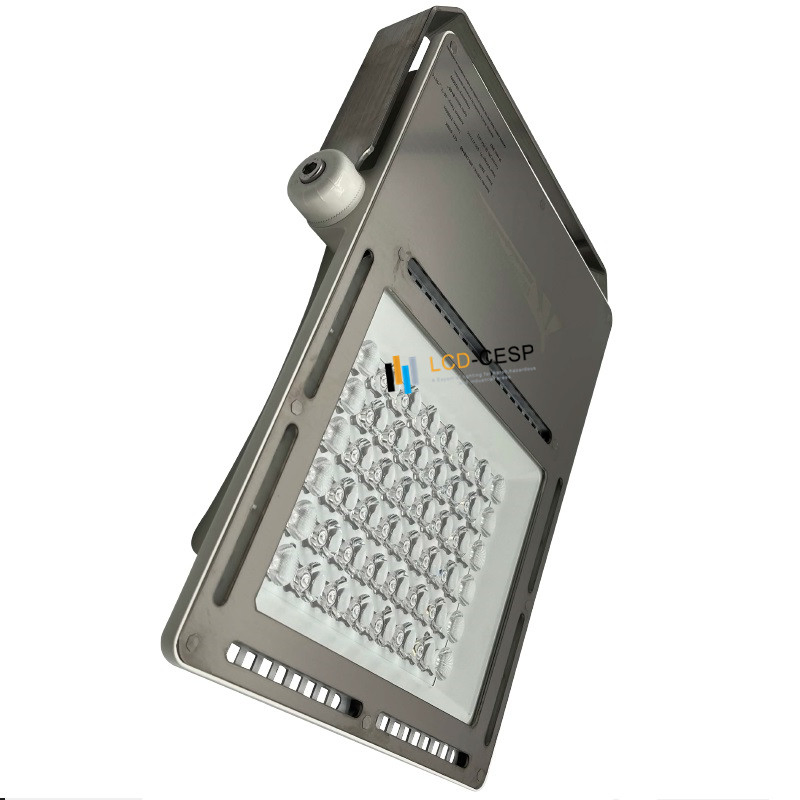

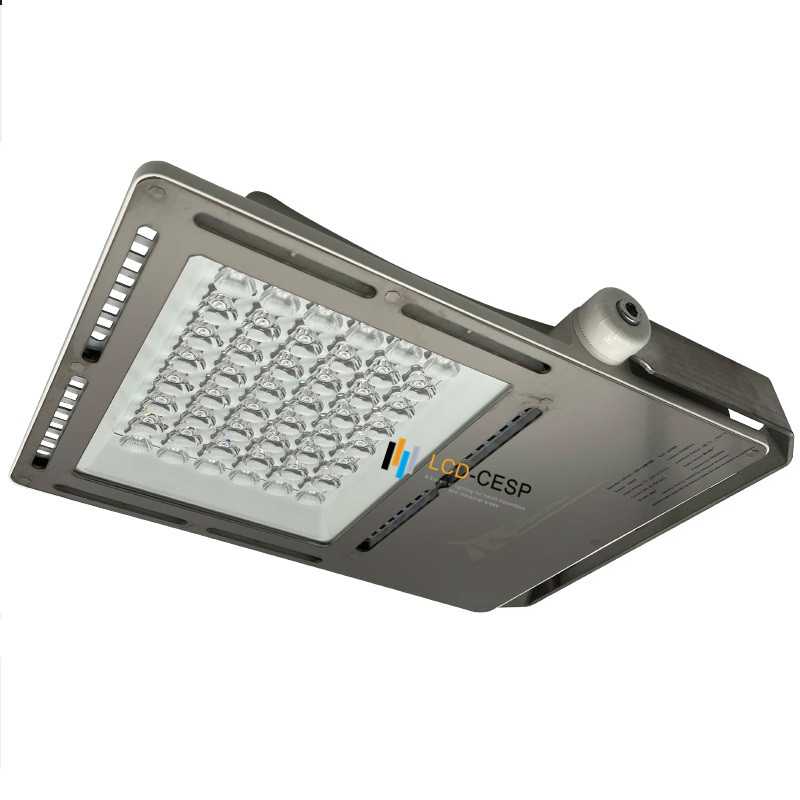

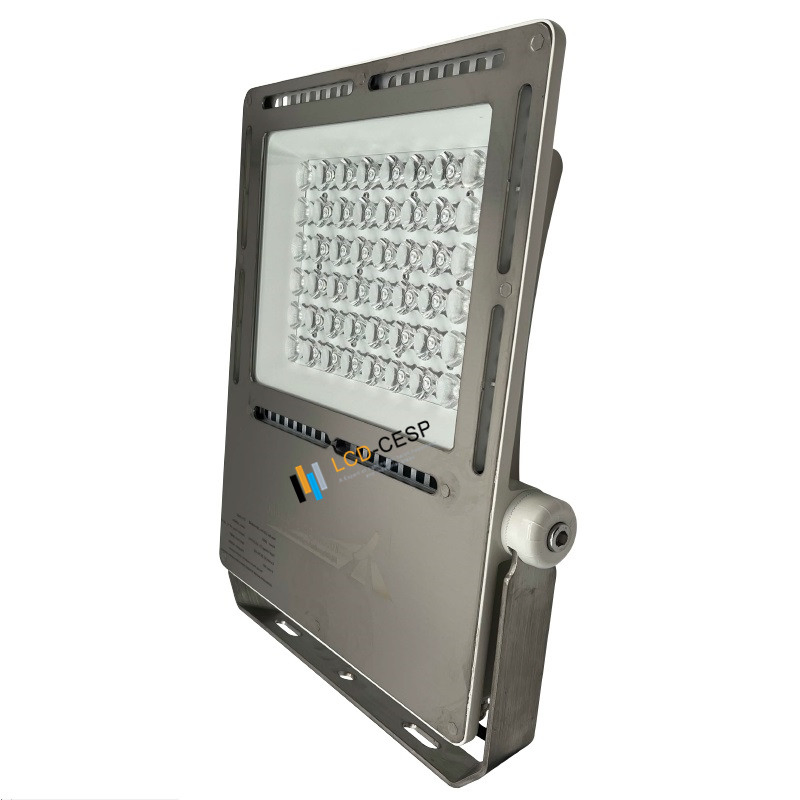

High Efficiency Stainless Steel Marine-Grade 200W IP67/IP68 Narrow Beam Marine Deck and Fishing Boat LED Floodlight Equivalent to 1000W Xenon Metal Halide Lamp
High Efficiency Stainless Steel Marine-Grade 200W IP67/IP68 Narrow Beam Marine Deck and Fishing Boat LED Floodlight Equivalent to 1000W Xenon Metal Halide Lamp
High Efficiency Stainless Steel Marine-Grade 200W IP67/IP68 Narrow Beam Marine Deck and Fishing Boat LED Floodlight Equivalent to 1000W Xenon Metal Halide Lamp
High Efficiency Stainless Steel Marine-Grade 200W IP67/IP68 Narrow Beam Marine Deck and Fishing Boat LED Floodlight Equivalent to 1000W Xenon Metal Halide Lamp
High Efficiency Stainless Steel Marine-Grade 200W IP67/IP68 Narrow Beam Marine Deck and Fishing Boat LED Floodlight Equivalent to 1000W Xenon Metal Halide Lamp
1 / 5
High Efficiency Stainless Steel Marine-Grade 200W IP67/IP68 Narrow Beam Marine Deck and Fishing Boat LED Floodlight Equivalent to 1000W Xenon Metal Halide Lamp
High Efficiency Stainless Steel Marine-Grade 200W IP67/IP68 Narrow Beam Marine Deck and Fishing Boat LED Floodlight Equivalent to 1000W Xenon Metal Halide Lamp
High Efficiency Stainless Steel Marine-Grade 200W IP67/IP68 Narrow Beam Marine Deck and Fishing Boat LED Floodlight Equivalent to 1000W Xenon Metal Halide Lamp
High Efficiency Stainless Steel Marine-Grade 200W IP67/IP68 Narrow Beam Marine Deck and Fishing Boat LED Floodlight Equivalent to 1000W Xenon Metal Halide Lamp
High Efficiency Stainless Steel Marine-Grade 200W IP67/IP68 Narrow Beam Marine Deck and Fishing Boat LED Floodlight Equivalent to 1000W Xenon Metal Halide Lamp

High Efficiency Stainless Steel Marine-Grade 200W IP67/IP68 Narrow Beam Marine Deck and Fishing Boat LED Floodlight Equivalent to 1000W Xenon Metal Halide Lamp

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
LCD-FA-308-LN8-5K
Color Temperature
Cool White
IP Rating
IP67
Light Intensity
> 5,000 Lumens
Light Source
LED
Power
80W-350W
Lumen Output
130-170lm/W
IK Rate
IK09 / IK10
Marine Grade
Anti-Salt Water Coating
Material
Stainless Steel + Aluminum
Specification
200x200x147mm
HS Code
9405421000

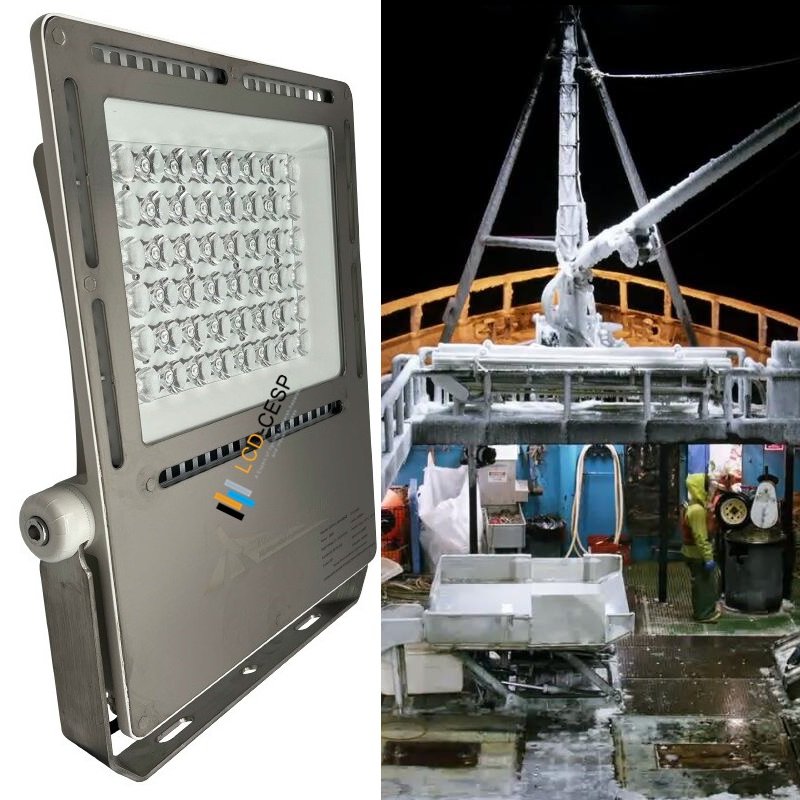

Penguin Series Harsh Location LED Marine Deck Light

The Penguin LED deck light features an excellent optic beam of 30-50°, providing perfect uniformity for deck working fields. It is an ideal solution for merchant vessels, fishing boats, and naval applications where high visibility and reliability are paramount.

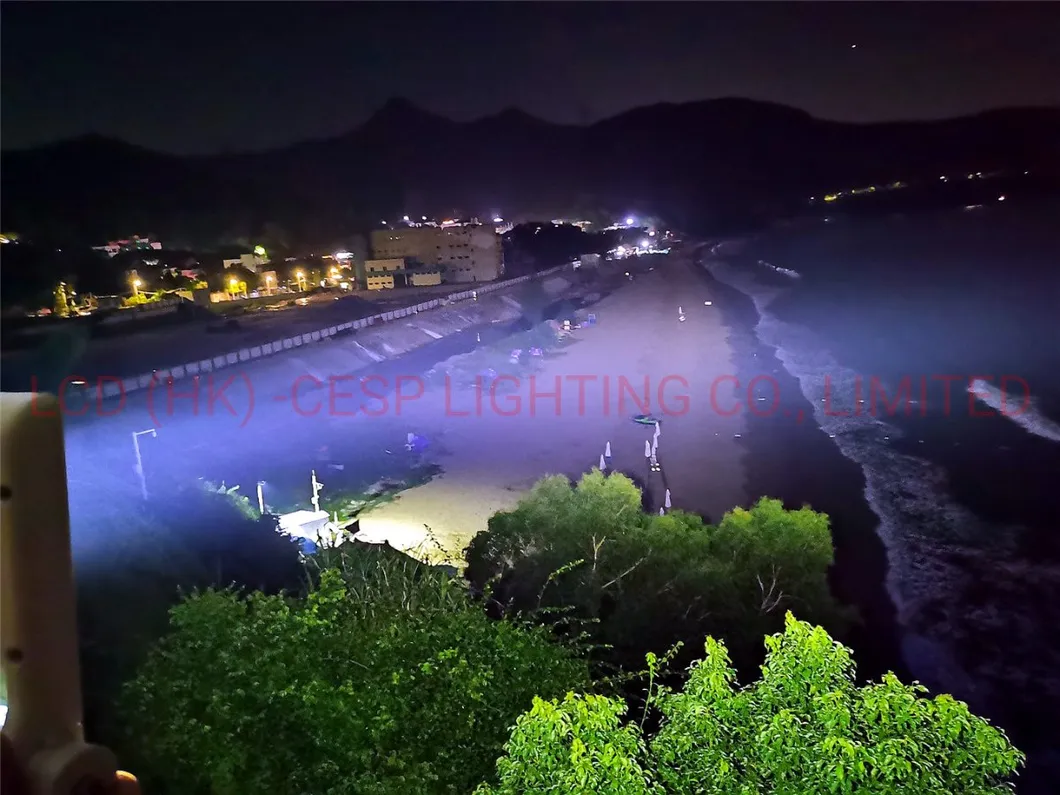

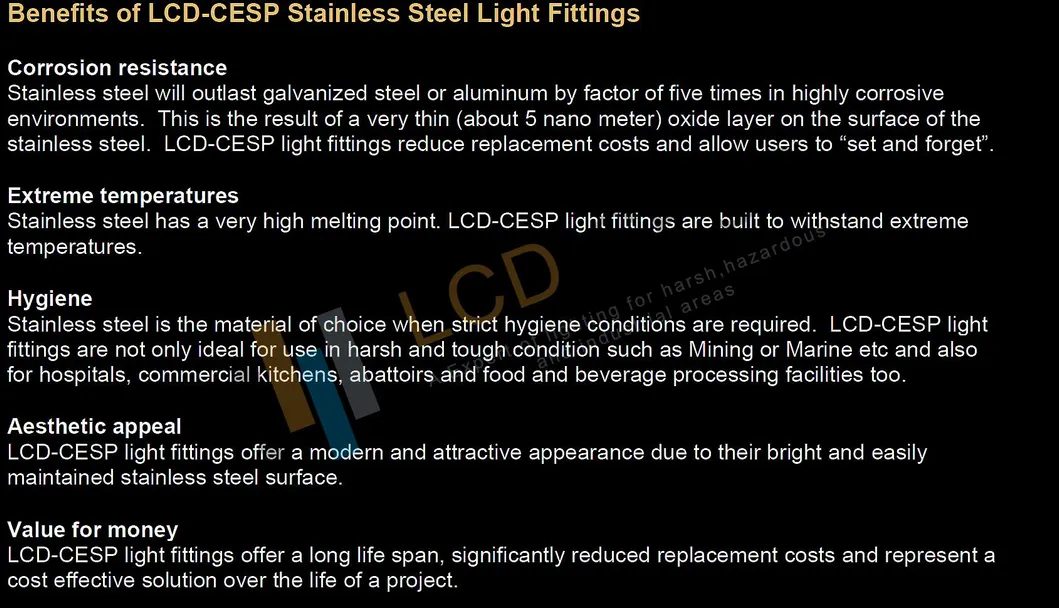

Marine Deck Light Harsh Location LED Deck Light Performance

Key Features

  • 30-50° beam lenses for wide range illumination
  • Toughened super clear Optic white front glass
  • Power savings: 50W-250W replacing traditional 2000W fixtures
  • Anti-corrosion stainless-steel 316 housing
  • High impact resistance IK09 & Vibration resistance 4-5G
  • 10-year warranty for maritime applications
Technical Specifications
Power 50W 100W 150W 200W 250W
Luminous Flux 7,130 11,408 21,389 28,518 35,648
Beam Angle 30° 30° 30° 30° 30°
LED Chip Bridgelux / Cree
IP Rating IP67 / IP68
Life Span >70,000 hours
Billhead Shark Series LED Marine Searchlight

The Billhead Shark LED searchlight utilizes advanced optics to produce a 2-8° beam, reaching distances of up to 3000 to 8000 meters. Designed for search and rescue, night navigation, and coastal watch, it offers high luminance and low power consumption.

Searchlight Unit Beam Pattern Industrial Marine Light

Specialized Standards

Complies with CE, Directive 2014/30/EU, 2014/35/EU, 2009/125/EC, EN 60598, EN 62471, EN 55015, and more. Features include 5-8° long-range lenses and stove enamel paint finish.

Dimensions and Construction
Product Dimensions
Item Name Dimensions (AxBxC MM) Weight (KG)
50W LED Deck Light389.2x296.7x573.5KG
100W LED Deck Light436.6x345.7x576.0KG
150W LED Deck Light436.6x345.7x579.0KG
200W LED Deck Light582x385x6013KG
250W LED Deck Light582x385x6017KG

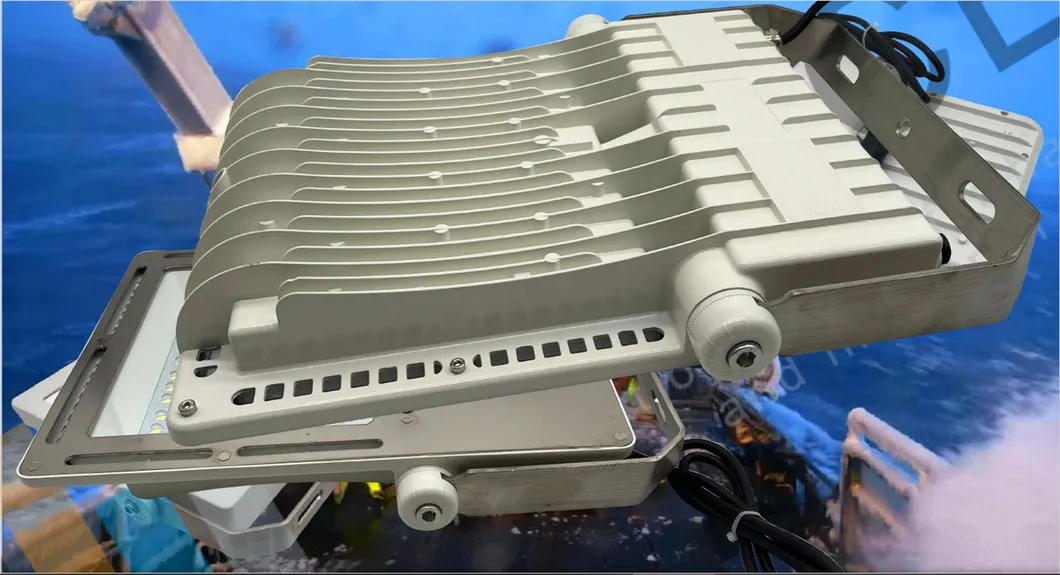

Light Distribution Curve Photometric Data
Frequently Asked Questions
Q1: What materials are used to ensure the lights withstand harsh marine environments?
The fixtures are constructed from marine-grade stainless steel 316 housing with stainless steel mounting hardware and an anti-salt water coating to prevent corrosion in maritime conditions.
Q2: What is the expected lifespan of the LED chips?
We use high-quality Cree and Bridgelux LED chips with a thermal optimized package, offering a lamp life of up to 100,000 hours.
Q3: Are these lights resistant to vibration and high winds?
Yes, our lights are designed for high vibration resistance (meeting 4-5G standards) and feature an anti-18-level typhoon rating, making them suitable for the most demanding sea conditions.
Q4: What is the maximum distance the Billhead Shark searchlight can reach?
The searchlight series offers specialized optics that provide illumination for long-range distances from 2500 to over 8000 meters depending on the power configuration.
Q5: What power supply options are available?
The units support a wide input voltage range of 100-277VAC (50-60Hz) or 18-32VDC, making them compatible with various vessel power systems.
Q6: What control protocols are supported for dimming?
Our marine lighting solutions support standard control protocols including 1-10V, DALI, and Triac.
