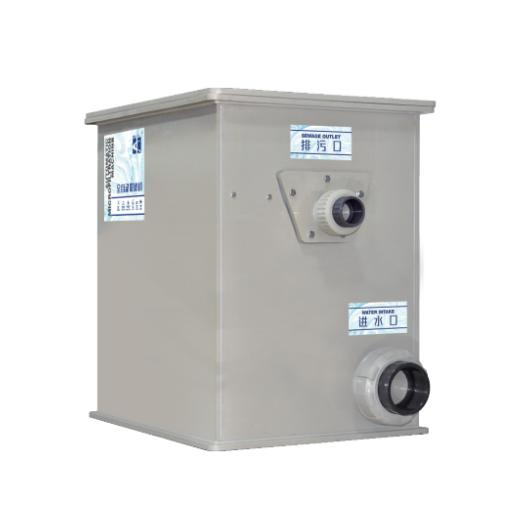

Indoor Fish Farming Rotary Drum Filter Systems for Fish Tank Aquaculture Home

1 / 5

Indoor Fish Farming Rotary Drum Filter Systems for Fish Tank Aquaculture Home

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model:Garden Pond Drum Filter

Application:Aquariums, Water Filtration

Certificate:TUV, SAA, CE, GS

Voltage:110-120V/220-240V, 60Hz-50Hz

Color:Black, Blue or customized

Size:110X67X99 Cm

HS Code:8413709190

Capacity:100,000 PCS Per Month

Koi Pond Filtration System

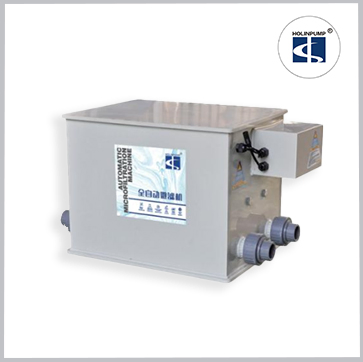

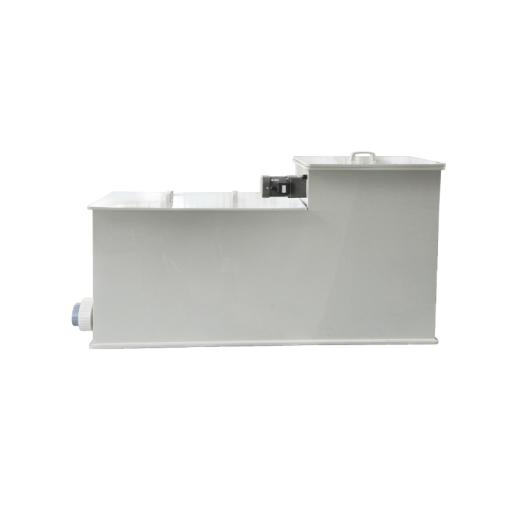

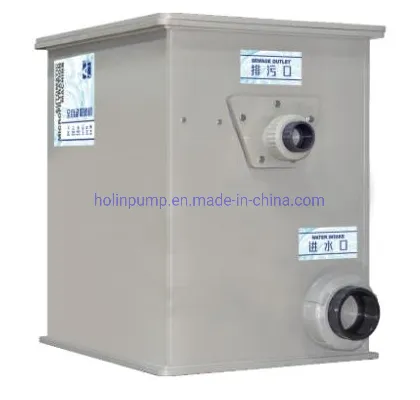

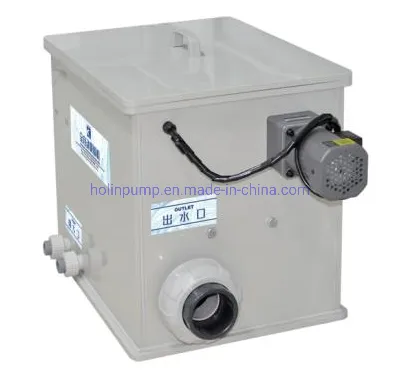

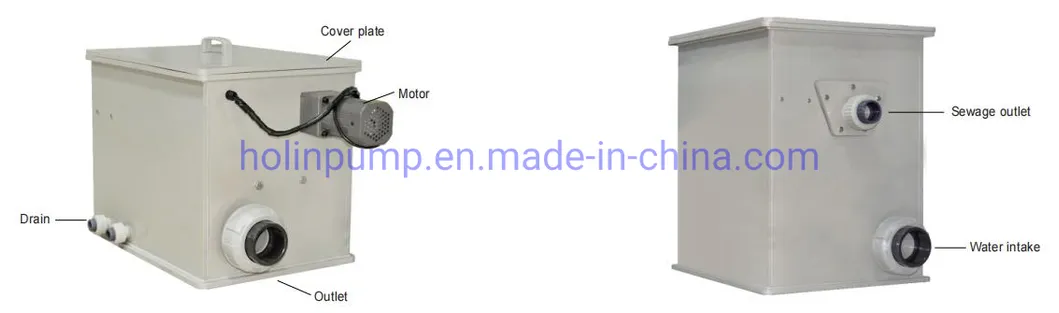

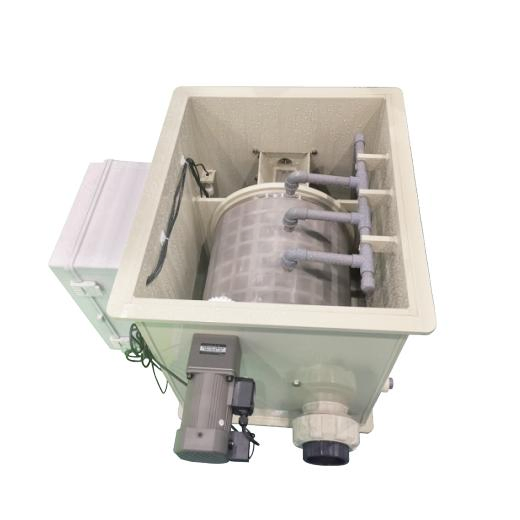

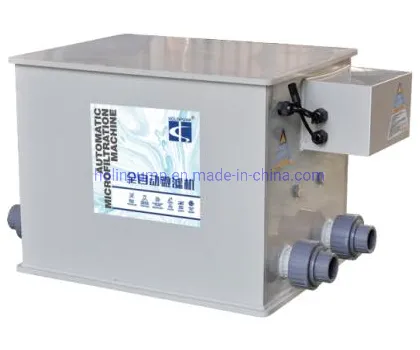

The intelligent box-type microfilter is constructed from non-toxic, corrosion-resistant food-grade PP material. It consists of a box assembly, drum assembly, reverse cleaning system, electric control box, and transmission system. Designed for water flows ≤10m³/h, it utilizes a food-grade 316 stainless steel filter to separate suspended solids (≥50 μm).

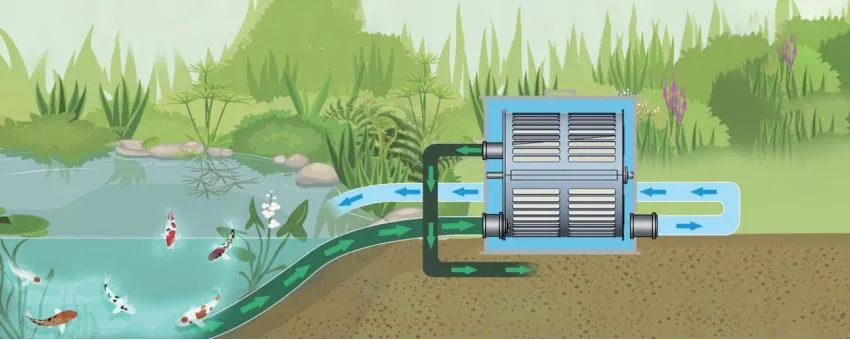

Featuring automatic liquid level control, the system monitors accumulation on the filter screen. When water permeability decreases and the external water level rises to a set point, the backwash pump and drive system activate automatically. High-pressure nozzles clean the rotating drum, discharging waste into a collection groove. The process utilizes an intelligent turbine frequency conversion pump for optimal energy efficiency.

Installation Instructions

The microfilter should be placed in a stable, level location.

Can be integrated into pipelines or supplied by water towers/pumps; install valves to adjust water levels.

Ensure a height difference at the sewage outlet for timely discharge.

Maintain a height difference at the box outlet to ensure proper water velocity.

Ensure the cleaning pump inlet is fully submerged to avoid dry idling.

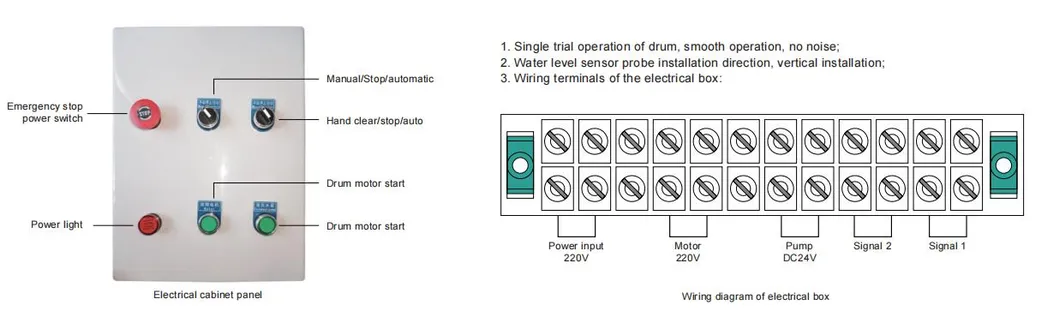

Electrical: Connect motor lines (Black: zero; Red/White: power) and capacitor appropriately.

Drum Direction: The drum must rotate clockwise when facing the outlet. Switch red/white wires to adjust steering if necessary.

Operation Guidelines

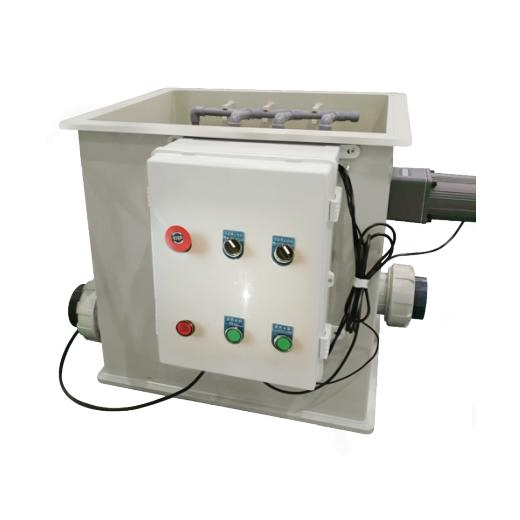

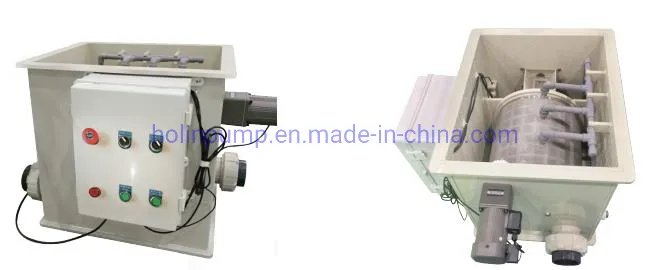

Control Modes

1. Manual Mode: Allows direct control of the backwash pump and drum motor via independent switches for testing or maintenance.

2. Automatic Mode: Regulated by a water level float ball switch. When the probe is triggered, backwashing runs for a set duration via the time relay before resetting.

3. Safety: Use the emergency stop switch for immediate shutdown. Ensure the pump impeller rotates clockwise and the float ball is adjusted to the correct operating water level.

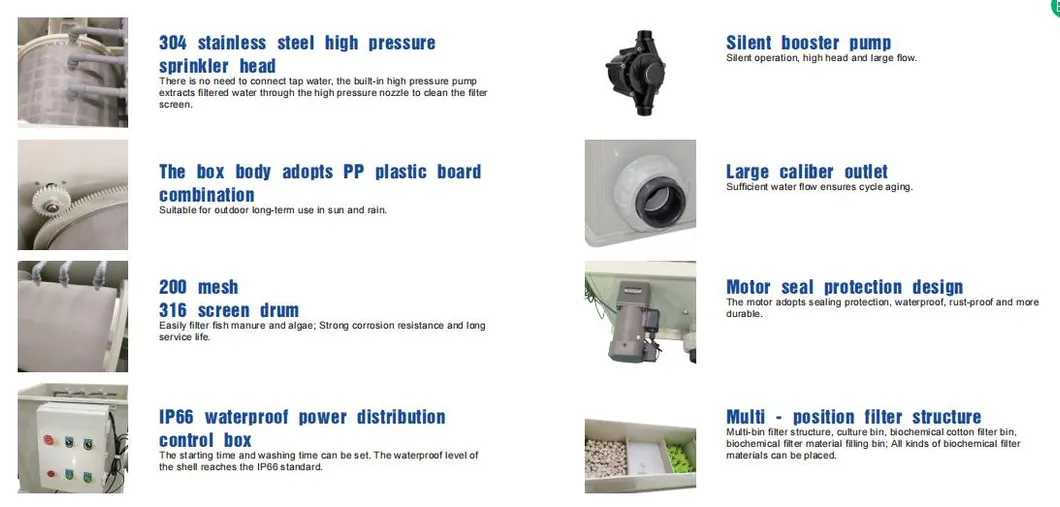

Product Features & Maintenance

Operating temperature: -5°C to 40°C. Avoid direct rain and icing.

Strictly prohibit pump idling without water.

Regularly check nozzles for blockages to ensure consistent spray.

Detachable design for easy cleaning and filter material replacement.

Inclined bottom design prevents sewage dead corners and blockages.

High-durability PP box structure with a lifespan exceeding 10 years.

Technical Parameters

Model	Product Size	Inlet (mm)	Outlet (mm)	Drum Diameter	Motor Power	Pump Power
5T	610335340mm	DN25	DN50	Φ250*230mm	40W	40W
10T	870470515mm	DN75	DN32	Φ300*326mm	60W	60W
20T/30T	930590770mm	DN90	DN50	Φ370*376mm	90W	90W
50T/60T	1210835820mm	DN110	DN75	Φ500*500mm	90W	90W

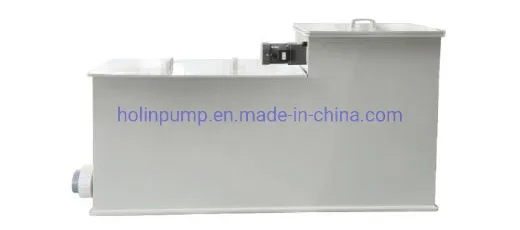

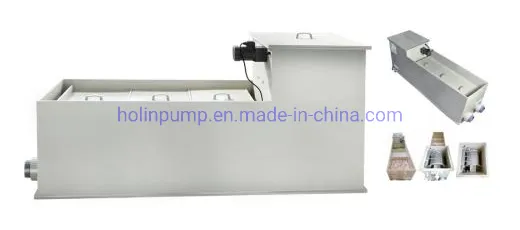

Filter Bin Series

Model	Product Size	Inlet (mm)	Outlet (mm)	Drum Diameter	Motor Power	Pump Power
5T+Filter bin	610335340mm	DN25	DN50	Φ250*230mm	40W	40W
10T+Filter bin	1760440800mm	DN75	DN32	Φ370*326mm	60W	60W
20T+Filter bin	2300500570mm	DN90	DN50	Φ370*376mm	60W	40W

Frequently Asked Questions

Q1: What materials are used in the drum filter's construction? The system is made from food-grade PP (polypropylene) for the box and high-quality 316 stainless steel for the filter mesh, ensuring it is non-toxic and corrosion-resistant.

Q2: How does the automatic self-cleaning feature work? It uses a liquid level sensor. When waste accumulates and the water level rises to a set point, the system automatically activates a high-pressure backwash to clean the screen and flush debris into a discharge outlet.

Q3: What size particles can this filter remove? The 316 stainless steel filter screen is designed to intercept and separate suspended solids larger than or equal to 50 micrometers (μm).

Q4: Can this equipment be used for outdoor pond filtration? Yes, the PP material box is designed for long-term outdoor use, featuring resistance to sun, rain, high temperatures, and corrosion.

Q5: What is the expected lifespan of the filtration system? Due to the robust PP material and high-grade stainless steel components, the overall structure has a service life of more than 10 years with proper maintenance.

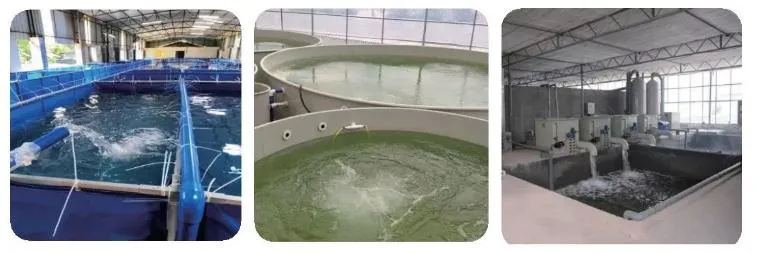

Q6: What applications is this rotary drum filter suitable for? It is ideal for early-stage sewage treatment, solid-liquid separation in koi ponds, fish farms, and various aquaculture water treatment systems.
