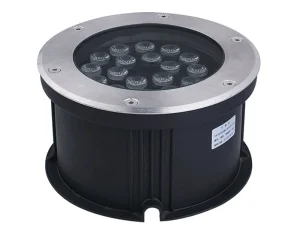

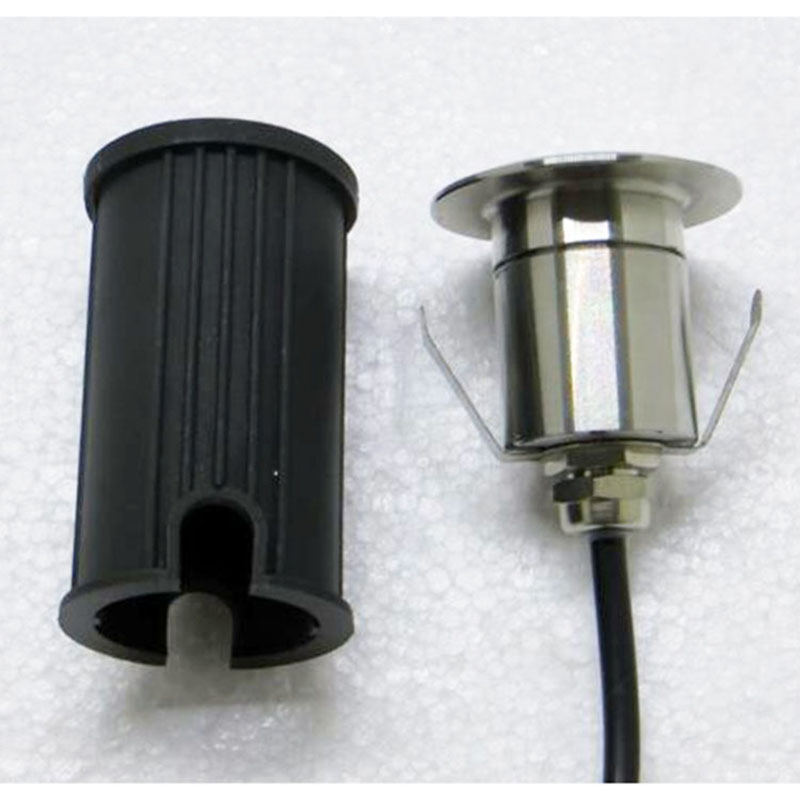

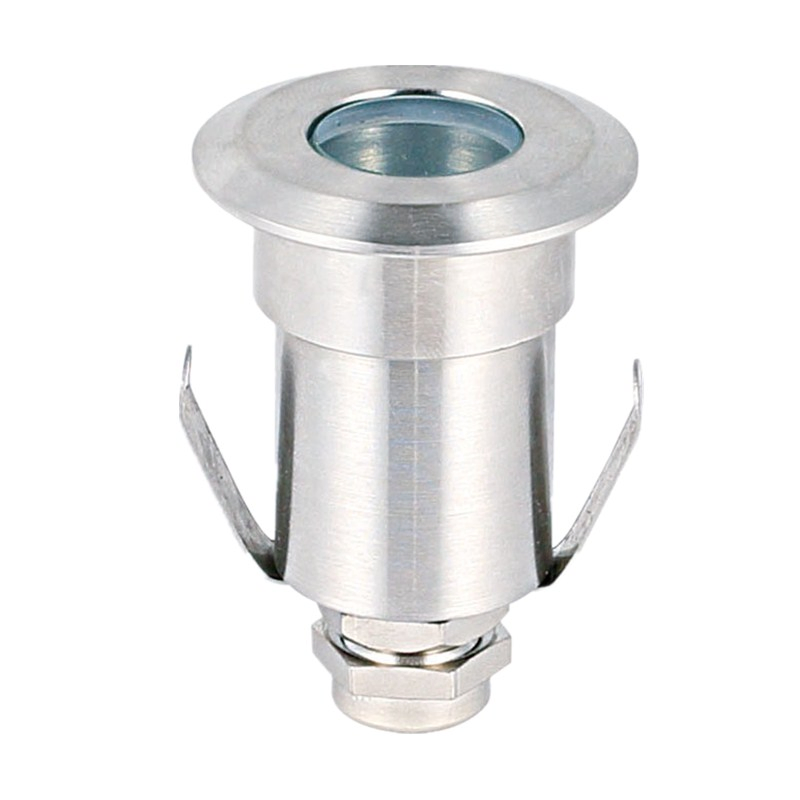

Outdoor IP68 Dimmable Underground Recessed Pool RGB Inground LED Round Deck Light

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
XYH52GM
Power
1W/3W
IP Rating
IP68
Input Voltage
24v
Certification
CE, EMC, LVD, RoHS, VDE, IP68/ISO9001
LED Chips
Epistar
CCT
2700-7000K Optional
Beam Angle
10-120 Degree Optional
Material
304 Stainless steel
Warranty
2 years
Outdoor Inground LED Round Deck Light
Product Features
💧 High Protection

IP68 waterproof rating for outdoor walk, path, parking lot, garden, and square lighting use.

🎨 Rich Color Options

Available in Single Color and RGB Color versions compatible with DMX controllers.

🏗️ Durable Construction

Stainless steel front cover with tempered step glass and aluminum alloy housing can withstand car traffic.

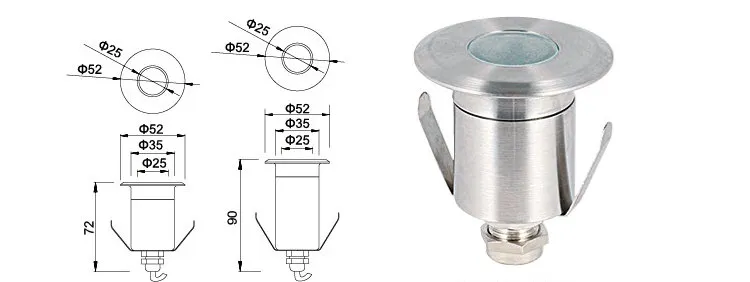

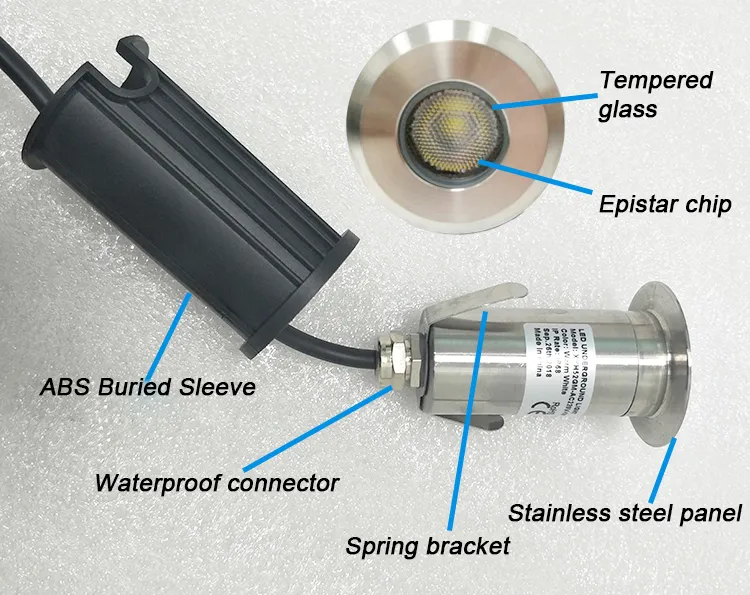

Feature Details Product Dimensions
Main Specification Table
Product NameUnderground light Life Span>50,000hr
ApplicationGround, garden, lawn, square, street Lumens90-100ml/w
GlassTempered step glass T=8mm Pressure CapacityFull area = 2500kgs
HousingOutdoor dark grey powder coated aluminum Operating Temp-20ºC to 40ºC

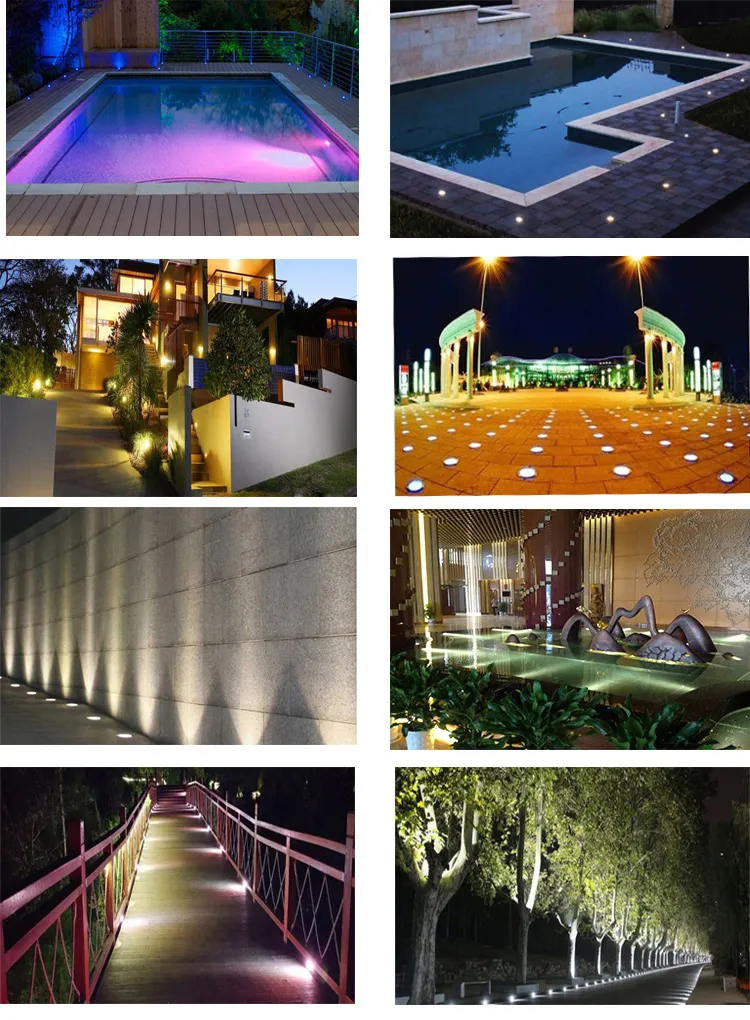

Application Scenarios

The waterproof LED lights apply to gardens, squares, and lawns. With an IP68 waterproof degree, they are also suitable for underwater pool locations, fountains, and swimming pools.

Application Scenarios
Customer Feedback & Profile

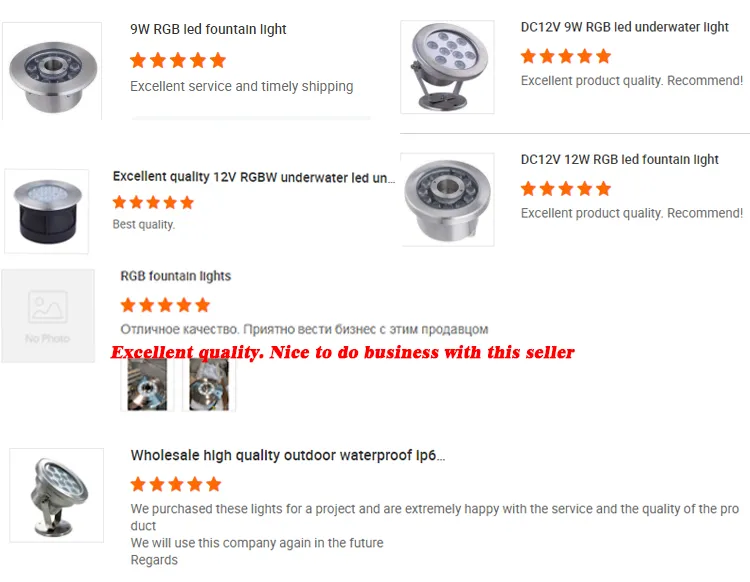

Customer Reviews

The manufacturer is a professional outdoor landscape lights factory specializing in LED Underwater lights, Fountain Lights, Underground Lights, Pool Lights, and Wall Washer Lights. All products pass strict protection level certifications.

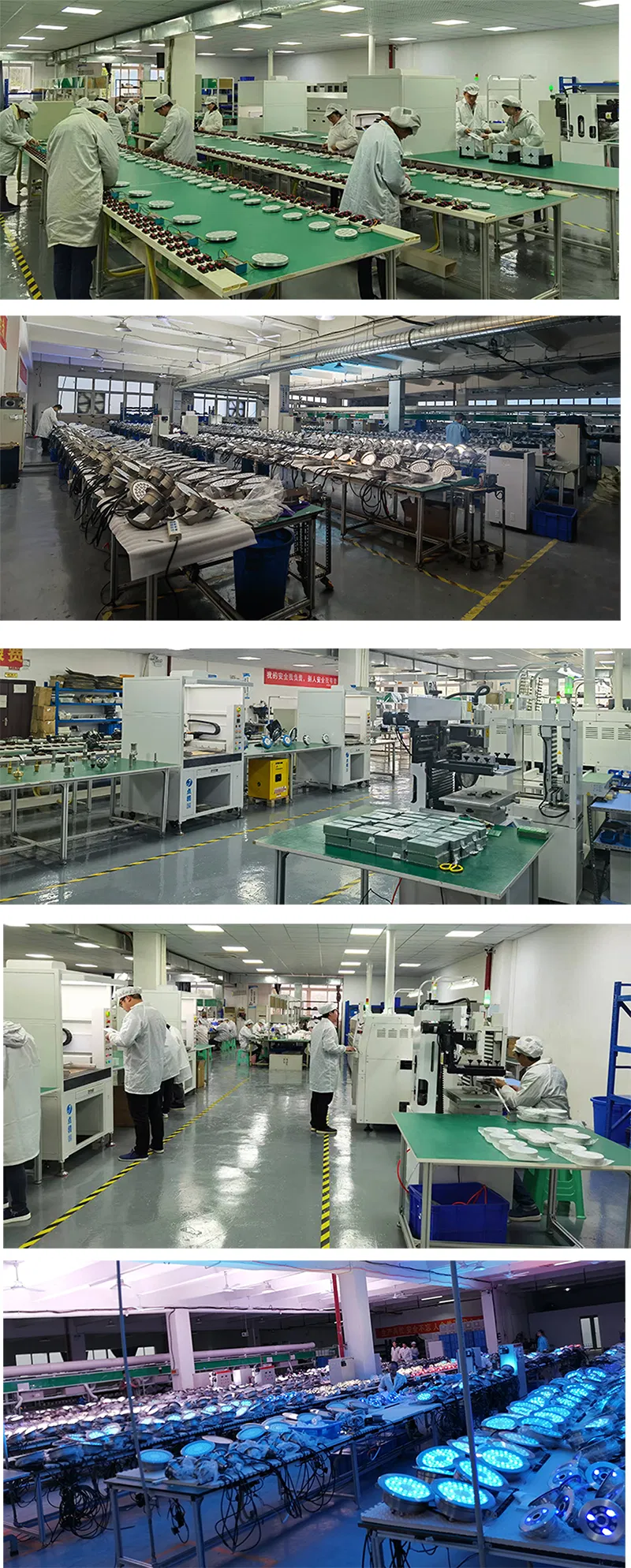

Factory Overview Certificates

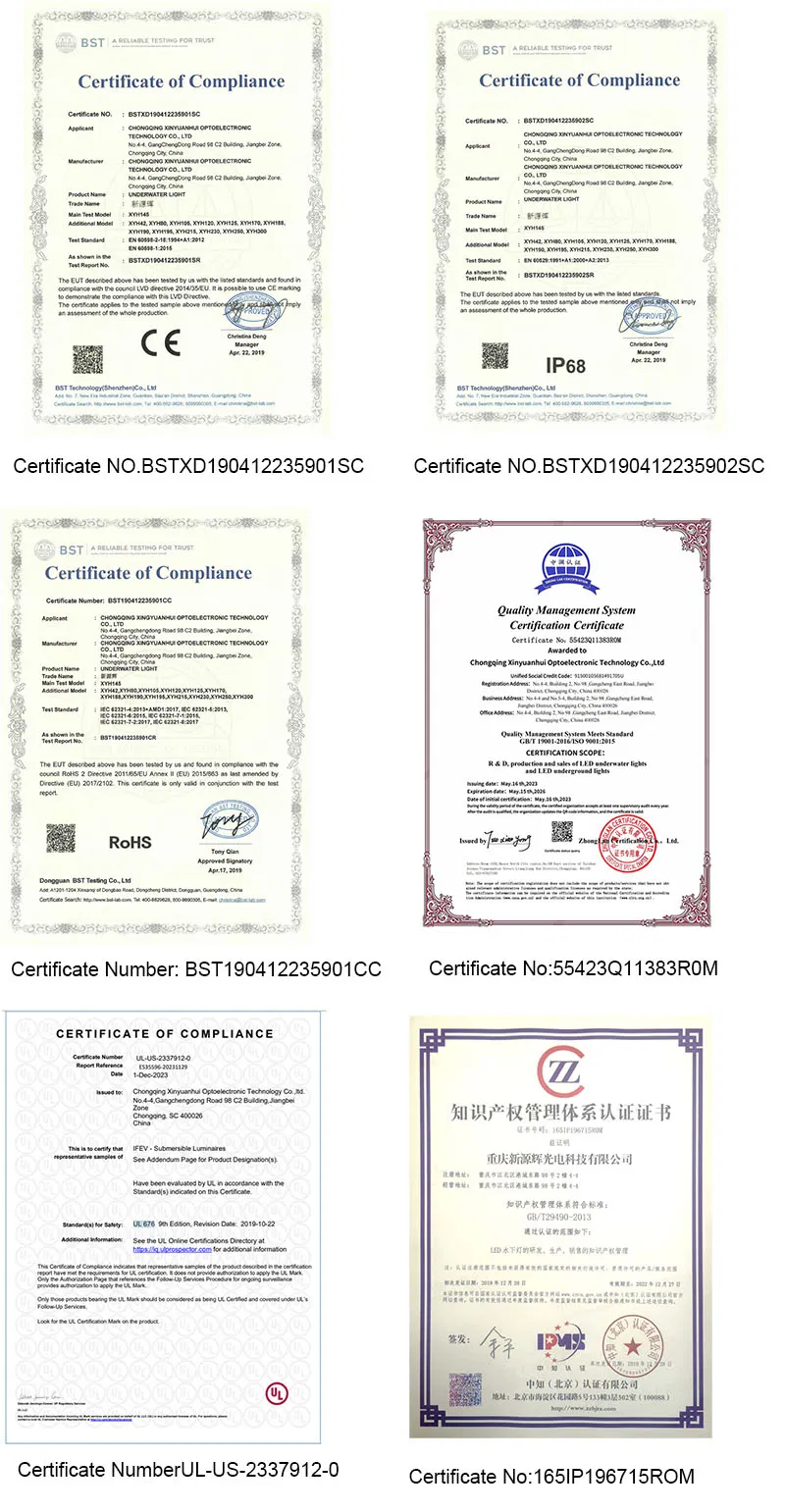

Certifications

Products have passed ISO9001, CE, RoHS, and IP68 protection level certifications, holding more than 120 national patents.

  • ✅ ISO9001: ISC-Q-2020-0764
  • ✅ CE: GZEM1904012396LMV
  • ✅ RoHS: BST190410223591CR-R1
  • ✅ IP68: BSTXD190412235902SR
Frequently Asked Questions
What is the waterproof rating of these lights?
The lights have an IP68 waterproof rating, making them suitable for both outdoor ground installation and underwater applications like pools and fountains.
Can these lights withstand vehicle weight?
Yes, the combination of a stainless steel front cover, 8mm tempered step glass, and an aluminum alloy body allows them to withstand a pressure capacity of up to 2500kg, suitable for car traffic.
What are the available control methods for RGB colors?
RGB versions can be operated via single color control, multicolor internal control, external DMX control, Wifi, or remote control.
What input voltages are supported?
The standard support includes 12V/24V DC, and some models support 220V AC input.
What is the lifespan and warranty?
These LED lights have a lifespan of over 50,000 hours and come with a 2-year quality warranty.
Which LED chips are used in these lights?
We use high-quality LED chips from brands like Epistar and Cree to ensure high efficiency and durability.
