Oregon Light
Oregon Light
| Model NO. | LCD-FA-400-LNXX-OS |
| Power Range | ≥100W (Available 50W - 1200W) |
| Projection Distance | >35m |
| IP Rating | IP66 / IP67 / IP68 Waterproof |
| IK Rating | IK08 / IK09 Impact Resistant |
| Operating Voltage | 100-277V AC / 12-32V DC |
| LED Chips | CREE / Luxeon / Bridgelux SMD3030/5050 |
| Lumen Output | 90-160lm/W (Up to 15000lm for 100W) |
| Beam Angle | 8°, 15°, 20°, 30°, 45°, 60°, 90°, 120°, T1, T2, T3 |
| CCT | 2700K - 6500K |
| Certifications | CE, CCC, RoHS, FCC, ETL, TUV, ATEX, IECEx |

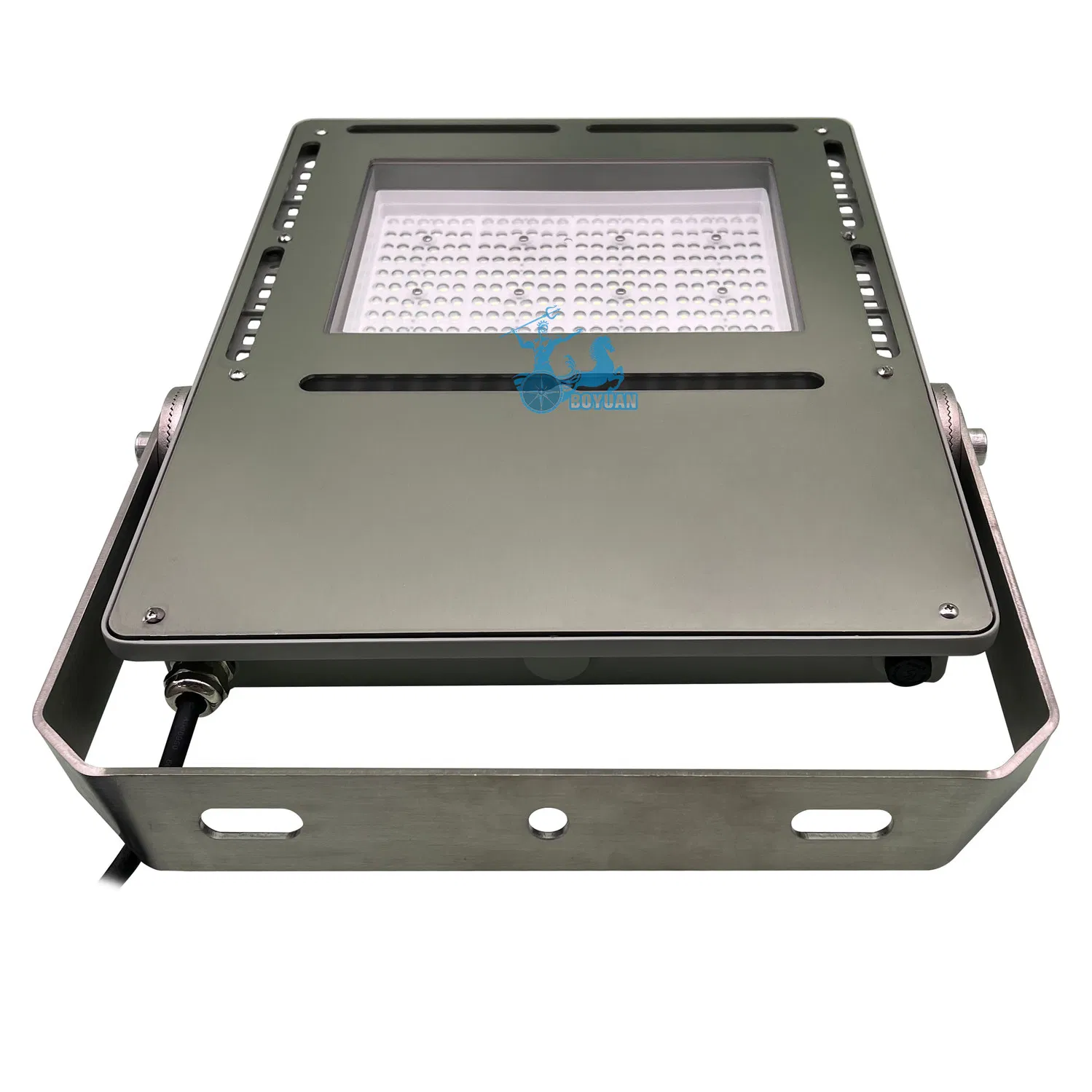

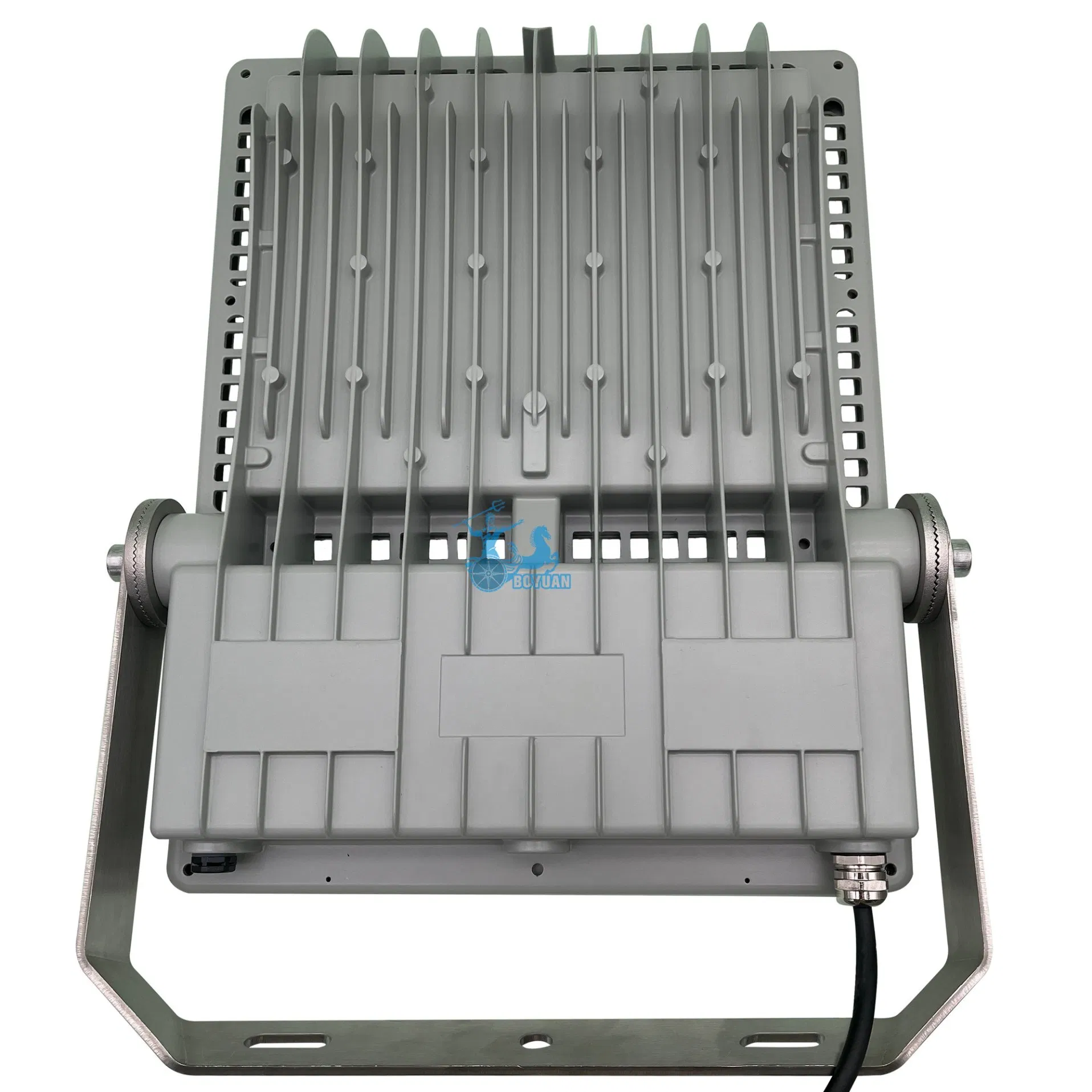

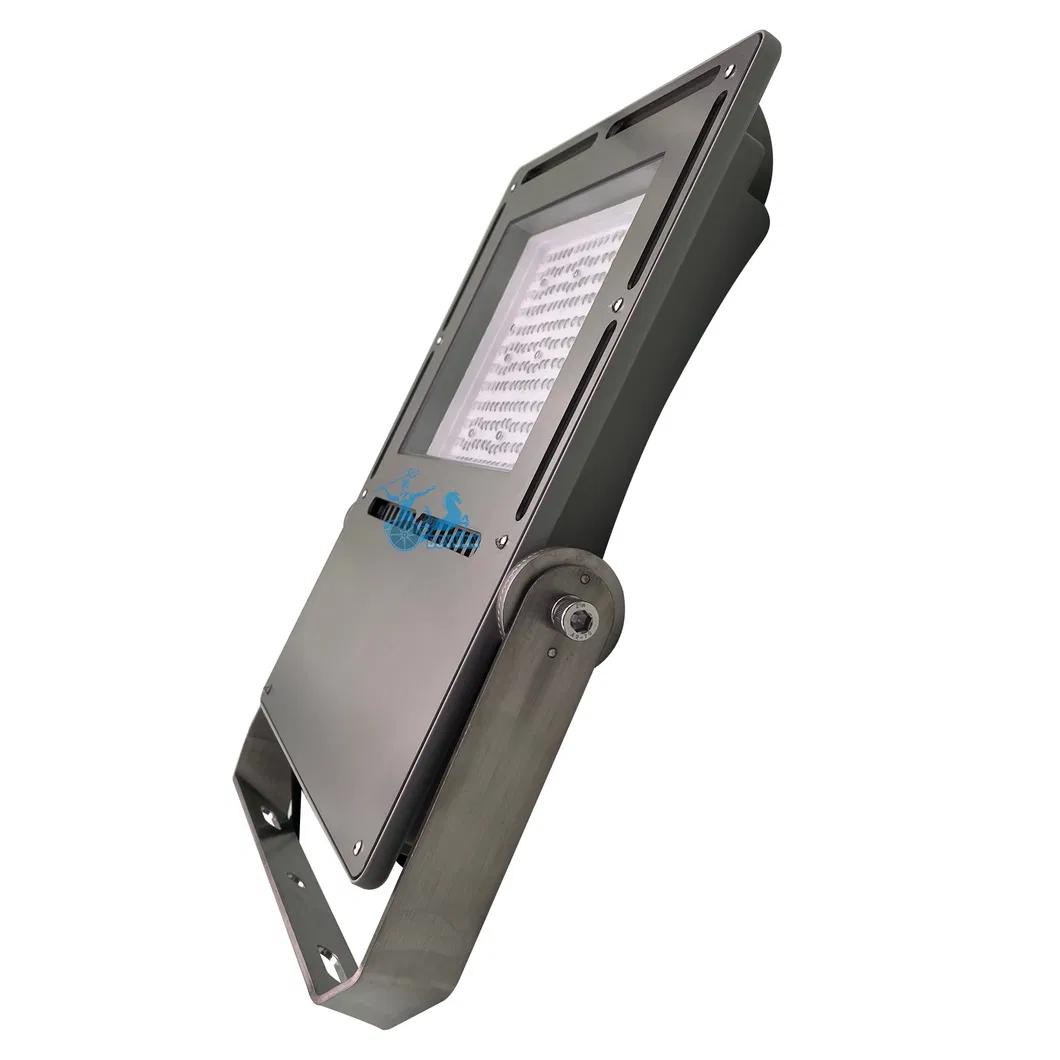

The FA Series LED Floodlight is a high-performance industrial and marine lighting solution designed to replace traditional metal halide and halogen fixtures. Engineered for extreme durability, it features a corrosion-resistant die-cast aluminum housing with marine-grade powder coating, making it ideal for the most demanding environments.

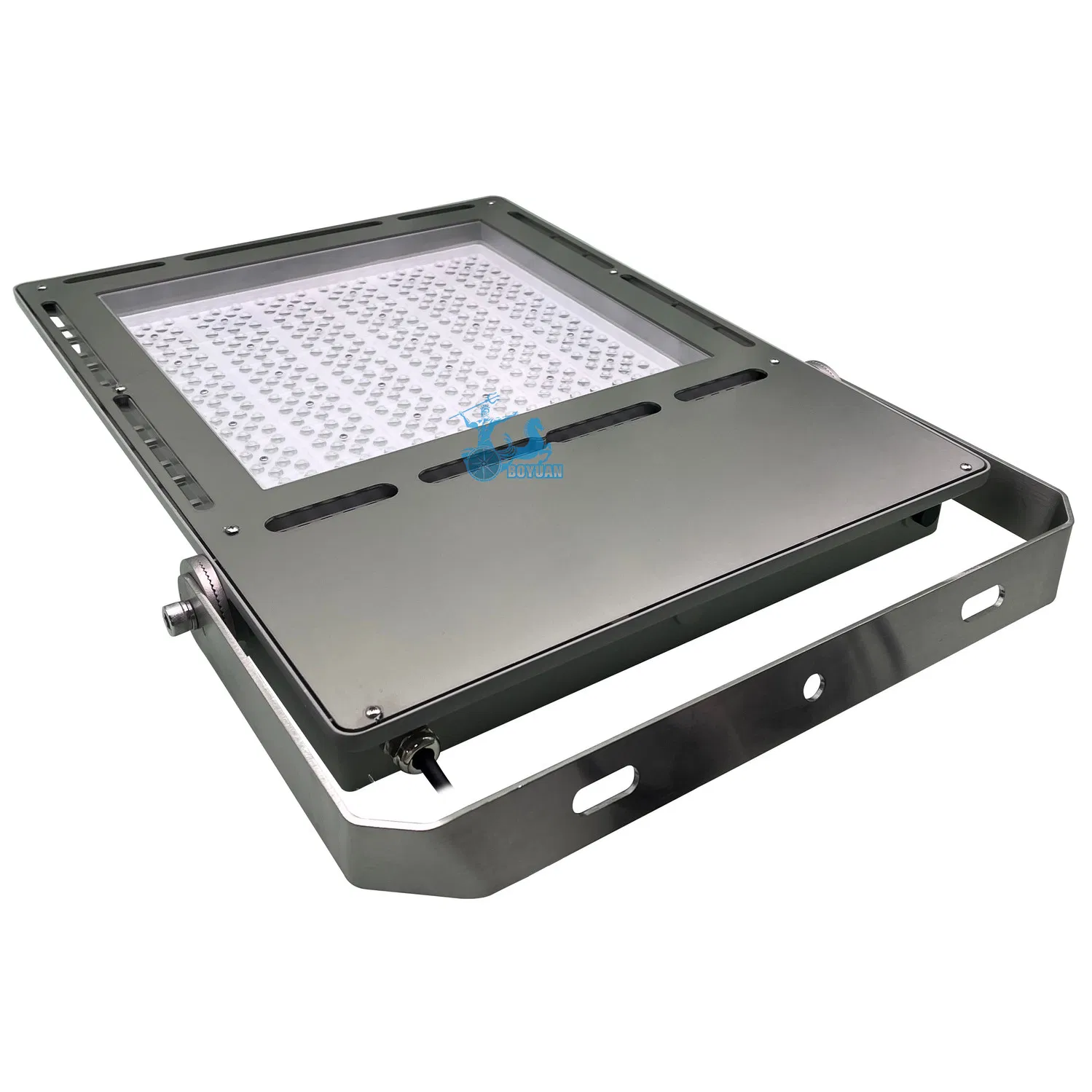

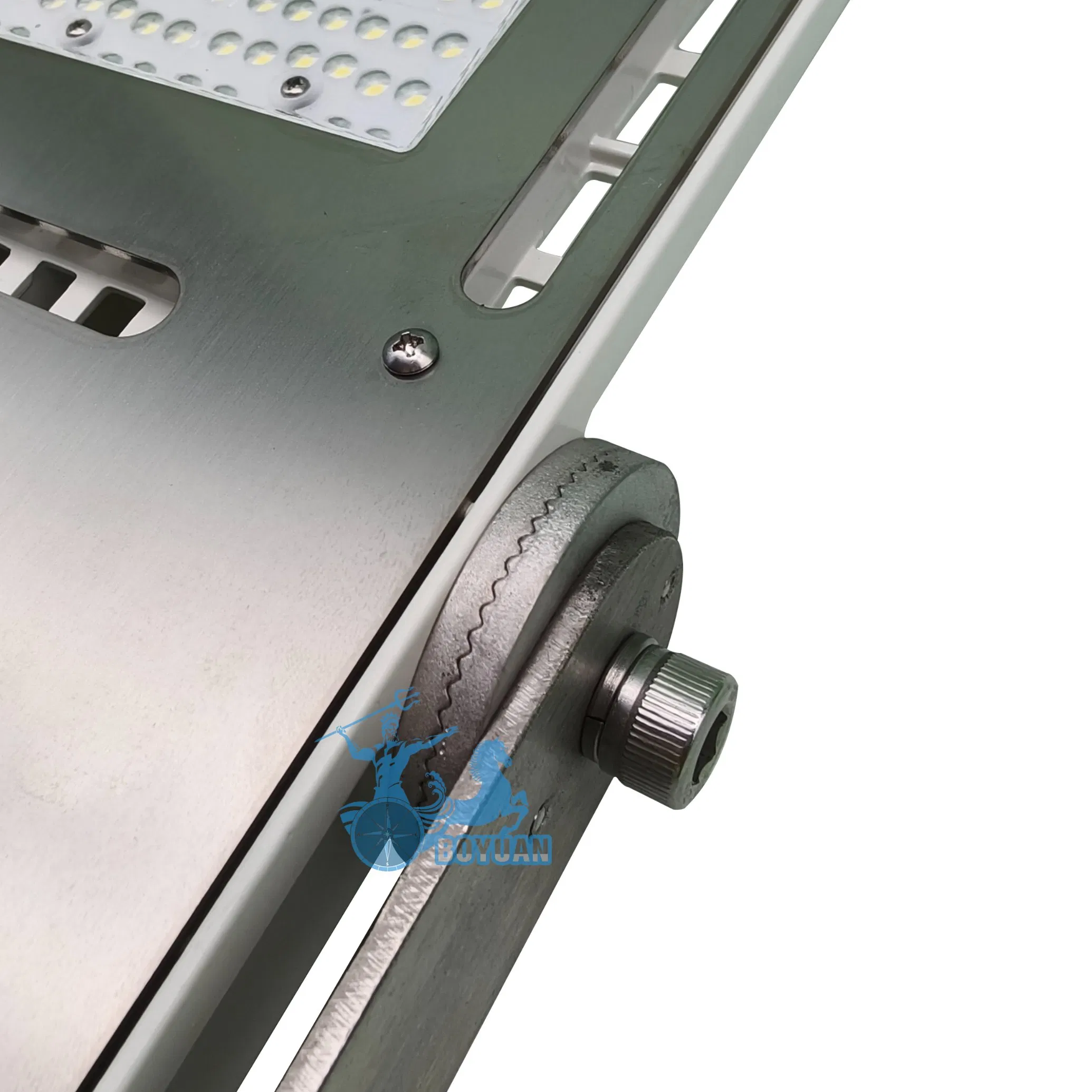

Marine-grade ADC12 housing with stainless-steel hardware. IP68 rated for harsh offshore and industrial use.
Over 30 beam angle options for precise light distribution in stadiums, ports, and architectural projects.
Equipped with high-efficiency LED chips and built-in 3-4kV surge suppression for long-term reliability.

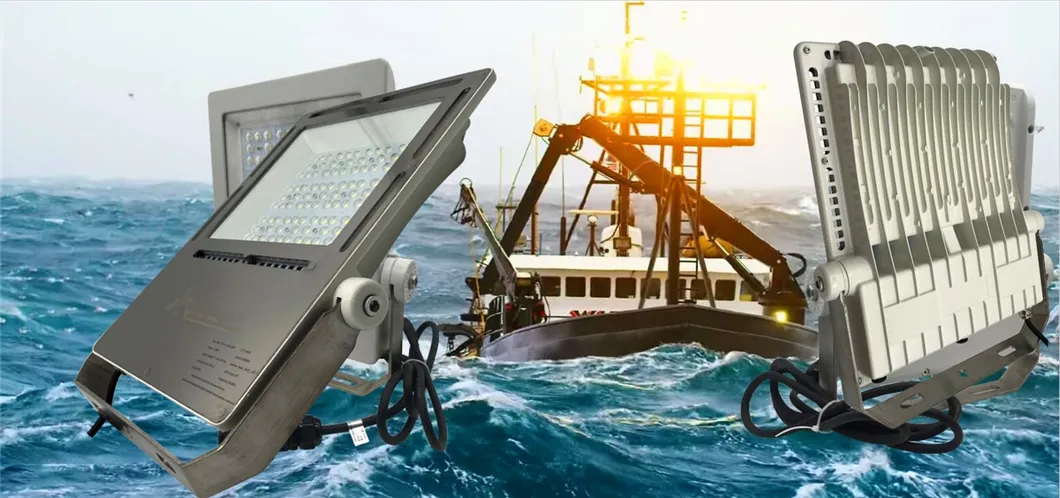

Deck lighting, crabbing boats, seiners, trawlers, and port terminals.

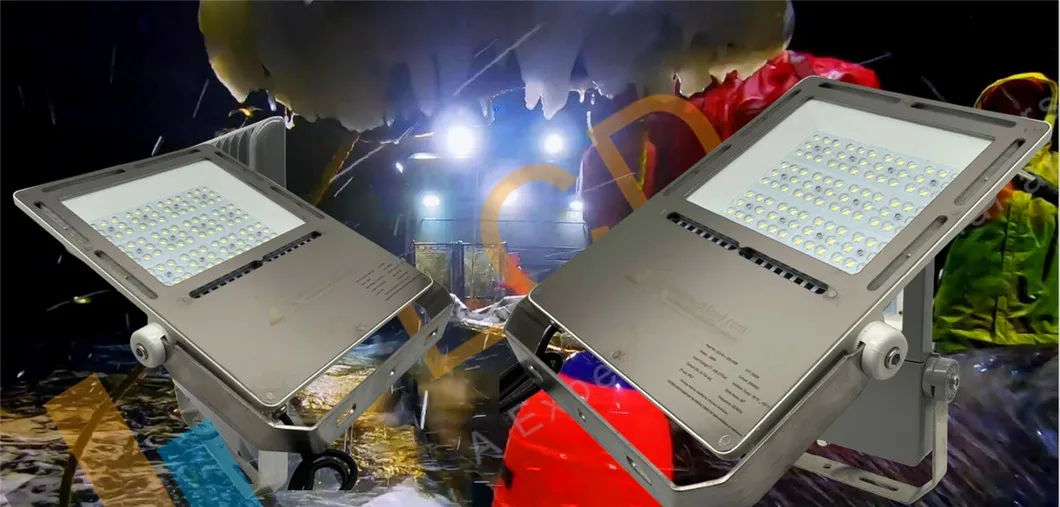

Oil & Gas plants, chemical facilities, warehouses, and logistics hubs.
Airports, bridges, stadiums, parking lots, and municipal projects.
| Item Name | Dimensions (AxBxC mm) | Weight (KG) |
|---|---|---|
| FA-085/105/153 IP67 | 389.2 x 296.7 x 57 | 3.4 |
| FA-205 IP67 | 436.6 x 345.7 x 57 | 4.8 |
| FA-255 IP67 | 436.6 x 345.7 x 57 | 7.2 |
| FA-305/353 IP67 | 582 x 385 x 60 | 7.5 |
