Factory Direct Koi Filter Media Biological Pond Supplier

1 / 5

Factory Direct Koi Filter Media Biological Pond Supplier

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Material

Food Grade Plastic (PP)

Shape

Square

Product Type

Water Temperature Control

Feature

Eco-Friendly, New Condition

Model

Garden Pond Drum Filter

Certificate

TUV, SAA, CE, GS

Voltage

110-120V/220-240V, 60Hz-50Hz

Capacity

100,000 PCS Per Month

⚙️

Product Description

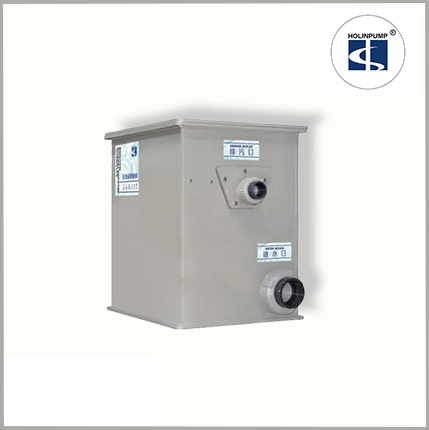

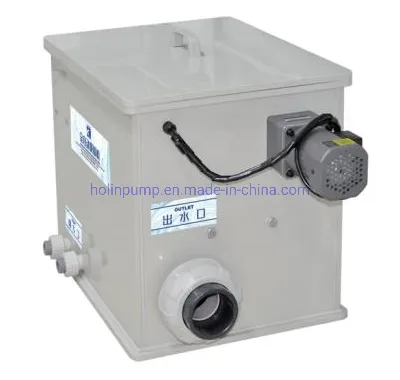

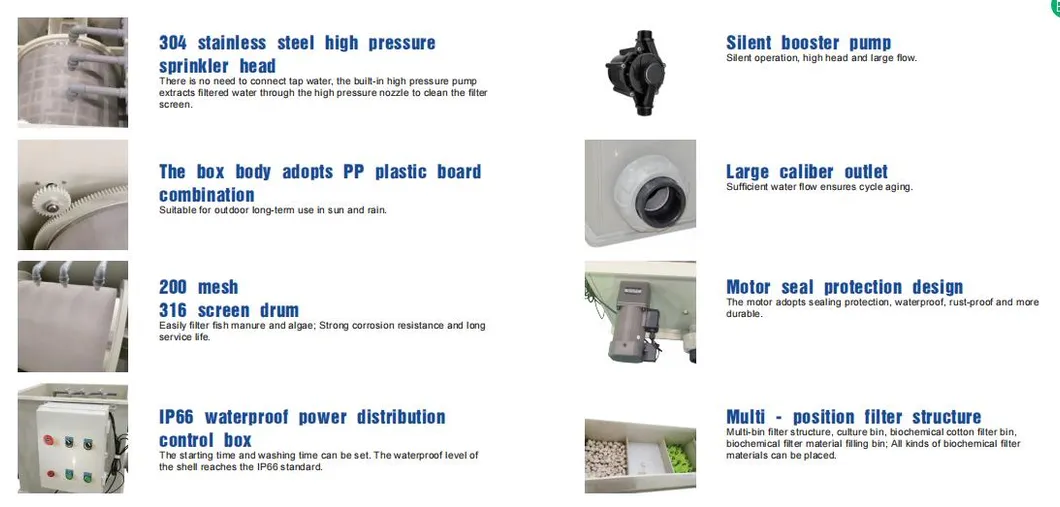

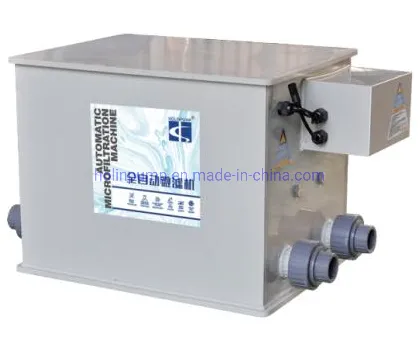

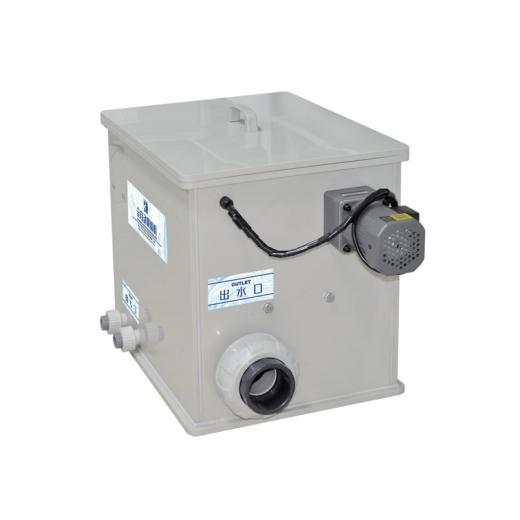

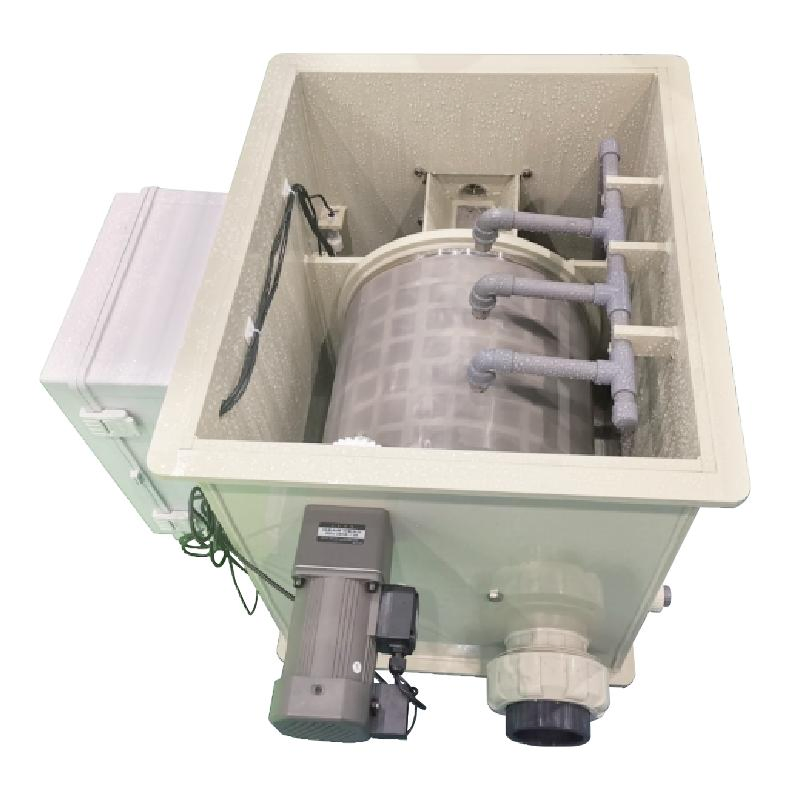

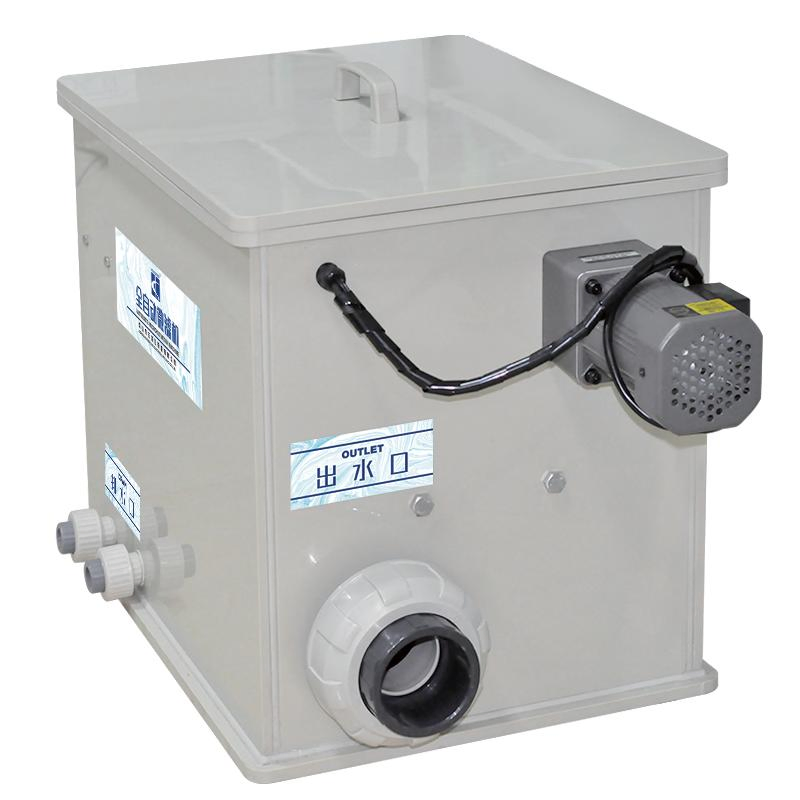

All intelligent box type microfilter is made of non-toxic and corrosion-resistant food grade PP material. It is mainly composed of box assembly, drum assembly, reverse cleaning system, electric control box system and transmission system. The equipment uses food grade environmental protection 316 stainless steel filter as the medium to remove suspended solids (≥50 μm).

Automatic Control: The equipment adopts automatic liquid level control. When suspended matter accumulates, the cleaning system automatically starts the high-pressure cleaning nozzles and rotating drum to discharge sewage into the collecting groove.

🛠️

Installation & Operation Instructions

Placement: Place the microfilter in a stable area. Ensure a high-level difference for the sewage outlet to guarantee proper drainage.

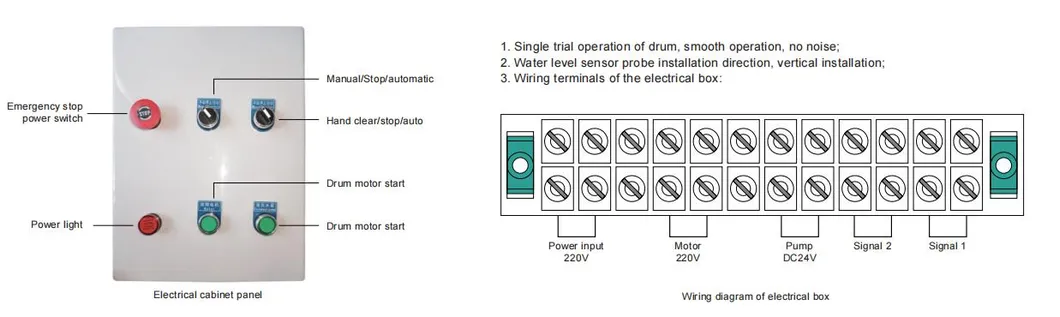

Wiring: Motor lines (Black: Zero, White/Red: Power). Connect capacitor black lines to motor red/white lines.

Rotation: Drum rotation should be clockwise when facing the outlet. Switch red/white wires to adjust steering if necessary.

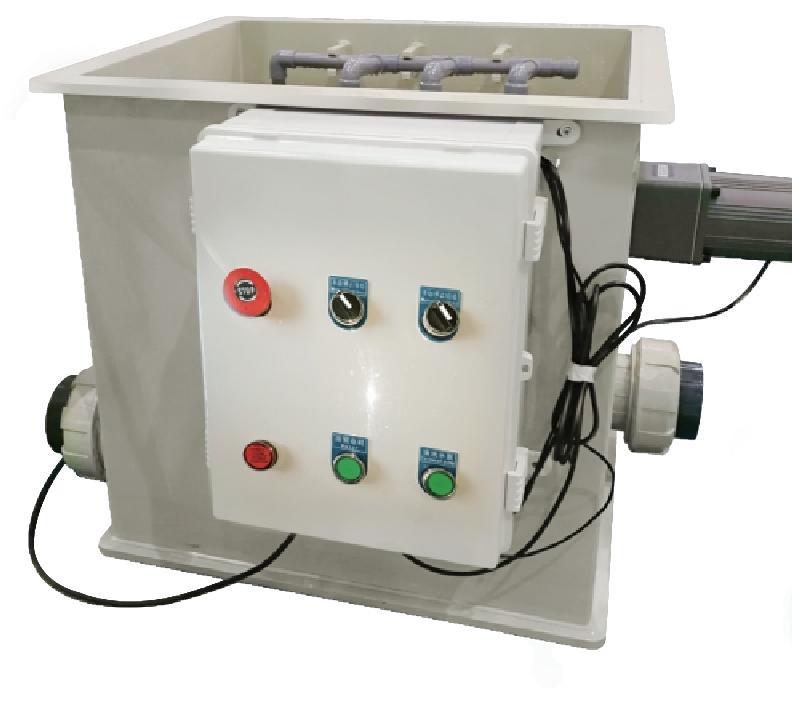

Modes: Manual/Auto switch. Auto mode uses a float ball sensor to trigger backwash cycles based on water levels.

💧

Applications & Features

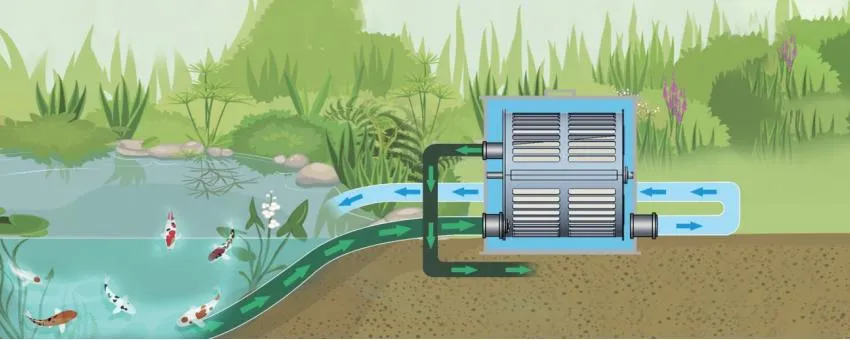

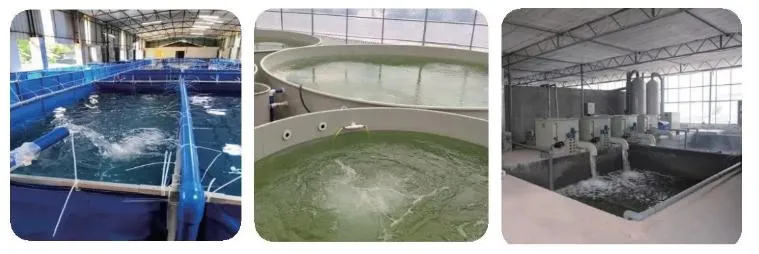

Ideal for raw water filtration in aquaculture, koi ponds, and wastewater treatment systems. It provides solid-liquid separation, effectively removing sediment, suspended algae, and particles.

✅ Long Lifespan: Full PP material box body ensures 10+ years of life, resistant to UV and corrosion.

✅ Biochemical Filtration: Rapid bacterial culture and nitrification system establishment.

✅ Easy Maintenance: Detachable flushable design with no dead corners for cleaning.

✅ Sterilization: Effectively removes mold, green algae, and ambiguity from water.

📊

Technical Parameters

Model	Size (mm)	Inlet	Outlet	Drum Dia.	Motor Power	Pump Power
5T	610335340	DN25	DN50	Φ250*230	40W	40W
10T	870470515	DN75	DN32	Φ300*326	60W	60W
20T	930590770	DN90	DN50	Φ370*376	90W	90W
30T	930590770	DN90	DN50	Φ370*376	90W	90W
50T	1210835820	DN110	DN75	Φ500*500	90W	90W
60T	1210835820	DN110	DN75	Φ500*500	90W	90W

❓

Frequently Asked Questions

1. What materials are used in the construction of this pond filter?

The filter is constructed using food-grade, non-toxic, and corrosion-resistant PP (Polypropylene) for the box body and 316 stainless steel for the filter mesh.

2. Is this system suitable for outdoor use?

Yes, the PP material is designed to withstand exposure to sun, rain, and varying temperatures, making it ideal for long-term outdoor use with a lifespan exceeding 10 years.

3. How does the automatic cleaning function operate?

The system uses a liquid level sensor. When the filter screen becomes clogged and water levels rise, the sensor triggers the rotating drum and high-pressure spray nozzles to clean the mesh automatically.

4. What is the filtration accuracy of the microfilter?

The equipment uses a stainless steel screen that can remove suspended solids and particles larger than or equal to 50 μm from the water.

5. Can the filtration system be customized?

Yes, the system supports customization to meet specific requirements for aquaculture farms, koi ponds, or industrial wastewater treatment.

6. What should I check if the backwash nozzles stop spraying?

Regularly inspect the nozzles for blockages. If they stop spraying, remove them to clear debris or replace them with new nozzles to maintain efficiency.
