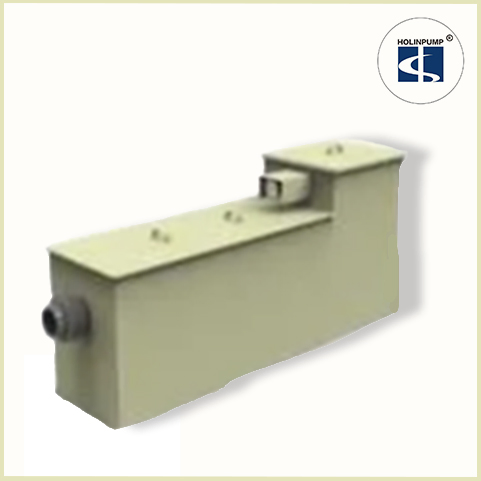

Automatic backwash rotary drum filter koi pond fish manure separation filter
The all-intelligent box-type microfilter is constructed from non-toxic, corrosion-resistant food-grade PP material. The system is meticulously designed with a box assembly, drum assembly, reverse cleaning system, electric control box, and transmission system. It is optimized for water flow rates less than or equal to 10m³/h.
The equipment utilizes a food-grade environmental protection 316 stainless steel filter as the primary medium to separate suspended solids (≥50 μm). When water enters the drum, particles are intercepted by the filter screen, while the purified water flows to the next treatment stage or pool.
Featuring automatic liquid level control, the system monitors accumulation on the screen. When the water level reaches a set trigger point, the high-pressure cleaning system and drive system activate simultaneously. This rotates the drum and cleans the nozzle, discharging sewage into the collection groove. The process uses an intelligent turbine frequency conversion pump for energy efficiency and powerful filtration cycles.
