Multiple Chamber Fish Farm Filter Systems for Koi Ponds Aquaculture Sale Australia

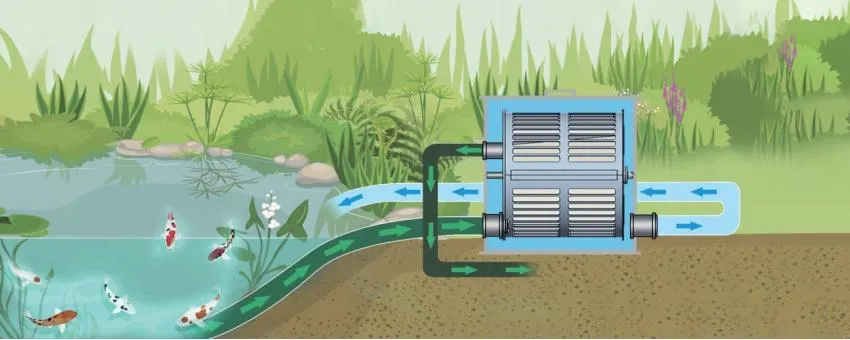

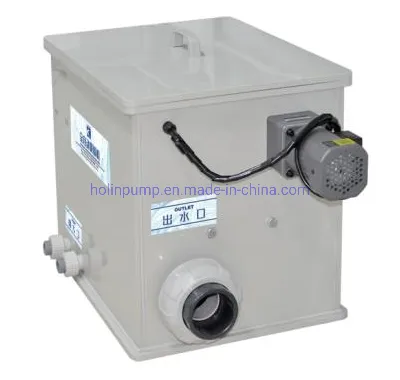

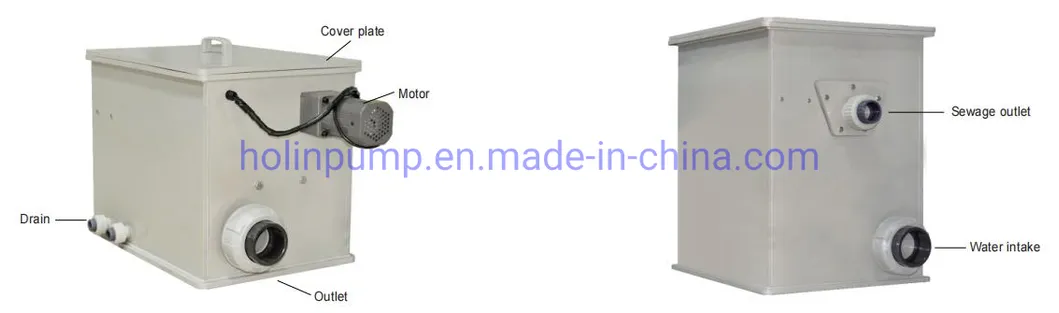

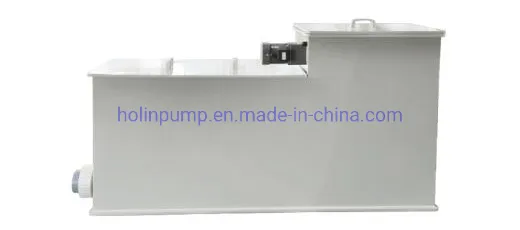

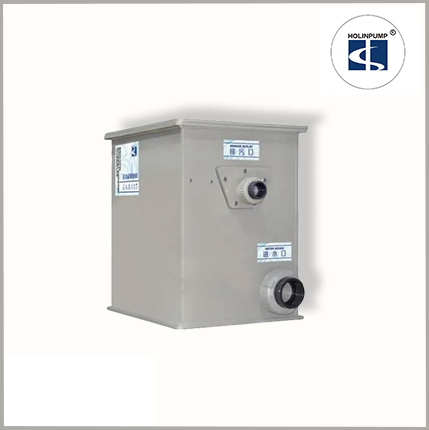

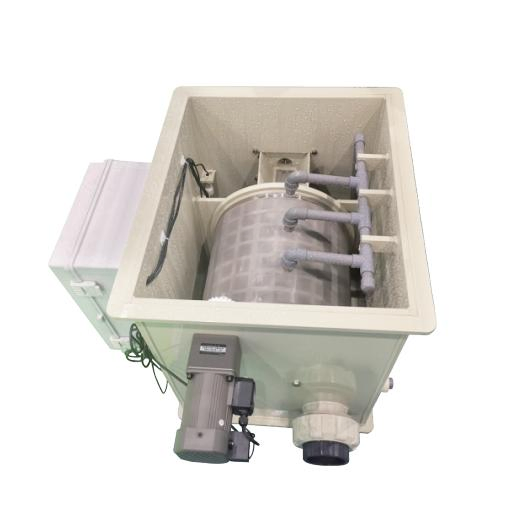

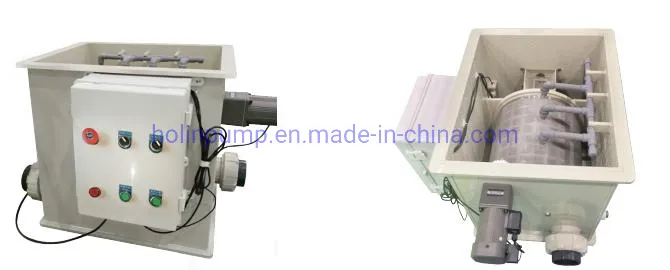

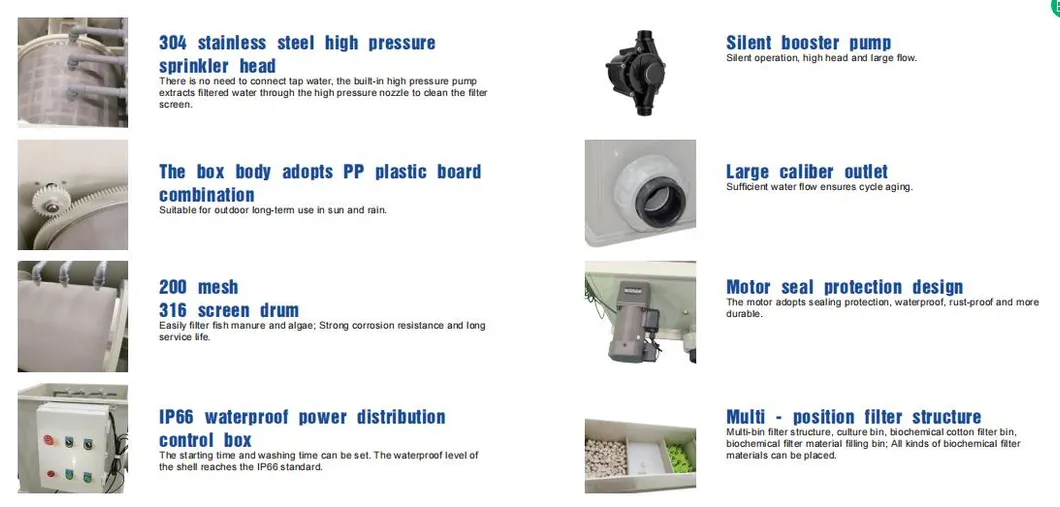

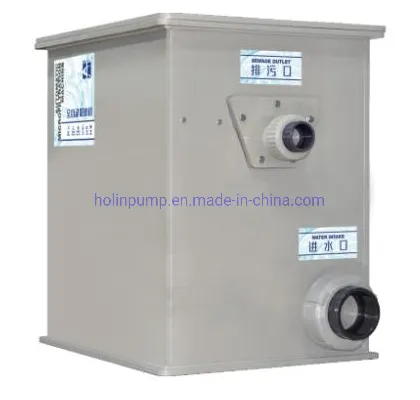

All intelligent box type microfilter is made of non-toxic and corrosion-resistant food grade PP material. It is mainly composed of box assembly, drum assembly, reverse cleaning system, electric control box system and transmission system. The water flow is less than or equal to 10m³/h. The equipment uses food grade environmental protection 316 stainless steel filter as the medium to remove suspended solids (≥50 μm) through separation. When the water containing suspended particles enters the drum through the inlet, particles are intercepted by the filter screen, and the filtered water flows into the next treatment process or pool through the outlet.

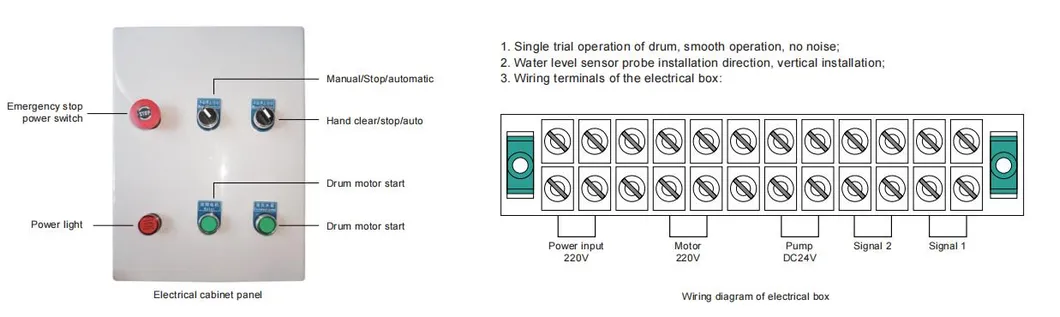

The equipment adopts automatic liquid level control. When suspended matter accumulates and reduces water permeability, the water level outside the drum rises. Once it reaches the set control point, the cleaning system starts the pump and drive system. Continuous high-pressure cleaning flushes the rotating drum, discharging sewage to the collecting groove. Once reaching the set time, the cleaning pump and transmission system stop automatically. It uses a fully intelligent turbine frequency conversion pump for energy saving and strong filtration cycles.

Use indoors within -5°C to 40°C. Avoid direct exposure to rain, extreme cold, and icing.

• Strictly prohibit pump idling without water.
• Stop the pump before changing valve states.
• Check nozzles regularly for blockages and clear debris.
• Ensure electrical equipment remains dry; power off immediately if overflow occurs.

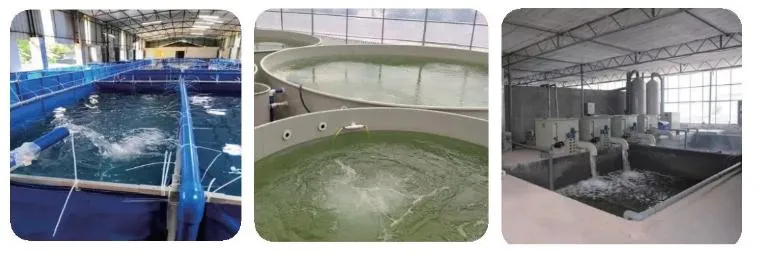

Ideal for aquaculture raw water filtration, sediment removal, suspended algae separation, and closed-cycle purification. Developed for freshwater aquaculture, it handles large flow requirements. Suitable for koi ponds, fish farms, and sewage treatment early-stage solid-liquid separation.
