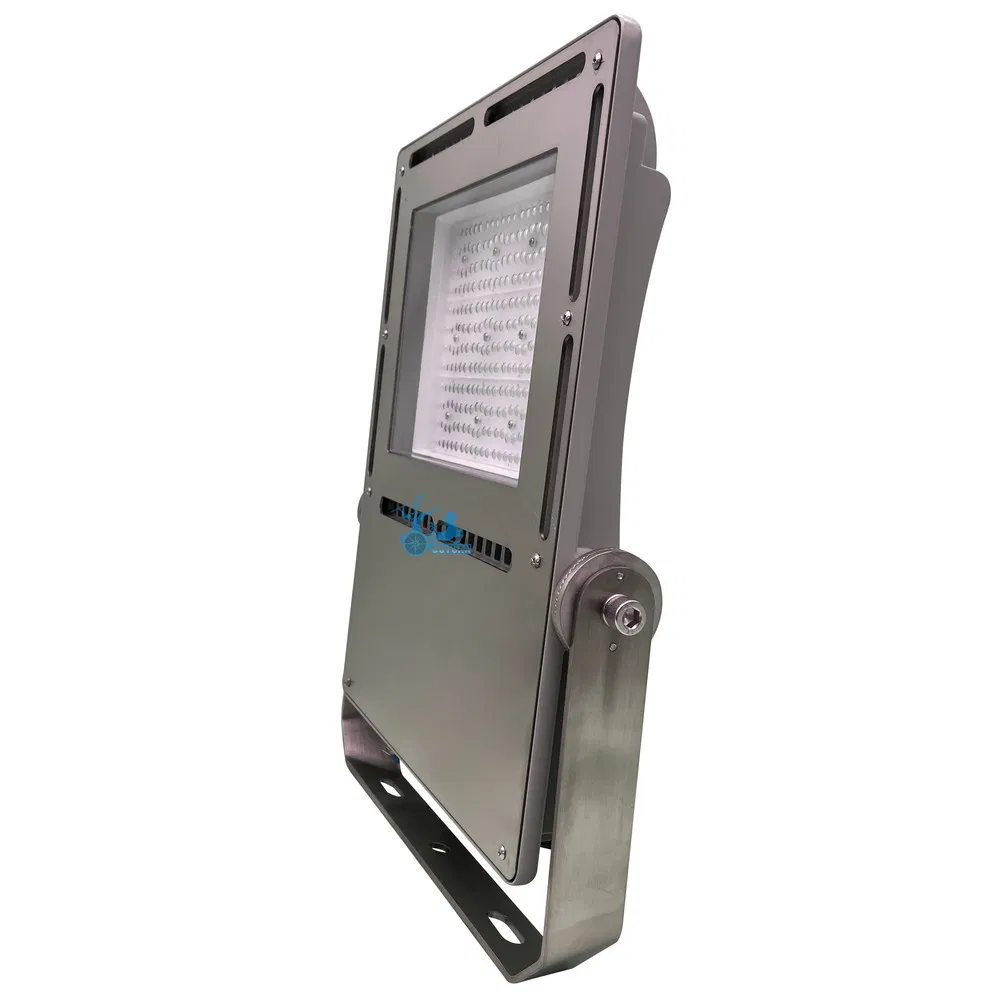

LED Floodlight 100W, 200W & 300W for Ports and Vessel Decks, Marine-Grade Stainless Steel Housing, IP68 Waterproof, Ideal for Coastal and Offshore Lighting
LED Floodlight 100W, 200W & 300W for Ports and Vessel Decks, Marine-Grade Stainless Steel Housing, IP68 Waterproof, Ideal for Coastal and Offshore Lighting
LED Floodlight 100W, 200W & 300W for Ports and Vessel Decks, Marine-Grade Stainless Steel Housing, IP68 Waterproof, Ideal for Coastal and Offshore Lighting
LED Floodlight 100W, 200W & 300W for Ports and Vessel Decks, Marine-Grade Stainless Steel Housing, IP68 Waterproof, Ideal for Coastal and Offshore Lighting
LED Floodlight 100W, 200W & 300W for Ports and Vessel Decks, Marine-Grade Stainless Steel Housing, IP68 Waterproof, Ideal for Coastal and Offshore Lighting
1 / 5
LED Floodlight 100W, 200W & 300W for Ports and Vessel Decks, Marine-Grade Stainless Steel Housing, IP68 Waterproof, Ideal for Coastal and Offshore Lighting
LED Floodlight 100W, 200W & 300W for Ports and Vessel Decks, Marine-Grade Stainless Steel Housing, IP68 Waterproof, Ideal for Coastal and Offshore Lighting
LED Floodlight 100W, 200W & 300W for Ports and Vessel Decks, Marine-Grade Stainless Steel Housing, IP68 Waterproof, Ideal for Coastal and Offshore Lighting
LED Floodlight 100W, 200W & 300W for Ports and Vessel Decks, Marine-Grade Stainless Steel Housing, IP68 Waterproof, Ideal for Coastal and Offshore Lighting
LED Floodlight 100W, 200W & 300W for Ports and Vessel Decks, Marine-Grade Stainless Steel Housing, IP68 Waterproof, Ideal for Coastal and Offshore Lighting

LED Floodlight 100W, 200W & 300W for Ports and Vessel Decks, Marine-Grade Stainless Steel Housing, IP68 Waterproof, Ideal for Coastal and Offshore Lighting

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Product Overview

Model NO. LCD-FA-200-LNXX-OS Power ≥100W
Projection Distance >35m IP Rating IP68
Application Park, Square, Factory, Garden, Fishing Boat, Crane, Marine, Offshore Rig etc IK Rate Ik09
Input Voltage 220V (220-240V Operating) LED Chips CREE
Beam Angle 8°, 15°, 20°, 30°, 45°, 60°, 90°, T1, T2, T3 CCT 2700K-6500K
Lumen Output 90-160lm/W Certification CE, C-tick, EMC, FCC, RoHS, SAA, TUV, etc.

FA Series LED Floodlights

The FA Series LED Floodlight is a high-performance industrial and marine lighting solution designed as a superior replacement for traditional metal halide and halogen fixtures. It is engineered for heavy-duty environments including ports, vessel decks, and industrial facilities.

Key Features

Wide Power Range: 50W to 1200W for diverse scale applications.
Versatile Optics: Over 30 beam angle options for precise distribution.
Marine-Grade Durability: Die-cast aluminum with corrosion-resistant coating.

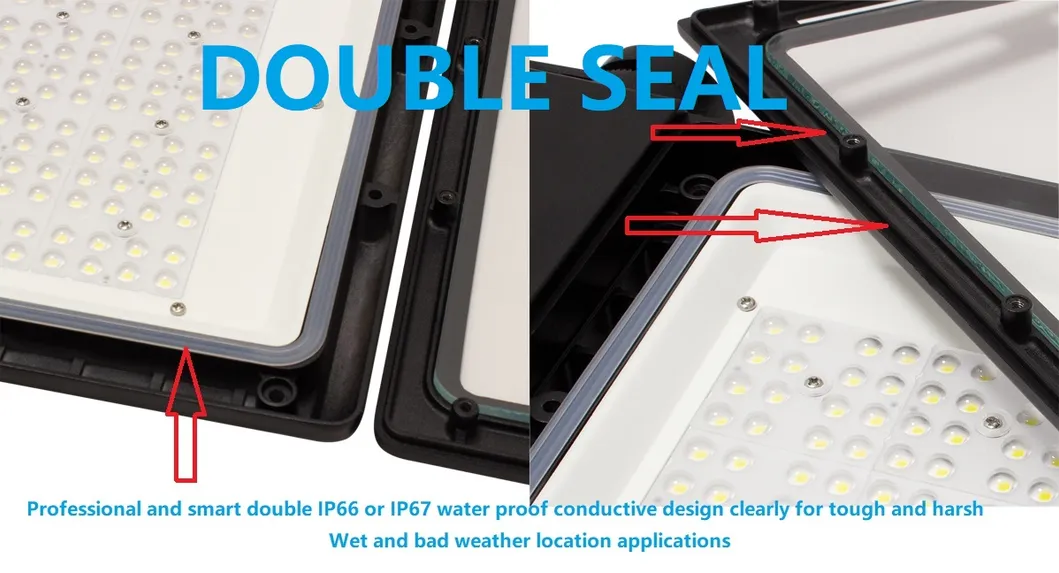

High Protection: IP66/IP67/IP68 waterproof and IK08/IK09 impact ratings.
Advanced Dimming: Compatible with 0-10V, DALI, PLC, and Triac.
Long Warranty: Reliable maintenance-friendly design with 5-7 year warranty.

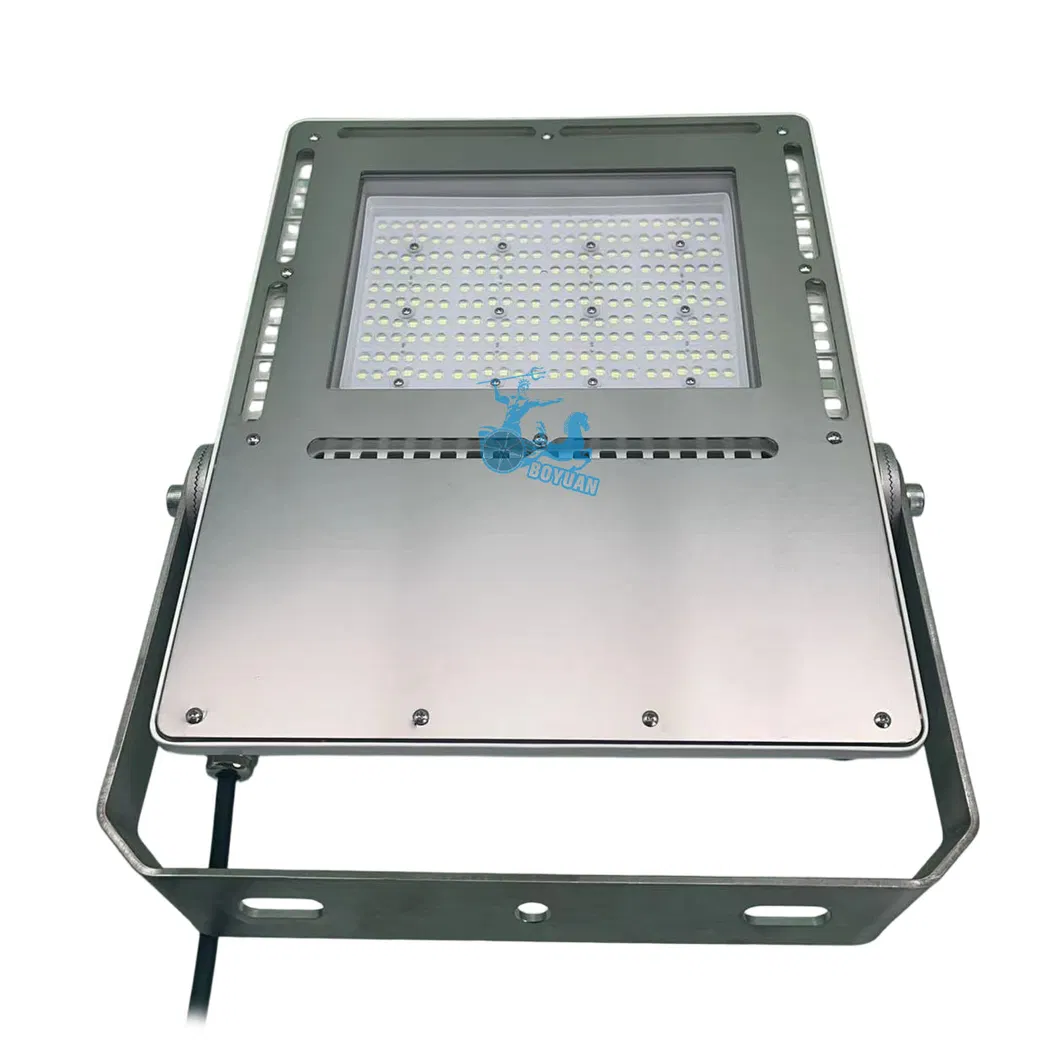

LED Floodlight 100W 200W 300W

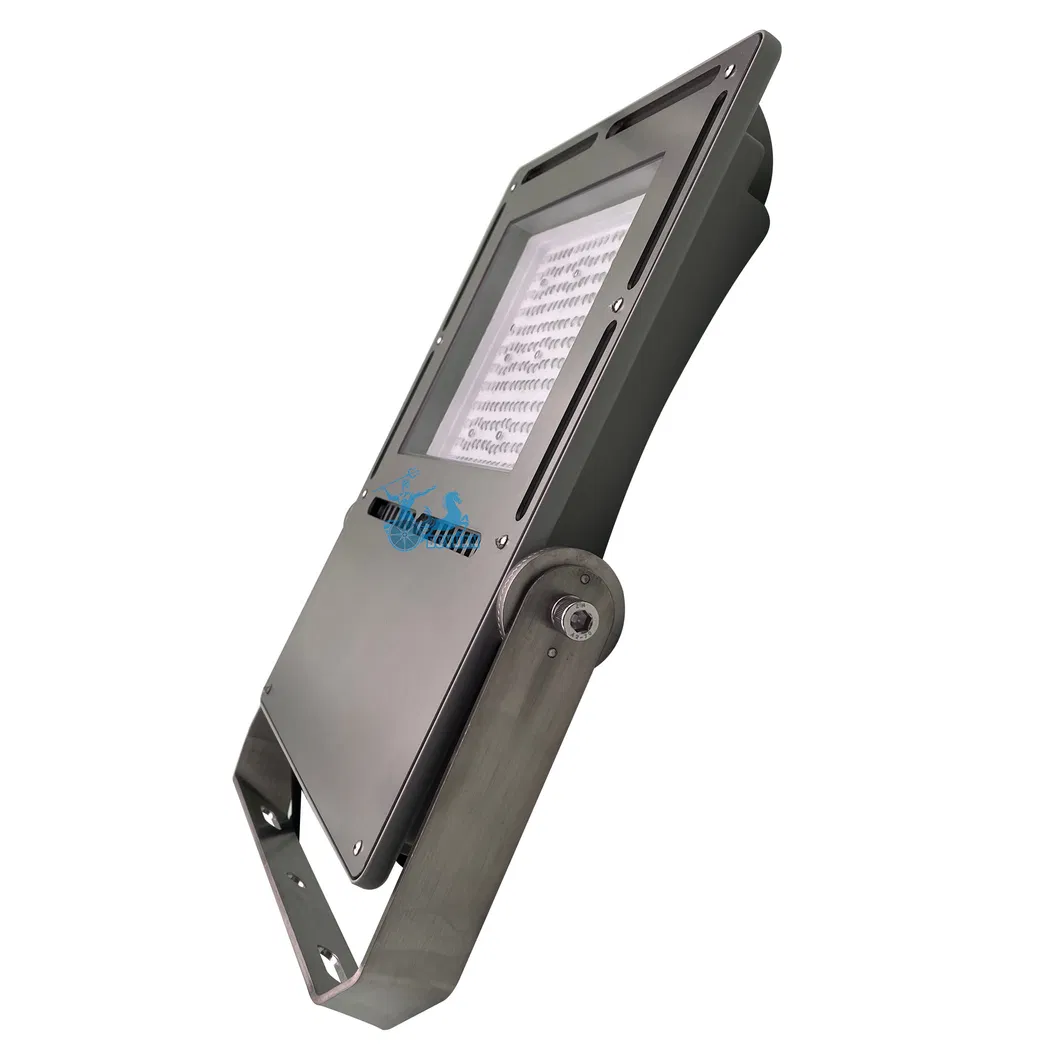

Marine Grade Flood Light

Technical Specifications

Product Feature Specification Product Feature Specification
Brightness 15000lm (for 100W) Halogen Equivalent 600-800W
CRI > 70 / 80 / 90 Power Factor > 0.95
Working Life ≥50,000 Hours Housing Material Tempered Glass, Aluminum Alloy

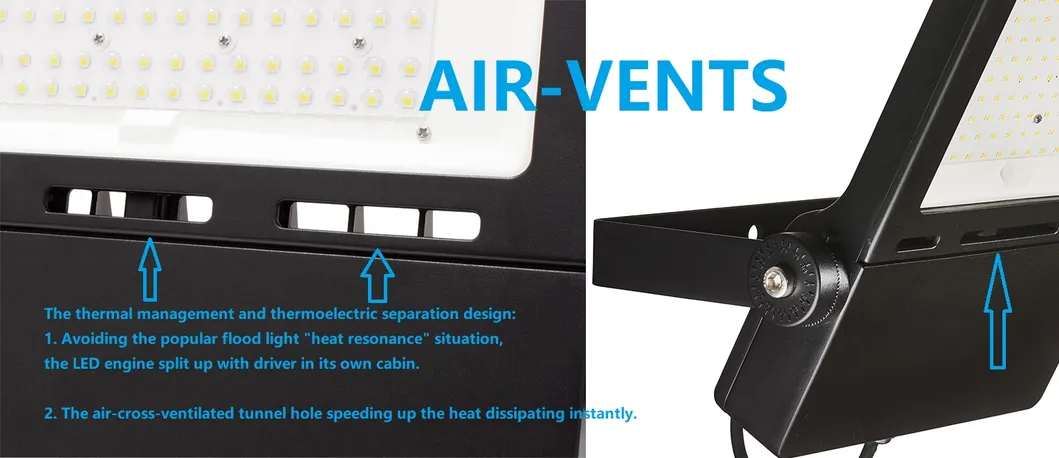

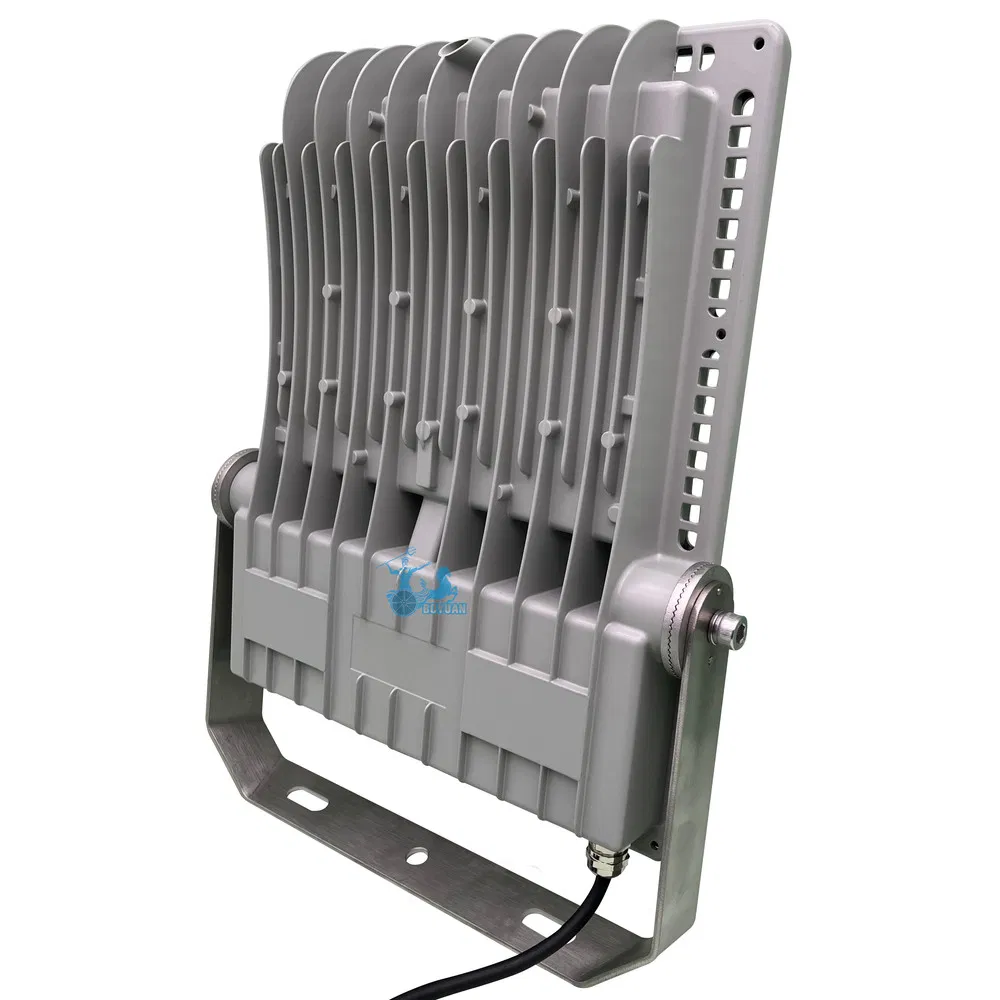

Product Heat Dissipation Design

Applications & Projects

Ideal for fish processing lighting, maritime applications (crabbing boats, trawlers), landscapes, stadiums, and high-mast industrial lighting.

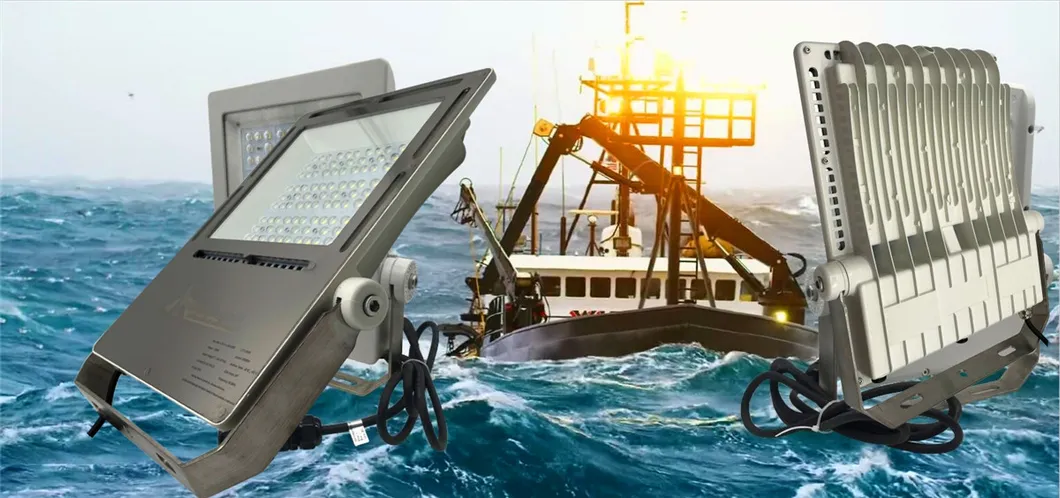

Marine Deck Lighting
Industrial Facility Lighting
Port Terminals

Explosion-Proof & Modular Series

The SCH-Module series offers high lumen output (7,000 - 70,000lm) with explosion-proof ratings (Exdemb IICT4/T6), perfect for chemical plants and oil & gas facilities.

Model Beam Angle Flux (5700K) Dimensions
SCH-Module50-100 20°/60°/120° 105,000lm 671X405X322mm
SCH-Module50-200 120° 120,000lm 671X405X204mm
Module 50-50
Module 50-100

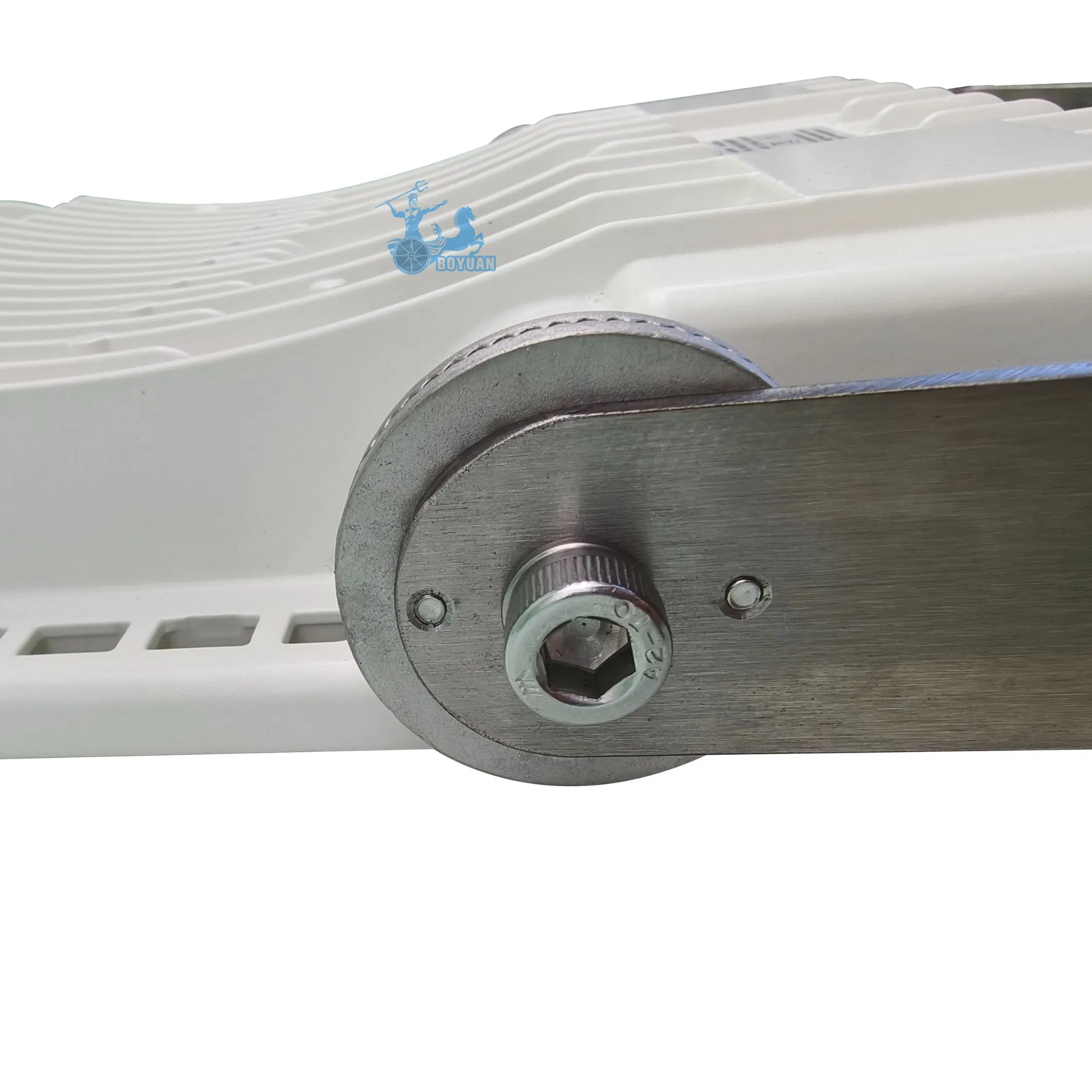

Mounting System

Frequently Asked Questions

How do you ensure the quality of the LED lights?
We focus strictly on quality control. All goods are 100% inspected before shipping through at least five tests: raw material inspection, sample testing, waterproof testing, functional testing, and burn-in testing.
What is the standard warranty for these floodlights?
The FA Series and SCH Module series come with a 5 to 7-year warranty for the LED modules and drivers, and up to 10 years for the housing.
Are these lights suitable for offshore or coastal environments?
Yes, the fixtures feature marine-grade anodized aluminum and stainless steel components with IP67/IP68 ratings, making them ideal for coastal, marine deck, and offshore rig applications.
What are the available dimming and sensor options?
We offer multiple options including 0-10V, DALI, PLC, and Triac dimming. Additionally, photocell and motion sensor systems are available upon request.
What is the typical lead time for orders?
Sample orders typically take 3-5 days, while bulk orders are usually processed within 7-15 days depending on the quantity and specifications.
Do you support custom beam angles or voltages?
Yes, we provide over 30 beam angle options (from 4° to 120°) and support flexible voltage inputs including 100-305V AC and various DC inputs (12V-32V).
