Oregon Light
Oregon Light
| Model NO. | LCD-FA-300-LNXX-OS | Power | ≥100W |
| Projection Distance | >35m | IP Rating | IP68 |
| Operating Voltage | 220-240V | Input Voltage | 220V |
| LED Chips Brand | CREE | IK Rate | IK09 |

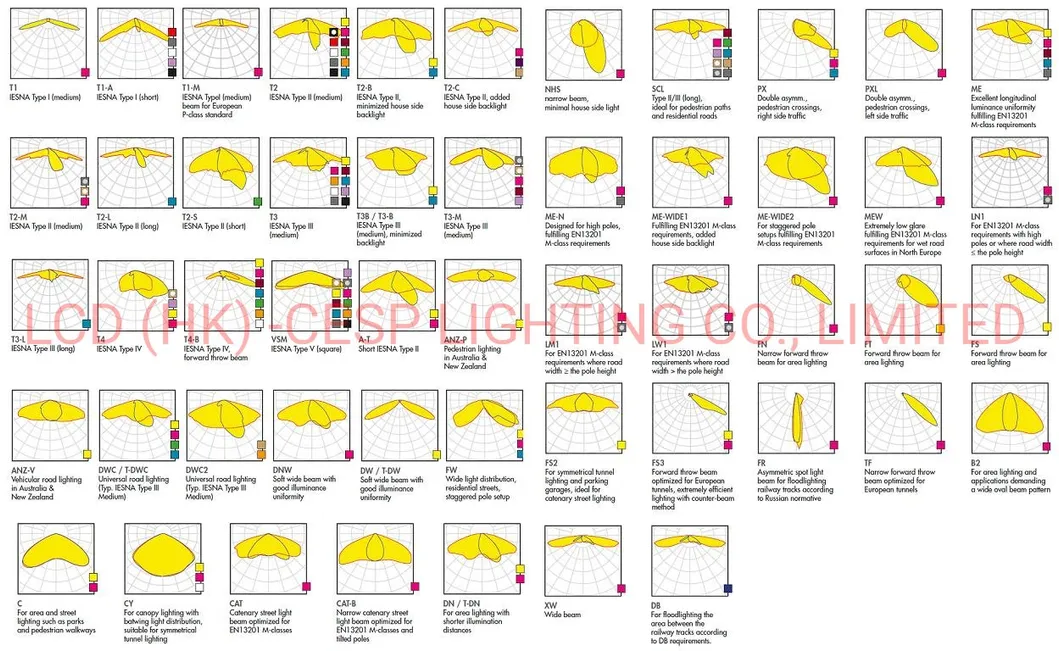

| Beam Angle | 8°/15°/20°/30°/45°/60°/90°/T1/T2/T3 | CCT | 2700K-6500K |
| Lumen Output | 90-160lm/W | Material | Tempered Glass, Aluminum Alloy |

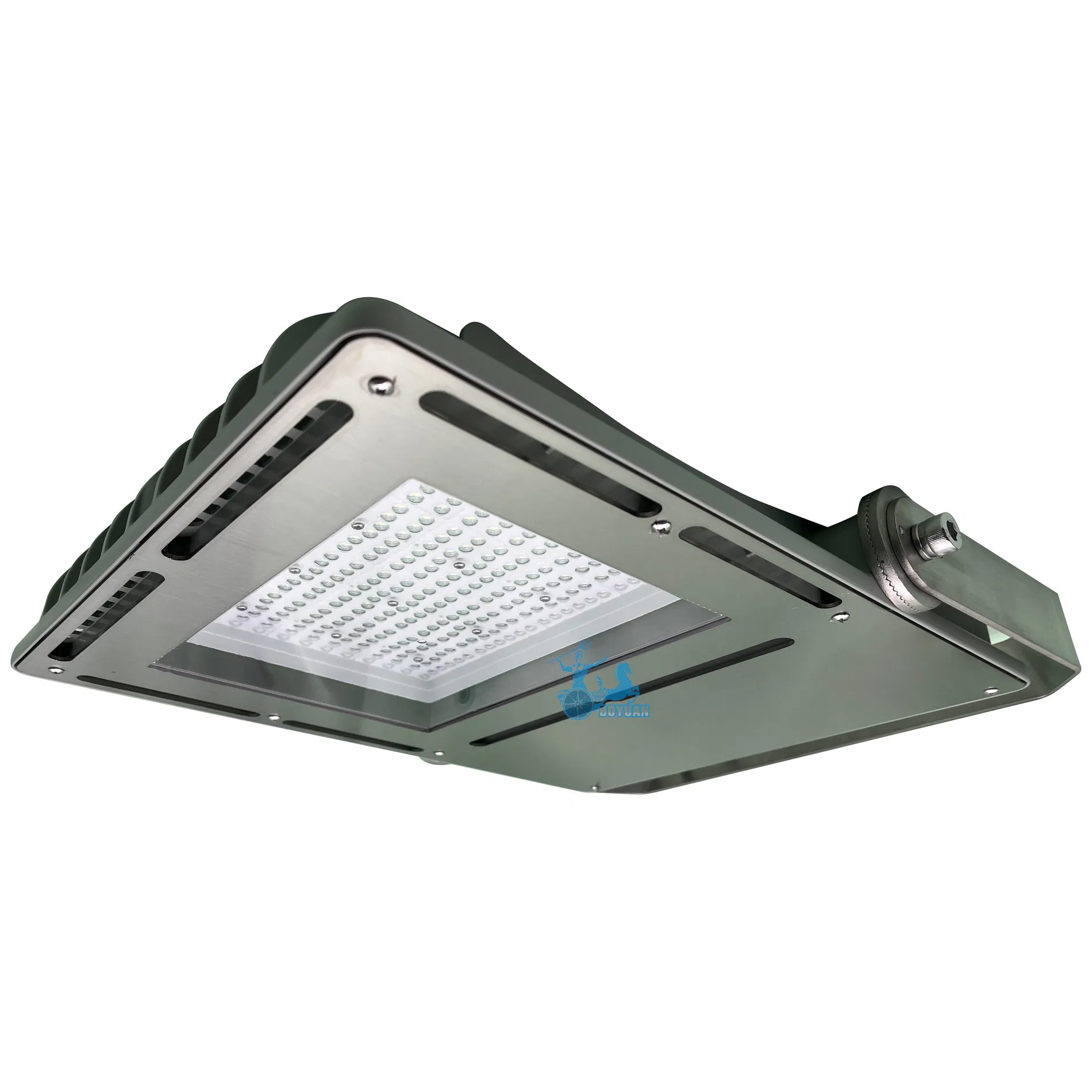

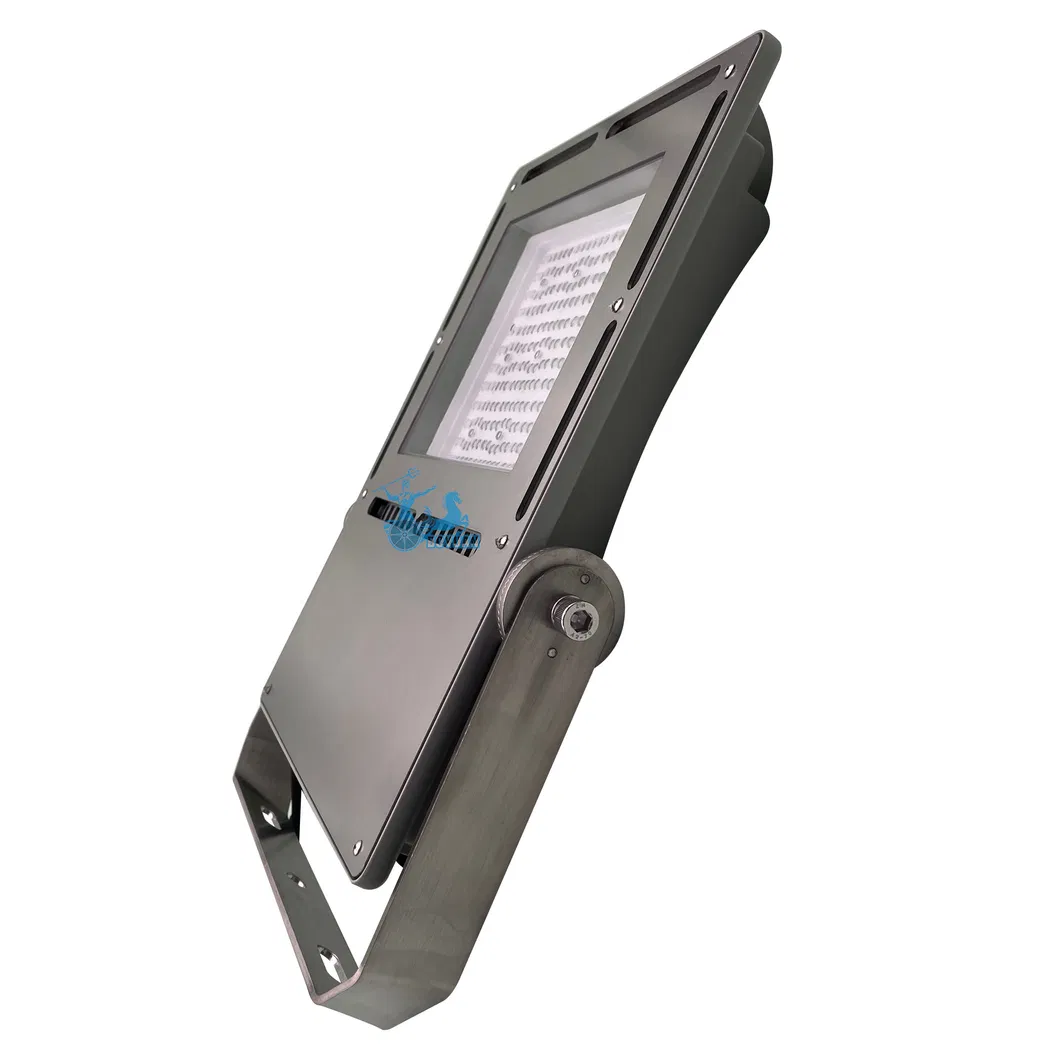

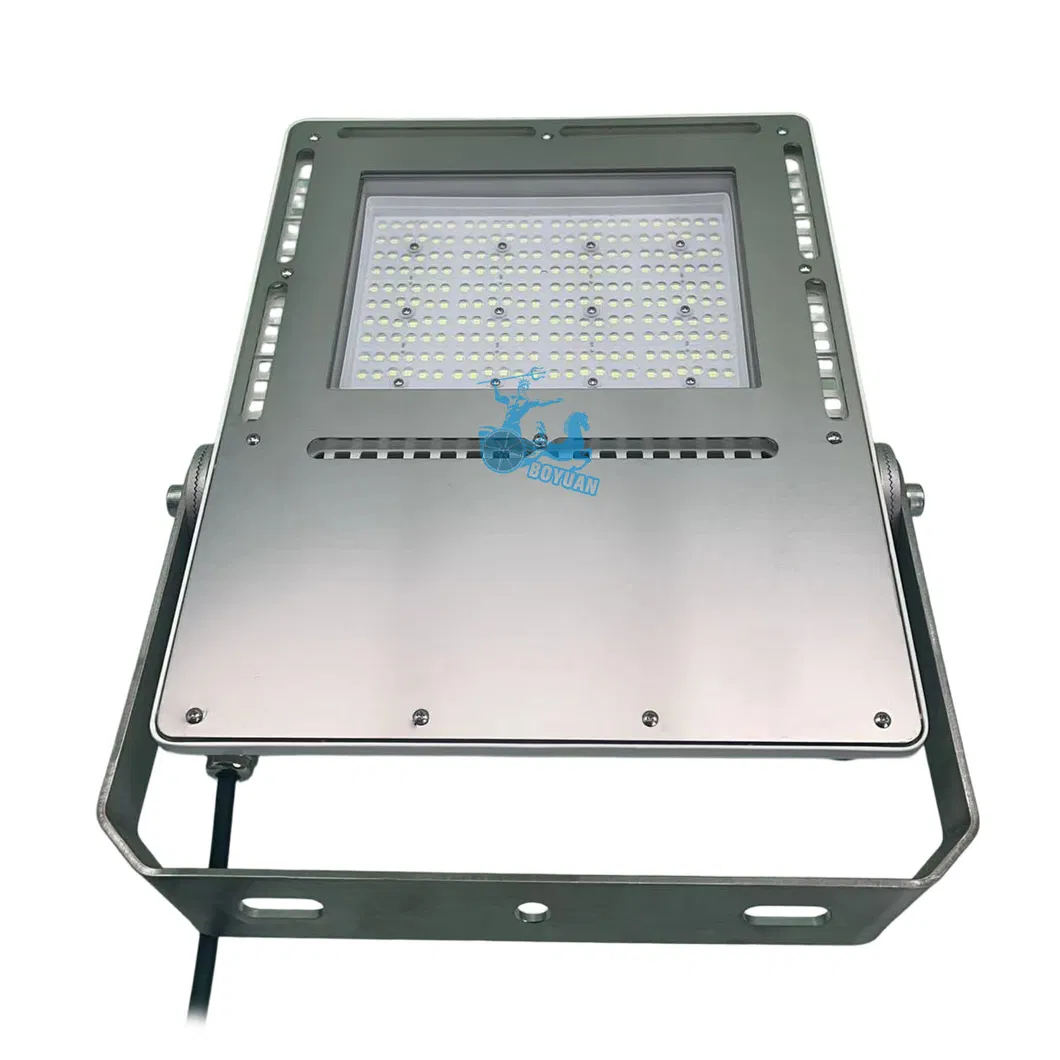

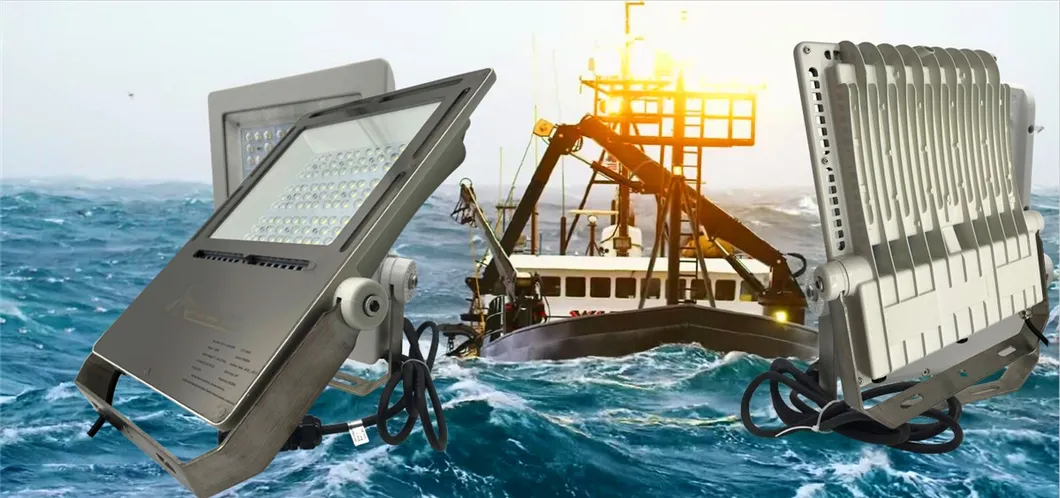

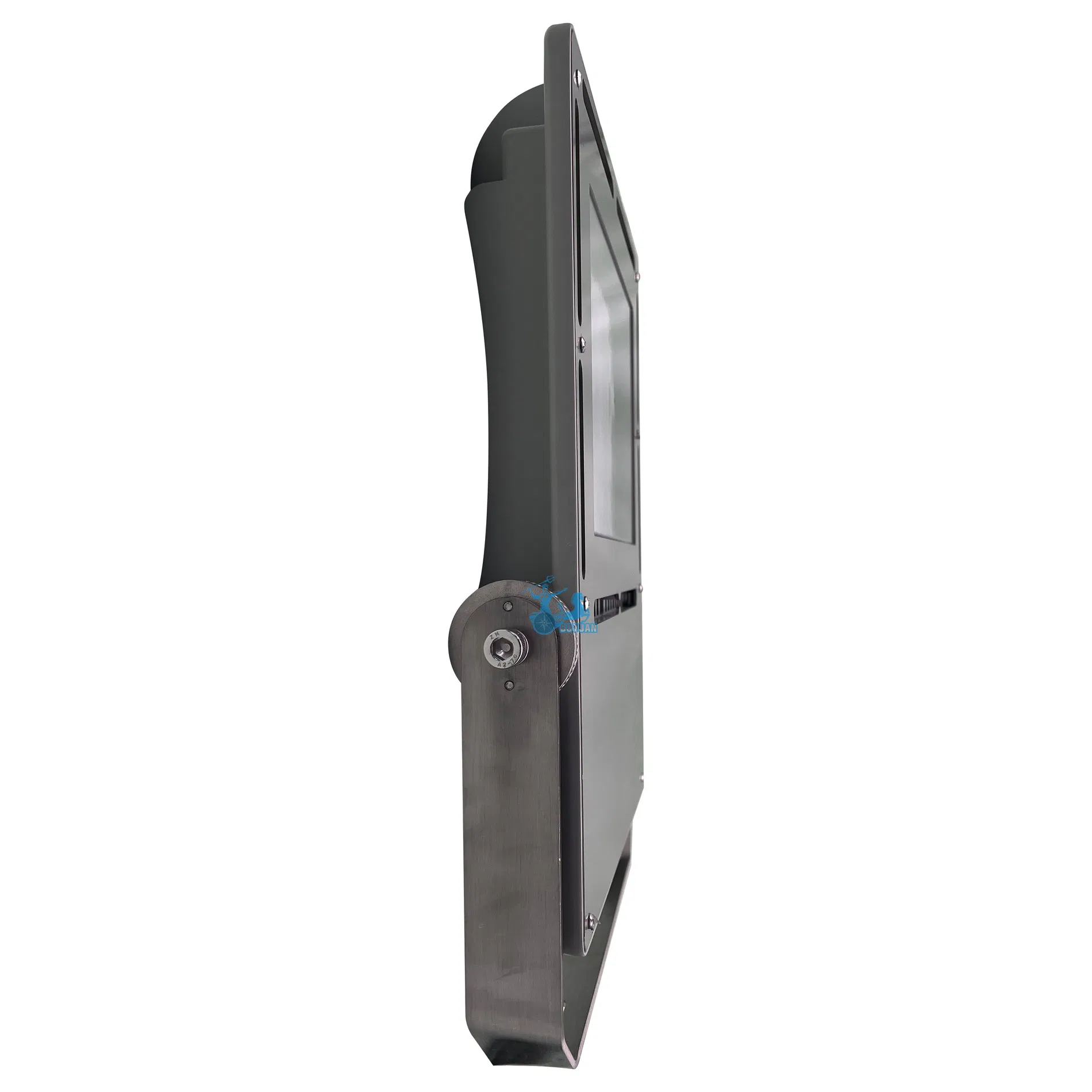

The FA Series LED Floodlight is a high-performance industrial and marine lighting solution designed to replace traditional metal halide and halogen fixtures. It is engineered for extreme durability and precise light distribution in the most demanding environments.

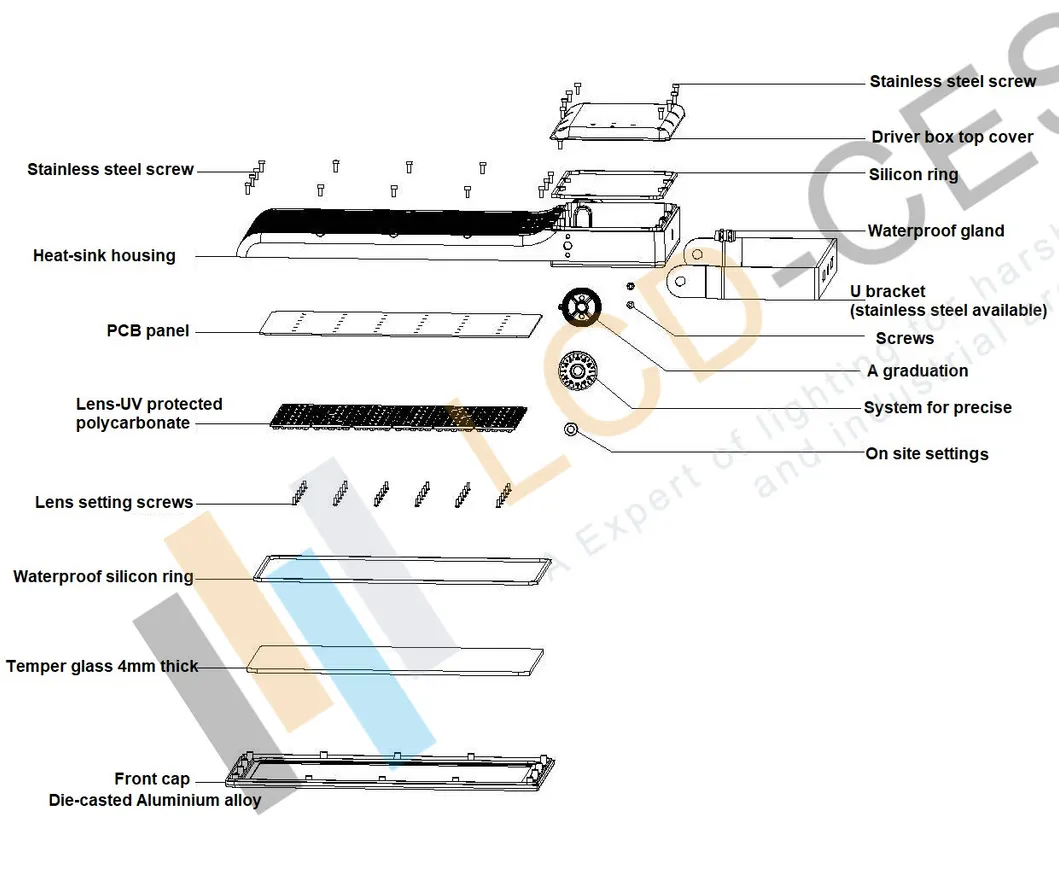

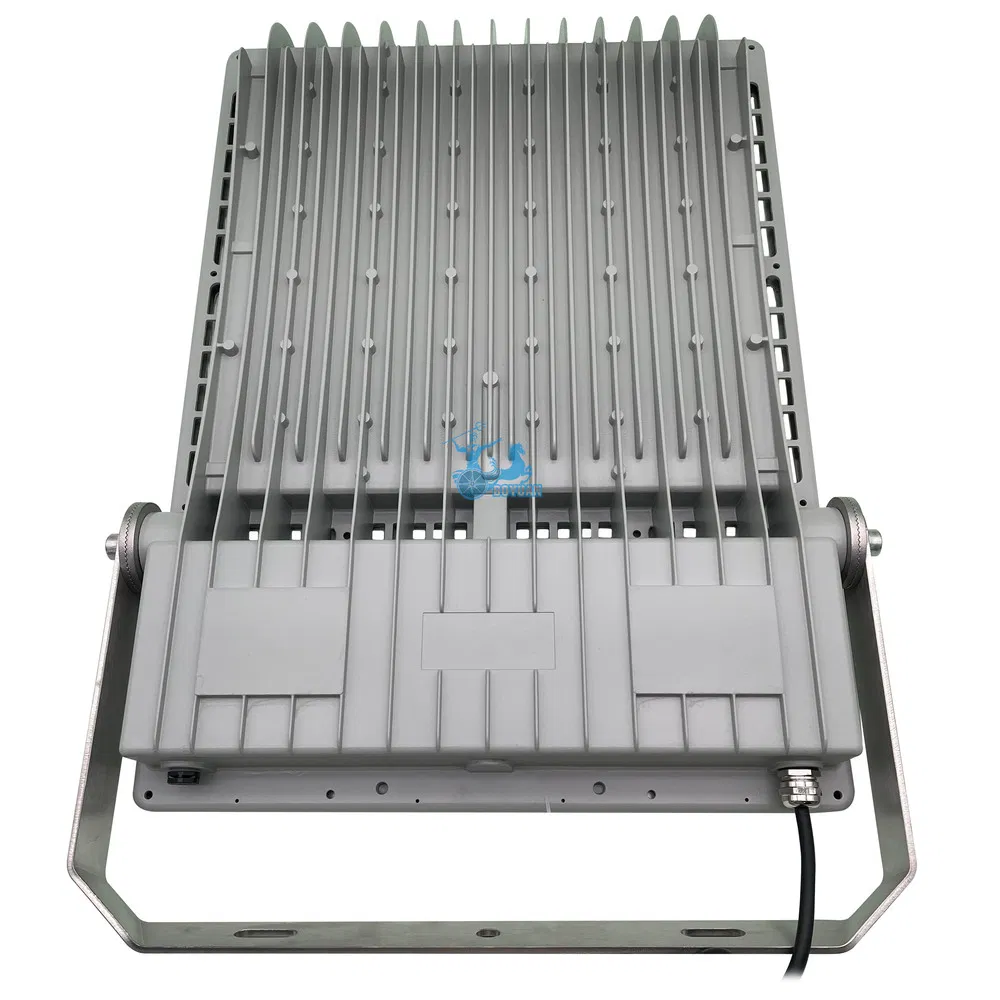

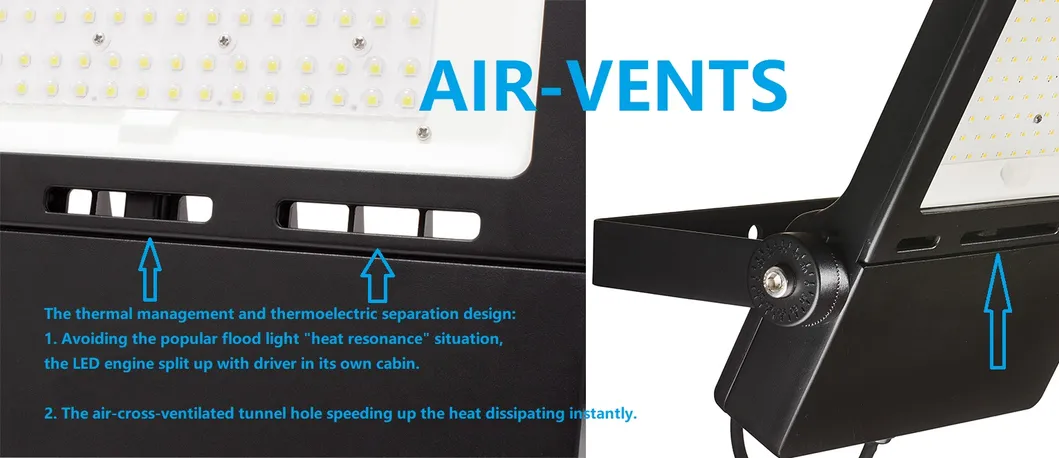

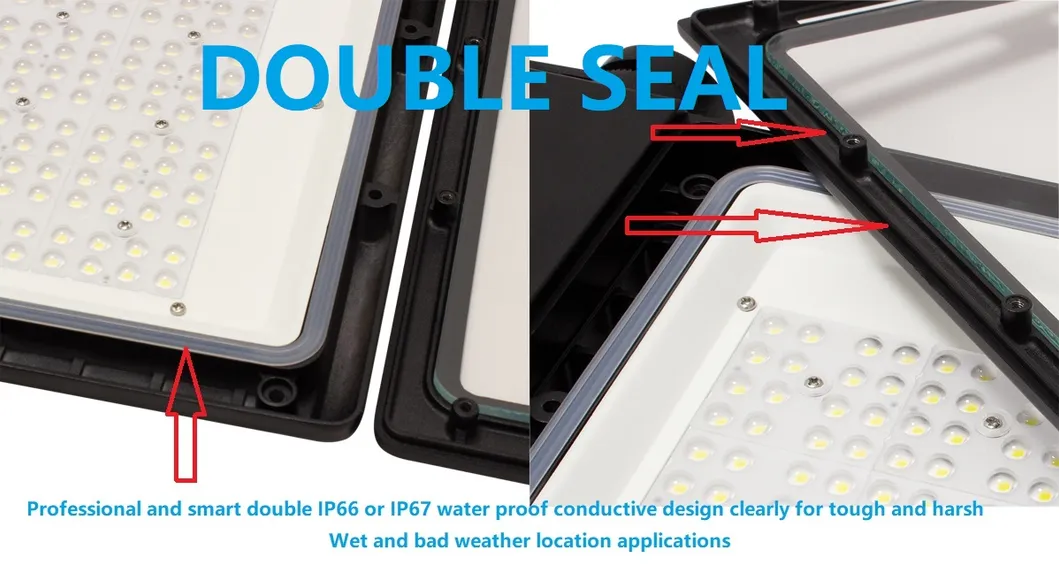

Strong housing made of die-cast aluminum, featuring high heat dissipation and superior aesthetics. Impact resistant IK08/IK09 grade and protection rating IP66/IP67/IP68. Advanced heat sink design ensures LED longevity across all specified ambient conditions.
| Item Name | AxBxC (MM) | Weight (KG) |
|---|---|---|
| FA-085/105/153 IP67 | 389.2x296.7x57 | 3.4 |
| FA-205 IP67 | 436.6x345.7x57 | 4.8 |
| FA-255 IP67 | 436.6x345.7x57 | 7.2 |
| FA-305/353 IP67 | 582x385x60 | 7.5 |
| Lamp Body | Aluminum Alloy | Projection Distance | 8m-40m |
| Certification | CE, CQC, RoHS, ATEX, IECEx | Input Voltage | 90-360VAC |
| Ex mark | Exdemb IICT4/T6 | Mounting | Bracket / Suspend / Pole |
