Basic Information
Model:Garden Pond Drum Filter
Application:Aquariums, Water Filtration
Certificate:TUV, SAA, CE, GS
Voltage:110-120V/220-240V, 60Hz-50Hz
Color:Black, Blue or customized
Size:110X67X99 Cm
HS Code:8413709190
Capacity:100,000PCS Per Month
Product Description

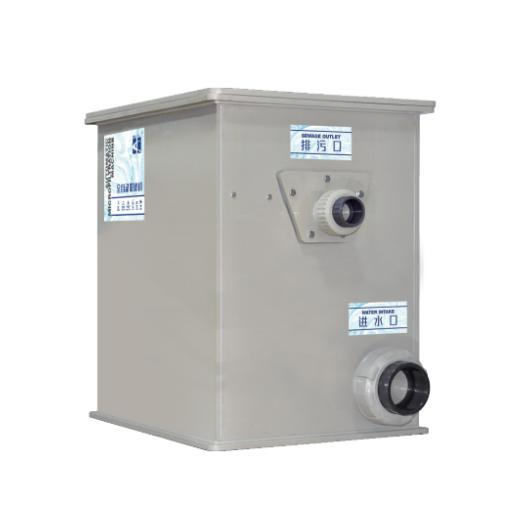

KOI POND FILTRATION SYSTEM

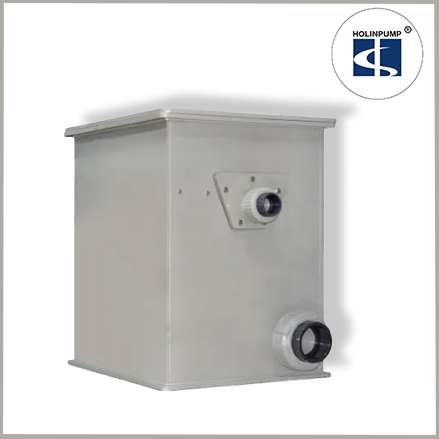

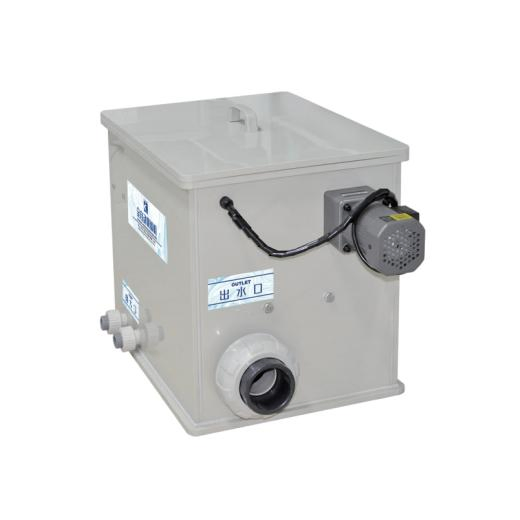

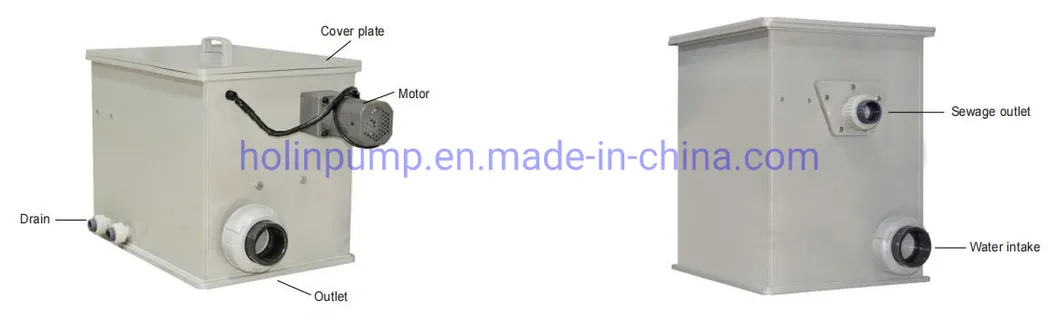

All intelligent box type microfilter is made of non-toxic and corrosion-resistant food grade PP material. It is mainly composed of box assembly, drum assembly, reverse cleaning system, electric control box system and transmission system.

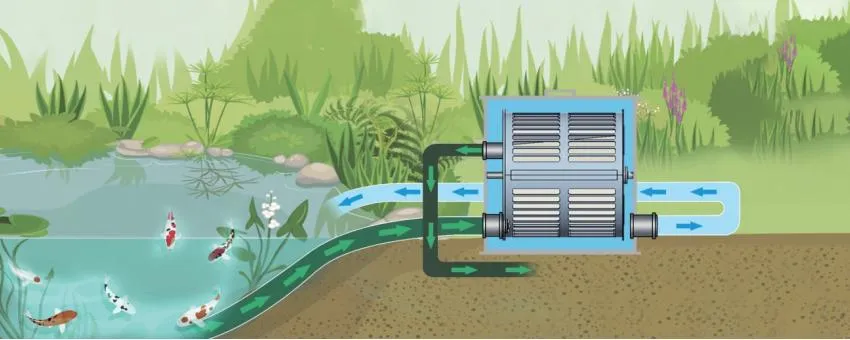

The equipment uses food grade environmental protection 316 stainless steel filter as the medium to remove suspended solids (≥50 μm). When water containing particles enters the drum, they are intercepted by the filter screen. The equipment adopts automatic liquid level control. When suspended matter accumulates and reduces permeability, the water level rises, triggering the backwash system. The high-pressure cleaning nozzles wash the drum while it rotates, discharging sewage into the collecting groove.
Installation Instructions
- Place the microfilter in a stable location.
- Can be installed in-line or supplied by water tower/pump; valves should adjust water levels.
- Ensure a high-level difference for sewage discharge to prevent clogging.
- Check that the cleaning pump inlet is submerged to avoid idling.
- Capacitor connection: Motor has black (zero), white, and red lines. Connect capacitor lines to red and white lines, then connect external power.
- Drum rotation: Facing the outlet, the drum must rotate clockwise. Adjust wiring if rotation is counterclockwise.
Operation Instructions
1. Emergency Stop: Use the emergency switch for immediate shutdown.
2. Manual Mode: Turn switch to manual to control the backwash pump and drum independently via start/stop buttons.
3. Automatic Mode: Controlled by the water level float ball. When the probe is triggered, backwash starts for a preset time relay duration.
4. Pump Check: Ensure the impeller rotates clockwise and the water level is 5-10cm higher than the pump inlet before operation.
Widely Used & Features

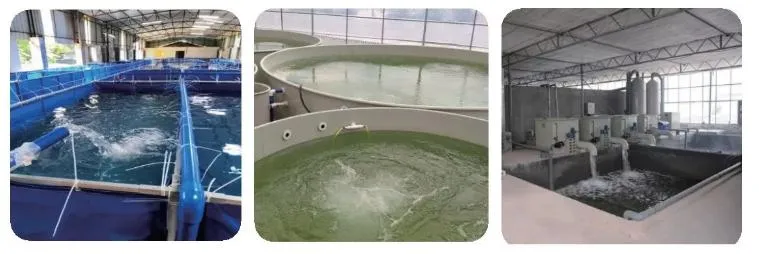

Ideal for raw water filtration in aquaculture to remove sediment and algae. Suitable for koi ponds, factory culture, and wastewater treatment.

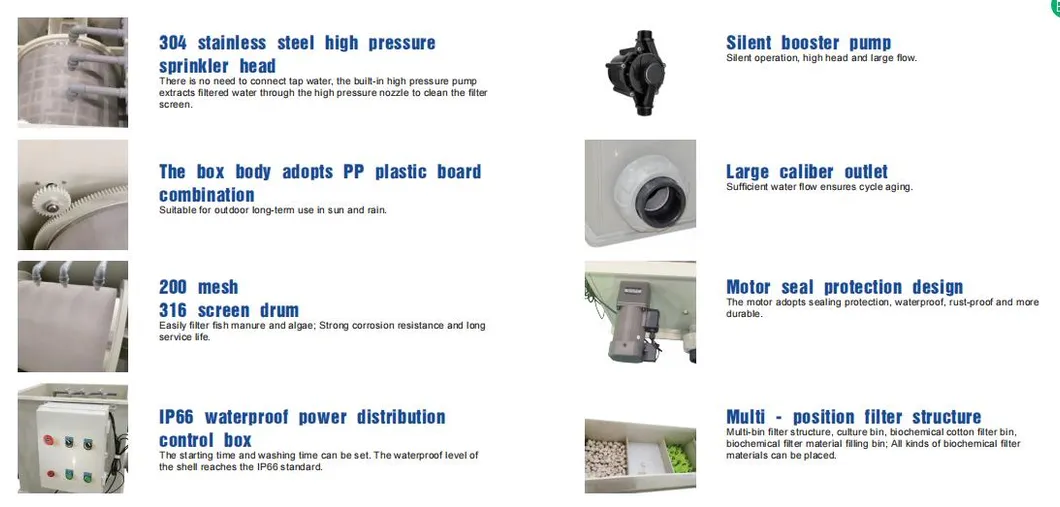

- Automatic Cleaning: Detachable flushable design for easy maintenance.
- Durability: PP material box body with a lifespan of over 10 years; UV and corrosion resistant.
- Efficient Design: Inclined bottom design ensures no dead corners or blockages.
- Water Purification: Rapid bacterial culture and nitrification system establishment.

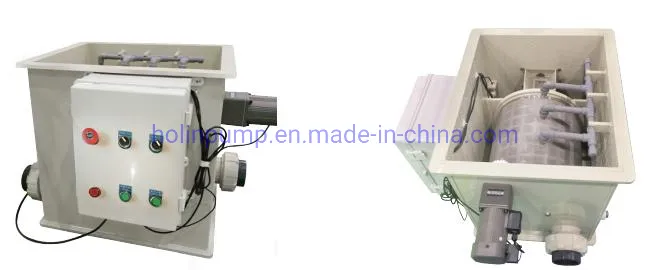

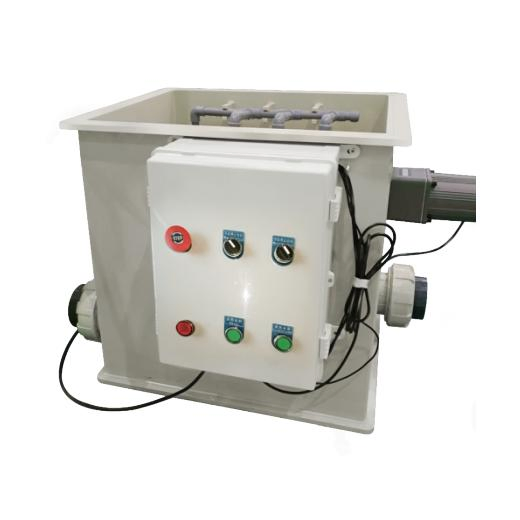

Electrical Control Box Guidelines
Technical Specifications
| Model |
Product Size |
Inlet (mm) |
Outlet (mm) |
Drum Diameter |
Motor Power |
Pump Power |

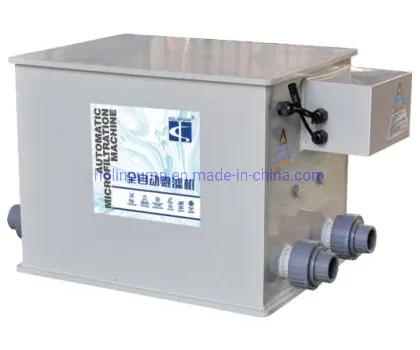

| 5T | 610*335*340mm | DN25 | DN50 | Φ250*230mm | 40W | 40W |

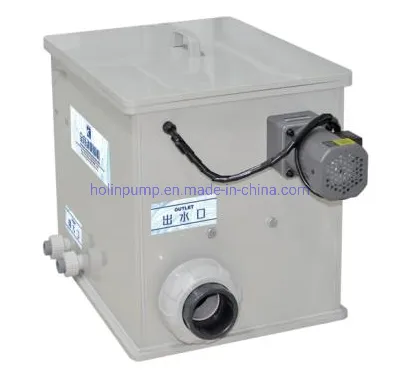

| 10T | 870*470*515mm | DN75 | DN32 | Φ300*326mm | 60W | 60W |
| 20T | 930*590*770mm | DN90 | DN50 | Φ370*376mm | 90W | 90W |
| 30T | 930*590*770mm | DN90 | DN50 | Φ370*376mm | 90W | 90W |
| 50T | 1210*835*820mm | DN110 | DN75 | Φ500*500mm | 90W | 90W |
| 60T | 1210*835*820mm | DN110 | DN75 | Φ500*500mm | 90W | 90W |
Filter Bin Combinations
| Model |
Product Size |
Inlet (mm) |
Outlet (mm) |
Drum Diameter |
Motor Power |
Pump Power |

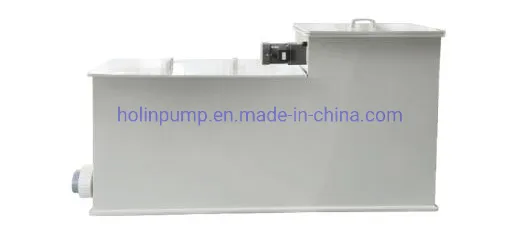

| 5T+Filter bin | 610*335*340mm | DN25 | DN50 | Φ250*230mm | 40W | 40W |

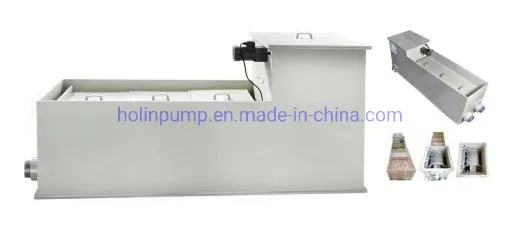

| 10T+Filter bin | 1760*440*800mm | DN75 | DN32 | Φ370*326mm | 60W | 60W |

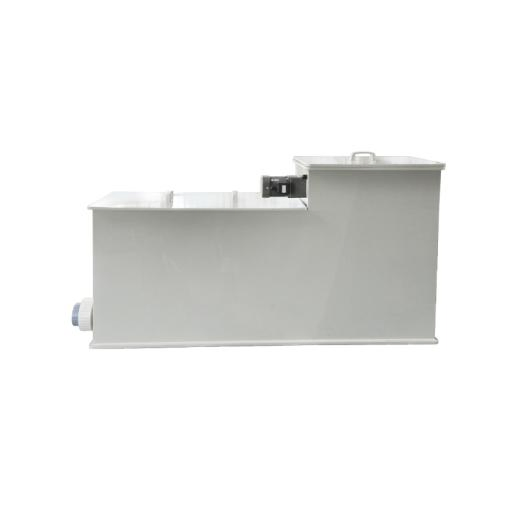

| 20T+Filter bin | 2300*500*570mm | DN90 | DN50 | Φ370*376mm | 60W | 40W |
Frequently Asked Questions
Q1: What materials are used in the drum filter construction?
A1: The filter body is made of food-grade PP material, and the filter screen is made of 316 stainless steel, ensuring corrosion resistance and long service life.
Q2: How does the automatic cleaning system work?
A2: The system uses a water level float ball. When the screen is clogged and water level rises, it triggers the backwash pump and drum motor to clean the screen automatically.
Q3: Can this filter be used for outdoor koi ponds?
A3: Yes, it is designed for both indoor and outdoor use. The PP material is UV resistant and can withstand outdoor conditions for over 10 years.
Q4: What size of particles can this system remove?
A4: The system is designed to remove suspended solids and particles larger than or equal to 50 μm.
Q5: What maintenance is required for the nozzles?
A5: Nozzles should be checked regularly. If they stop spraying, they should be removed and cleared of any debris or replaced if necessary.
Q6: Is it safe for the pump to run without water?
A6: No, it is strictly prohibited to let the pump idle in a no-water state as it may cause damage to the motor and impeller.
