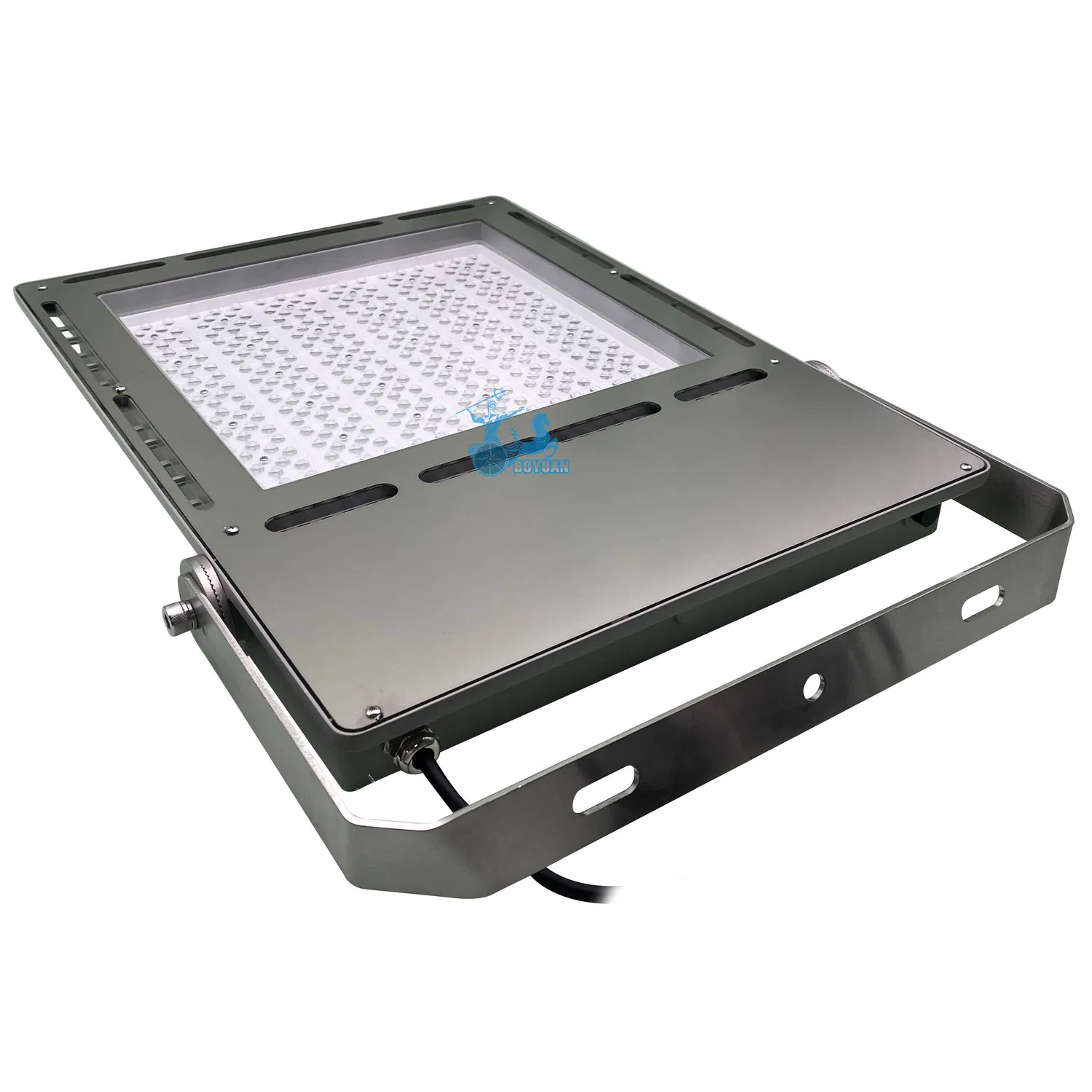

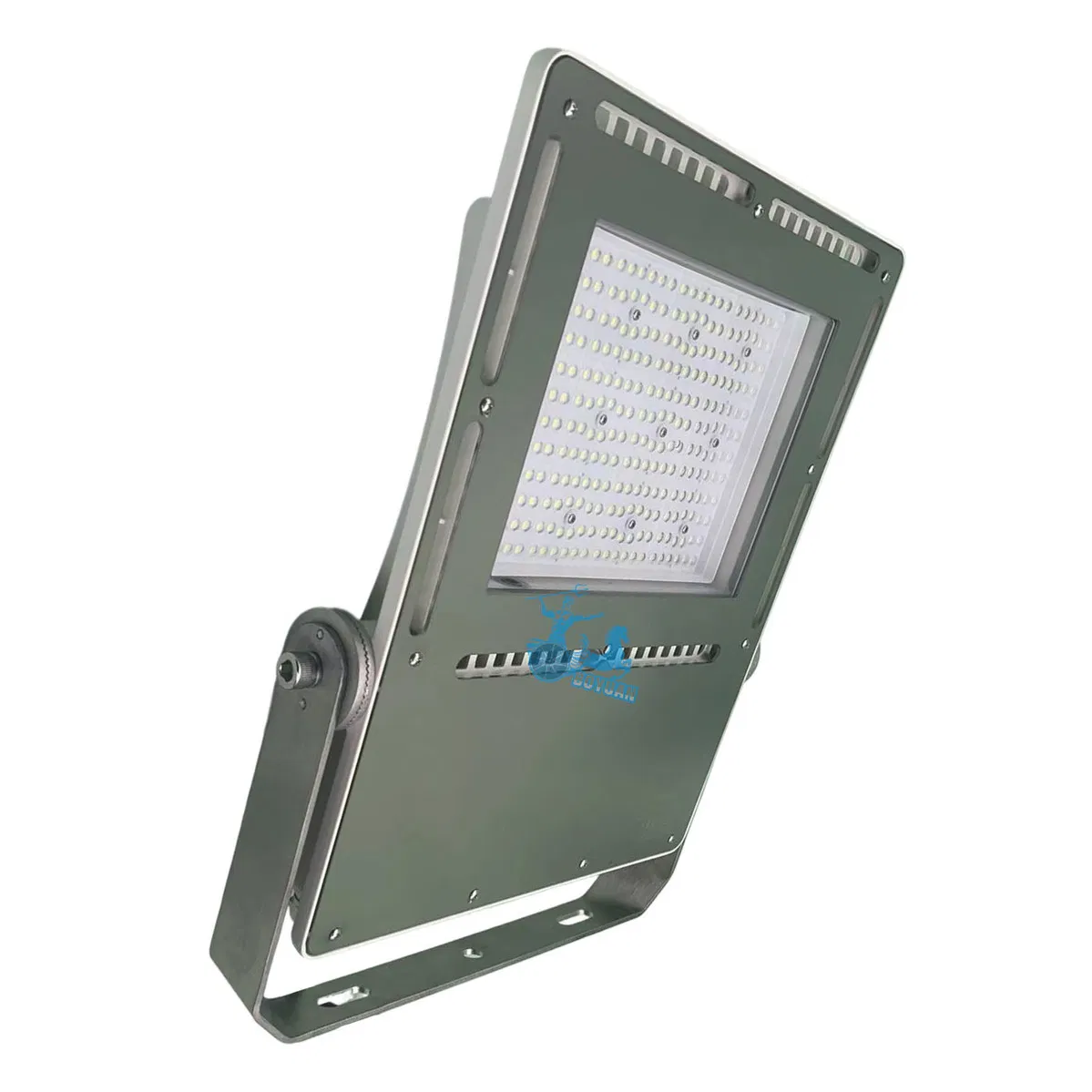

Marine-Grade LED Floodlight for Aquaculture and Fish Farms, 50-1200W, IP68 Waterproof, Ik10 Stainless-Steel Hardware and Multiple Beam Options for Coastal Use
Marine-Grade LED Floodlight for Aquaculture and Fish Farms, 50-1200W, IP68 Waterproof, Ik10 Stainless-Steel Hardware and Multiple Beam Options for Coastal Use
Marine-Grade LED Floodlight for Aquaculture and Fish Farms, 50-1200W, IP68 Waterproof, Ik10 Stainless-Steel Hardware and Multiple Beam Options for Coastal Use
Marine-Grade LED Floodlight for Aquaculture and Fish Farms, 50-1200W, IP68 Waterproof, Ik10 Stainless-Steel Hardware and Multiple Beam Options for Coastal Use
Marine-Grade LED Floodlight for Aquaculture and Fish Farms, 50-1200W, IP68 Waterproof, Ik10 Stainless-Steel Hardware and Multiple Beam Options for Coastal Use
1 / 5
Marine-Grade LED Floodlight for Aquaculture and Fish Farms, 50-1200W, IP68 Waterproof, Ik10 Stainless-Steel Hardware and Multiple Beam Options for Coastal Use
Marine-Grade LED Floodlight for Aquaculture and Fish Farms, 50-1200W, IP68 Waterproof, Ik10 Stainless-Steel Hardware and Multiple Beam Options for Coastal Use
Marine-Grade LED Floodlight for Aquaculture and Fish Farms, 50-1200W, IP68 Waterproof, Ik10 Stainless-Steel Hardware and Multiple Beam Options for Coastal Use
Marine-Grade LED Floodlight for Aquaculture and Fish Farms, 50-1200W, IP68 Waterproof, Ik10 Stainless-Steel Hardware and Multiple Beam Options for Coastal Use
Marine-Grade LED Floodlight for Aquaculture and Fish Farms, 50-1200W, IP68 Waterproof, Ik10 Stainless-Steel Hardware and Multiple Beam Options for Coastal Use

Marine-Grade LED Floodlight for Aquaculture and Fish Farms, 50-1200W, IP68 Waterproof, Ik10 Stainless-Steel Hardware and Multiple Beam Options for Coastal Use

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
LCD-FA-300-LNXX-OS
Power
≥100W
Projection Distance
>35m
Application
Park, Square, Factory, Garden, Fishing Boat, Crane, Marine, Offshore Rig etc
IP Rating
IP68
Certification
CCC, CE, CQC, EMC, Energy Star, ETL, FCC, RoHS, SAA, TUV
Operating Voltage
220-240V
LED Chips Brand
CREE
Beam Angle
8° to 90°, T1, T2, T3
IK Rate
IK09
CCT
2700K-6500K
Lumen Output
90-160lm/W
Product Overview

The FA Series LED Floodlight is an ideal replacement for traditional metal halide and halogen fixtures. Designed for industrial, marine, parking lot, warehouse, street, billboard, building façade, and security lighting, it combines powerful performance, versatile optics, and superior durability to meet the most demanding lighting applications.

Key Features
  • Wide Power Range: From 50W to 1200W, suitable for everything from small spaces to large ports and industrial facilities.
  • Versatile Optics: Over 30 beam angle options (4°, 8°, 15°, 30°, 60°, 90°, 120°, etc.) for precise lighting distribution.
  • Corrosion-Resistant Construction: Die-cast aluminum housing with anodizing and marine-grade powder coating.
  • High Protection Ratings: IP66/IP67/IP68 waterproof design, ideal for harsh environments.
  • Multiple Dimming Options: Compatible with 0-10V, PLC, DALI, and Triac dimming systems.
  • Premium LED Chips: Equipped with Cree, Luxeon, or Bridgelux SMD3030/5050 LEDs for high efficiency.

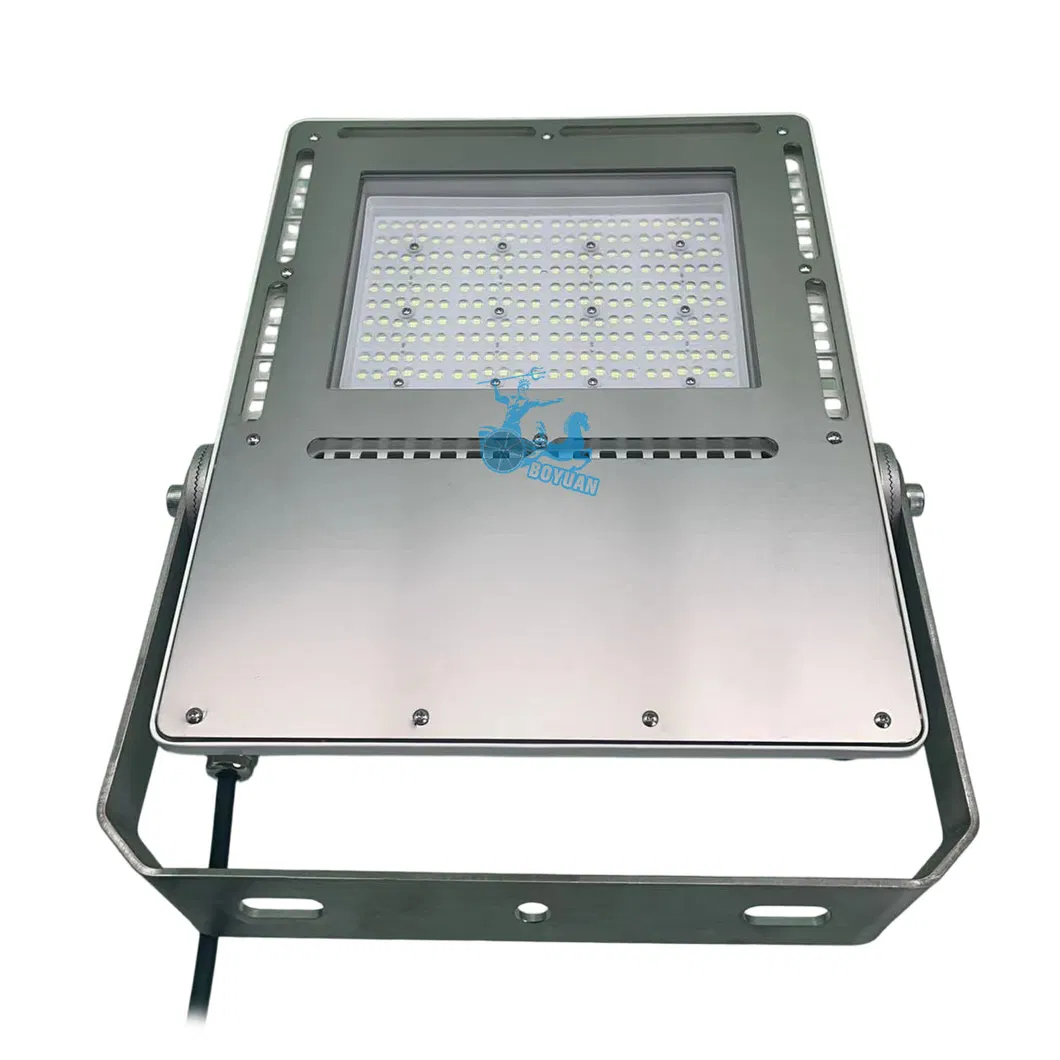

Marine-Grade LED Floodlight

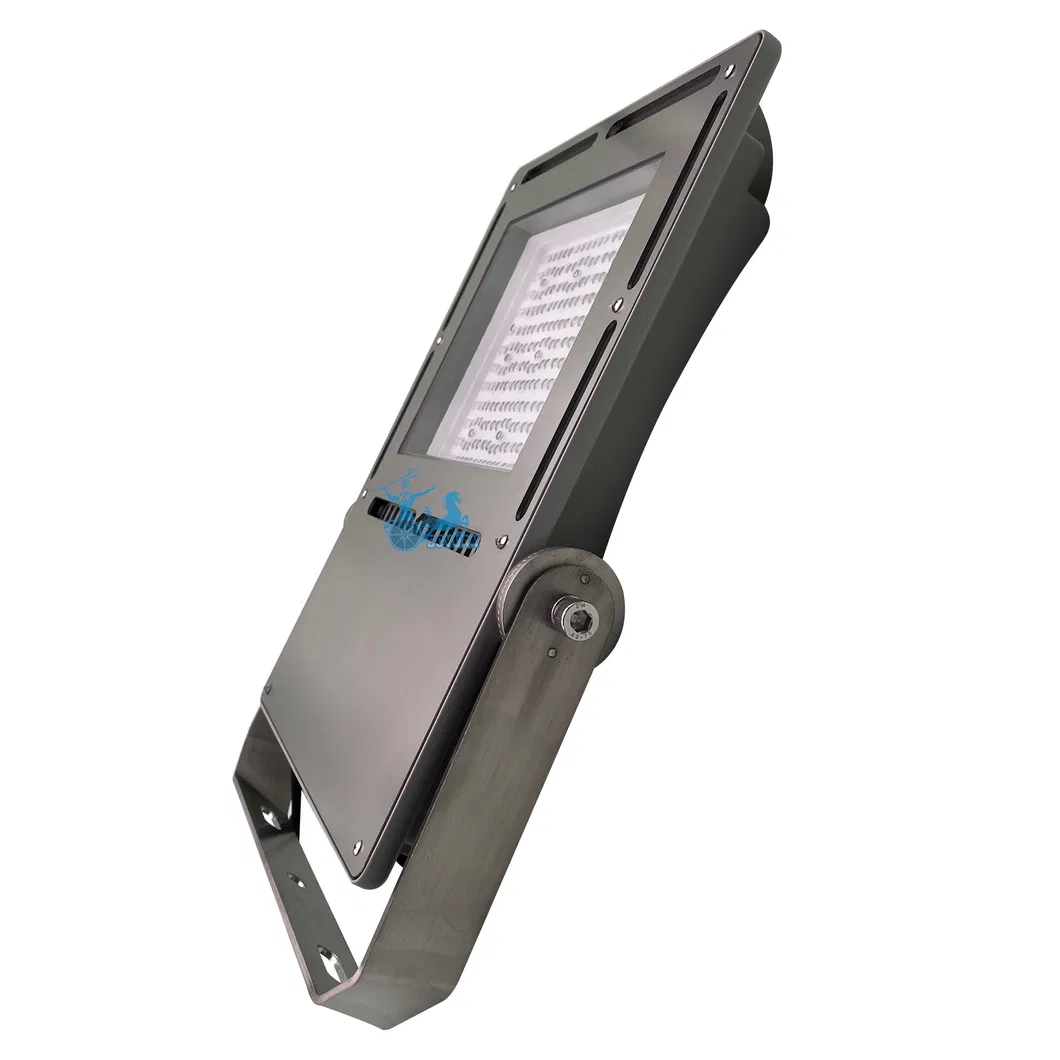

Narrow beam angle searchlight
FA Series Performance: Professional, powerful, energy-saving replacement fixture. SMD 5050 LED technology offers high brightness and high lumen maintenance with 3-4kV surge suppression.

Strong housing made of die-cast aluminum, featuring high heat dissipation and superior aesthetics. Impact resistant IK08 grade and protection rating IP66-IP68. Advanced heat sink design ensures LED does not exceed temperature ratings across all specified ambient conditions.

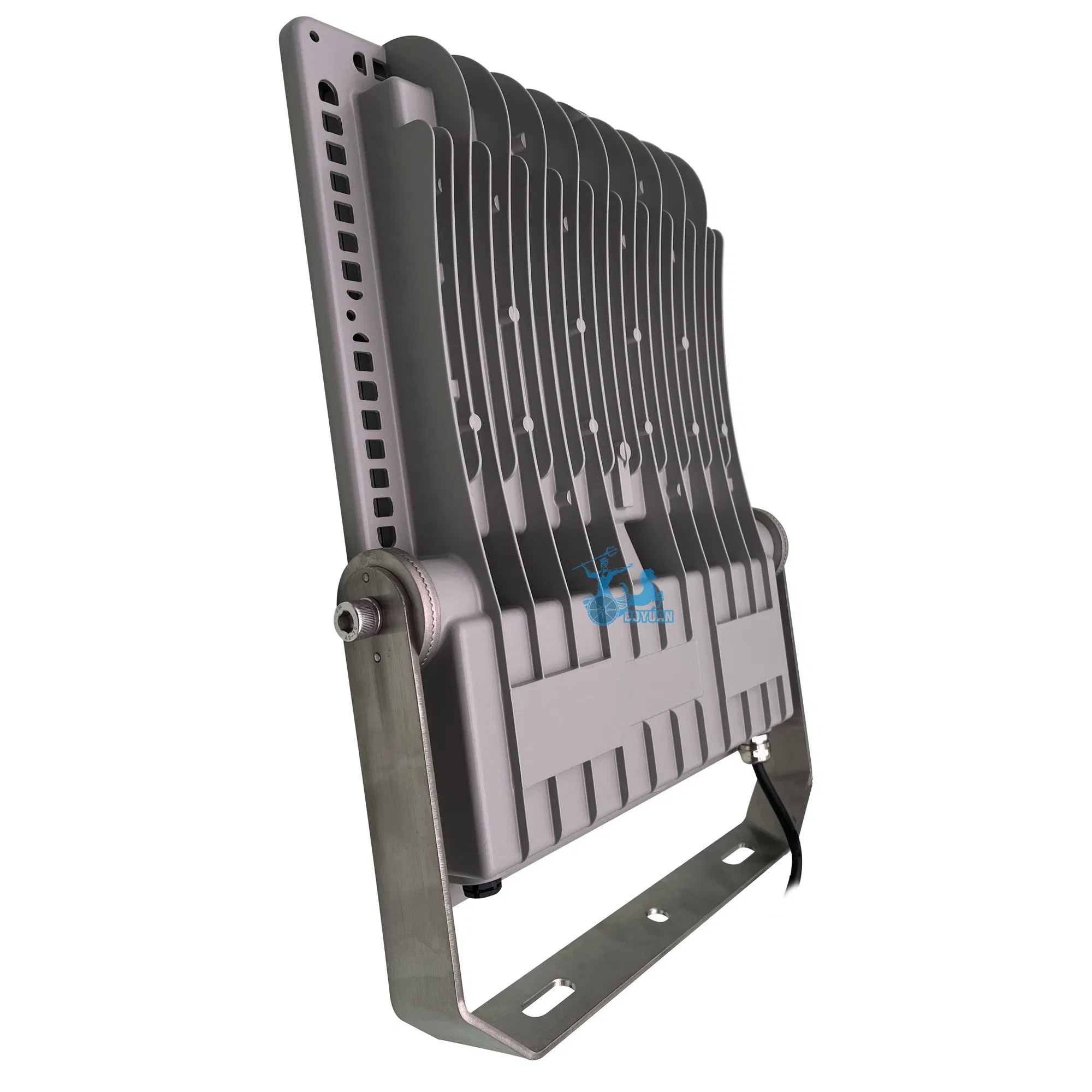

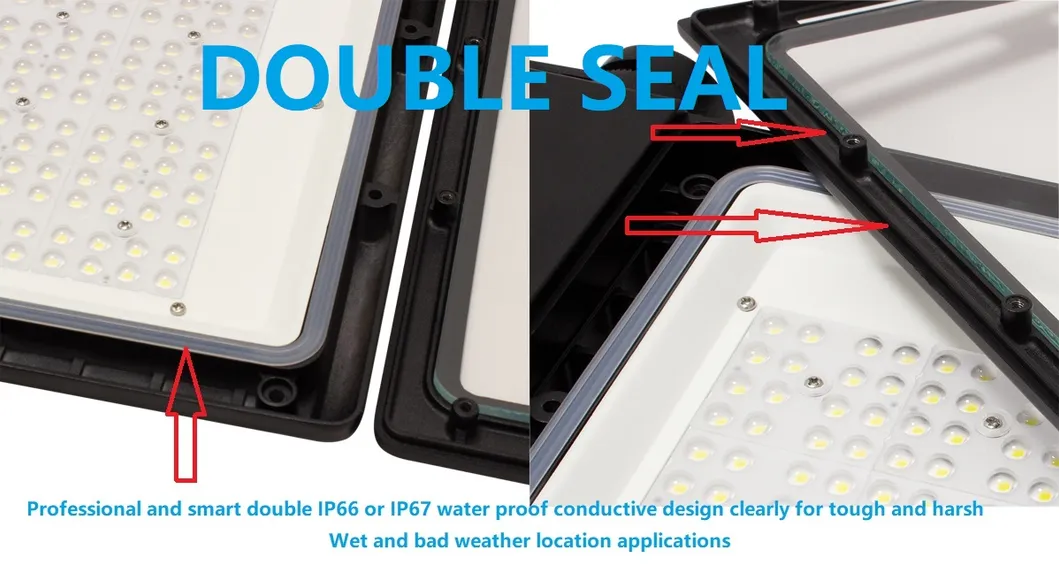

Advanced heat sink design

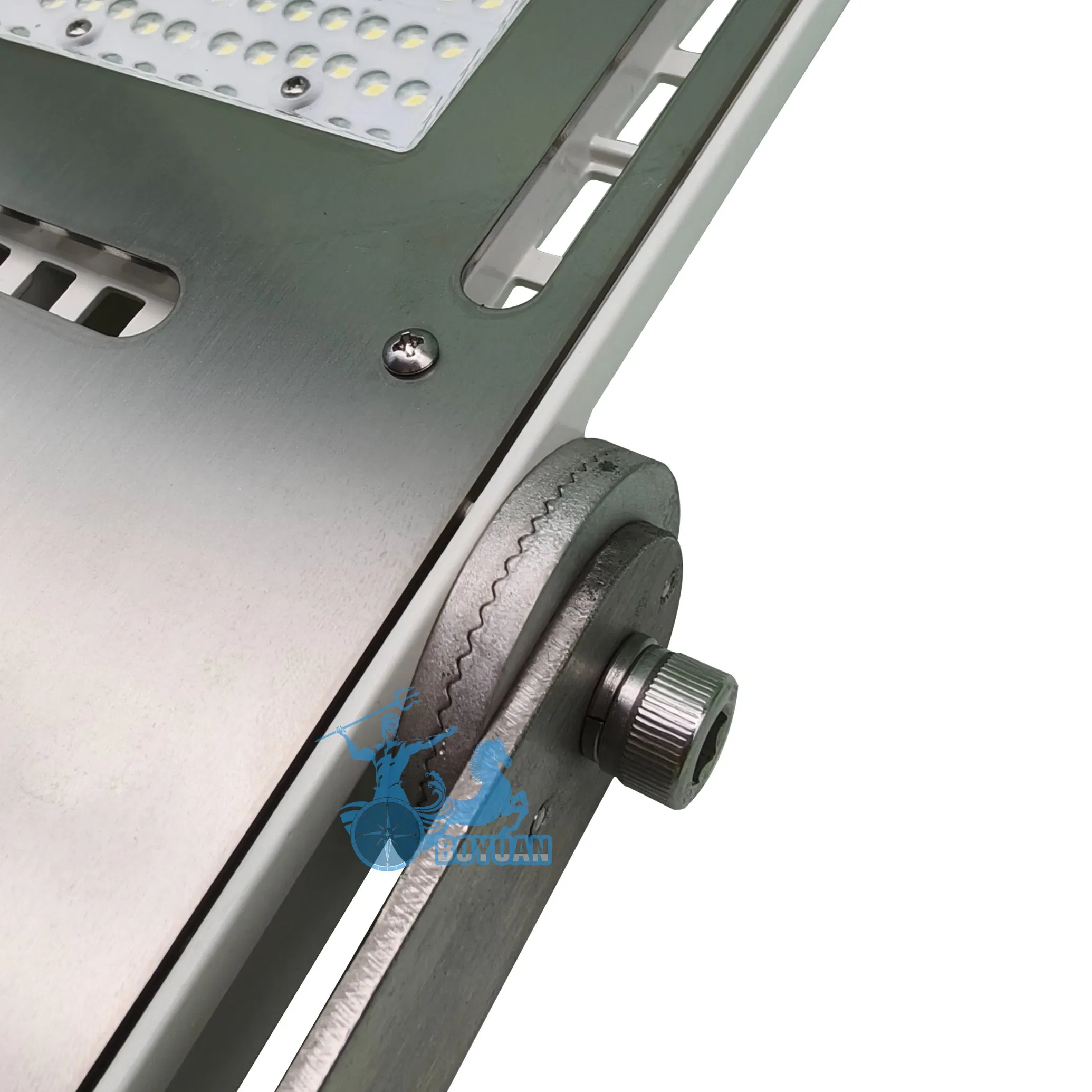

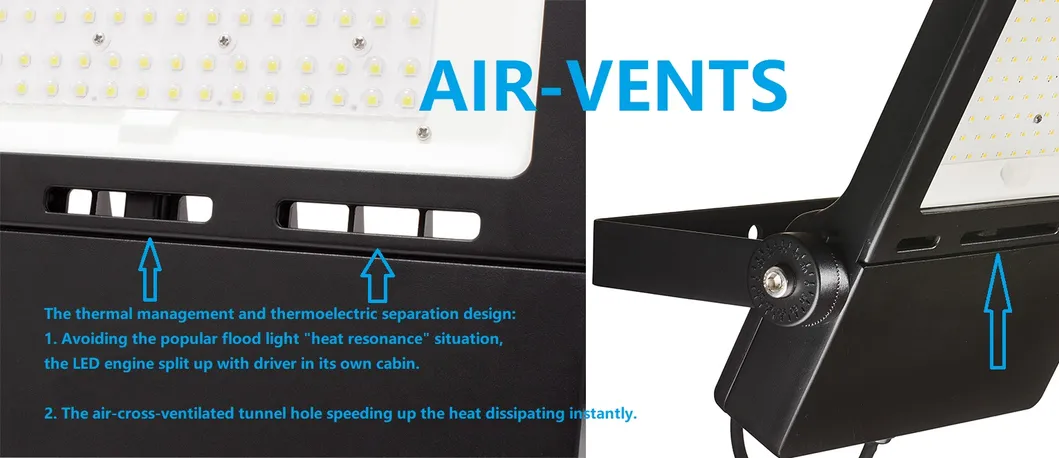

Rugged design details

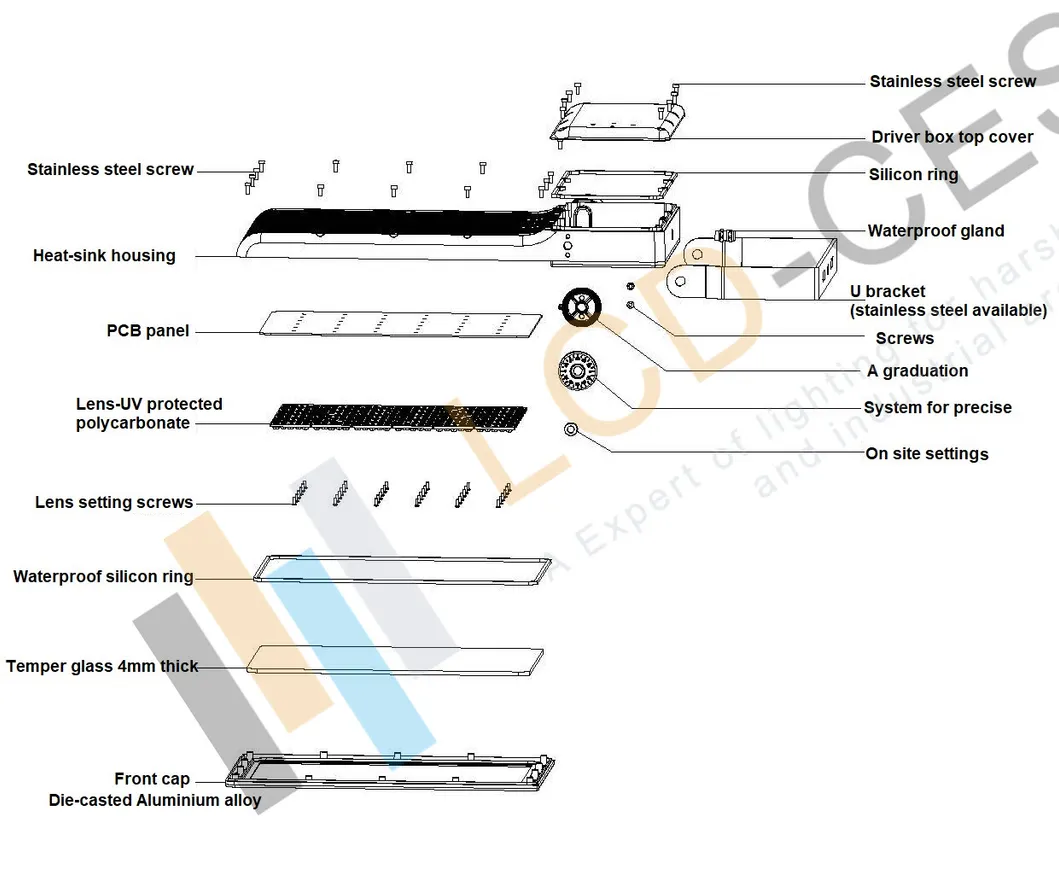

Technical drawing
Technical Specifications
Product Details Specification Category Value
Brightness (lm) 15000lm Power Consumption 100W
LED Quantity 48 Units CRI > 70
Beam Angle 15°, 30°, 60°, 90°, 120° Input Voltage 100-305V AC
Material Tempered Glass, Aluminum Alloy Warranty 5-7 Years
Dimensions & Weight
Item Name Dimensions (AxBxC mm) Weight (KG)
FA-085/105/153 IP67 389.2x296.7x57 3.4
FA-205 IP67 436.6x345.7x57 4.8
FA-305/353 IP67 582x385x60 7.5
Industrial & Marine Applications

Engineered for safety and efficiency in demanding environments including:

  • Fish processing and maritime operations (Crabbing, Trawlers, Seiners)
  • Sea Ports, Airports, and Logistics Hubs
  • Chemical and Industrial Facilities
  • Sports Stadiums and Large Area Plazas
  • Oil & Gas plants and Mining operations

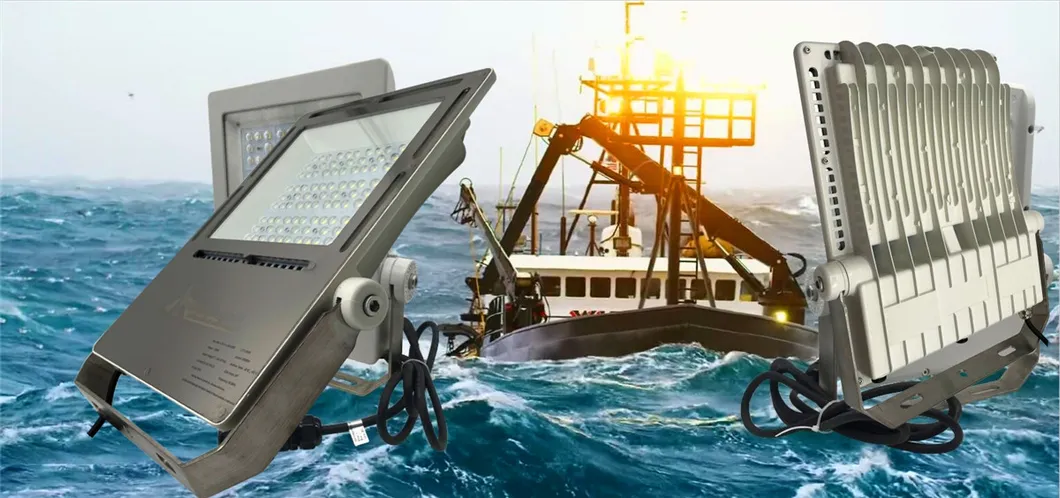

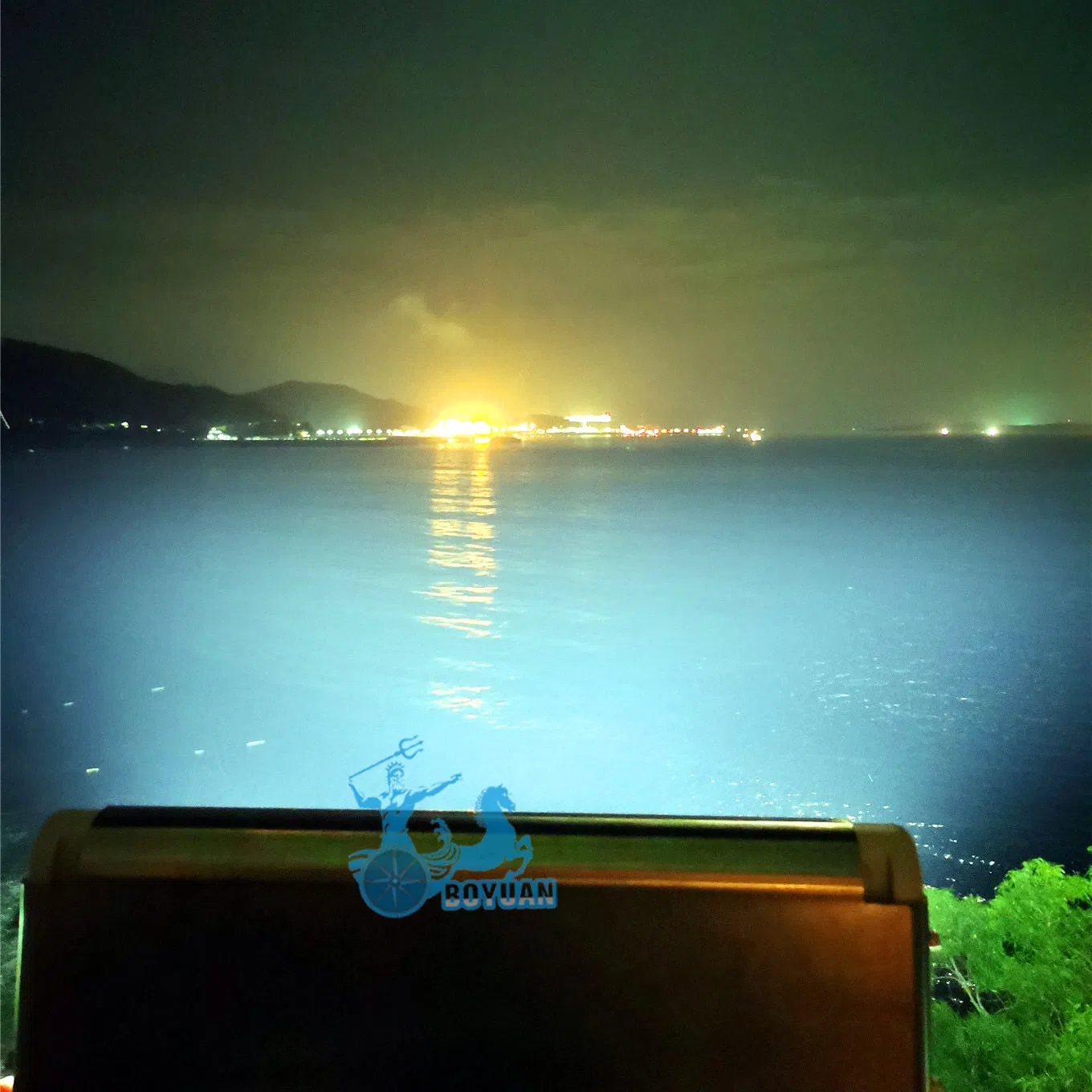

Marine fishing lighting

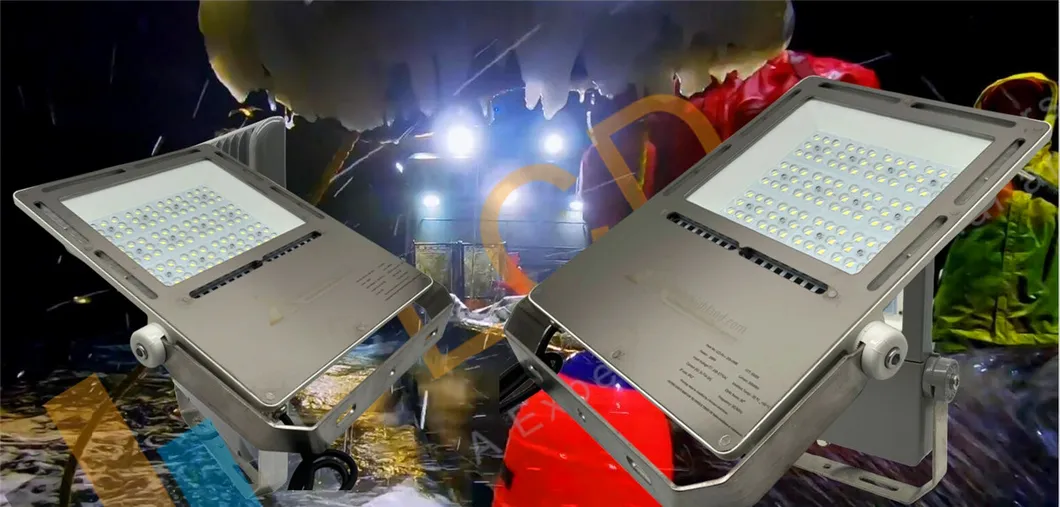

Port lighting application
Product Gallery

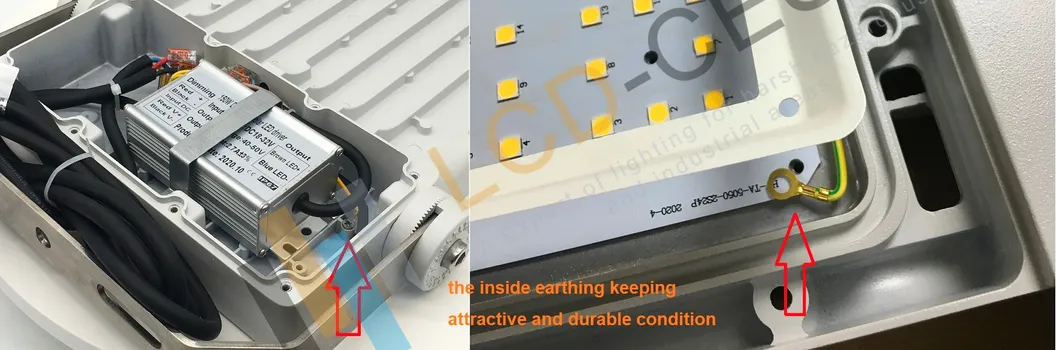

Product variation

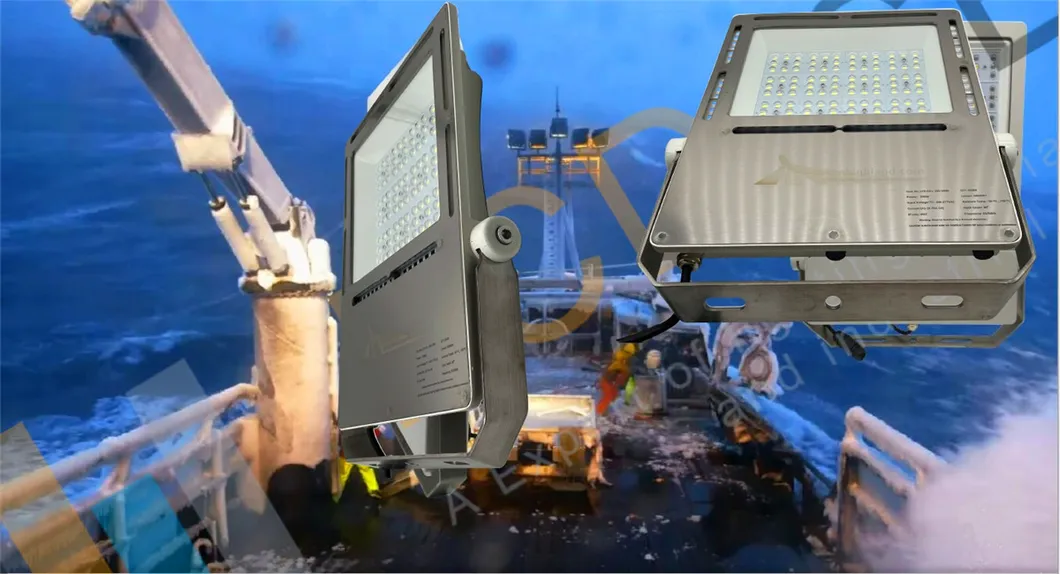

Weight measurement

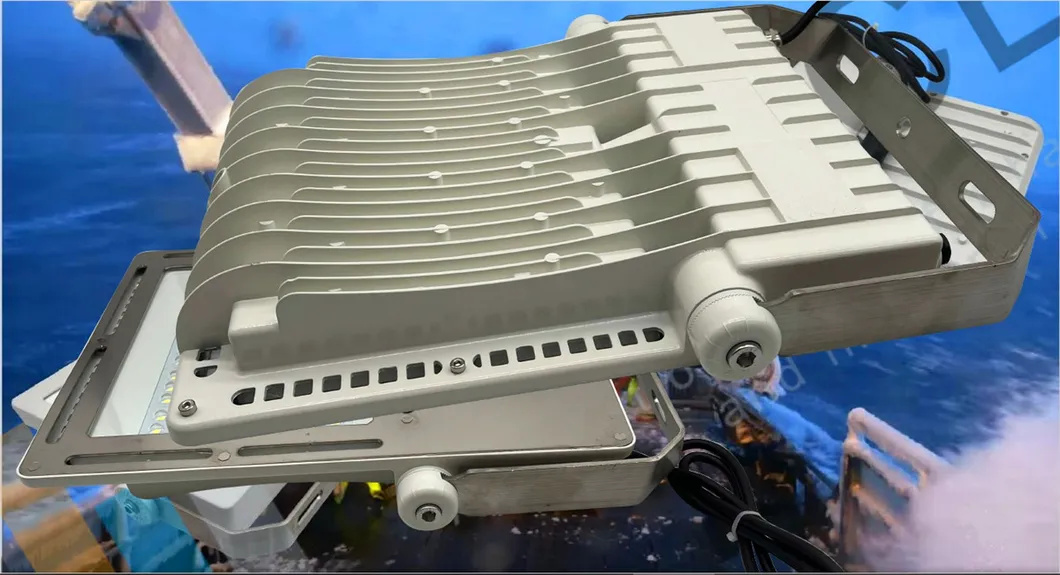

Dimension drawing

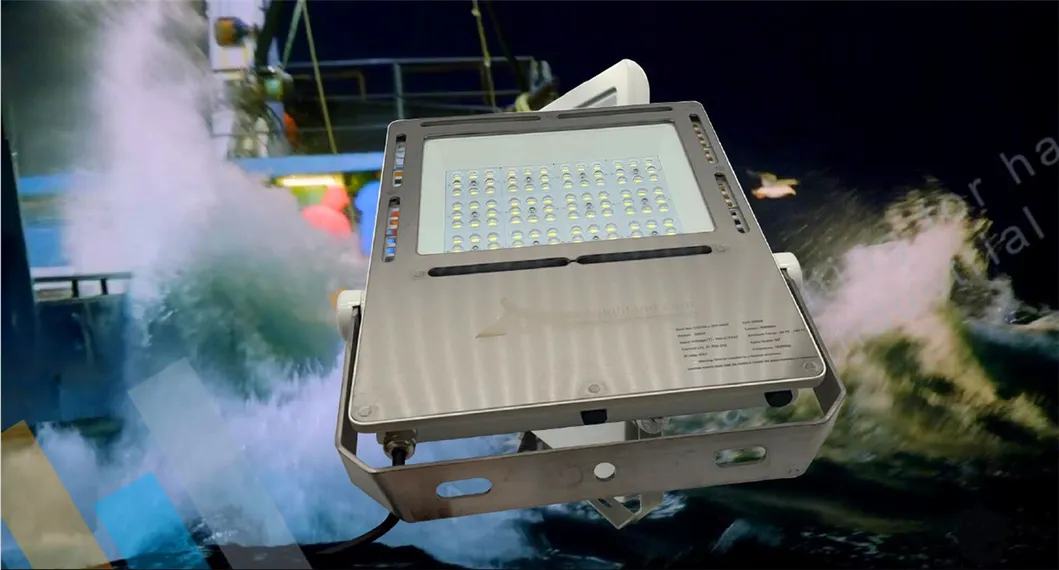

Commercial Floodlights
Stadium floodlights
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional factory established in 2016, operating under ISO9001 quality standards and audited by TUV.
How are shipping costs for LED lights calculated?
Shipping charges are calculated based on the specific products ordered and the destination. We strive to keep logistics costs as low as possible for worldwide delivery.
What are the standard delivery and payment terms?
We support FOB, EXW, CFR, and CIF terms. Payments can be made via T/T, Western Union, or L/C. Delivery usually takes 3-5 days for samples and 7-15 days for bulk orders.
How is the quality of the LED lights guaranteed?
All goods undergo a 100% inspection before shipping. This includes raw material testing, waterproof testing, functional checks, burn-in tests, and final appearance inspections.
Do you provide samples for testing?
Yes, samples are available for purchase. While not free, the sample price is generally aligned with bulk order pricing to support project evaluation.
What is the expected response time for inquiries?
Our team is committed to responding to every professional inquiry within 24 hours.
