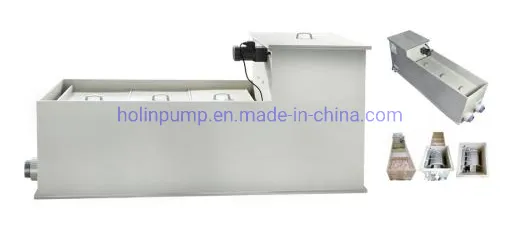

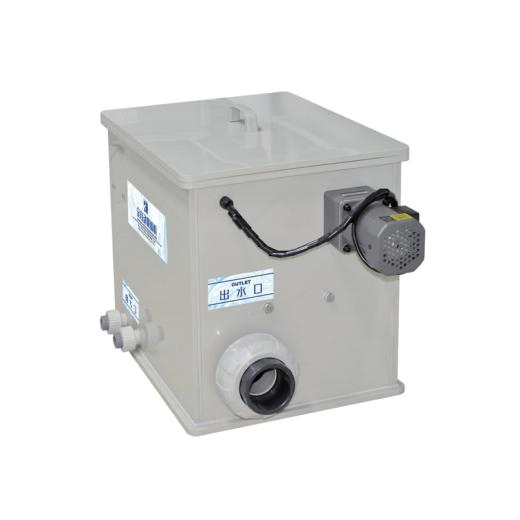

Multiple Chamber Micro Rotating Aquaculture Filter Systems for Koi Ponds

1 / 5

Multiple Chamber Micro Rotating Aquaculture Filter Systems for Koi Ponds

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model:Garden Pond Drum Filter

Application:Aquariums & Water Filtration

Certificate:TUV, SAA, CE, GS

Voltage:110-120V/220-240V, 60Hz-50Hz

Color:Black, Blue or customized

Size:110X67X99 Cm

HS Code:8413709190

Capacity:100,000PCS Per Month

Product Description

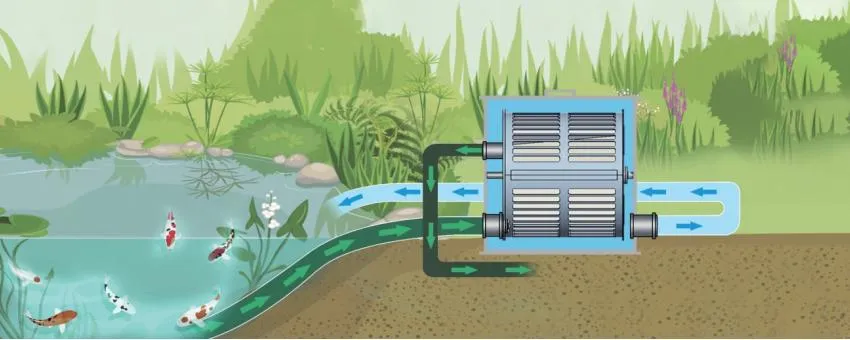

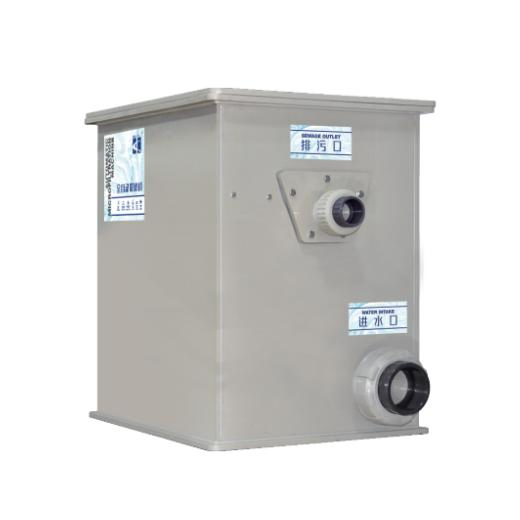

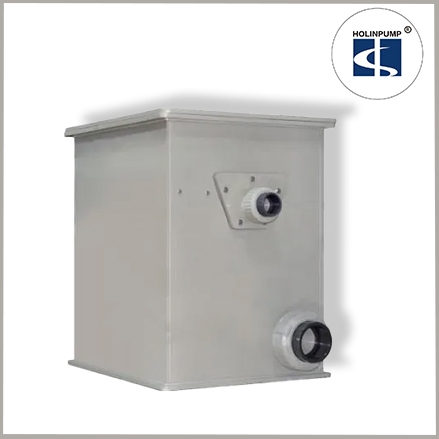

KOI POND FILTRATION SYSTEM

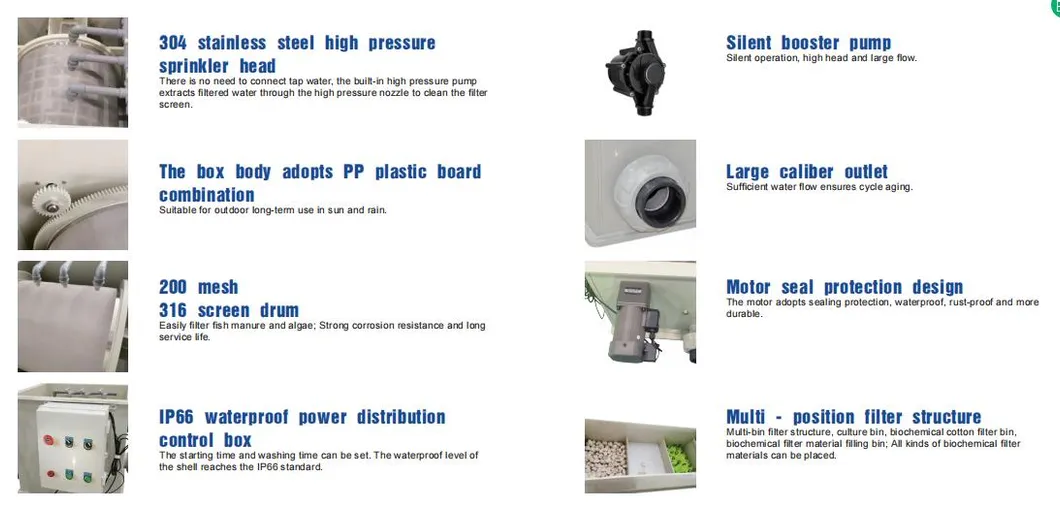

All intelligent box type microfilter is made of non-toxic and corrosion-resistant food grade PP material. It is mainly composed of box assembly, drum assembly, reverse cleaning system, electric control box system and transmission system. The water flow is less than or equal to 10m³/h. The equipment uses food grade environmental protection 316 stainless steel filter as the medium to remove suspended solids (≥50 μm).

The equipment adopts automatic liquid level control. When suspended matter accumulates, causing water permeability to decrease, the rising water level triggers the backwash system. The cleaning pump and drive system start simultaneously, using high-pressure cleaning nozzles to wash sewage into the collecting groove for discharge.

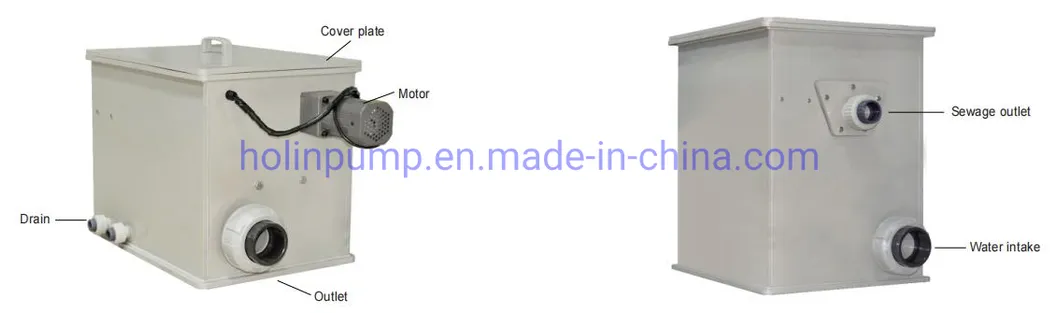

Installation Instructions

The microfilter should be placed in a stable place.

Can be used in pipelines or water tower/pump supplies; valves should be installed to adjust water levels.

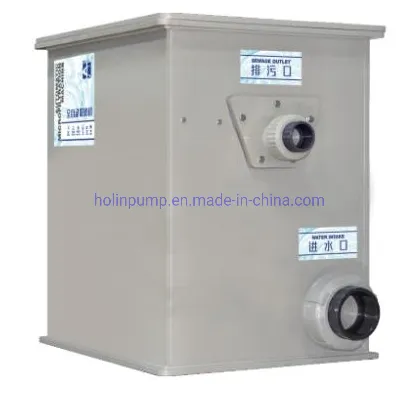

Ensure a high level difference for sewage discharge and filtered water velocity.

Check that the cleaning pump inlet is submerged to avoid idling.

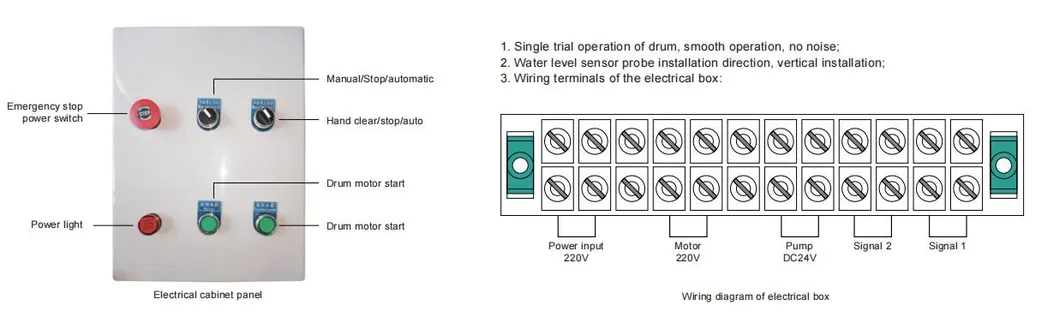

Capacitor connection: Motor has black (zero), white, and red lines. Connect capacitor to red and white.

Drum rotation: Facing the outlet, rotation must be clockwise. Adjust wiring if counterclockwise.

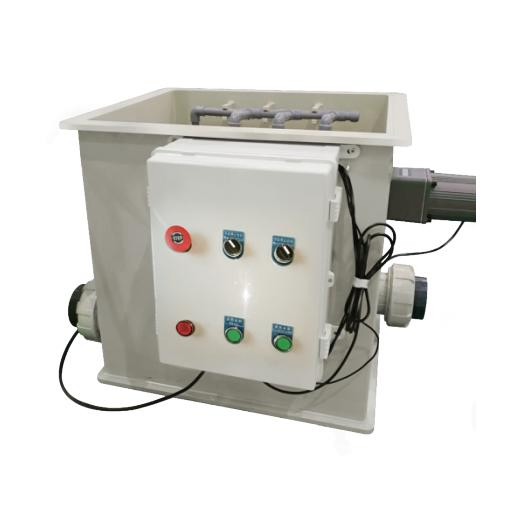

Operation & Features

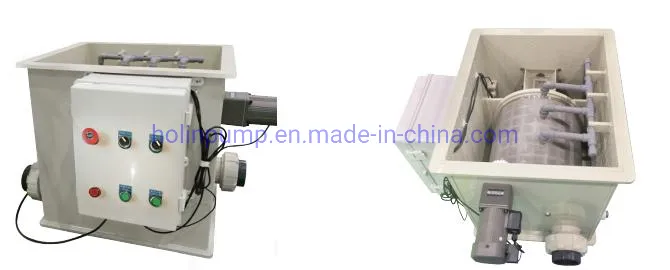

1. Manual Mode: Directly control the backwash pump and drum via switches.
2. Automatic Mode: Controlled by water level float balls. When water reaches the probe, backwashing starts for a set time.
3. Safety: Equipped with an emergency stop switch.

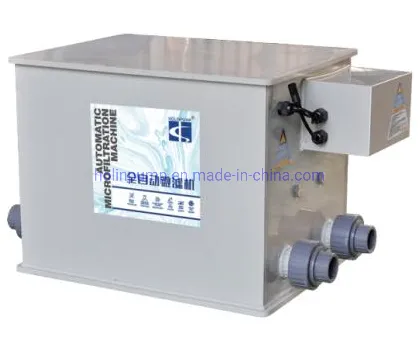

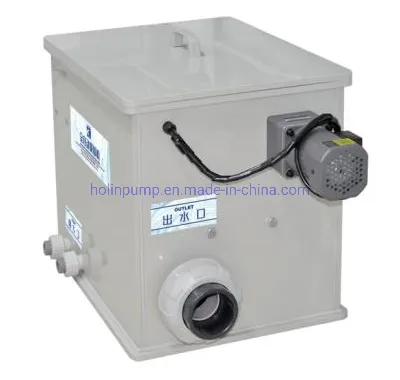

Technical Specifications

Model	Product Size	Inlet (mm)	Outlet (mm)	Drum Diameter	Motor Power	Pump Power
5T	610335340mm	DN25	DN50	Φ250*230mm	40W	40W
10T	870470515mm	DN75	DN32	Φ300*326mm	60W	60W
20T	930590770mm	DN90	DN50	Φ370*376mm	90W	90W
30T	930590770mm	DN90	DN50	Φ370*376mm	90W	90W
50T	1210835820mm	DN110	DN75	Φ500*500mm	90W	90W
60T	1210835820mm	DN110	DN75	Φ500*500mm	90W	90W

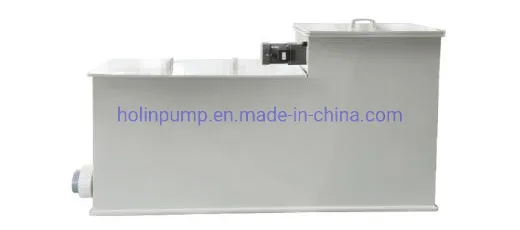

Models with Filter Bin

Model	Product Size	Inlet	Outlet	Drum Size	Motor	Pump
10T+Bin	1760440800mm	DN75	DN32	Φ370*326mm	60W	60W
20T+Bin	2300500570mm	DN90	DN50	Φ370*376mm	60W	40W

Frequently Asked Questions

Q1: What materials are used in the drum filter construction?

The system is constructed from non-toxic, corrosion-resistant food-grade PP material, with a 316 stainless steel filter screen for long-term durability in aquatic environments.

Q2: How does the automatic self-cleaning feature work?

It uses a liquid level sensor. When waste accumulates on the screen, the water level outside the drum rises. Once it hits a trigger point, the system automatically starts the rotation and high-pressure backwash pump to clear the debris.

Q3: What is the filtration accuracy of this system?

The 316 stainless steel mesh is designed to intercept and separate suspended solids and particles as small as 50 μm (microns).

Q4: Is this equipment suitable for outdoor use?

Yes, the PP material box body is designed to withstand outdoor conditions, including sun exposure, rain, and temperature fluctuations, with an expected lifespan of over 10 years.

Q5: What maintenance is required for the cleaning nozzles?

You should check the nozzles regularly. If a nozzle stops spraying, it should be removed and cleared of any debris or replaced to ensure effective backwashing.

Q6: Can the pump run without water?

No, the pump is strictly prohibited from idling in a no-water state. Always ensure the cleaning pump inlet is submerged before operation to prevent damage.
