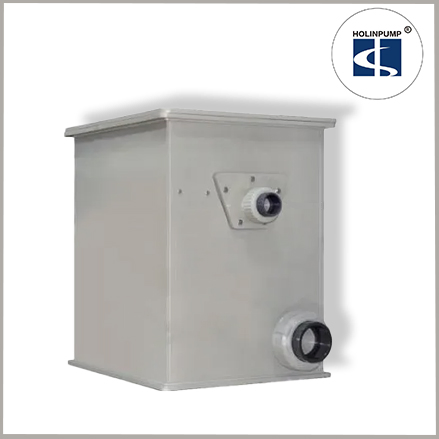

Outdoor Fittings Equipment 3000L/H-16000L/H Koi 304 Stainless Steel Fish Pond Bio Filter

1 / 5

Outdoor Fittings Equipment 3000L/H-16000L/H Koi 304 Stainless Steel Fish Pond Bio Filter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model:Garden Pond Drum Filter

Application:Aquariums & Pond Water

Certificate:TUV, SAA, CE, GS

Voltage:110-120V/220-240V, 60Hz-50Hz

Size:110X67X99 Cm

HS Code:8413709190

Capacity:100,000PCS Per Month

Origin:China

⚙️

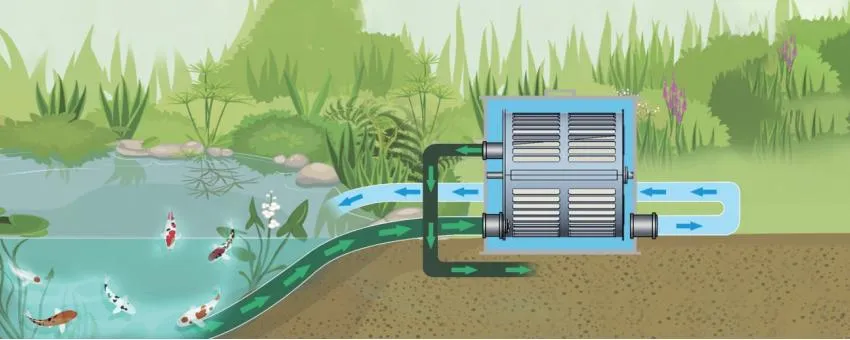

Koi Pond Filtration System

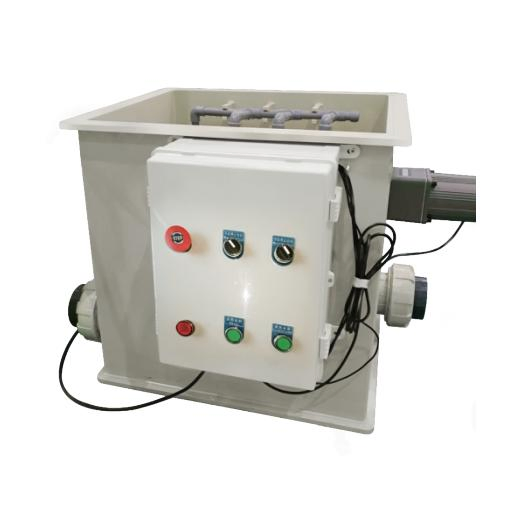

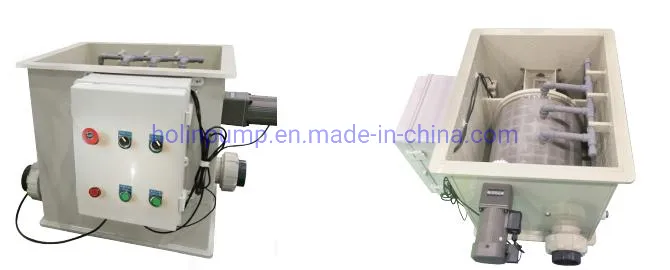

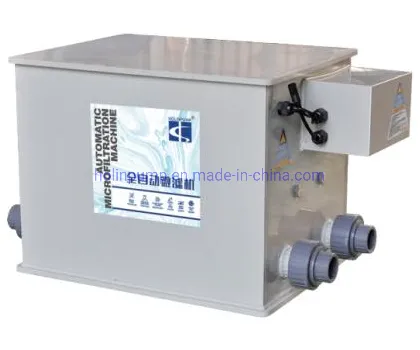

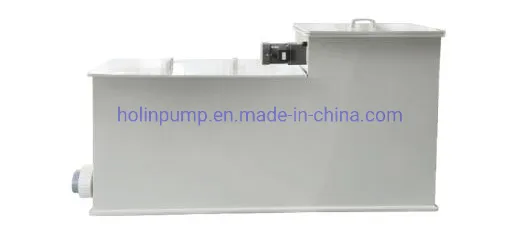

This intelligent box-type microfilter is constructed from non-toxic, corrosion-resistant food-grade PP material. The system integrates a box assembly, drum assembly, reverse cleaning system, electronic control box, and a transmission system. Designed for efficiency, it manages water flows ≤ 10m³/h using a food-grade 316 stainless steel filter to separate suspended solids (≥50 μm).

Smart Control: The equipment utilizes automatic liquid level control. When suspended matter accumulates and restricts water flow, the rising internal water level triggers the high-pressure backwash system, rotating the drum and cleaning the mesh automatically.

🛠️

Technical Guidelines

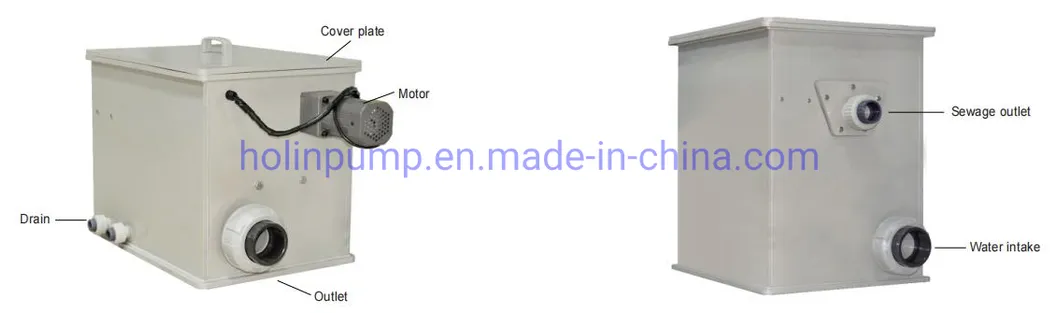

Installation Instructions

Place the microfilter on a stable, level surface.
Adjustable valves should be installed before and after the unit to control water levels.

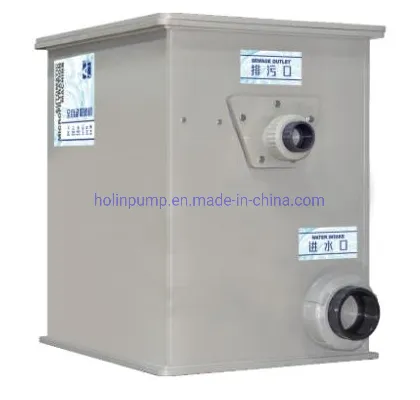

Maintain a height difference for the sewage outlet to ensure timely waste discharge.
Verify the cleaning pump inlet is submerged to prevent dry running.
Ensure the drum rotation is clockwise when facing the outlet.

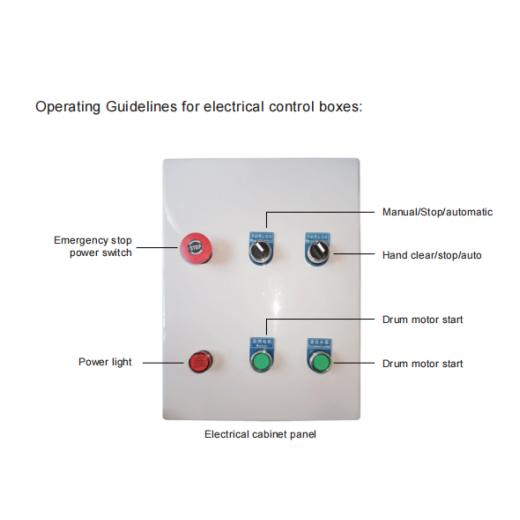

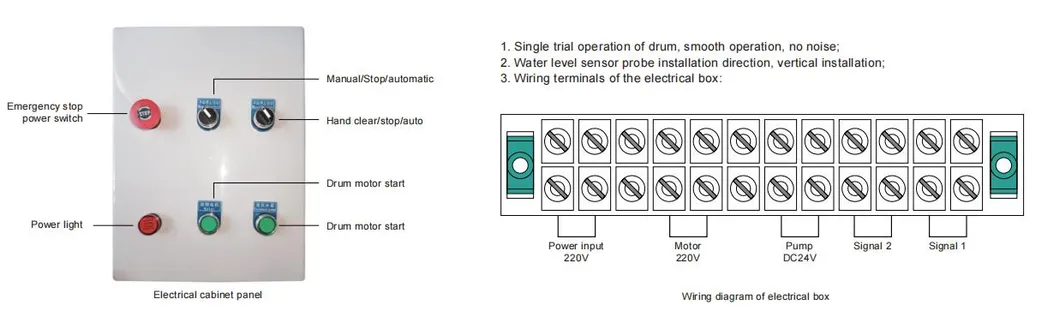

Operation & Modes

Manual Mode: Allows direct control of the backwash pump and drum motor via independent switches.
Automatic Mode: Controlled by a water level float switch. The system triggers backwash cycles based on real-time filtration needs.
Emergency Stop: Dedicated switch provided for immediate system shutdown.

🌟

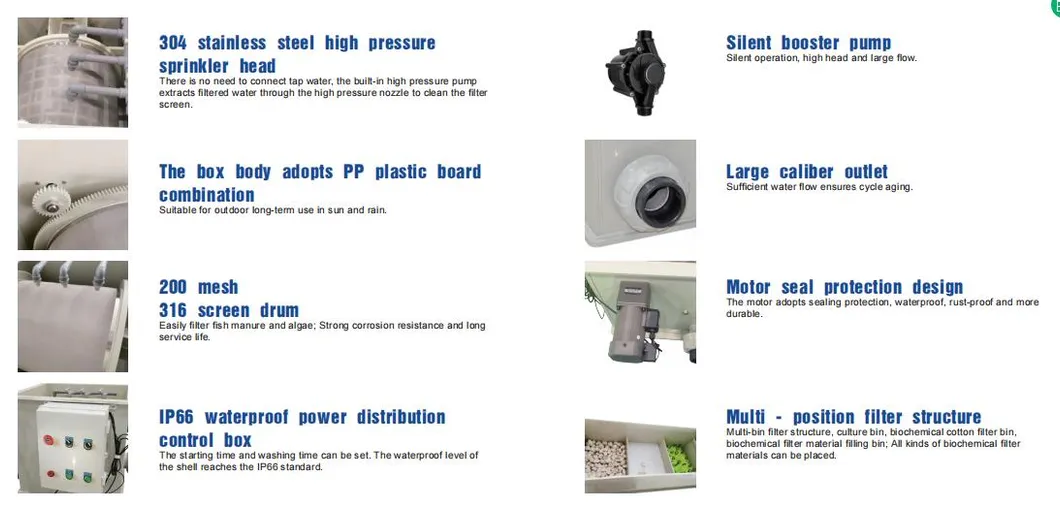

Core Features

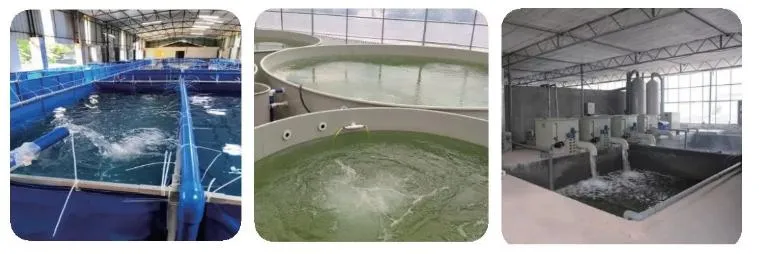

This equipment is optimized for aquaculture, koi ponds, and early-stage sewage treatment. Its robust PP body ensures a service life of over 10 years, even in outdoor conditions involving sun and rain.

Detachable flushable design for easy maintenance.
Inclined bottom prevents sludge buildup and "dead corners".
Biochemical filtration capabilities to establish nitrification systems.
Effective removal of algae, odors, and ambiguous water quality.

📊

Technical Parameters

Compact & Mid-Range Models (5T - 10T)

Model	Product Size	Inlet (mm)	Outlet (mm)	Drum Diameter	Motor Power	Pump Power
5T	610335340mm	DN25	DN50	Φ250*230mm	40W	40W
10T	870470515mm	DN75	DN32	Φ300*326mm	60W	60W

High-Capacity Models (20T - 60T)

Model	Product Size	Inlet (mm)	Outlet (mm)	Drum Diameter	Motor Power	Pump Power
20T	930590770mm	DN90	DN50	Φ370*376mm	90W	90W
30T	930590770mm	DN90	DN50	Φ370*376mm	90W	90W
50T	1210835820mm	DN110	DN75	Φ500*500mm	90W	90W
60T	1210835820mm	DN110	DN75	Φ500*500mm	90W	90W

❓

Frequently Asked Questions

Q1: What size particles can the 316 stainless steel filter remove? The system is designed to separate suspended solids in water that are ≥50 μm in size.

Q2: How does the automatic backwash system work? The equipment uses a water level probe. When waste clogs the filter and the water level rises to a set point, the system automatically starts the high-pressure cleaning pump and drum motor to flush away impurities.

Q3: Can the microfilter be used outdoors? Yes, the structure is made of UV-resistant PP material, designed for long-term outdoor use, though it is recommended to avoid extreme icing or sub-zero temperatures below -5°C.

Q4: What should I check if the nozzle is not spraying water? Regularly check the nozzle for blockages. If it stops spraying, remove the nozzle to clear debris from the hole or replace it with a new one if necessary.

Q5: Is the material safe for fish and aquatic life? Absolutely. The system is built using non-toxic food-grade PP material and 316 stainless steel, ensuring a safe environment for koi and other aquaculture species.

Q6: What is the expected lifespan of the equipment? The overall structure adopts a durable PP box body with an expected lifespan of more than 10 years under normal operation.
