💡 Basic Information
Model NO.2120S / 2160S
Power18W
IP RatingIP67
ApplicationSquare, Garden, Parking Lot
CertificationCE, EMC, LVD, RoHS
Input Voltage110V (Multi-range compatible)
Light SourceWith Light Source
LED Chips BrandNichia / CREE
ShapeSquare
Body MaterialADC 12# Die-casting Aluminum
Front Cover316L Stainless Steel (SUS)
IK RatingIK10

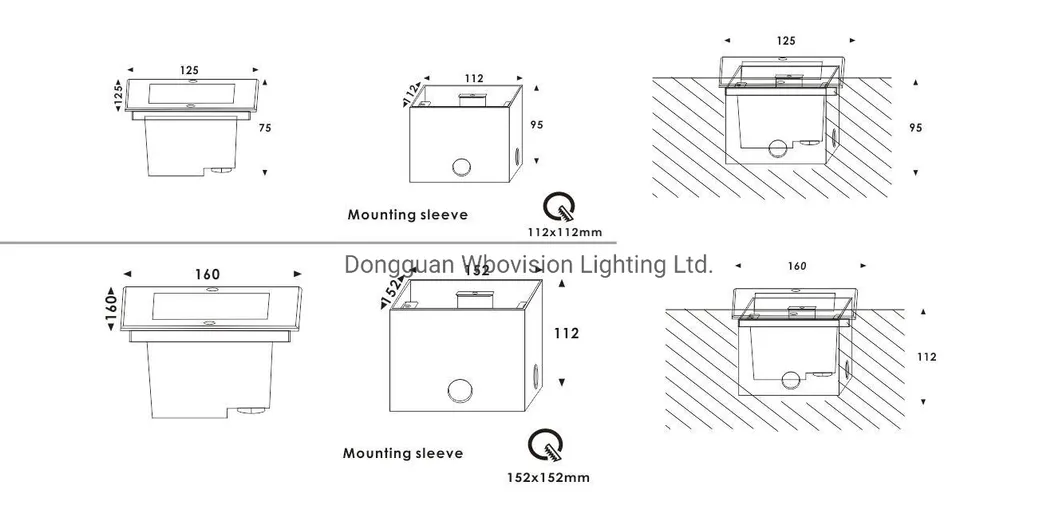

Specification160/120/68mm
Capacity6000 pieces/Month
🛠️ Product Performance Features
🎨
Premium Design: Independent intellectual property design combines elegance, fashion, and art with a strong industrial style. Integrated thermal design guarantees extended working lifespan.
🛡️
Durable Protection: 4mm ultra-clear tempered glass cover ensures high luminous efficacy (90-95%), color accuracy, and excellent impact/rub resistance.
🌊
Corrosion Resistance: ADC 12# aluminum housing with Tiger powder coating. Passed over 1000 hours salt spray tests, suitable for high-humidity and seaside environments.
✨
High-End Optics: Utilizes international brand CREE LEDs for high lumen output, photochromic consistency, and CRI > 80Ra (90Ra available).
⚙️
Stability: International brand component driving modules guarantee luminous stability and low breakdown probability. Supports DMX512, 1-10V, DALI, TRIAC, or PWM dimming.

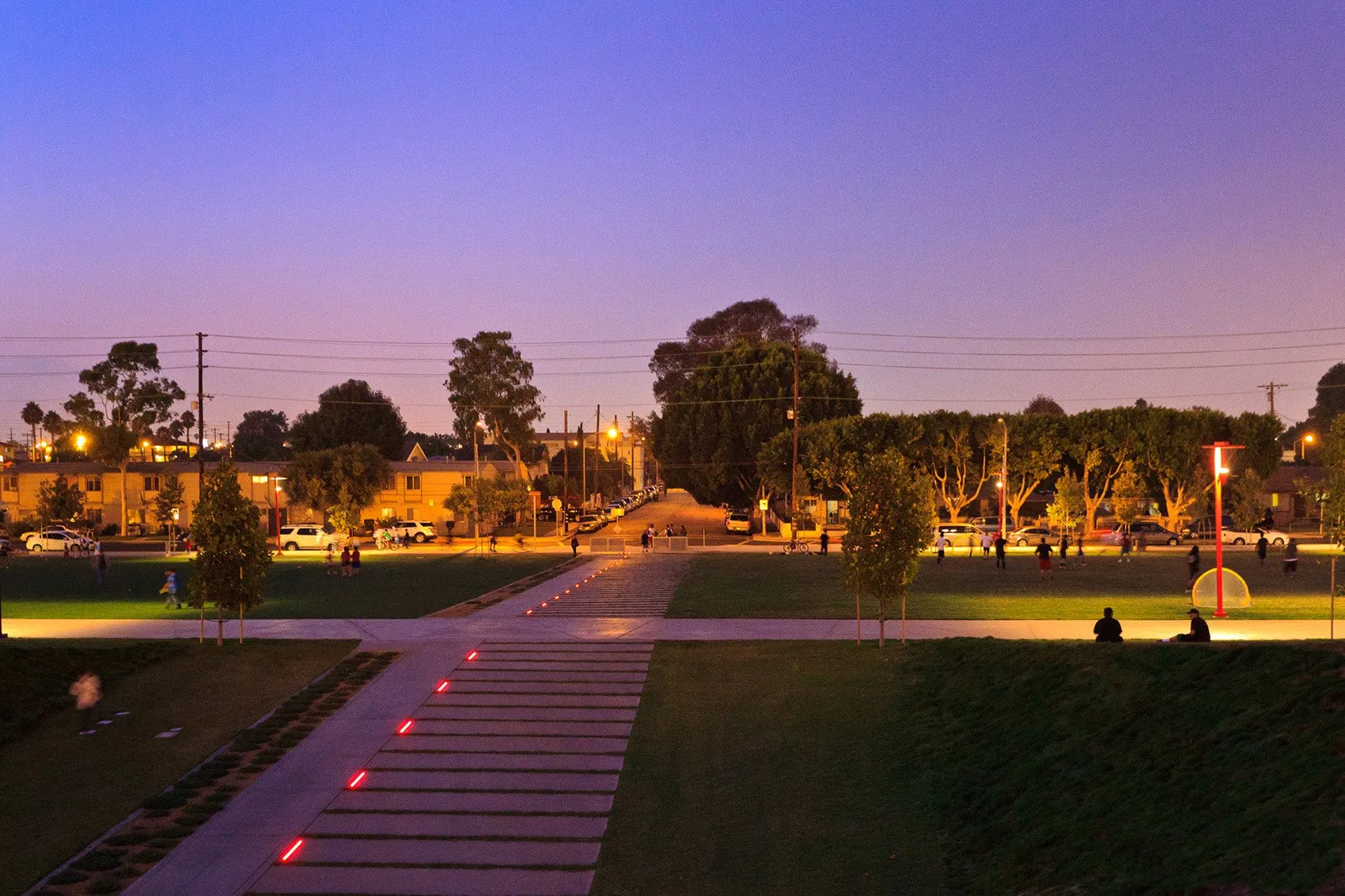

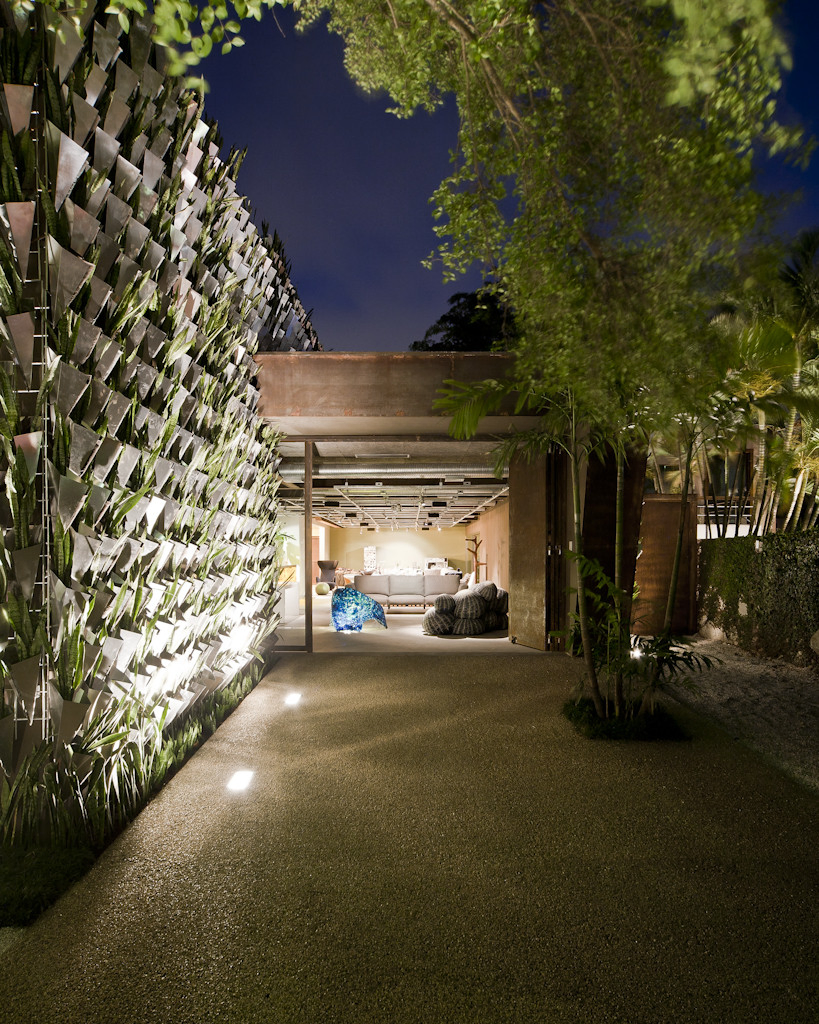

🏗️ Applications
Ambience lighting for bars and dance halls.
Billboard, factory, hotel, and building exterior walls.
Landscaping, wall washing for plazas, bridges, stages, and clubs.
📊 Technical Specifications
| Item No. |
LED Chip |
Voltage |
LED Color |
Dimming Control |
| 2120S |
CREE LED |
24VDC / 100-240VAC |
1800-7000K / RGB 3IN1 / RGBW |
0-10V / DALI / TRIAC / DMX512 |
| 2160S |
CREE LED |
24VDC / 100-240VAC |
1800-7000K / RGB 3IN1 / RGBW |
0-10V / DALI / TRIAC / DMX512 |

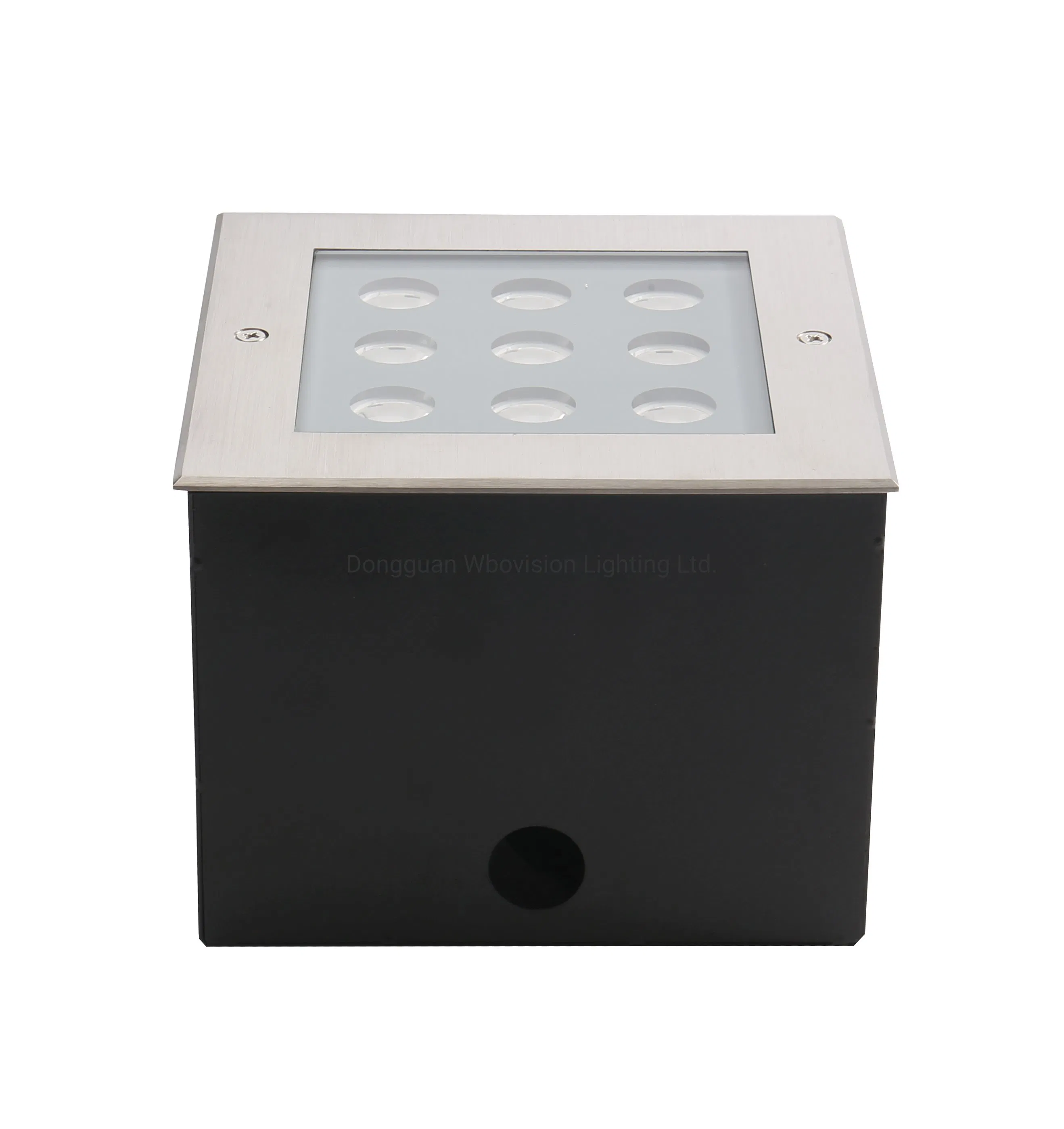

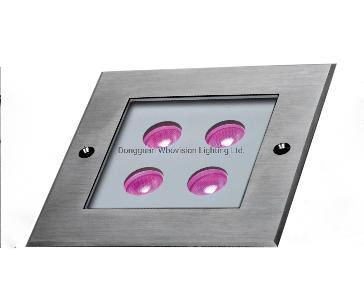

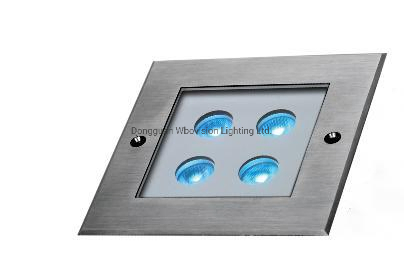

📸 Product Display
❓ Frequently Asked Questions
What is the waterproof and impact rating for this light?
The product features an IP67 waterproof rating and an IK10 impact resistance rating, making it highly durable for outdoor ground installation.
Is this light suitable for use near the ocean?

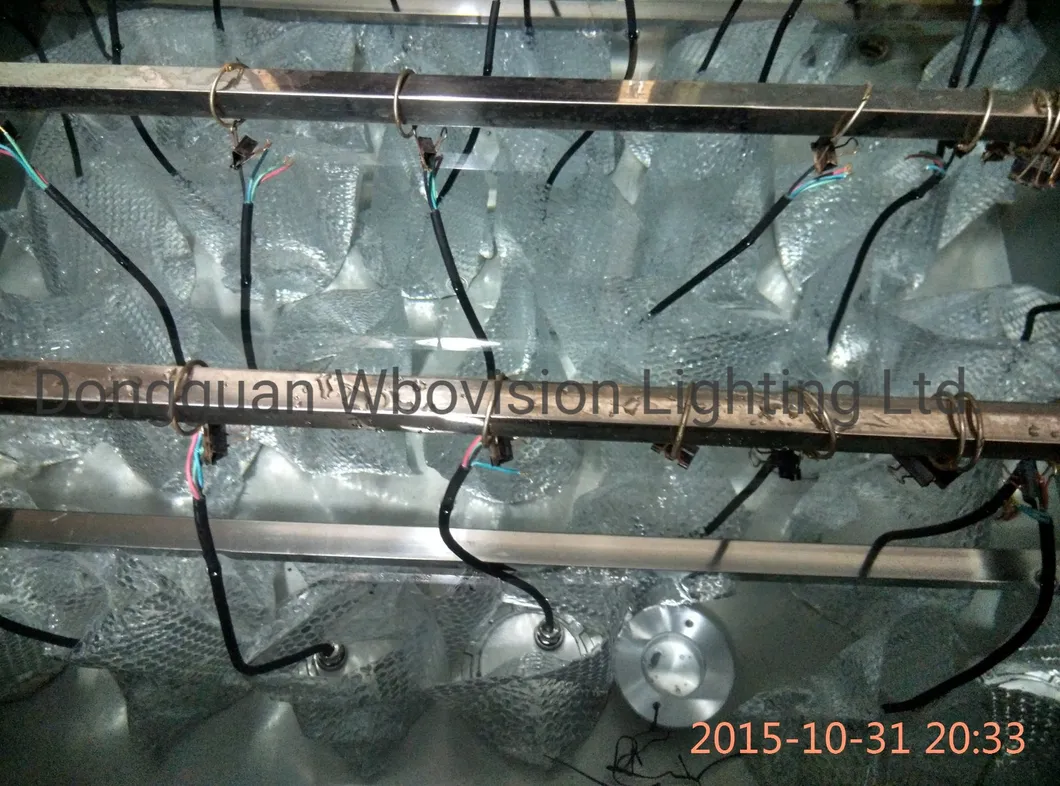

Yes. The ADC 12# aluminum housing is treated with a Tiger powder coating and has passed over 1000 hours of salt spray testing, ensuring excellent performance in seaside or high-alkaline environments.
What kind of dimming controls are supported?
The lighting system supports multiple dimming protocols including DMX512, 1-10V, DALI, TRIAC, and PWM, allowing for smooth and soft light adjustment.
What are the main materials used in the construction?
It is constructed with high-strength ADC 12# die-casting aluminum for the body, 316L stainless steel for the front cover, and 4mm ultra-clear tempered glass.
What is the luminous efficiency of the glass cover?
The 4mm strengthened tempered glass cover provides a high luminous efficacy between 90-95%, ensuring maximum brightness and light clarity.
Can I choose different color temperatures or RGB options?
Absolutely. We offer a wide range of color temperatures from 1800K to 7000K, as well as RGB 3-in-1 and RGBW options for colorful architectural lighting.
